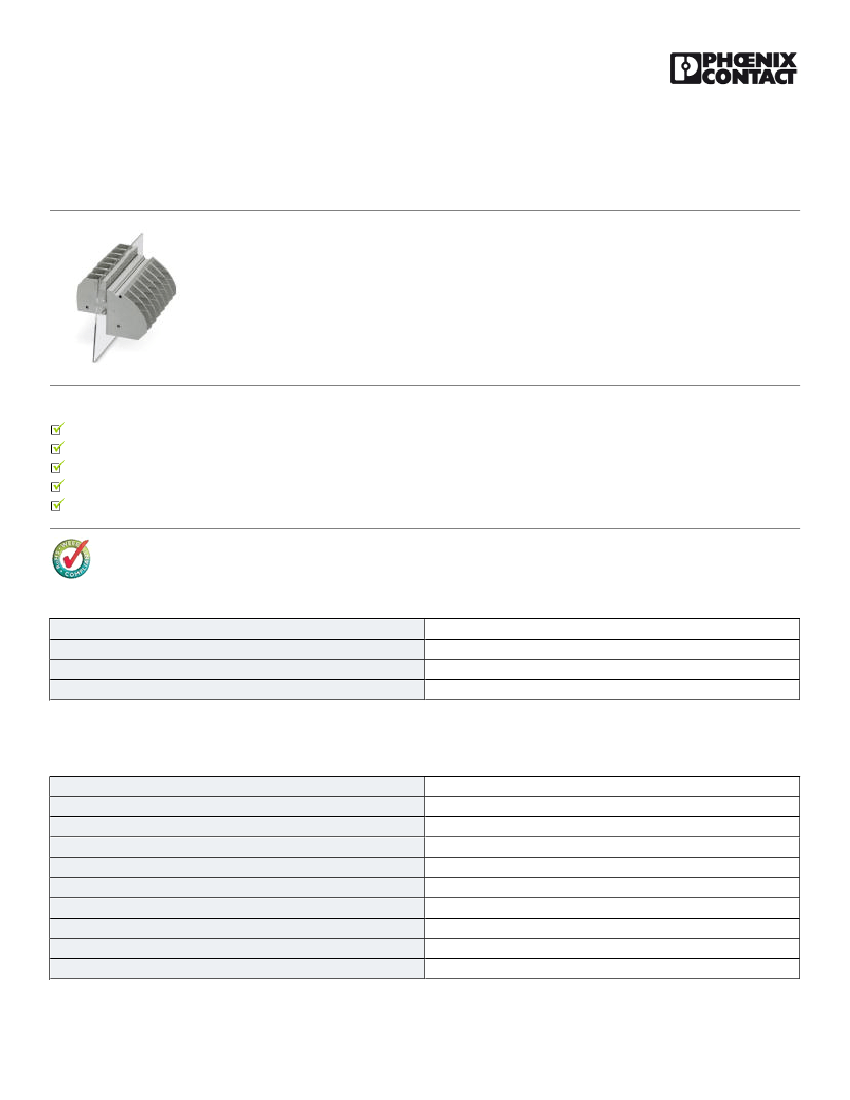

Panel feed-through terminal block - RWOV 8-POT - 3056336
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Panel feed-through terminal block, Connection method: Bolt connection, Load current : 125 A, Cross section: 2.5
mm² - 35 mm², AWG 14 - 2, Connection direction of the conductor to plug-in direction: 90 °, Width: 20.3 mm,
Color: gray
Product Features
Easy grouping with engagement pin versions
Both terminal halves can be easily assembled by simply snapping them together
Molded versions ensure maximum tightness of seal
Spring-loaded spacers protect the bolt connection against loosening
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
80.0 GRM
85369010
China
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
1
2
gray
PA
V0
125 A
6 kV
3
III
I
20.11.2013 Page 1 / 4
https://www.phoenixcontact.com/us/products/3056336
Panel feed-through terminal block - RWOV 8-POT - 3056336
Technical data
General
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
IEC 60947-7-1
125 A
1000 V
nein
1
Dimensions
Width
20.3 mm
Connection data
Note
Connection side
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Screw thread
Tightening torque, min
Tightening torque max
Connection bolts
Level 1 above 1 below 1
Bolt connection
2.5 mm²
35 mm²
2.5 mm²
35 mm²
14
2
M8
4.5 Nm
5 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141111
27141111
27141134
27141134
27141134
27141134
27141134
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001283
EC001283
EC001283
20.11.2013 Page 2 / 4
https://www.phoenixcontact.com/us/products/3056336
Panel feed-through terminal block - RWOV 8-POT - 3056336
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Accessories
Accessories
Flange
Flange cover - RWV 8-F - 3075333
Flange cover, Color: gray
Screwdriver tools
Screwdriver - SZS 1,0X6,5 VDE - 1205079
Screwdriver, slot-headed, VDE insulated, size: 1.0 x 6.5 x 150 mm, 2-component grip, with non-slip grip
Terminal marking
Marker for terminal blocks - TMT (EX9,5)R - 0828295
Marker for terminal blocks, Roll, white, Unlabeled, Can be labeled with: THERMOMARK ROLL, THERMOMARK X,
THERMOMARK S1.1, Mounting type: Snap into universal marker groove, Snap into flat marker groove, Lettering field:
9.5 x 50000 mm
20.11.2013 Page 3 / 4
https://www.phoenixcontact.com/us/products/3056336
Panel feed-through terminal block - RWOV 8-POT - 3056336
Accessories
Zack marker strip - ZB 20,3:UNPRINTED - 0820248
Zack marker strip, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Snap into tall marker groove, For
terminal block width: 20.3 mm, Lettering field: 10.5 x 20.25 mm
Zack marker strip - ZB 16,3:UNPRINTED - 0820222
Zack marker strip, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Snap into tall marker groove, For
terminal block width: 16.3 mm, Lettering field: 10.5 x 16.25 mm
Drawings

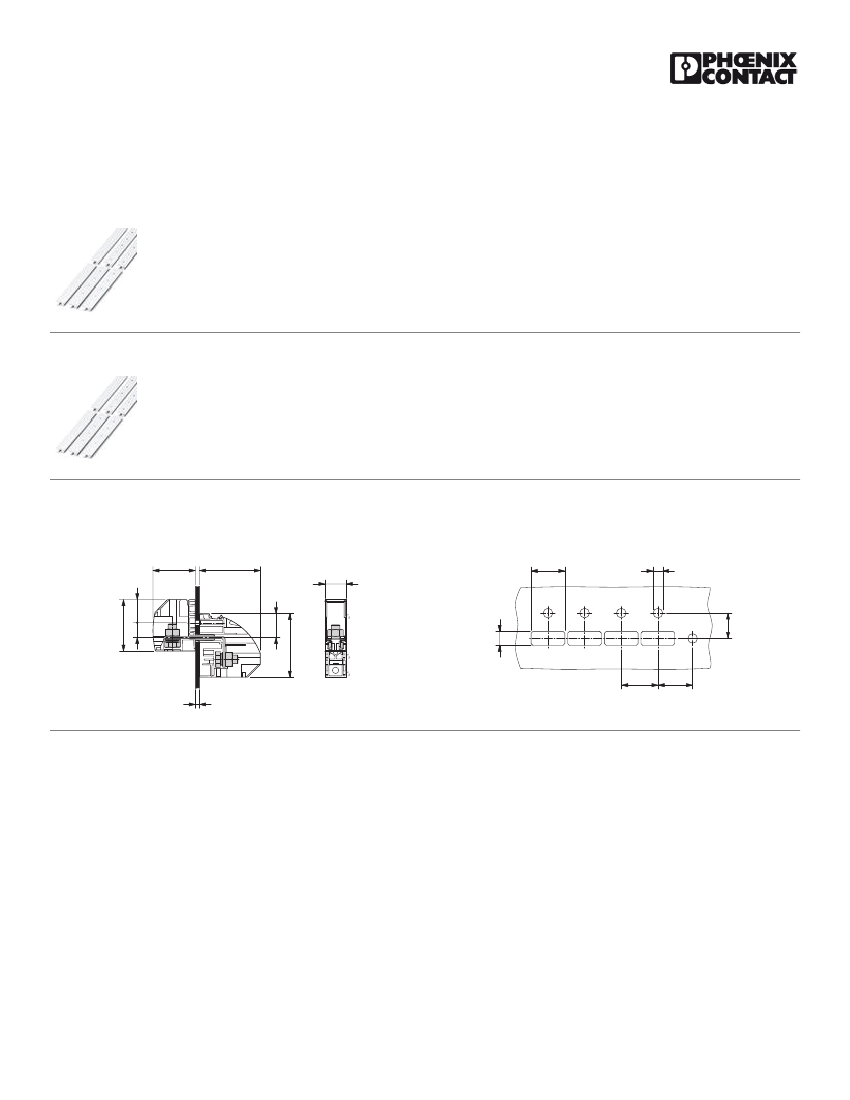

Dimensioned drawing
39,9
57,4
20,3
14 20,2
Dimensioned drawing
18,7
Ø5,3
46,9
22,6
60
7,8
20,3
19,25*
1-6
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
20.11.2013 Page 4 / 4
