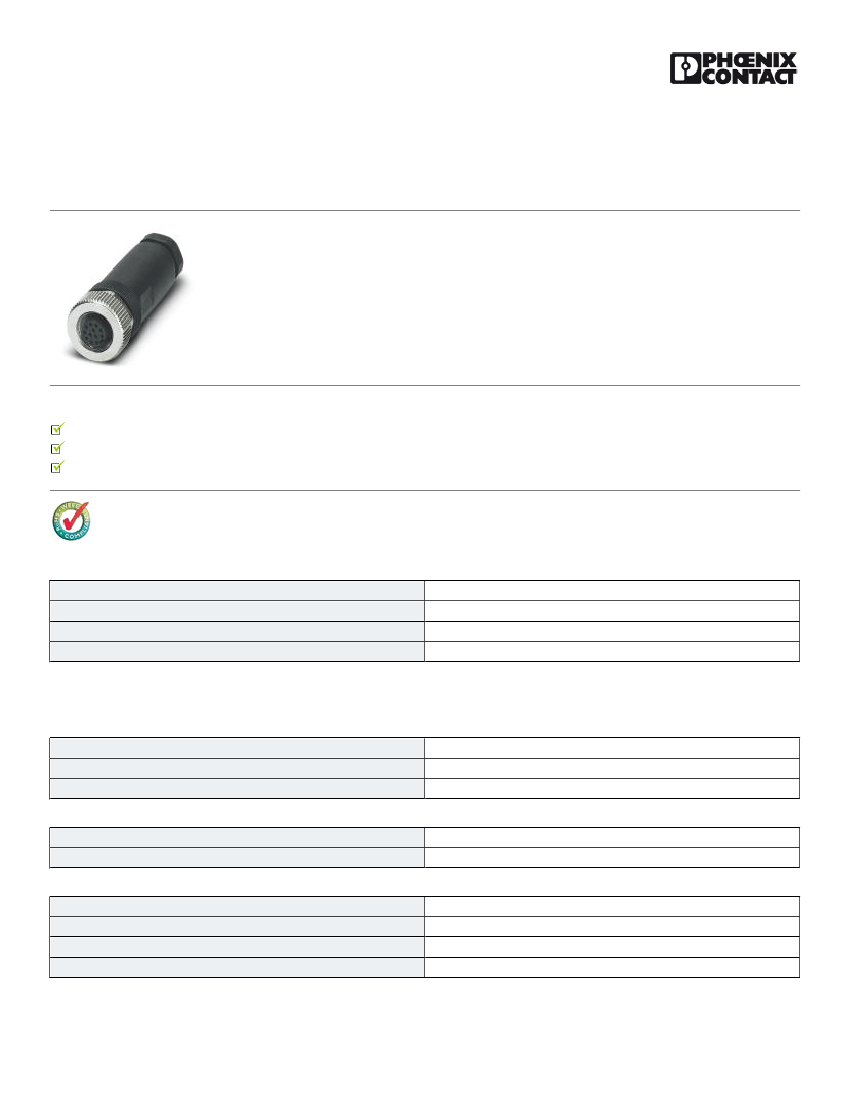

Connector - SACC-M12FS-12SOL-PG 9-M - 1404420
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Connector, Universal, 12-position, Socket straight M12, A-coded, Solder connection, Knurl material: Zinc die-cast,
nickel-plated, Cable gland Pg9, External cable diameter 6 mm ... 8 mm
Product Features
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Save space – with high-pos. connectors
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
20.0 g
85366990
Germany
Technical data
Dimensions
External cable diameter
Stripping length of the sheath
Stripping length of the individual wire
6 mm ... 8 mm
20 mm
4 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
1A
30 V
12
> 10 GΩ
12/14/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/1404420
Connector - SACC-M12FS-12SOL-PG 9-M - 1404420
Technical data
General
Coding
Standards/regulations
Signal type/category
Status display
Overvoltage category
Pollution degree
Connection method
Conductor cross section
Conductor cross section AWG
Insertion/withdrawal cycles
Torque
Tightening torque
A - standard
M12 connector IEC 61076-2-101
Universal
No
II
3
Solder connection
0.08 mm² ... 0.25 mm²
28 ... 24
≥ 100
0.4 Nm (M12 knurl)
0.8 Nm ... 1 Nm (Pressure nut with coupling sleeve)
Screw plug insert with sleeve housing as far it will go
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
HB
CuZn
Au
PA
PA
Zinc die-cast, nickel-plated
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27140815
27140815
27143423
27143423
27279221
27440104
27440104
12/14/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/1404420
Connector - SACC-M12FS-12SOL-PG 9-M - 1404420
Schematic diagram
10
1
2
3 11
4
5
Dimensional drawing
59
M12x1
16
17
18
8
6
7
Pin assignment M12 socket, 12-pos., A-coded,
view female side
M12 x 1 socket, straight
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
Ø20,2
9
12
