REVISIONS
P
LTR
DESCRIPTION
DATE
DWN
APVD
B2
REVISED BY ECO 16-006714
11MAY2016
HC
WLS
D
22,9±0,2
9,9±0,2
3,0
1,4 0,2
9,00±0,15
7,70±0,15
R0,5
1,0
GRAVAÇÃO
MARKING
LOGOTIPO AMP
AMP LOGO
CÓDIGO PAÍS PRODUTOR
MANUFACTURER COUNTRY CODE
NÚMERO CAVIDADE
CAVITY NUMBER
C
9,4 0,2
6,5 0,2
7,45+0,15
5,0
C
1,0±0,2
7,0-0,2
OBSOLETE
OBSOLETE
OBSOLETE
OBSOLETE
1 - INTERCAMBIÁVEL COM PN 180905
- INTERCHANGEABLE WITH PN 180905
1,0
SECTION
W-W
LARANJA/ORANGE
VIOLETA/VIOLET
CINZA/GRAY
MARROM/BROWN
PRETO/BLACK
AZUL/BLUE
AMARELO/YELLOW
VERDE/GREEN
NATURAL
8,0
-9
-8
-7
-6
-5
-4
-3
-2
P.A 6.6
880305
-1
-0
B
OBSOLETE
OBSOLETE
OBSOLETE
OBSOLETE
B
VERMELHO/RED
RAW MAT'L NO
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
mm
A
PERSPECTIVE VIEW
SCALE 2:1
SCALE
2:1
0
1
2
3
4
MATERIAL
ANGLES
PLC
PLC
PLC
PLC
PLC
-
0,5
-
-
-
09DEC99
N.C.LAPRESA
CHK
09DEC99
P.L.FARIA
APVD
09DEC99
F.ALEXANDRONI
DWN
PRODUCT SPEC
APPLICATION SPEC
FINISH
MATERIAL
NAME
PART NUMBER
TE Connectivity
-
1470-19 (3/13)
SEE TABLE
-
FINISH
1°
SEE TABLE
-
WEIGHT
-
-
Customer Drawing
A3
SIZE
CAGE CODE
-

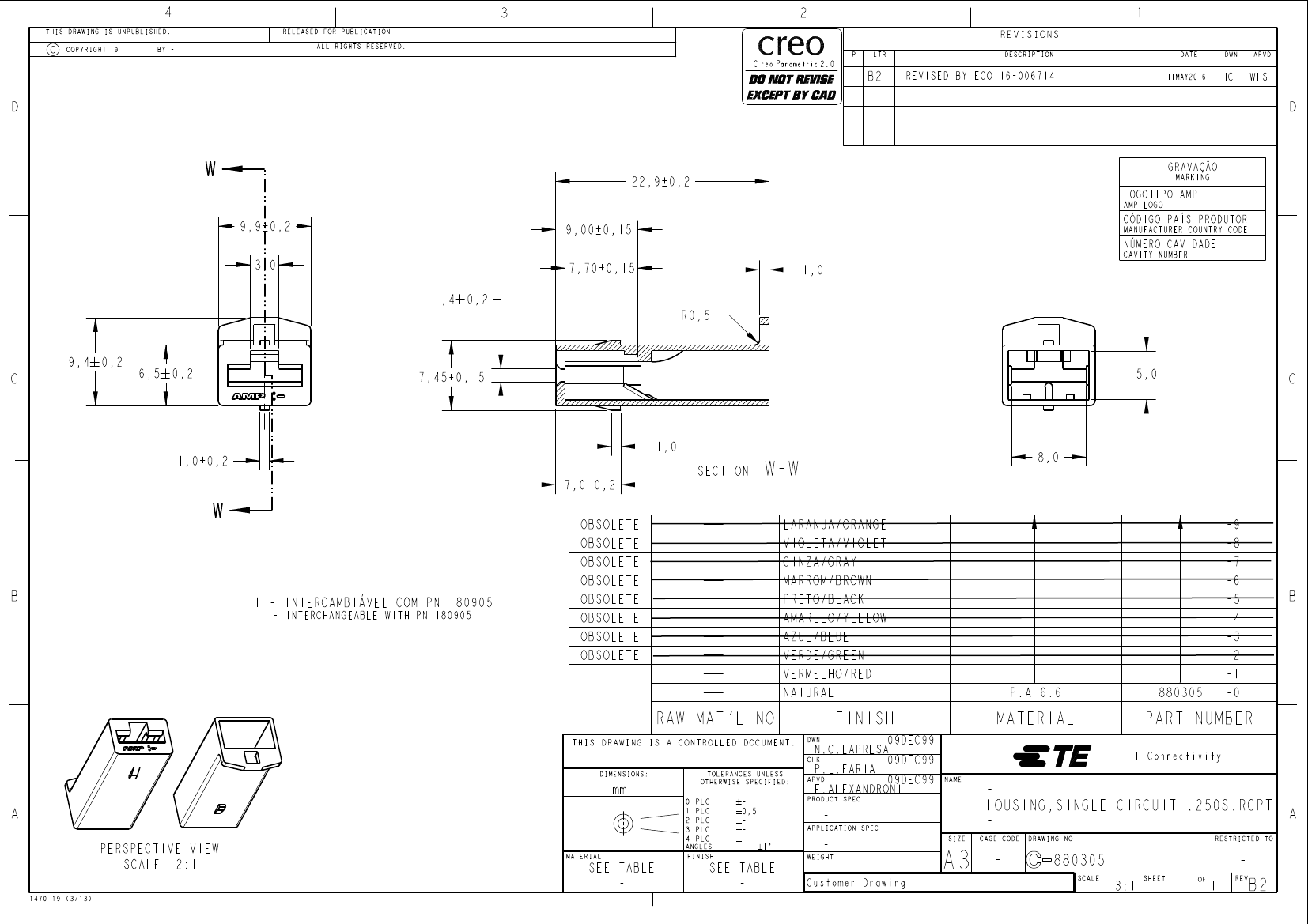

HOUSING,SINGLE CIRCUIT .250S.RCPT.
A
-
DRAWING NO
RESTRICTED TO
-
880305
SCALE
3:1
SHEET
1
OF
1
REV
-
B2
