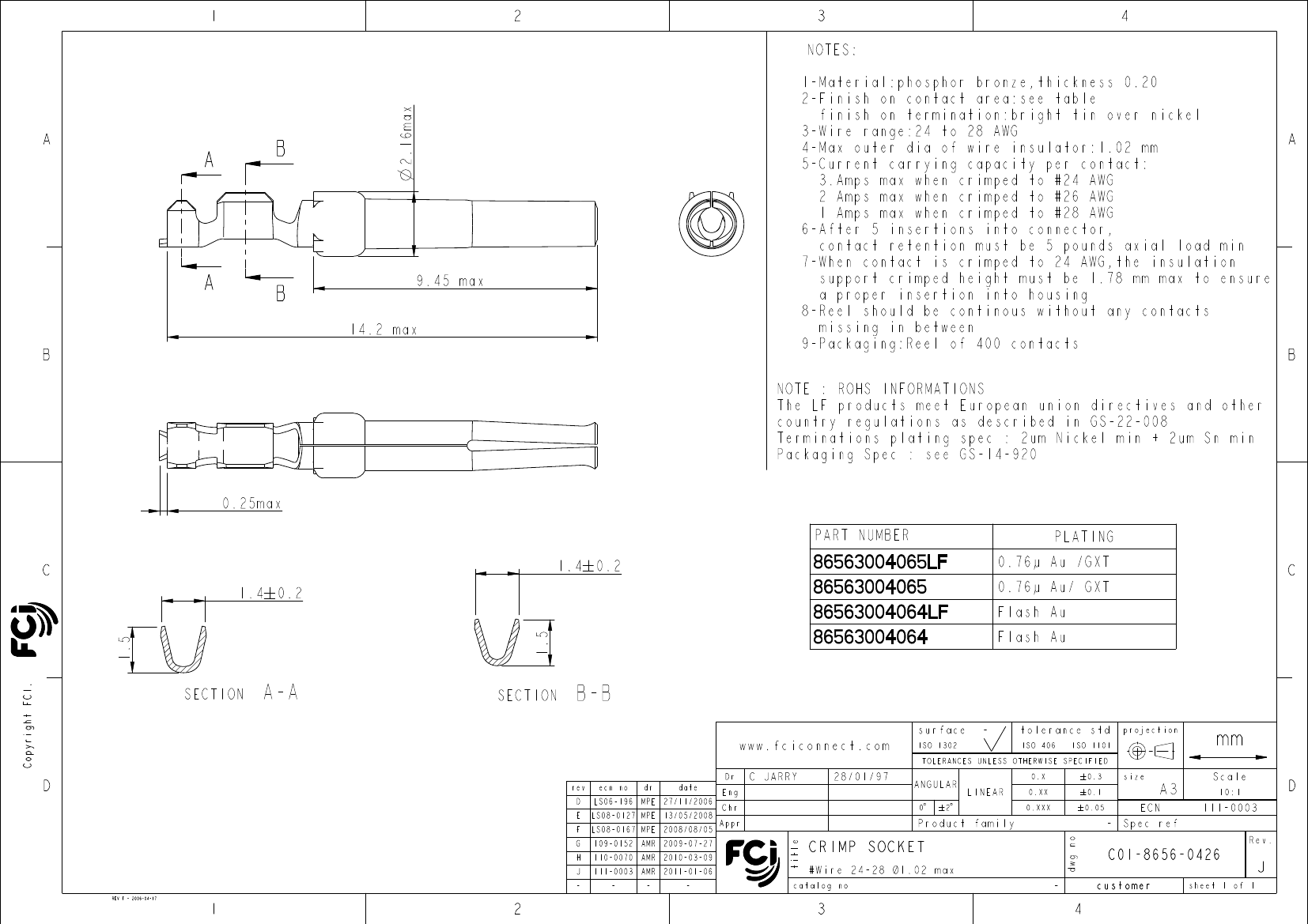

NOTES:
4
A
A
B
A
B
9.45 max
14.2 max
B
1-Material:phosphor bronze,thickness 0.20
2-Finish on contact area:see table
finish on termination:bright tin over nickel
3-Wire range:24 to 28 AWG
4-Max outer dia of wire insulator:1.02 mm
5-Current carrying capacity per contact:
3.Amps max when crimped to #24 AWG
2 Amps max when crimped to #26 AWG
1 Amps max when crimped to #28 AWG
6-After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7-When contact is crimped to 24 AWG,the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing
8-Reel should be continous without any contacts
missing in between
9-Packaging:Reel of 400 contacts
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
