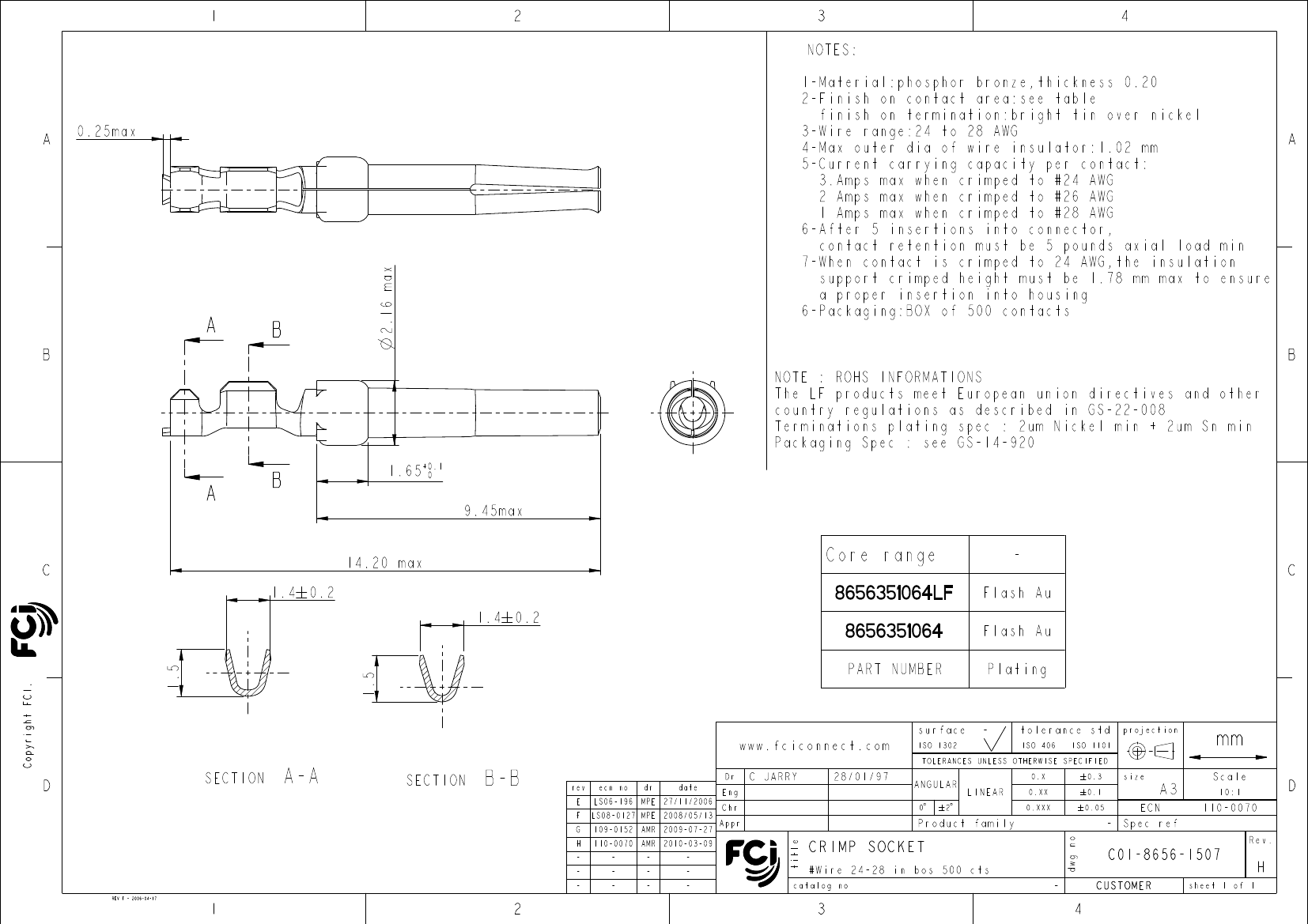

NOTES:
4
A
0.25 max
A
B
B
2.16 max
1-Material:phosphor bronze,thickness 0.20
2-Finish on contact area:see table
finish on termination:bright tin over nickel
3-Wire range:24 to 28 AWG
4-Max outer dia of wire insulator:1.02 mm
5-Current carrying capacity per contact:
3.Amps max when crimped to #24 AWG
2 Amps max when crimped to #26 AWG
1 Amps max when crimped to #28 AWG
6-After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7-When contact is crimped to 24 AWG,the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing
6-Packaging:BOX of 500 contacts
A
B
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
A
B
1.65
+0.1
0
9.45max
C
1.4 0.2
14.20 max
Core range
8656351064LF
1.4 0.2
-
Flash Au
Flash Au
Plating
C
8656351064
PART NUMBER
1.5
Copyright FCI.
1.5
surface
-
tolerance std
ISO 406
ISO 1101
projection
www.fciconnect.com
ISO 1302
mm
Scale
10:1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
SECTION
A-A
SECTION
B-B
Dr
rev
E
F
G
H
-
-
-
ecn no
LS06-196
I09-0152
I10-0070
-
-
-
dr
date
Eng
Chr
Appr
MPE 27/11/2006
AMR 2009-07-27
AMR 2010-03-09
-
-
-
-
-
-
C JARRY
28/01/97
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
- Spec ref
D
LS08-0127 MPE 2008/05/13
I10-0070
Rev.
Product family
dwg no
title
CRIMP SOCKET
#Wire 24-28 in bos 500 cts
-
C01-8656-1507
CUSTOMER
sheet
1 of 1
H
catalog no
REV F - 2006-04-17
1
2
3
PDM: Rev:H
STATUS:
Released
4
Printed: Apr 24, 2010
.
