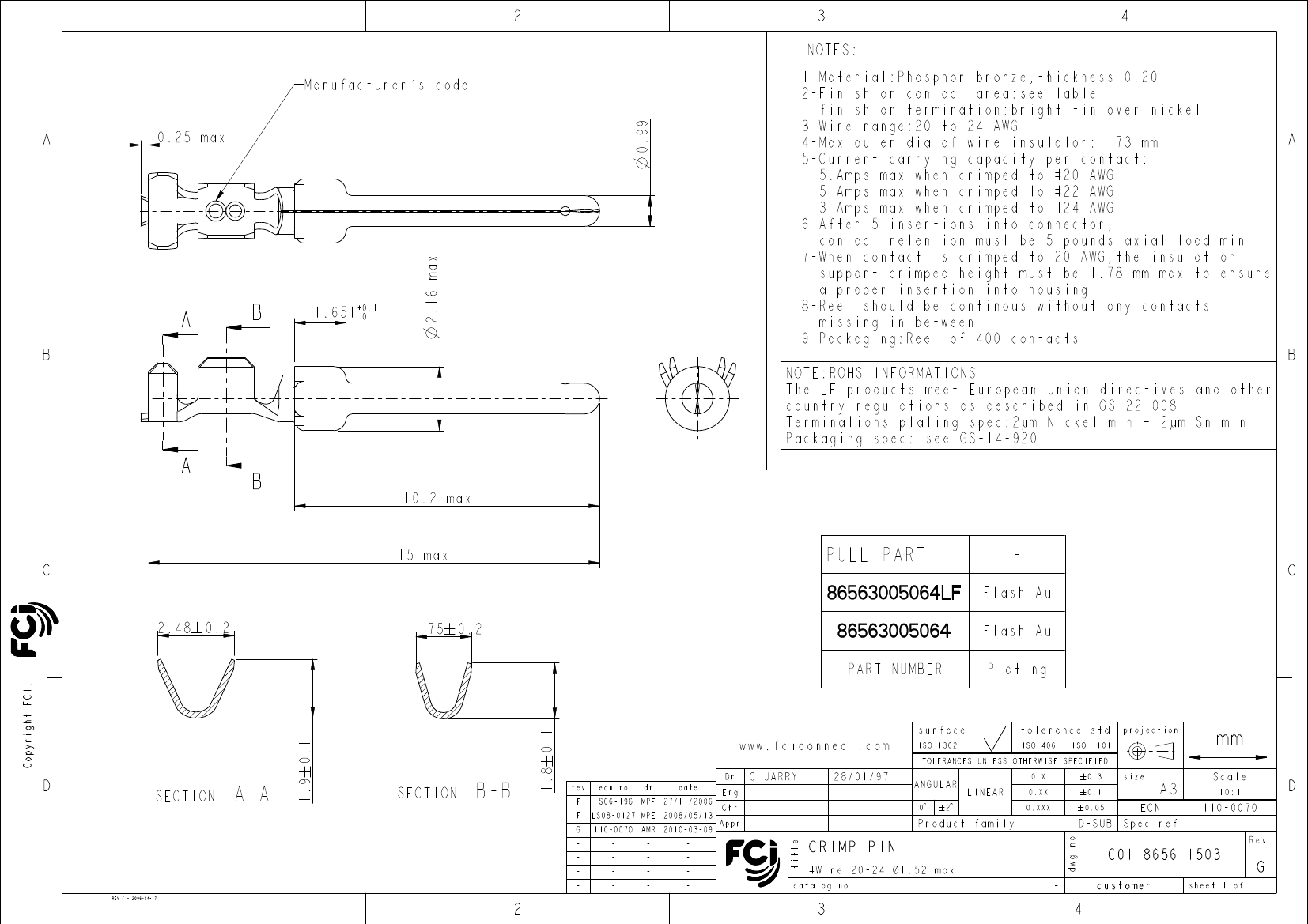

NOTES:
4
Manufacturer's code
0.99
A
0.25 max
A
B
B
1.651
+0.1
0
1-Material:Phosphor bronze,thickness 0.20
2-Finish on contact area:see table
finish on termination:bright tin over nickel
3-Wire range:20 to 24 AWG
4-Max outer dia of wire insulator:1.73 mm
5-Current carrying capacity per contact:
5.Amps max when crimped to #20 AWG
5 Amps max when crimped to #22 AWG
3 Amps max when crimped to #24 AWG
6-After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7-When contact is crimped to 20 AWG,the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing
8-Reel should be continous without any contacts
missing in between
9-Packaging:Reel of 400 contacts
NOTE:ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec:2µm Nickel min + 2µm Sn min
Packaging spec: see GS-14-920
A
2.16 max
B
A
B
10.2 max
C
15 max
PULL PART
86563005064LF
-
Flash Au
Flash Au
Plating
C
2.48 0.2
1.75 0.2
86563005064
PART NUMBER
Copyright FCI.
1.9 0.1
1.8 0.1
surface
-
tolerance std
ISO 406
ISO 1101
projection
www.fciconnect.com
Dr
rev
E
F
G
-
-
-
-
ecn no
LS06-196
I10-0070
-
-
-
-
dr
date
Eng
Chr
Appr
MPE 27/11/2006
AMR 2010-03-09
-
-
-
-
-
-
-
-
ISO 1302
mm
Scale
10:1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
SECTION
A-A
SECTION
B-B
C JARRY
28/01/97
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
D
LS08-0127 MPE 2008/05/13
I10-0070
Rev.
Product family
dwg no
title
D-SUB Spec ref
CRIMP PIN
#Wire 20-24 Ø1.52 max
-
C01-8656-1503
customer
sheet
1 of 1
G
catalog no
REV F - 2006-04-17
