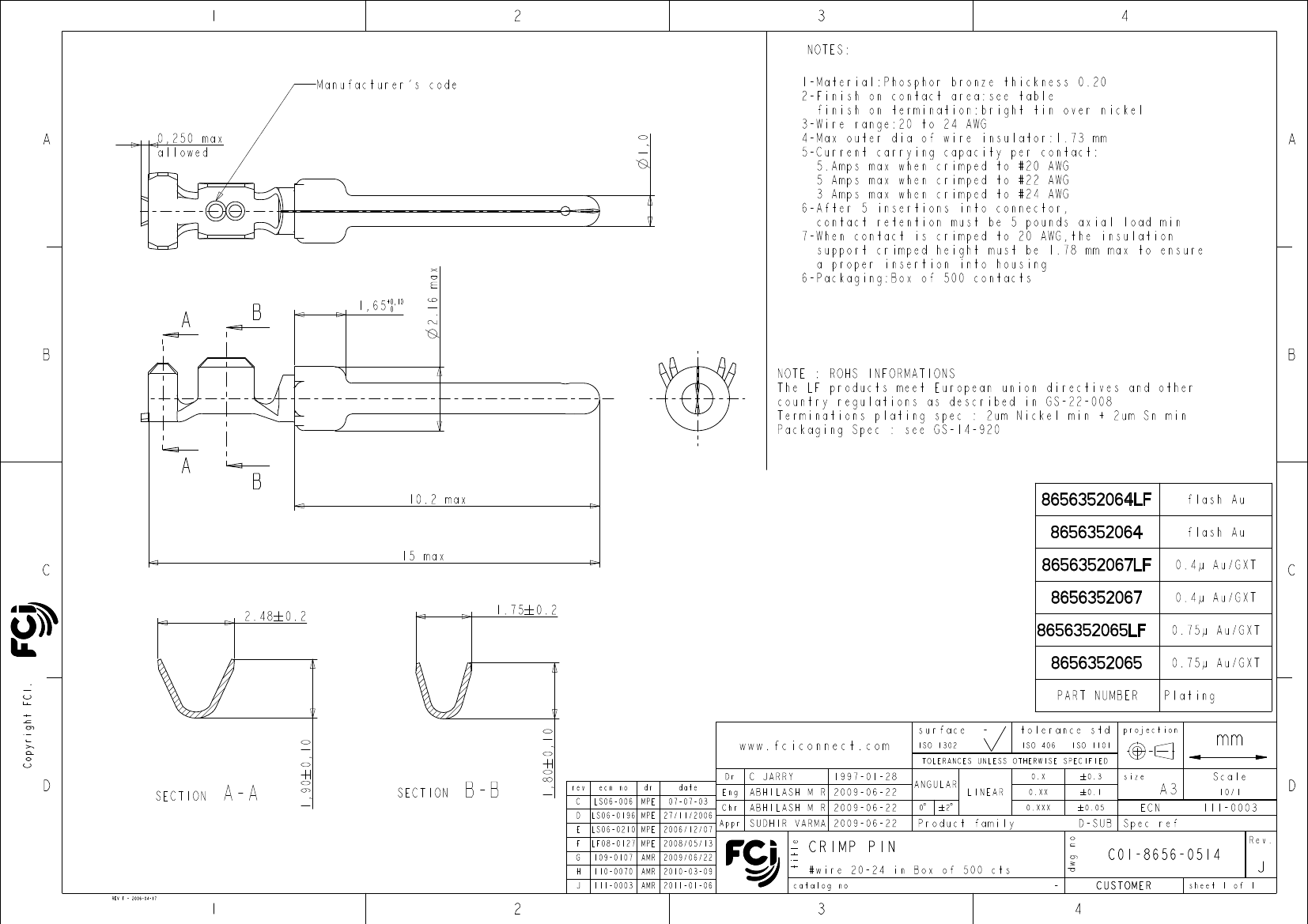

NOTES:
4
Manufacturer's code
A
B
B
1,65
+0,10
0
2.16 max
1,0
A
0,250 max
allowed
1-Material:Phosphor bronze thickness 0.20
2-Finish on contact area:see table
finish on termination:bright tin over nickel
3-Wire range:20 to 24 AWG
4-Max outer dia of wire insulator:1.73 mm
5-Current carrying capacity per contact:
5.Amps max when crimped to #20 AWG
5 Amps max when crimped to #22 AWG
3 Amps max when crimped to #24 AWG
6-After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7-When contact is crimped to 20 AWG,the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing
6-Packaging:Box of 500 contacts
A
B
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
A
B
10.2 max
8656352064LF
8656352064
flash Au
flash Au
0.4µ Au/GXT
0.4µ Au/GXT
0.75µ Au/GXT
0.75µ Au/GXT
Plating
C
2.48 0.2
15 max
8656352067LF
1.75 0.2
C
8656352067
8656352065LF
8656352065
Copyright FCI.
PART NUMBER
1,80 0,10
surface
-
tolerance std
ISO 406
ISO 1101
projection
1,90 0,10
www.fciconnect.com
Dr
rev
C
D
E
F
G
H
J
ecn no
LS06-006
dr
MPE
date
07-07-03
Eng
Chr
Appr
ISO 1302
mm
Scale
10/1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
SECTION
A-A
SECTION
B-B
C JARRY
ABHILASH M R
ABHILASH M R
SUDHIR VARMA
title
1997-01-28
2009-06-22
2009-06-22
2009-06-22
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
D
LS06-0196 MPE 27/11/2006
LS06-0210 MPE 2006/12/07
LF08-0127 MPE 2008/05/13
I09-0107
I10-0070
I11-0003
AMR 2009/06/22
AMR 2010-03-09
AMR 2011-01-06
I11-0003
Rev.
Product family
dwg no
D-SUB Spec ref
CRIMP PIN
#wire 20-24 in Box of 500 cts
-
C01-8656-0514
CUSTOMER
sheet
1 of 1
J
catalog no
REV F - 2006-04-17
1
2
3
PDM: Rev:J
STATUS:
Released
4
Printed: Mar 05, 2011
.
