60130685200 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 60130685200

Preview

60130685200: DescriptionD-sub micro-D connectors har-mik bell 68m-idc 0,5-0,65; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerHARTING; Environmental Compliance

Download Datasheet Parametric Compare View All

60130685200 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	60130685200	-	-	View	Buy Now

60130685200 Overview

D-sub micro-D connectors har-mik bell 68m-idc 0,5-0,65

60130685200 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	HARTING
Reach Compliance Code	compliant
body width	0.354 inch
subject depth	0.323 inch
body length	2.036 inch
Connector type	TELECOM AND DATACOM CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	CENTRONIC
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Minimum insulation diameter	0.02 inch
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	6013
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Termination type	IDC
Total number of contacts	68
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

60130685200 Related Products

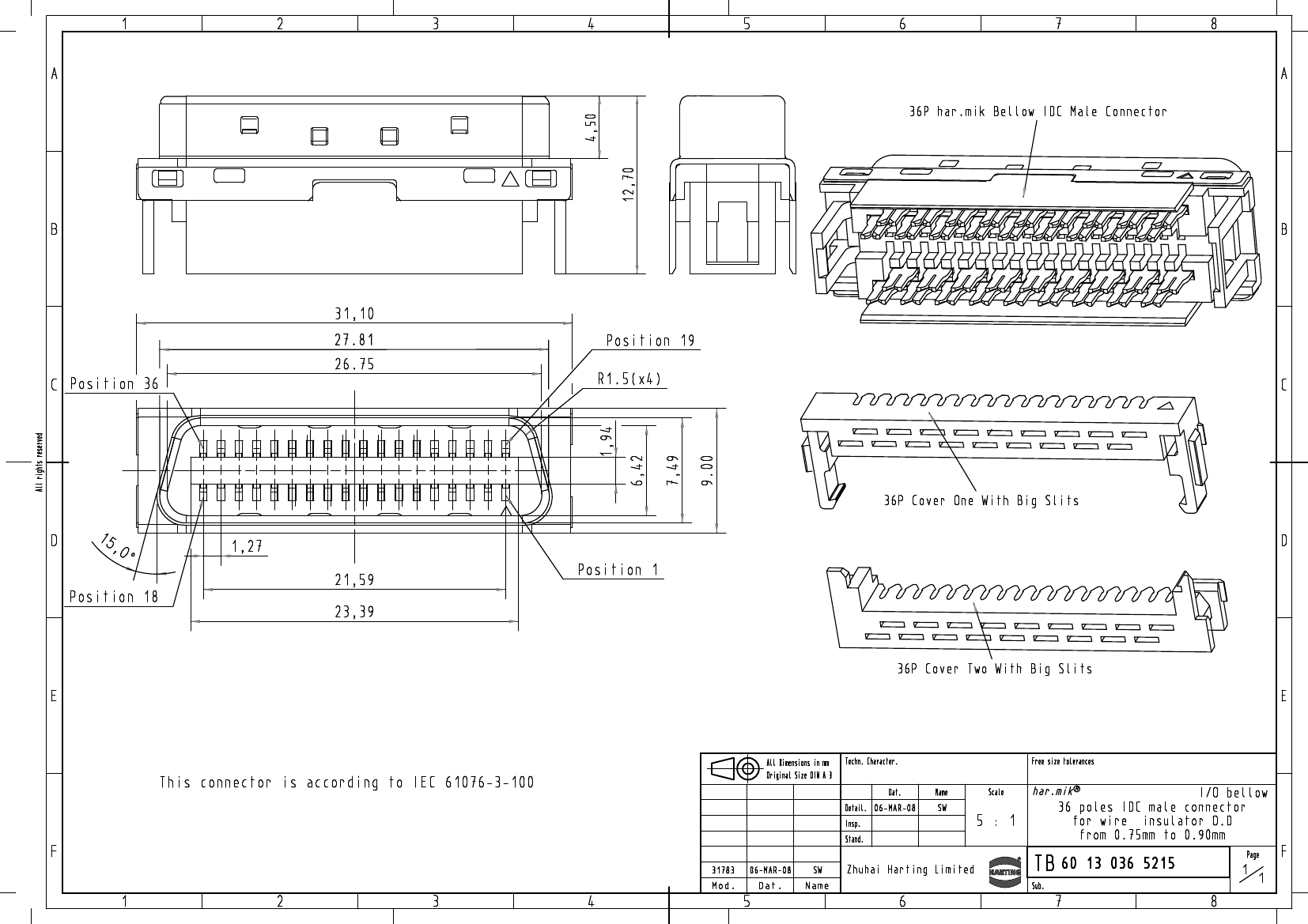

	60130685200	60130205200	60130365205	60130365215	60130365215580
Description	D-sub micro-D connectors har-mik bell 68m-idc 0,5-0,65	I/O connectors har-mik M 20 pin	D-sub micro-D connectors harmik bell 36m idc 0.5-0.75	D-sub micro-D connectors harmik bell 36m idc 0.75-0.90	HAR-MIK BELL 36M-IDC 0.75-0.90 B
Maker	HARTING	HARTING	HARTING	HARTING	HARTING
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
body width	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
subject depth	0.323 inch	0.323 inch	0.323 inch	0.323 inch	0.323 inch
body length	2.036 inch	0.836 inch	1.234 inch	1.234 inch	1.224 inch
Contact point gender	MALE	MALE	MALE	MALE	MALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
insulator material	GLASS FILLED POLYETHYLENE	GLASS FILLED POLYETHYLENE	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	THERMOPLASTIC
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	WIRE
Total number of contacts	68	20	36	36	36
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	-
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	-
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	-
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	-
Minimum insulation diameter	0.02 inch	0.02 inch	0.02 inch	0.03 inch	-
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-
Manufacturer's serial number	6013	6013	-	-	6013
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-
Plating thickness	30u inch	30u inch	30u inch	30u inch	-
Guideline	UL	UL	UL	UL	-
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	-
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	-
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	-
