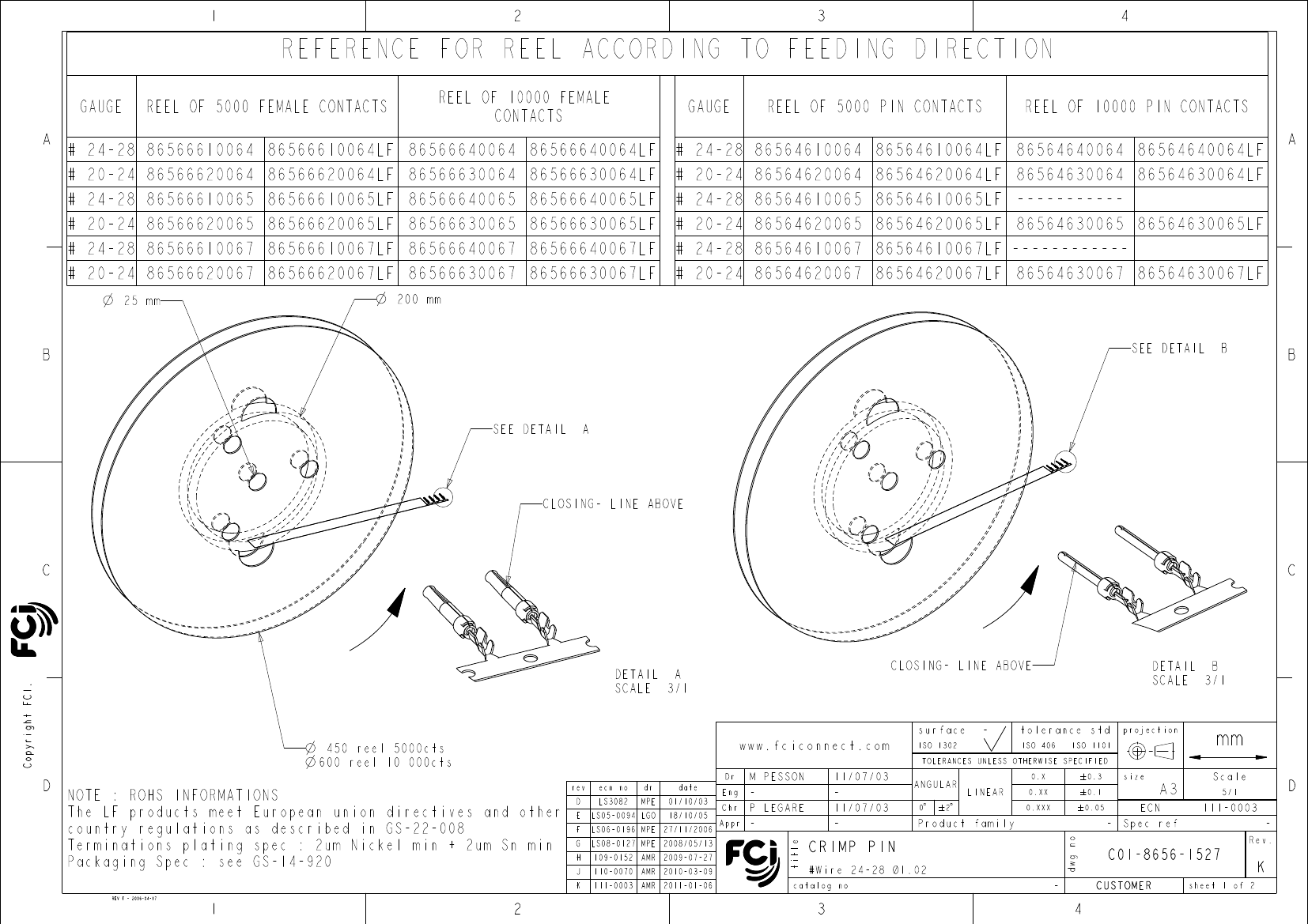

REFERENCE FOR REEL ACCORDING TO FEEDING DIRECTION
GAUGE
A
REEL OF 5000 FEMALE CONTACTS
REEL OF 10000 FEMALE
CONTACTS
GAUGE
REEL OF 5000 PIN CONTACTS
REEL OF 10000 PIN CONTACTS
A
# 24-28 86566610064 86566610064LF 86566640064 86566640064LF
# 20-24 86566620064 86566620064LF 86566630064 86566630064LF
# 24-28 86566610065 86566610065LF 86566640065 86566640065LF
# 20-24 86566620065 86566620065LF 86566630065 86566630065LF
# 24-28 86566610067 86566610067LF 86566640067 86566640067LF
# 20-24 86566620067 86566620067LF 86566630067 86566630067LF
25 mm
200 mm
# 24-28 86564610064 86564610064LF 86564640064 86564640064LF
# 20-24 86564620064 86564620064LF 86564630064 86564630064LF
# 24-28 86564610065 86564610065LF -----------
# 20-24 86564620065 86564620065LF 86564630065 86564630065LF
# 24-28 86564610067 86564610067LF ------------
# 20-24 86564620067 86564620067LF 86564630067 86564630067LF
B
SEE DETAIL
B
B
SEE DETAIL
A
CLOSING- LINE ABOVE
C
C
Copyright FCI.
DETAIL A
SCALE 3/1
CLOSING- LINE ABOVE
DETAIL B
SCALE 3/1
surface
-
tolerance std
ISO 406
ISO 1101
projection
450 reel 5000cts
600 reel 10 000cts
www.fciconnect.com
Dr
ISO 1302
mm
Scale
5/1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
M PESSON
-
P LEGARE
-
title
11/07/03
-
11/07/03
-
dwg no
NOTE : ROHS INFORMATIONS
The LF products meet European union directives and other
country regulations as described in GS-22-008
Terminations plating spec : 2um Nickel min + 2um Sn min
Packaging Spec : see GS-14-920
REV F - 2006-04-17
rev
D
E
F
G
H
J
K
ecn no
LS3082
dr
MPE
date
01/10/03
18/10/05
Eng
Chr
Appr
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
- Spec ref
D
-
Rev.
LS05-0094 LGO
I11-0003
LS06-0196 MPE 27/11/2006
LS08-0127 MPE 2008/05/13
I09-0152
I10-0070
I11-0003
AMR 2009-07-27
AMR 2010-03-09
AMR 2011-01-06
Product family
CRIMP PIN
#Wire 24-28 Ø1.02
-
C01-8656-1527
CUSTOMER
sheet
1 of 2
K
catalog no
1
2
3
PDM: Rev:K
STATUS:
Released
4
Printed: Mar 05, 2011
.
1
14.2 max
2
3
4
NOTES
1- Material : Phosphor bronze, thickness 0.20
2 -Finish on contact area :termination 064:gold flash
terminaion 065:076µ Au / GXT
termination 067:0,4µ Au / GXT
finish on termination : bright tin over nickel
3 -Wire range :20 to 28 AWG(see ref sheet 1/2)
4 -Max outer dia of wire insulator:
-1.73 mm for contact #20-24
-1.02 mm for contact #24-28
5 -Current carrying capacity per contact:
5 Amps max when crimped to #20 AWG
5 Amps max when crimped to #22 AWG
3 Amps max when crimped to #24 AWG
2 Amps max when crimped to #26 AWG
1 Amps max when crimped to #28 AWG
6 -After 5 insertions into connector,
contact retention must be 5 pounds axial load min
7 -When contact is crimped to 20 AWG, the insulation
support crimped height must be 1.78 mm max to ensure
a proper insertion into housing.
8-Reel should be continous without any contacts
missing in between
9 -Packaging : Reel

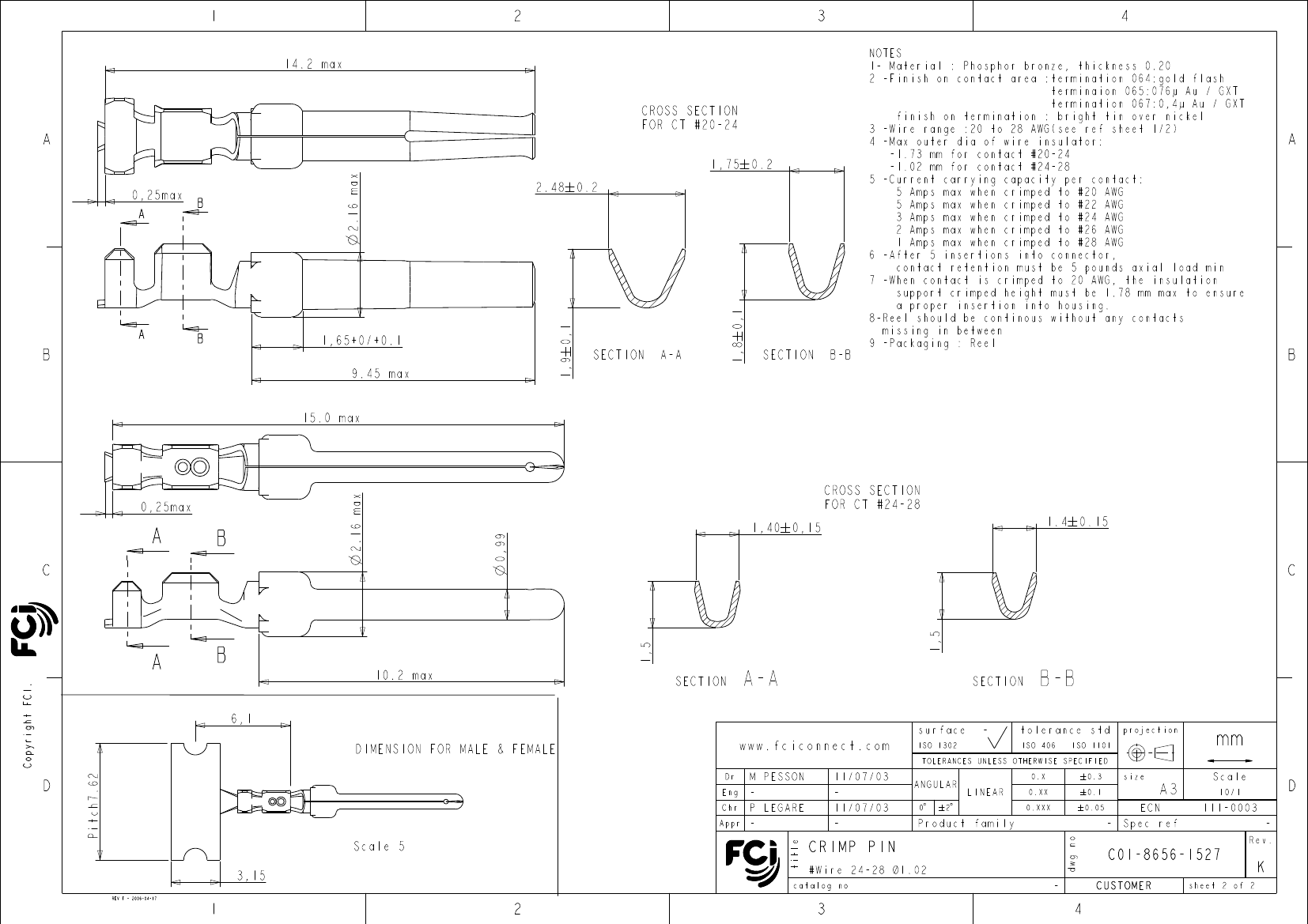

CROSS SECTION
FOR CT #20-24
A
1,75 0.2
2.16 max
0,25 max
A
2.48 0.2
B
A
A
B
B
1,65 +0/+0.1
9.45 max
1,9 0,1
1,8 0,1
SECTION
A-A
SECTION
B-B
B
15.0 max
0,25 max
2.16 max
CROSS SECTION
FOR CT #24-28
0,99
1,40 0,15
1.4 0.15
A
C
B
C
A
Copyright FCI.
B
10.2 max
6,1
DIMENSION FOR MALE & FEMALE
1,5
SECTION
A-A
surface
1,5
SECTION
B-B
projection
-
tolerance std
ISO 406
ISO 1101
www.fciconnect.com
Dr
Eng
Chr
Appr
ISO 1302
mm
Scale
10/1
TOLERANCES UNLESS OTHERWISE SPECIFIED
D
Pitch7.62
M PESSON
-
P LEGARE
-
title
11/07/03
-
11/07/03
-
ANGULAR
0
2
0.X
0.3
0.1
0.05
size
LINEAR
0.XX
0.XXX
A3
ECN
- Spec ref
D
-
Rev.
I11-0003
Product family
dwg no
Scale 5
3,15
REV F - 2006-04-17
CRIMP PIN
#Wire 24-28 Ø1.02
-
C01-8656-1527
CUSTOMER
sheet
2 of 2
K
catalog no
1
2
3
PDM: Rev:K
STATUS:
Released
4
Printed: Mar 05, 2011
.
