3550LP14B0500/PB datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 3550LP14B0500/PB

3550LP14B0500/PB: DescriptionCeramic LPF, 3550MHz, CERAMIC PACKAGE-6; CategoryAnalog mixed-signal IC filter; File Size114KB，2 Pages; ManufacturerJohanson Technology; Websitehttp://www.johansontechnology.com

Download Datasheet Parametric Compare View All

3550LP14B0500/PB Overview

Ceramic LPF, 3550MHz, CERAMIC PACKAGE-6

3550LP14B0500/PB Parametric

Parameter Name	Attribute value
Maker	Johanson Technology
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REEL
average input power	2 W
Center frequency or cutoff frequency (fo/fc)	3550 MHz
filter type	CERAMIC LPF
high	0.6 mm
Input/output impedance	50 OHM
Maximum insertion loss	0.55 dB
JESD-609 code	e0
length	1.6 mm
Manufacturer's serial number	3550LP14B0500
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L1.6XB0.8XH0.6 (mm)/L0.063XB0.031XH0.024 (inch)
Terminal surface	TIN LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

"High Frequency Ceramic Solutions"

Preliminary

3.55 GHz Low Pass Filter

Detail Specification: 12/16/08

P/N 3550LP14B0500

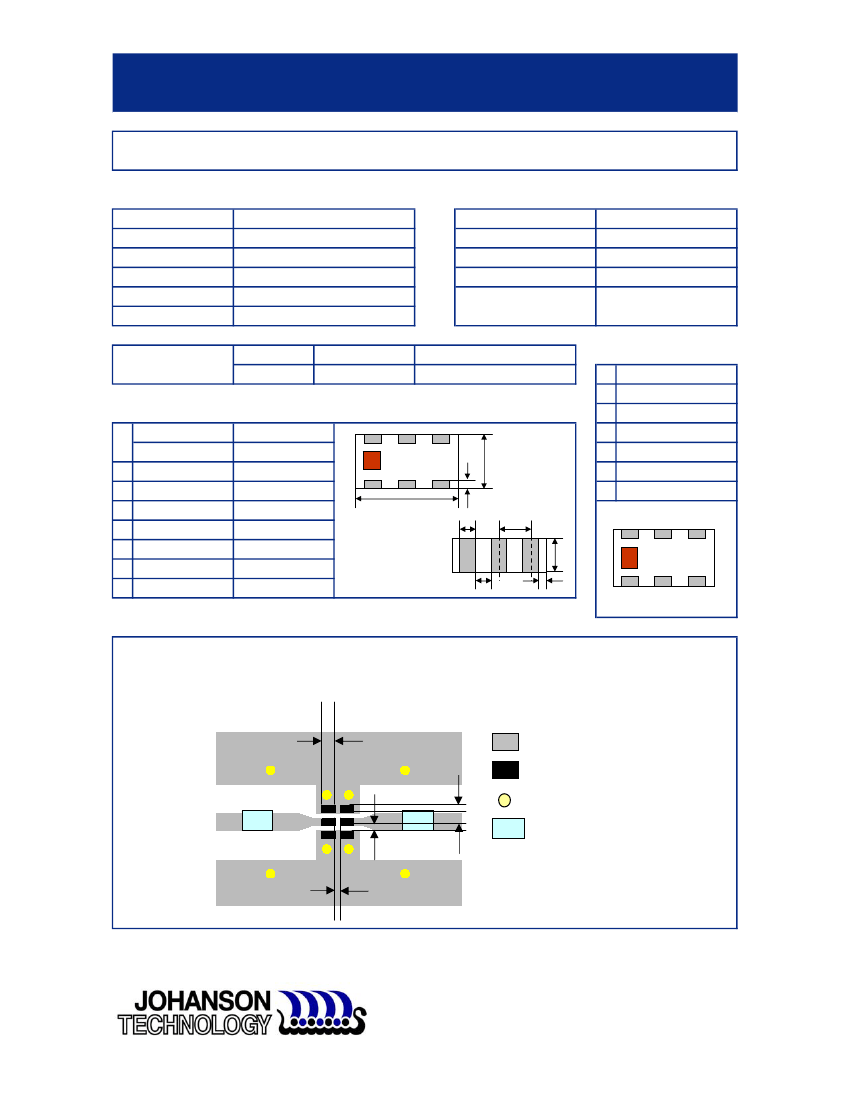

Page 1 of 2

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

3550LP14B0500

3300 - 3800

0.55 dB max.

11.7 dB min.

35 dB @ 2 x fo

25 dB @ 3 x fo

100% Tin

Tin / Lead

Suffix = "None"

Suffix = "/Pb"

Impedance

Reel Quantity

Input Power

Operating Temperature

Storage Temperature

Ω

4,000

2 Watts max.

-40 to +85°C

+5 to +35°C, Humidity:

45-75%RH, 12 mos. Max

Termination

Style

eg. 3550LP14B0500

eg. 3550LP14B0500/Pb

Terminal Configuration

No.

Function

GND

OUT

GND

Mechanical Dimensions

0.063 ± 0.004

0.031 ± 0.004

0.024 ± 0.004

0.008 ± 0.004

0.008 +.004/-.006

0.006 ± 0.004

0.012 ± 0.004

0.020 ± 0.002

1.60 ± 0.10

0.80 ± 0.10

0.60 ± 0.10

0.20 ± 0.10

0.20 +0.1/-0.15

0.15 ± 0.10

0.30 ± 0.10

0.50 ± 0.05

Mounting Considerations

Mount these devices with brown mark facing up.

Line width should be designed to provide 50

Ω

impedance matching characteristics, depending on PCB material and thickness.

DC Blocking capacitor is connected in series at each In/Out Port.

Solder Resist

0.55

Land

0.25

Through-hole (ø 0.35)

0.25

DC Blocking Capacitor

Units: mm

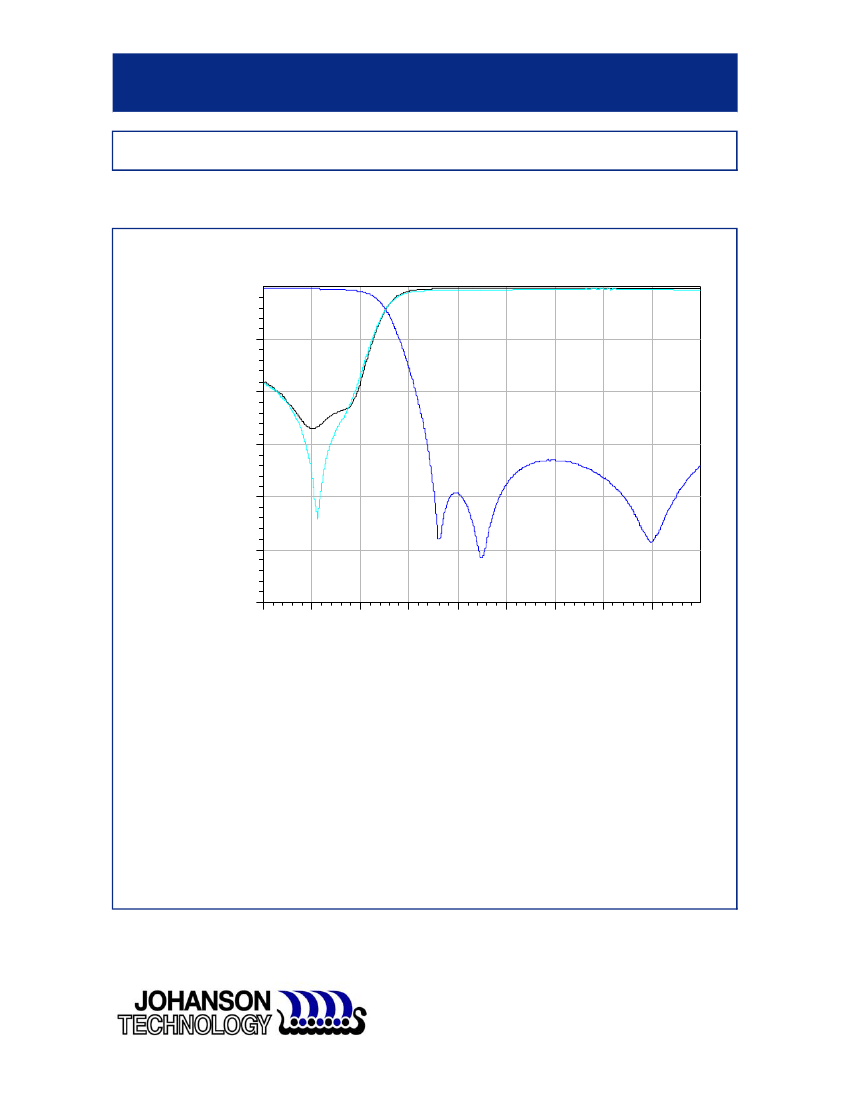

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821

3550LP14B0500/PB Related Products

	3550LP14B0500/PB
Description	Ceramic LPF, 3550MHz, CERAMIC PACKAGE-6
Maker	Johanson Technology
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	REEL
average input power	2 W
Center frequency or cutoff frequency (fo/fc)	3550 MHz
filter type	CERAMIC LPF
high	0.6 mm
Input/output impedance	50 OHM
Maximum insertion loss	0.55 dB
JESD-609 code	e0
length	1.6 mm
Manufacturer's serial number	3550LP14B0500
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L1.6XB0.8XH0.6 (mm)/L0.063XB0.031XH0.024 (inch)
Terminal surface	TIN LEAD
Base Number Matches	1
