on 5.0 mm x 5.0 mm (0.03 mm thick) Copper Pads to each terminal
Unit
V
V
V
A
µA
W
W
Tol.
max.
±5%
max.
max.
max.
max.
max.
6,5
1,9
2,3
Clamping Voltage
(Reverse) Peak Pulse Current
Leakage Current
Steady State Power Dissipation
Power Dissipation
1)
Polarity
1)
Mounted
5,11 ±0,2
1,7
1,14 ±0,38
1,45 ±0,2
4,24 ±0,26
Certification:
Scale - 6:1
RoHS Approval
REACh Approval
Halogen Free
Halogen Free
2,25 ±0,25
2,14 ±0,16
Compliant [2011/65/EU&2015/863]
Conform or declared [(EC)1907/2006]
Conform[JEDEC JS709B]
Conform [IEC 61249-2-21]
UL497B: E478010, UL 1449: E332875
UL94 V-0

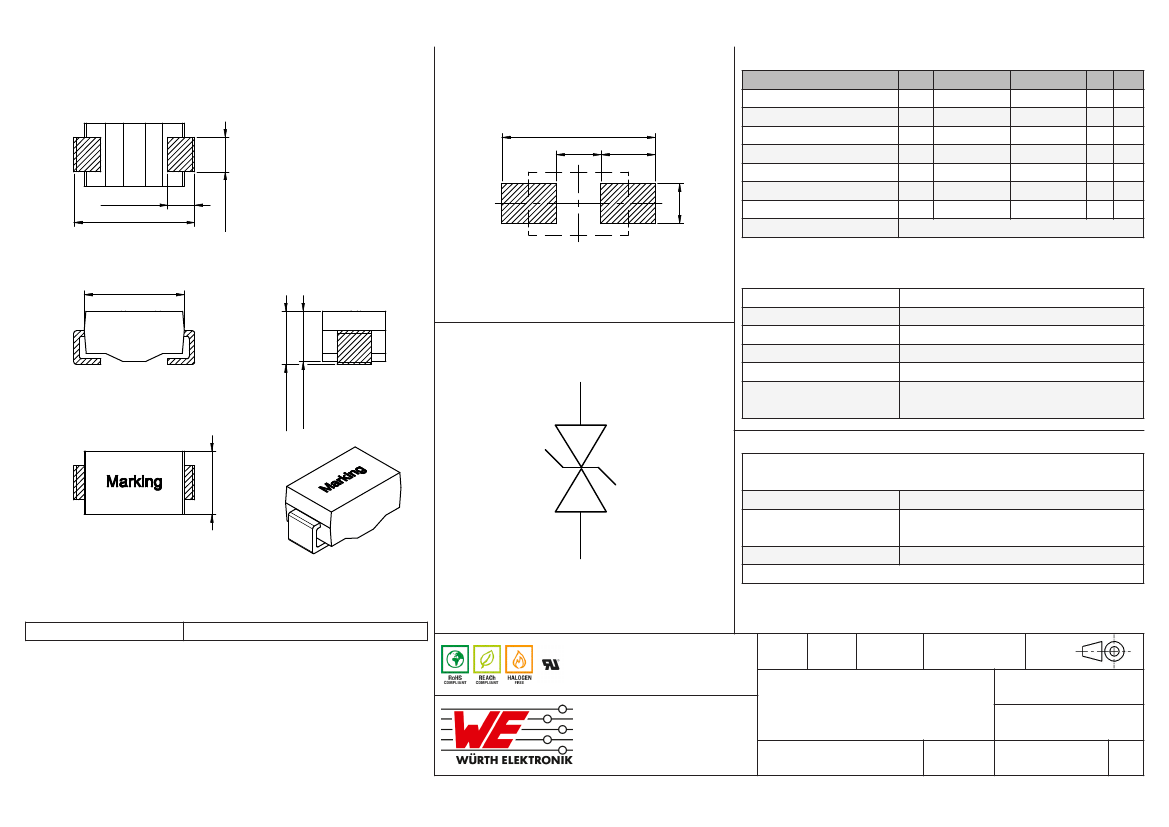

Schematic:
UL Approval
Plastic Housing Flammability
Rating
General Information:
2,67 ± 0,13
It is recommended that the temperature of the component does not exceed +150°C under worst
case conditions
Operating Temperature
Storage Conditions (in original
packaging)
Moisture Sensitivity Level (MSL)
Scale - 6:1
-65 up to +150 °C
< 40 °C ; < 75 % RH
1
Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently
Product Marking:
Marking
XR
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
DESCRIPTION
001.001
2020-05-11
DIN ISO 2768-1m
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824501171
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AC
eiSos
Valid
1/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

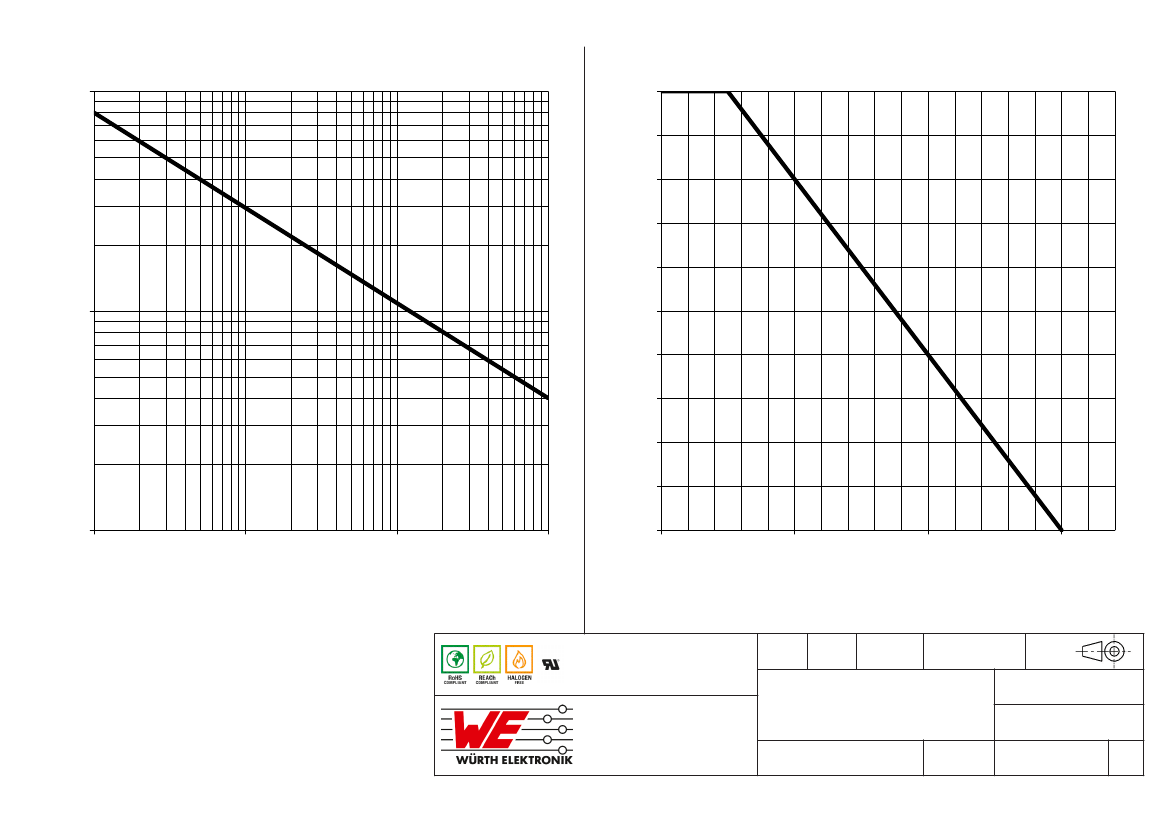

Maximum Peak Pulse Power Rating
10.0
Peak Pulse Power and Current Derating
100
90
80
70
Power [kW]
Derating [%]
1
10
Pulse Width [µs]
100
1000
60
50
40
30
20
10
1.0
0.1
0
0
50
100
Ambient Temperature [°C]
150
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
DESCRIPTION
001.001
2020-05-11
DIN ISO 2768-1m
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824501171
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AC
eiSos
Valid
2/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

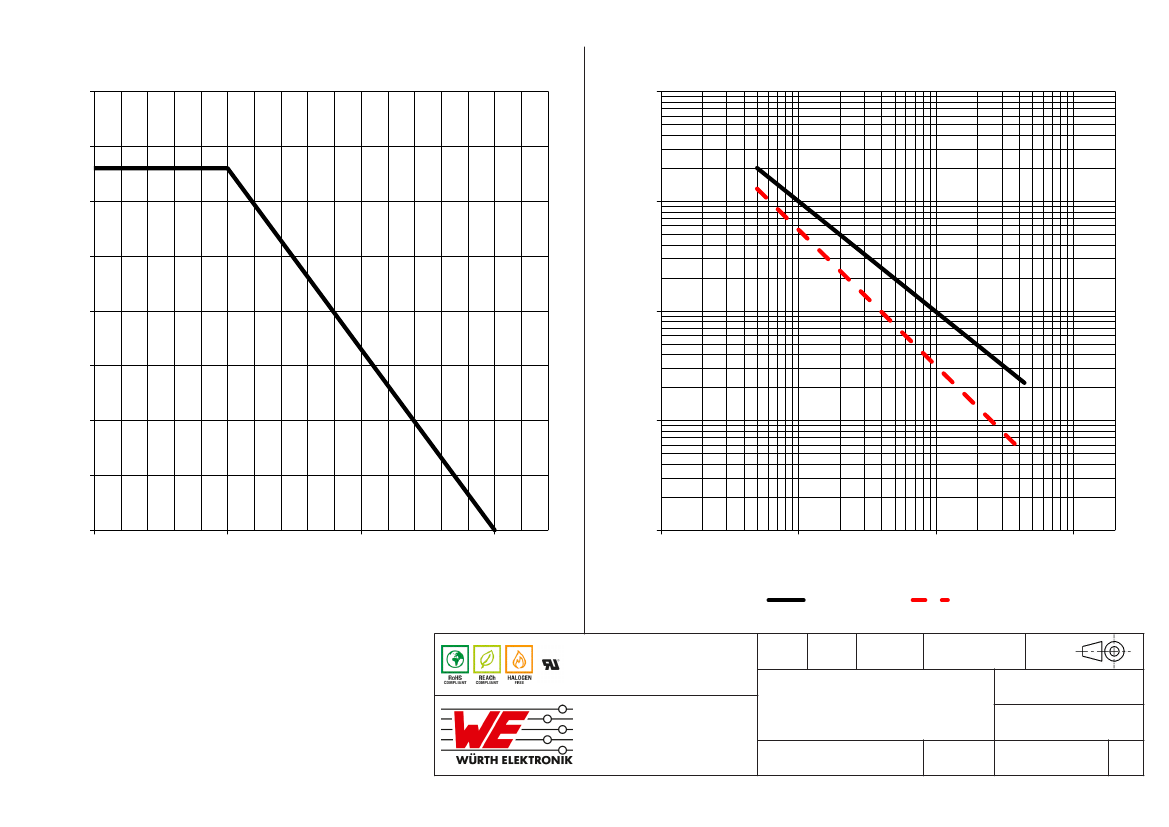

Steady State Power Dissipation Derating
4.0
Typical Junction Capacitance
10.000
3.5
3.0
1.000
Power [W]
2.0
Capacitance [pF]
0
50
100
Ambient Temperature [°C]
150
2.5
100
1.5
1.0
10
0.5
0.0
1
1
10
100
Reverse Breakdown Voltage [V]
V = 0V
CHECKED
REVISION
DATE (YYYY-MM-DD)
1000
V = VDC
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
DESCRIPTION
001.001
2020-05-11
DIN ISO 2768-1m
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824501171
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AC
eiSos
Valid
3/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

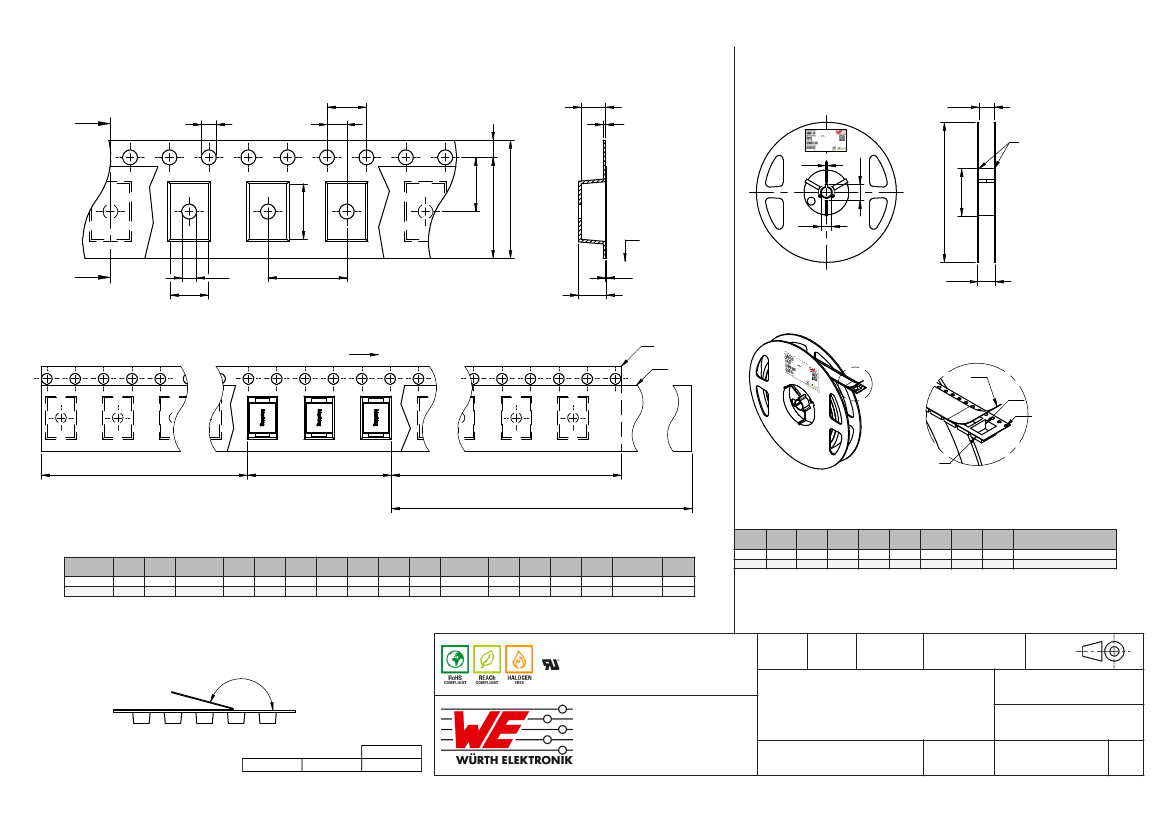

Packaging Specification - Tape and Reel: [mm]
P0
K0
T
E1
W1
close to center
B
D
N
W2
A
C
W3
A
D0
P2
F
B0
E2
W
Top Cover
Tape
A
D1
A0
P1
T2
T1
End
Feeding direction
Start
Carrier Tape
Cover Tape
B
detail B
Cover Tape
Chip Cavity
Sprocket Hole
No Component
min. 160mm
Components
No Component
min. 100mm
Cover Tape
min. 400mm
Embossment
Packaging is referred to the international standard IEC 60286-3:2019
Tape Type
2a
A0
(mm)
typ.
2,79
B0
(mm)
typ.
5,33
W
(mm)
+0,3/ -0,1
12,00
T
(mm)
ref.
0,25
T1
(mm)
max.
0,10
T2
(mm)
typ.
2,55
K0
(mm)
typ.
P0
(mm)
±0,1
4,00
P1
(mm)
±0,1
4,00
P2
(mm)
±0,05
2,00
D0
(mm)
+0,1/ -0,0
1,50
D1
(mm)
min.
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
10,25
F
(mm)
±0,05
5,50
Material
Polystyrene
Qty.
(pcs.)
1000
A
(mm)
± 2,0
178,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
D
(mm)
min.
20,20
N
(mm)
min.
50,00
W1
(mm)
+ 2,0
12,40
W2
(mm)
max.
18,40
W3
(mm)
min.
11,90
W3
(mm)
max.
15,40
Material
Polystyrene/ Polyurethane
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
001.001
2020-05-11
DIN ISO 2768-1m
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WE-TVSP Power TVS Diode
ORDER CODE
824501171
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
Pull-of force
Tape width
12 mm
0,1 N - 1,3 N
DO-214AC
eiSos
Valid
4/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

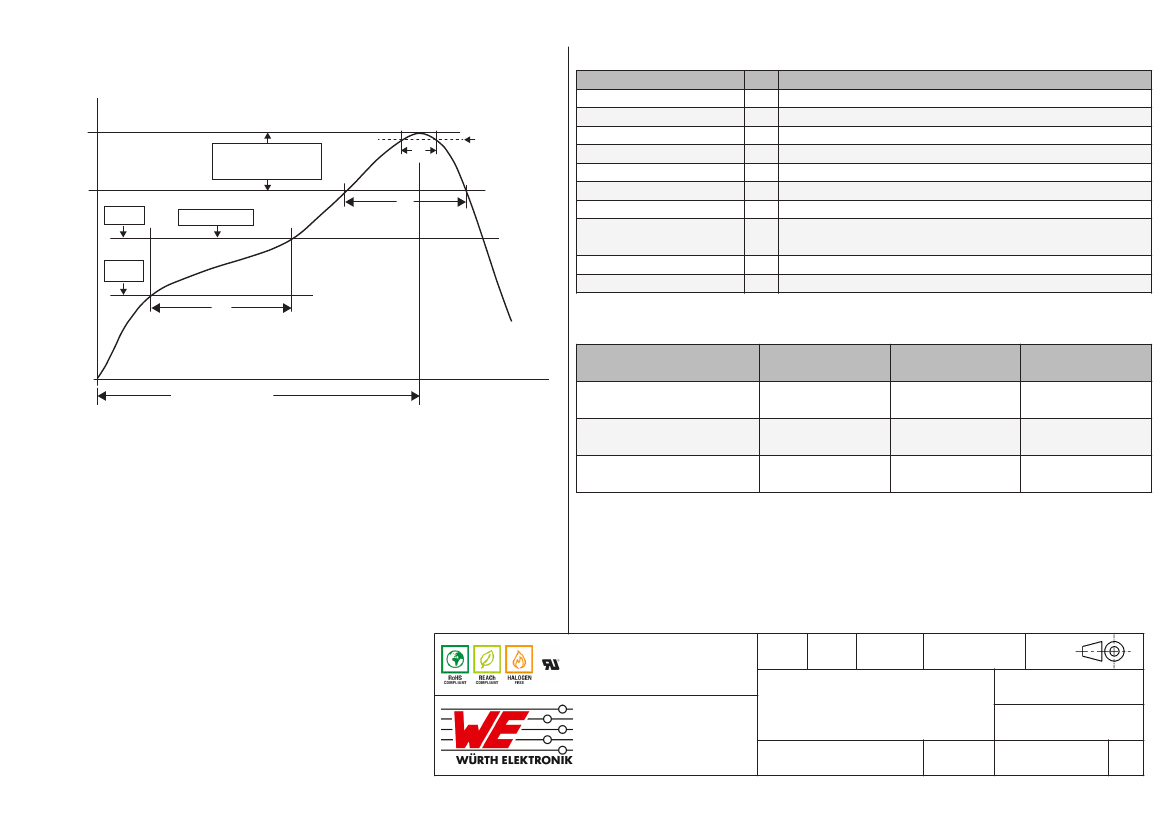

Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature Min
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
T
p
≤ T
c
, see Table below
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak
temperature
Temperature
Preheat Area
T
s min
t
S
Ramp-down Rate (T
P
to T
L
)
Time 25°C to peak temperature
refer to IPC/ JEDEC J-STD-020E
Package Classification Reflow Temperature (T
c
):
Properties
25
Time 25°C to Peak
Volume mm³
<350
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
Time
PB-Free Assembly | Package Thickness
260 °C
< 1.6 mm
PB-Free Assembly | Package Thickness
260 °C
1.6 mm - 2.5 mm
PB-Free Assembly | Package Thickness
250 °C
≥ 2.5 mm
refer to IPC/ JEDEC J-STD-020E
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
RoD
DESCRIPTION
001.001
2020-05-11
DIN ISO 2768-1m
WE-TVSP Power TVS Diode
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
ORDER CODE
824501171
SIZE/TYPE
BUSINESS UNIT
STATUS
PAGE
DO-214AC
eiSos
Valid
5/7
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
