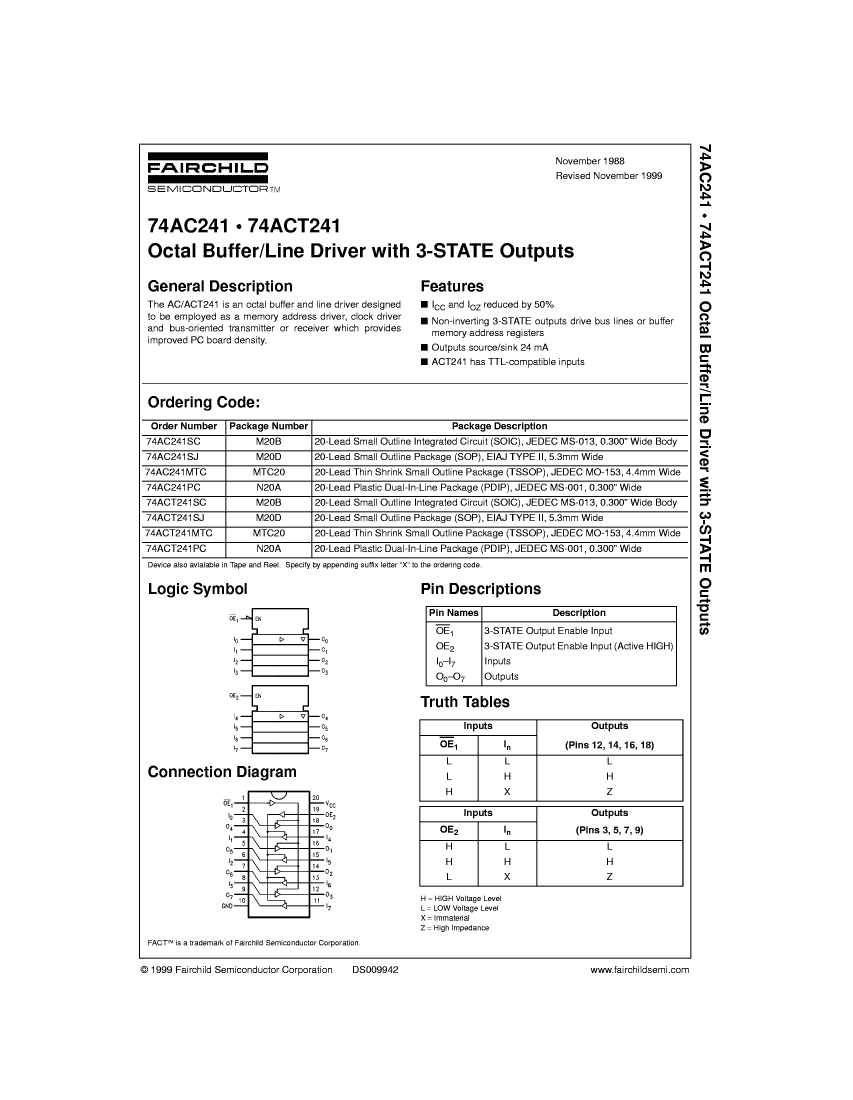

54ACT241L1MQB Overview

Bus Driver, 2-Func, 4-Bit, True Output, CMOS, CQCC20,

Parameter Name	Attribute value
Is it lead-free?	No
Is it Rohs certified?	No
Control type	ENABLE LOW/HIGH
Logic integrated circuit type	BUS DRIVER
Number of ports	2
Output polarity	TRUE
Temperature level	MILITARY

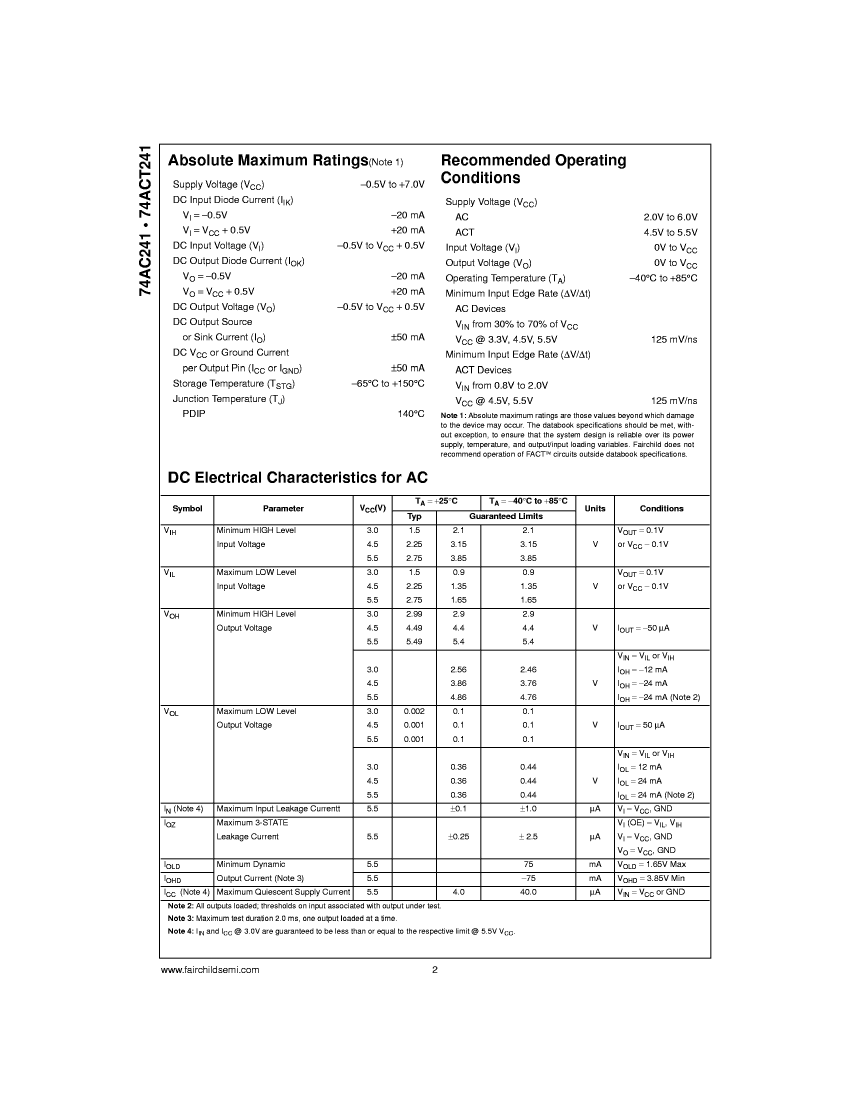

MaximumI(ol)	0.024 A
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
technology	CMOS
encapsulated code	QCCN

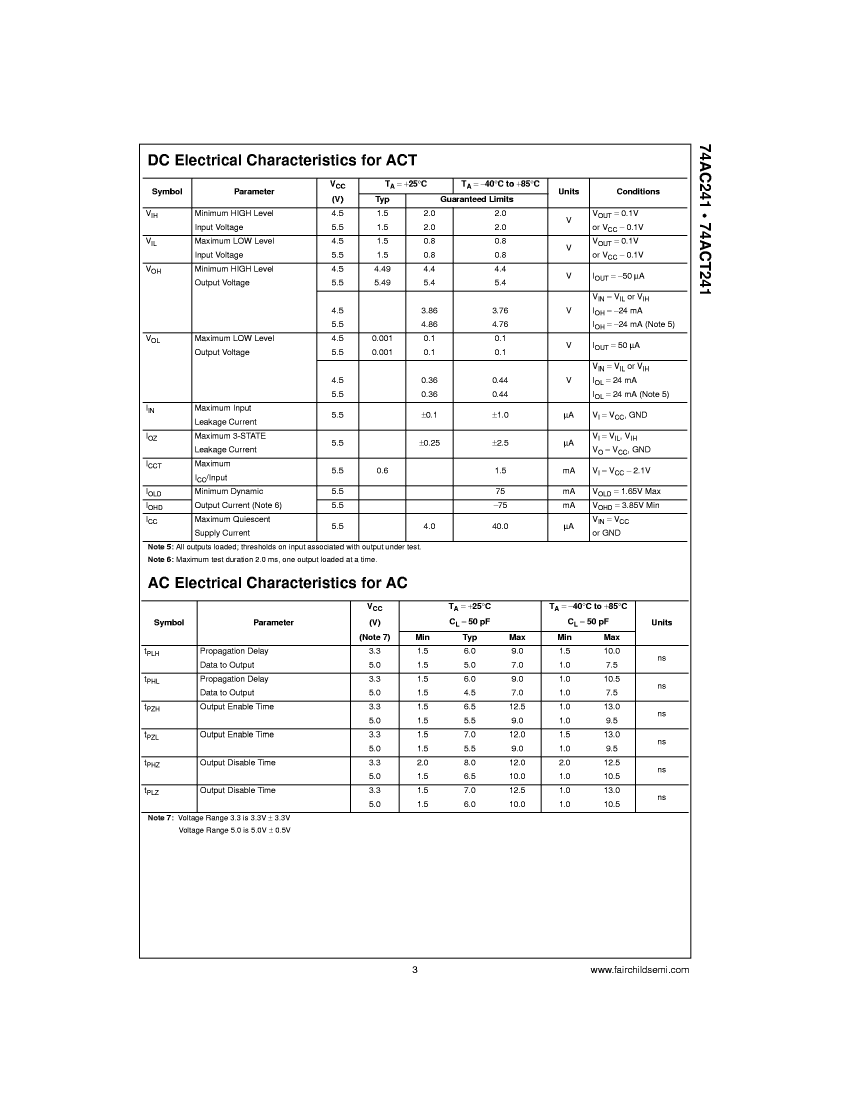

Prop。Delay @ Nom-Sup	12.5 ns
surface mount	YES
series	AC
Load capacitance (CL)	50 pF
Number of functions	2
Output characteristics	3-STATE
Number of digits	4
propagation delay (tpd)	10 ns
Nominal supply voltage (Vsup)	5 V
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Certification status	Not Qualified

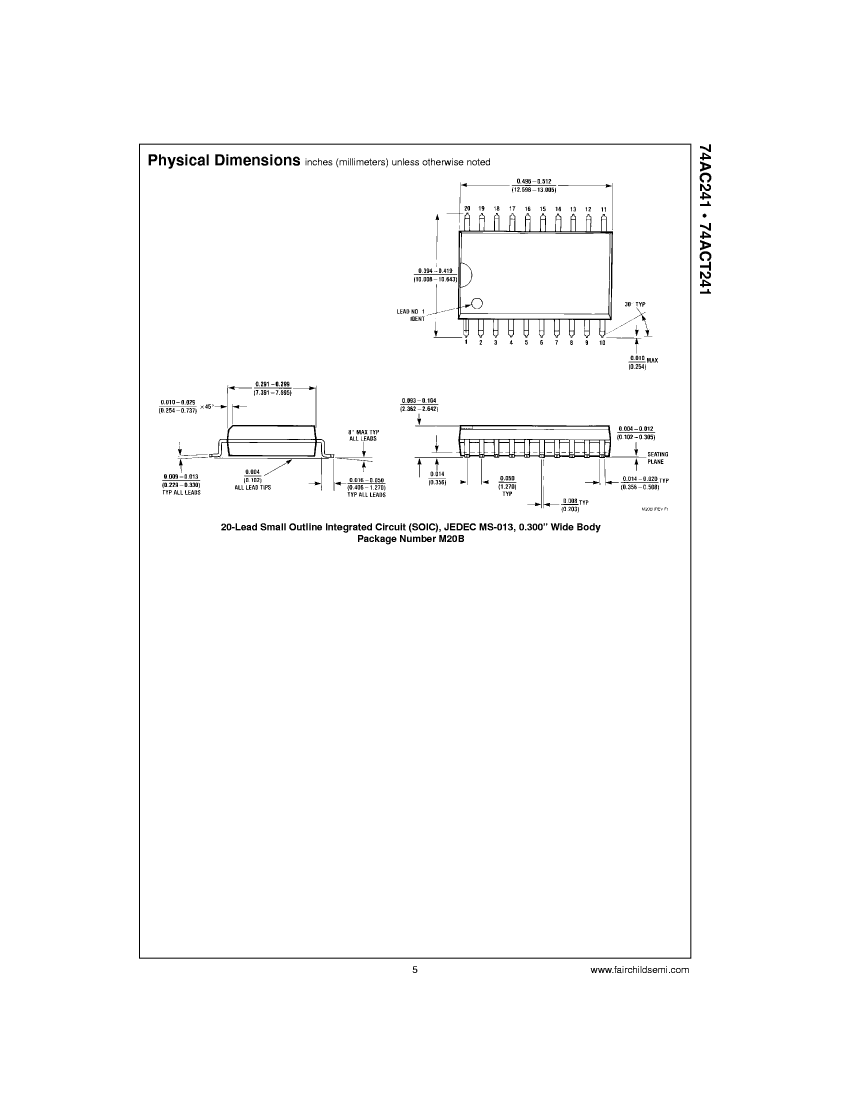

length	8.89 mm
Maximum seat height	2.54 mm
width	8.89 mm
Filter level	38535Q/M;38534H;883B
Humidity sensitivity level	2A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	CHIP CARRIER
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Number of terminals	20
Package body material	CERAMIC
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Terminal location	QUAD
Objectid	1435990940
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	Compliant
Is Samacsys	N
YTEOL	0
