NSPE-S101M6.3V6.3X6.3TR13F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NSPE-S101M6.3V6.3X6.3TR13F

NSPE-S101M6.3V6.3X6.3TR13F: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP; CategoryPassive components capacitor; File Size95KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

NSPE-S101M6.3V6.3X6.3TR13F Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 100uF, Surface Mount, 2626, CHIP

NSPE-S101M6.3V6.3X6.3TR13F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 2626
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	36 weeks
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	36 mΩ
high	6.3 mm
JESD-609 code	e6
leakage current	0.126 mA
length	7.2 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	SMT
method of packing	TR, 13 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	81.5 mA
size code	2626
surface mount	YES
Delta tangent	0.18
Terminal surface	Tin/Bismuth (Sn/Bi)
Terminal shape	FLAT
width	6.6 mm
Base Number Matches	1

Preview

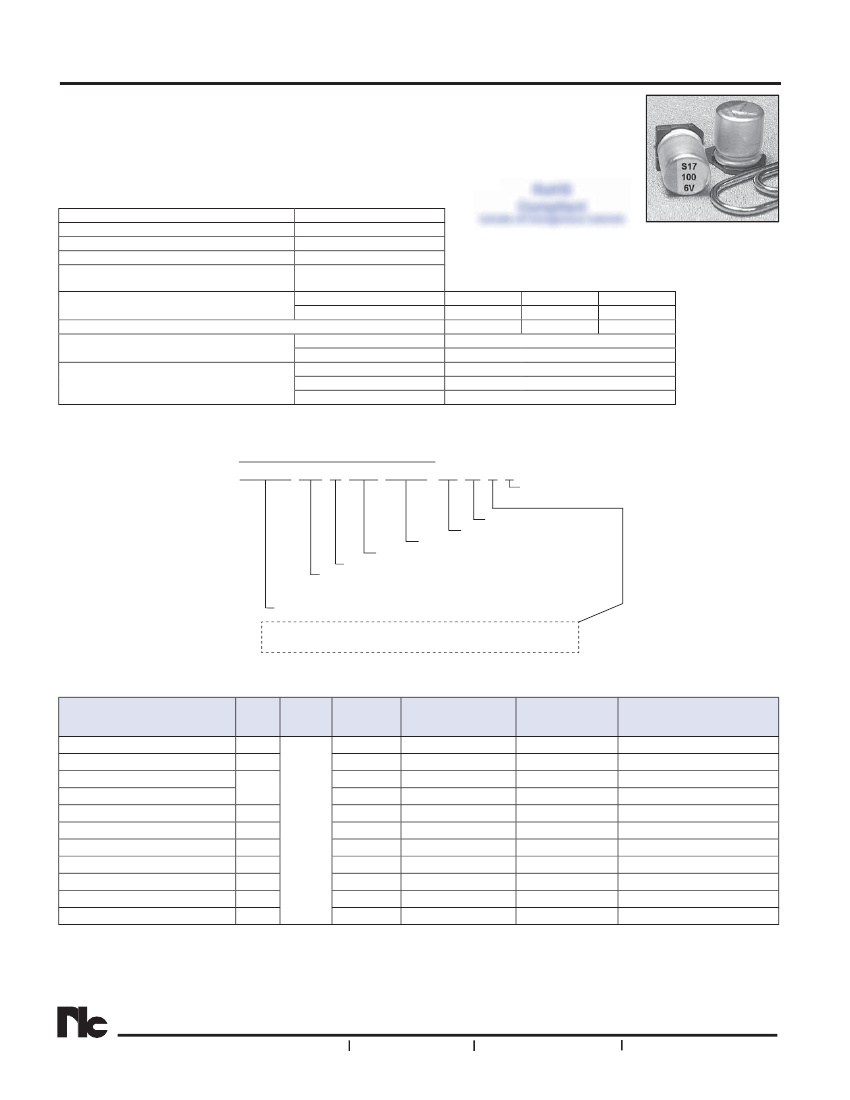

Download Datasheet

View All

Hybrid Aluminum Electrolytic Capacitors

• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING

• EXTENDED LOAD LIFE (3,000 ~ 5,000 HOURS)

•

ULTRA LOW ESR,

HIGH RIPPLE CURRENT

• CAPACITANCE VALUES UP TO 1000μF

• 6.3x6.3mm ~ 10x10.8mm CASE SIZES

RoHS

ons)

•

REFLOW SOLDERING RATED TO +260°C (see reﬂow speciﬁcations)

Compliant

CHARACTERISTICS

Rated Voltage Range

Rated Capacitance Range

Operating Temp. Range

Capacitance Tolerance

Max. Leakage Current

After 2 Minutes @ 20°C

Working and Surge Voltage Ratings

Tan

@ 120Hz/20°C

Impedance Ratio

Load Life Test @ 105°C

6.3mm Dia. = 3,000 Hours

8mm ~ 10mm Dia. parts = 5,000 Hours

Z -55°C/Z +20°C

Z +105°C/Z +20°C

Capacitance Change

Tan

and ESR

Leakage Current

6.3 ~ 16Vdc

10 ~ 1000μF

-55 ~ +105°C

±20% (M)

See Speciﬁcations Tables

W.V. (Vdc)

S.V. (Vdc)

NSPE-S Series

includes all homogeneous materials

*See Part Number System for Details

0.16

0.14

1 ~ 2.5

0.6 ~ 1.0

Within ±30% of initial measured value

Less than 200% of speciﬁed max. value

Less than speciﬁed max. value

6.3

8.2

0.18

PART NUMBER SYSTEM

NSPE-S 471 M 6.3V 8x10.8 TR 13 Y F

RoHS Compliant

97% Sn (min.), 3% Bi (max.)

Series

330mm (13”) Reel

Tape & Reel

Size in mm

Working Voltage

Tolerance Code M=20%

Capacitance Code in

μF,

ﬁ

rst 2 digits are signiﬁcant

Third digit is no. of zeros, “R” indicates decimal for

values under 10μF

Optional: Suitable for automotive equipment, sourced to special

production and inspection at TS-16949 certiﬁed production site

STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)

PART NUMBER

NSPE-S101M6.3V6.3X6.3TR13F

NSPE-S151M6.3V6.3X6.3TR13F

NSPE-S221M6.3V6.3X8TR13F

NSPE-S221M6.3V8X10.8TR13F

NSPE-S331M6.3V8X10.8TR13F

NSPE-S391M6.3V8X10.8TR13F

NSPE-S471M6.3V8X10.8TR13F

NSPE-S561M6.3V8X10.8TR13F

NSPE-S681M6.3V10X10.8TR13F

NSPE-S821M6.3V10X10.8TR13F

NSPE-S102M6.3V10X10.8TR13F

Cap.

(μF)

100

150

220

330

390

470

560

680

820

1000

6.3

Working

Voltage

Case Size

(D X L) mm

6.3X6.3

6.3X8

8X10.8

10X10.8

Max. Leakage

Current (μA)

After 2 minutes*

126

189

278

416

492

593

706

857

1034

1260

Max. ESR (mΩ)

AT 100kHz/20°C

Max. Ripple Current (mA rms)

AT 100kHz/105°C

1630

2020

3150

3890

For Automotive Applications See Part Numbering System

*Please review typical leakage current performance, as

shown on NIC load life endurance test report.

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

SPECIFICATIONS ARE SUBJECT TO CHANGE

NSPE-S101M6.3V6.3X6.3TR13F Related Products
