M3933/16-28S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> M3933/16-28S

Preview

M3933/16-28S: DescriptionRF mil spec connectors sma jack/plug 11 dB attenuator 18 ghz; CategoryThe connector; File Size163KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet View All

M3933/16-28S Overview

RF mil spec connectors sma jack/plug 11 dB attenuator 18 ghz

Preview

Download Datasheet

View All

ROHS COMPLIANT

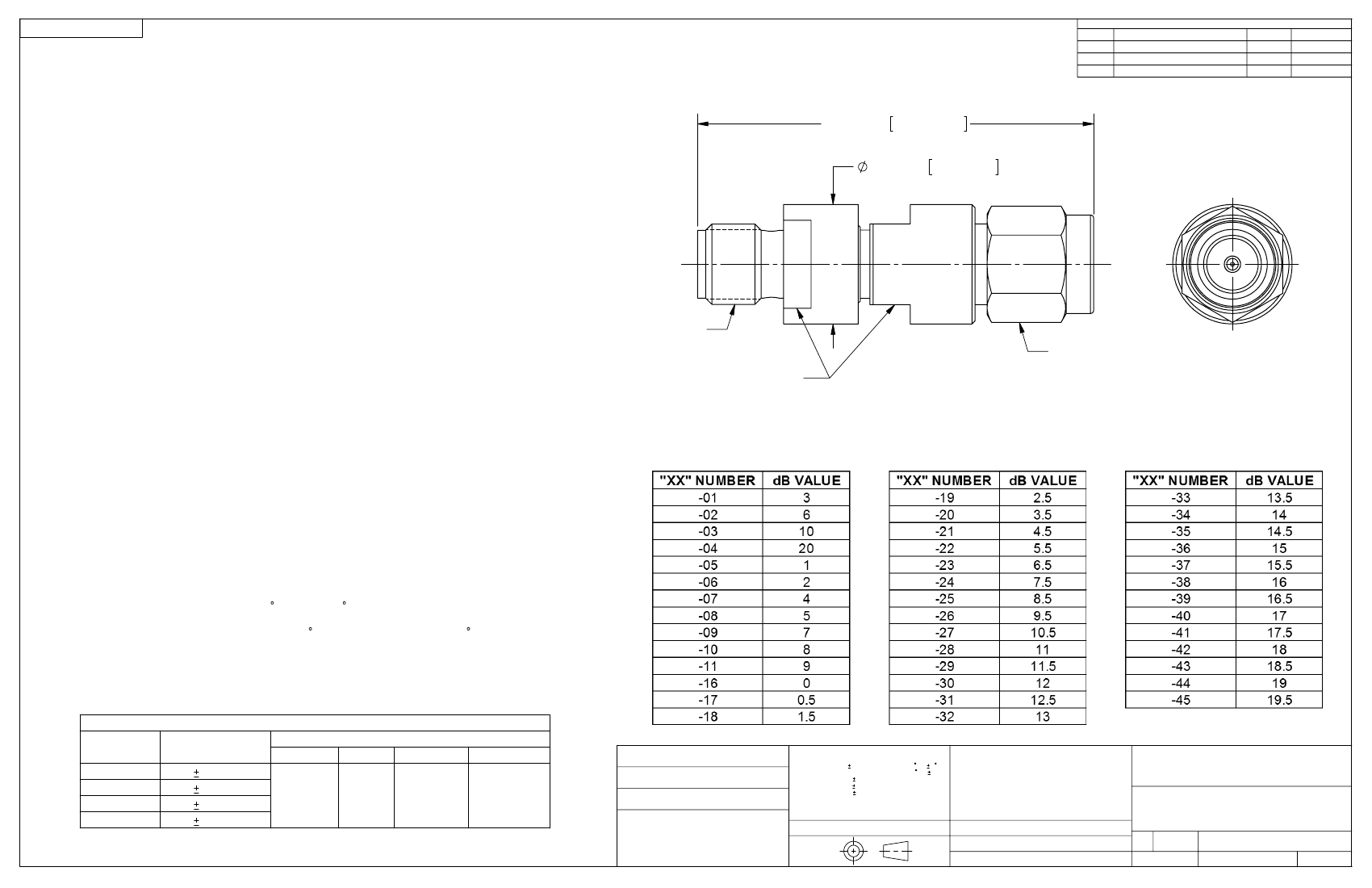

PRODUCT DATA DRAWING

1.240 MAX 31.50 MAX

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 38201

05/11

PJS

MATERIAL:

BODIES,

COUPLING NUT:

LOCK RINGS,

CONTACTS:

SLEEVE:

BELLOWS:

INSULATORS:

GASKETS:

RESISTOR ELEMENTS:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

BRASS PER ASTM B16, ALLOY UNS No. C36000

ELECTRO-DEPOSITED GOLD OVER NICKEL

PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B

SILICONE RUBBER PER A-A-59588,

CLASS 2B, GRADE 50/60

ALUMINA SUBSTRATE WITH

TANTALUM NITRIDE RESISTOR

1/4-36 UNS-2B

.385 MAX 9.78 MAX

.312 HEX.

.250 ACROSS FLATS

FINISH:

BODIES,

COUPLING NUT:

CONTACTS,

SLEEVE:

PASSIVATED PER AMS-2700

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27; OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

"XX" NUMBER TO dB VALUE CHART

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

VSWR:

OPERATING TEMP.:

AVG. POWER:

PEAK POWER:

50 OHMS

DC TO 18.0 GHz

SEE TABLE 1

-55 C TO +125 C

2 WATT (POWER INPUT DERATED LINEARLY

FROM 25 C TO 0.5 WATTS AT 125 C)

500 WATTS (PEAK POWER FOR A DUTY CYCLE

OF 5X10-4 MAXIMUM PULSE DURATION OF

5 MICROSECONDS)

dB VALUE

0-2.5 dB

3-6.5 dB

7-15.5 dB

16-20 dB

VSWR

ATTENUATION

ACCURACY

DC-4 GHz 4-8 GHz 8-12.4 GHz 12.4-18 GHz

0.4 dB

0.3 dB

1.15:1

1.20:1

1.25:1

1.35:1

0.5 dB

0.7 dB

TABLE 1

MATERIAL:

FINISH:

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

MEB 01/31/03

STW 01/31/03

SMA JACK TO PLUG

DC-18 GHz

ATTENUATOR

95077

SIZE CAGE CODE DWG. NO.

M3933/16-XX

SHEET 1 OF 1

SCALE: 4:1
