M3933/14-04S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> M3933/14-04S

M3933/14-04S: DescriptionRF mil spec connectors sma plug/jack 20 dB attenuator 12.4 ghz; CategoryWireless rf/communication Radio frequency and microwave; File Size157KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M3933/14-04S Overview

RF mil spec connectors sma plug/jack 20 dB attenuator 12.4 ghz

M3933/14-04S Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Other features	SMA-F; SMA-M, I/P POWER-MAX(PEAK)=200W
Nominal attenuation	20 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	33.01 dBm
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

ROHS COMPLIANT

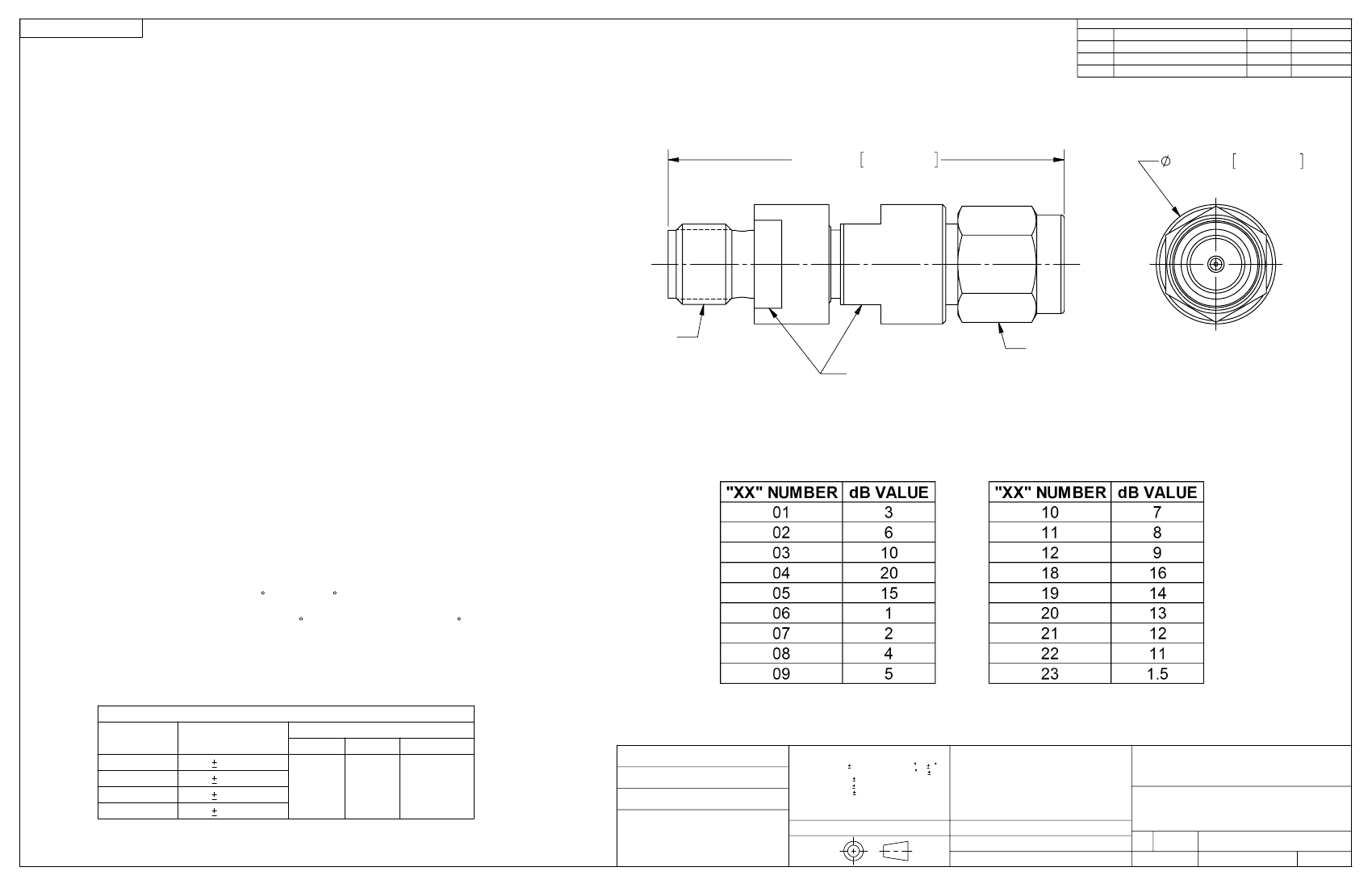

PRODUCT DATA DRAWING

REV

REVISION HISTORY

DESCRIPTION

DATE

APPROVED

DCN 38201

05/11

PJS

MATERIAL:

BODIES,

COUPLING NUT:

LOCK RINGS,

CONTACTS:

SLEEVE:

BELLOWS:

INSULATORS:

GASKETS:

RESISTOR ELEMENTS:

STAINLESS STEEL PER AMS-5640,

ALLOY UNS S30300, TYPE 1

BERYLLIUM COPPER PER ASTM B196,

ALLOY No. UNS C17300, TD04

BRASS PER ASTM B16, ALLOY UNS No. C36000

ELECTRO-DEPOSITED GOLD OVER NICKEL

PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B

SILICONE RUBBER PER A-A-59588,

CLASS 2B, GRADE 50/60

ALUMINA SUBSTRATE WITH

TANTALUM NITRIDE RESISTOR

1/4-36 UNS-2B

.250 ACROSS FLATS

.312 HEX.

1.240 MAX 31.50 MAX

.370±.015 9.40±0.38

FINISH:

BODIES,

COUPLING NUT:

CONTACTS,

SLEEVE:

PASSIVATED PER AMS-2700

GOLD PER ASTM B488, TYPE II,

CODE C, CLASS 1.27; OVER NICKEL

PER AMS-QQ-N-290, CLASS 1, .00005" MIN.

"XX" NUMBER TO dB VALUE CHART

PERFORMANCE:

IMPEDANCE:

FREQ. RANGE:

VSWR:

OPERATING TEMP.:

AVG. POWER:

PEAK POWER:

50 OHMS

DC TO 12.4 GHz

SEE TABLE 1

-55 C TO +125 C

2 WATT (POWER INPUT DERATED LINEARLY

FROM 25 C TO 0.5 WATTS AT 125 C)

200 WATTS (PEAK POWER FOR A DUTY CYCLE

OF 5X10-4 MAXIMUM PULSE DURATION OF

5 MICROSECONDS)

dB VALUE

1-6 dB

7-9 dB

10 dB

11-20 dB

TABLE 1

VSWR

ATTENUATION

ACCURACY

2-4 GHz 4-8 GHz 8-12.4 GHz

0.3 dB

0.4 dB

1.15:1 1.20:1

1.25:1

0.3 dB

0.5 dB

MATERIAL:

FINISH:

SEE NOTES

N/A

PROPRIETARY

DIMENSIONS ARE IN INCHES TOLERANCES:

FRACTIONAL:

DECIMAL: .X

.XX

.XXX

1/64

.030

.010

.005

ANGULAR: X

X X'

1 0'

15'

UNLESS OTHERWISE SPECIFIED

1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]

2) ALL DIMENSIONS ARE AFTER PLATING.

3) BREAK CORNERS & EDGES .005 R. MAX.

4) CHAM. 1ST & LAST THREADS.

5) SURFACE ROUGHNESS 63

MIL-STD-10.

6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC

WITHIN .005 T.I.R.

7) REMOVE ALL BURRS

SV Microwave, Inc.

2400 Centrepark West Drive, Suite 100

West Palm Beach, FL 33409

TITLE:

SURFACE AREA:

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

THE INFORMATION CONTAINED IN THIS DRAWING

IS THE SOLE PROPERTY OF SV MICROWAVE, INC.

ANY REPRODUCTION IN PART OR AS A WHOLE

WITHOUT THE WRITTEN PERMISSION OF

SV MICROWAVE, INC IS PROHIBITED.

THIRD ANGLE PROJECTION

DRAWN:

CHECKED:

APPROVED:

CCC 04/19/04

JMC 04/20/04

SMA PLUG TO JACK

ATTENUATOR

95077

SIZE CAGE CODE DWG. NO.

M3933/14-XX

SHEET 1 OF 1

SCALE: 4:1
