REVISION BC
No OF POS PER ROW
-02 THRU -50
(SEE NOTE 10)
DO NOT
SCALE FROM
THIS PRINT
TABLE 1
LEAD STYLE
"A"
-02
.075 [1.91]
C
-03
.065 [1.65]
C
"B"
0.075
0.055

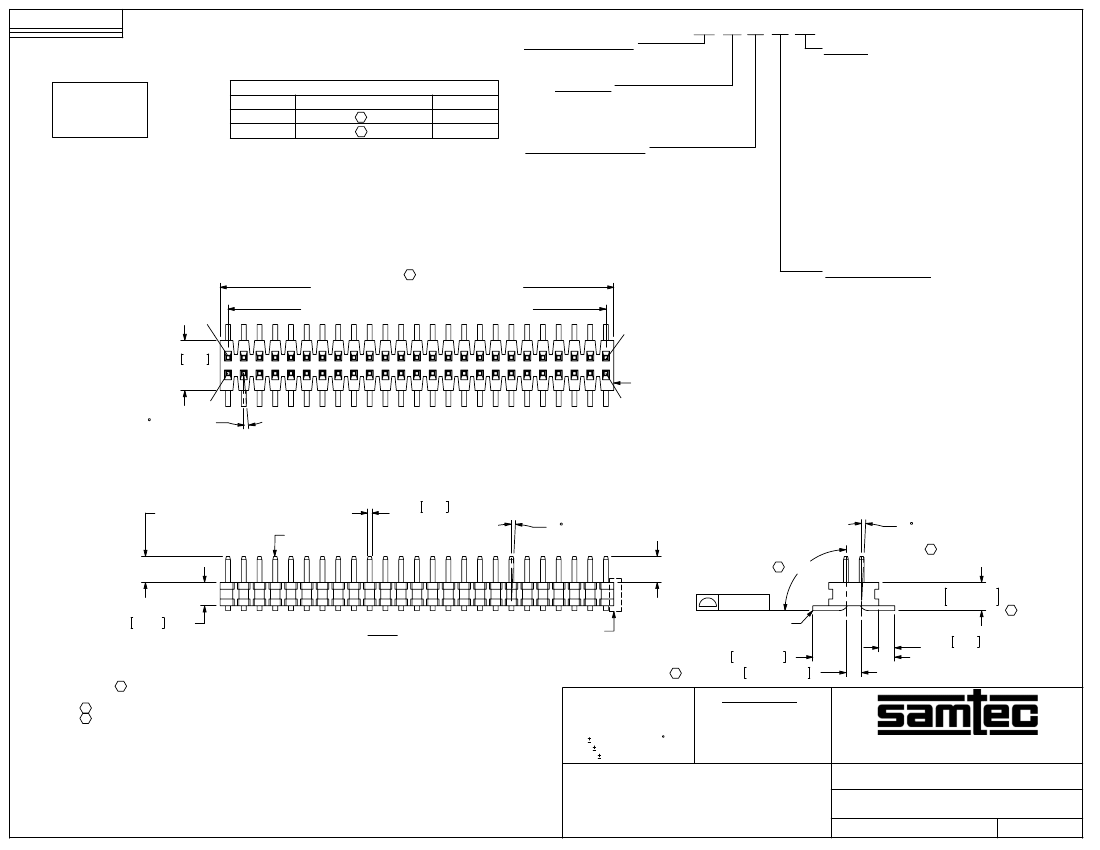

FTMH-1XX-XX-XX-DV-XX
OPTIONS
-P: PICK & PLACE PAD (USE PPP-30)
(USE PPP-30-NT FOR TAPE & REEL)
(SEE FIG 3, SHT 4; 6 POS MIN)
-TR: TAPE & REEL PACKAGING
-ES: SNAP ON END SHROUDS
(SEE FIG 2, SHT 2; 9 POS MIN)
MOLD TO POSITION END SHROUDS
(5 POS MIN; SEE FIG 2, SHT 2)
(SAMTEC DISCRETION ON WHICH END SHROUDS
ARE USED FOR POSITIONS -09 AND GREATER)
-EP: GUIDE POST (SEE FIG 4, SHT 4; 9 POS MIN)
(USE ONLY WHEN MATING WITH A CLM)
-EC: LOCKING CLIP (SEE FIG 5, SHT 4)
(SEE NOTE 9; 9 POS MIN)
-A: ALIGNMENT PIN (SEE FIG 6 & 7, SHT 5)
(SAMTEC DISCRETION ON WHICH -A PIN IS USED)
(MOLDED: 3 POS MIN, USE FTMH-75-D-XX)
(STAKED: 7 POS MIN, USE FTMH-60-D)
ROW SPECIFICATION
-DV: DOUBLE ROW VERTICAL
(USE FTMH-75-D)
LEAD STYLE
-02: .075 [1.91]
(USE T-1S16-03-XX-2)
-03: .065 [1.65]
(USE T-1S16-04-XX-2)
PLATING SPECIFICATION
-L: 10µ" LIGHT SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
-H: 30µ" HEAVY GOLD IN CONTACT
AREA, 3µ" FLASH GOLD ON TAIL
-G: 10µ" GOLD IN CONTACT AREA,
3µ" FLASH GOLD ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
-FM: 3µ" FLASH SELECTIVE GOLD IN
CONTACT AREA, MATTE TIN ON TAIL
No OF POS x .03937[1.0000] ±.010[±.25]
02
.125 3.18
REF
01
2 MAX SWAY
(EITHER DIRECTION)
C
No OF POS X .03937[1.0000]-.03937[1.0000]
50
FTMH-75-D
49
"B"
CONTACT AREA
(SEE NOTE 8)
(SEE TABLE 1)
.012 0.30 SQ
REF
T-1S16-03-XX-2
2 MAX SWAY
(EITHER DIRECTION)
"A"
(SEE TABLE 1)
.004[.10]
C
2 MAX SWAY
(EITHER DIRECTION)
C
90°±3°
.0705
- .000
1.791
+.005
+0.13
0.00
(SEE NOTE 6)
C
.0585 1.486 REF
FTMH-125-03-X-DV SHOWN
NOTES:
C
REPRESENTS CRITICAL DIMENSION.
MIN PUSHOUT FORCE: 1.0 LB = 16 OZ.
MAX BURR: .003 [.08].
MAX CUT FLASH: .010 [.25].
POSITIONS -02 THRU -04 TO BE LAYER PACKAGED.
MEASURED AT BEND RADIUS.
SHEAR TAILS TO DIMENSION SHOWN.
FOR SELECTIVE PLATING OPTIONS, GOLD PLATING TO
BE ON POST, TIN PLATING TO BE ON TAIL.
9. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE -EC OPTION
IS NOT COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS
MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH THE -EC OPTION.
10. NUMBER OF POSITIONS MAY BE AS HIGH AS -75 FOR SAMTEC
MANUFACTURING ONLY.
FIG 1
SEE NOTE 4
(2 PLCS)
SEE NOTE 3
.205±.008 5.21±0.20
C
.03937±.004 1.0000±0.10
.040 1.02 REF
(SEE NOTE 7)
C
C
1.
2.
3.
4.
5.
6.
7.
8.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0010[.025]
MATERIAL
ANGLES
1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
INSULATOR:
BLACK, LCP, UL-94-V-0
TERMINAL:
PHOSPHOR BRONZE
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
BY:
PURVIS
FTMH-1XX-XX-XX-DV-XX
04-22-96
SHEET
1
OF
5
REVISION BC
(NO OF POSITIONS + 2) x .03937[1.0000] .008 [.20]
C
.206 5.24 REF

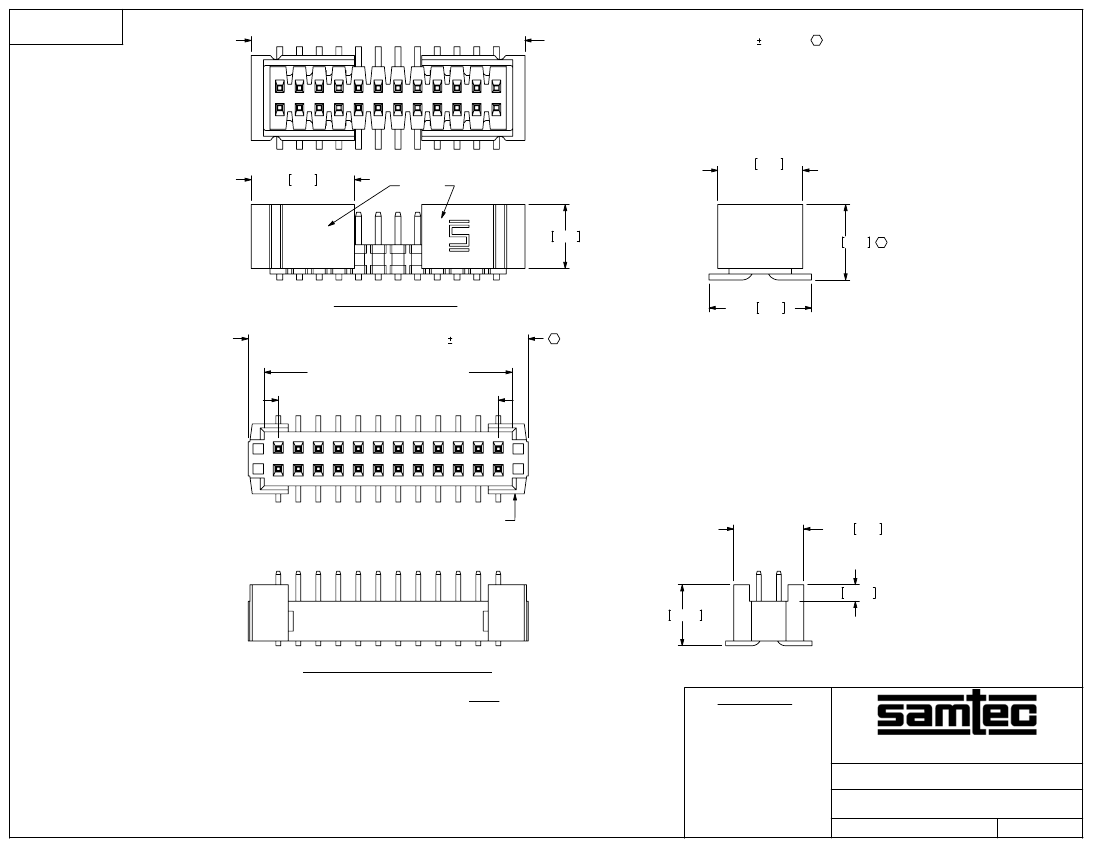

ES-FTMH
.170 4.32
REF
.128 3.25 REF
.151 3.84
C
SNAP ON END SHROUDS
(No OF POS + 2) x .03937[1.0000] .010[.25]
(No OF POS x .03937[1.0000]
+.021[.52] REF
(No OF POS - 1) x .03937[1.0000]
- .001[.03]
+.003[.08]
.205 5.21
C
FTMH-75-ES-XX
.175 4.45 REF
.0415 1.054 REF
.1525 3.874 REF
MOLDED TO POSITION END SHROUDS
-ES: END SHROUDS
FTMH-112-02-X-DV-ES SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 2
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04-22-96
SHEET
2
OF
5
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
PURVIS
REVISION BC
THEORETICAL
CUT LINES
FTMH-105-XX-XX-DV-ES SHOWN (BEFORE CUT)
THEORETICAL CUT LINES
FTMH-110-XX-XX-DV-ES SHOWN (BEFORE CUT)
THEORETICAL CUT LINES
FTMH-113-XX-XX-DV-ES SHOWN (BEFORE CUT)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04-22-96
SHEET
3
OF
5
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
PURVIS
REVISION BC
"B" REF
(SEE TABLE 3)
C
L
NOTE
"M" = USED MEASURED DIMENSION (REF)
"P" = (("M" - .200[5.08]) / 2) ±.020[.51]
"M"
(SEE NOTE)
.200 5.08
REF
"P"
(SEE NOTE)
C
.125 3.18

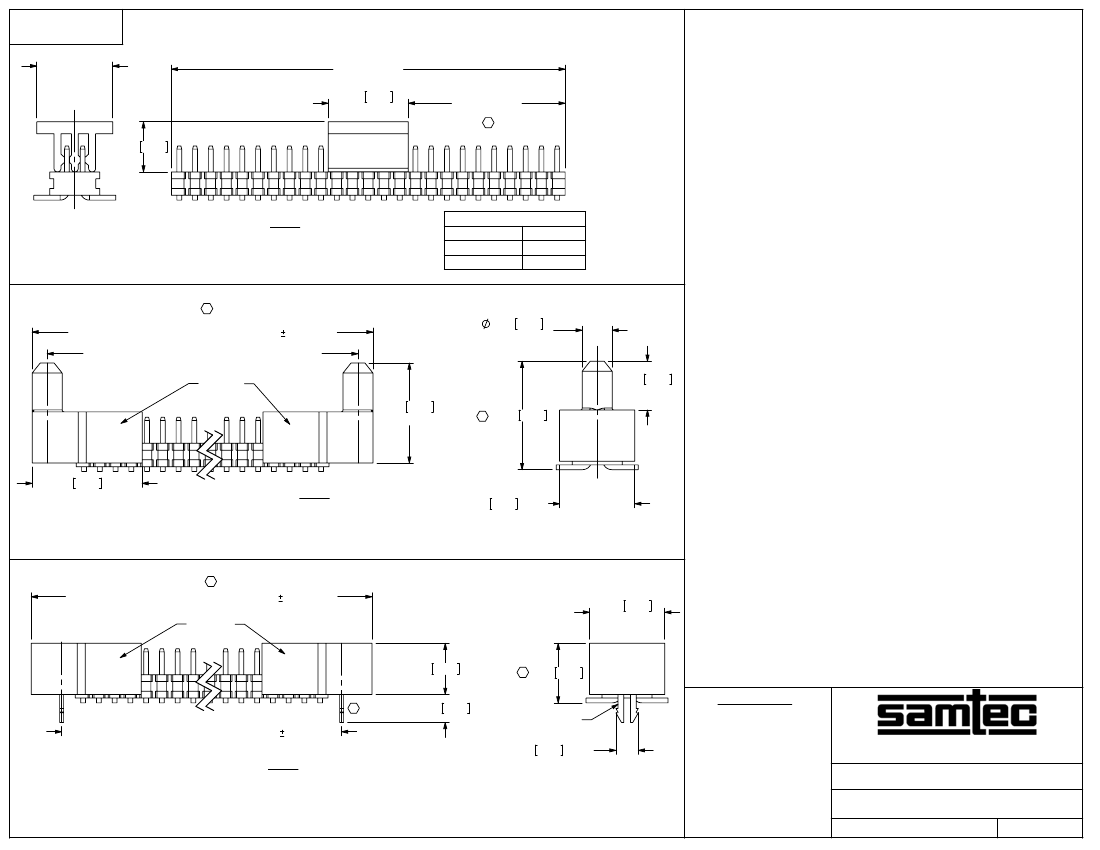

-P: PICK & PLACE PAD
FTMH-125-03-X-DV-P SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
PAD
PPP-30
PPP-30-NT
TABLE 3
"B"
.125[3.18]
.190[4.83]
C
NO OF POS x .03937[1.0000] + .216[5.48] .008[.20]
NO OF POS x .03937[1.0000] + .137[3.47] REF
FTMH-EP
.250 6.35
REF
C
.075 1.91
REF
C
L
.122 3.10
REF
.271 6.88
.275 6.99 REF
-EP: GUIDE POST
FTMH-125-03-X-DV-EP SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
.188 4.78 REF
C
NO OF POS x .03937[1.0000] + .160[4.07] .008[.20]
FTMH-EC
.188 4.78
REF
.128 3.25 REF
C
C
.149 3.78
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.070 1.78
NO OF POS x .03937[1.0000] + .110[2.84] .008[.20]
LC-05-TM
.056 1.42 REF
-EC: LOCKING CLIP
FTMH-125-03-X-DV-EC SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
FIG 5
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04-22-96
SHEET
4
OF
5
BY:
PURVIS
REVISION BC
(No OF POS -2) x .03937[1.0000] .005[.13]
FTMH-60-D
SM-A7H
.025 0.64
REF

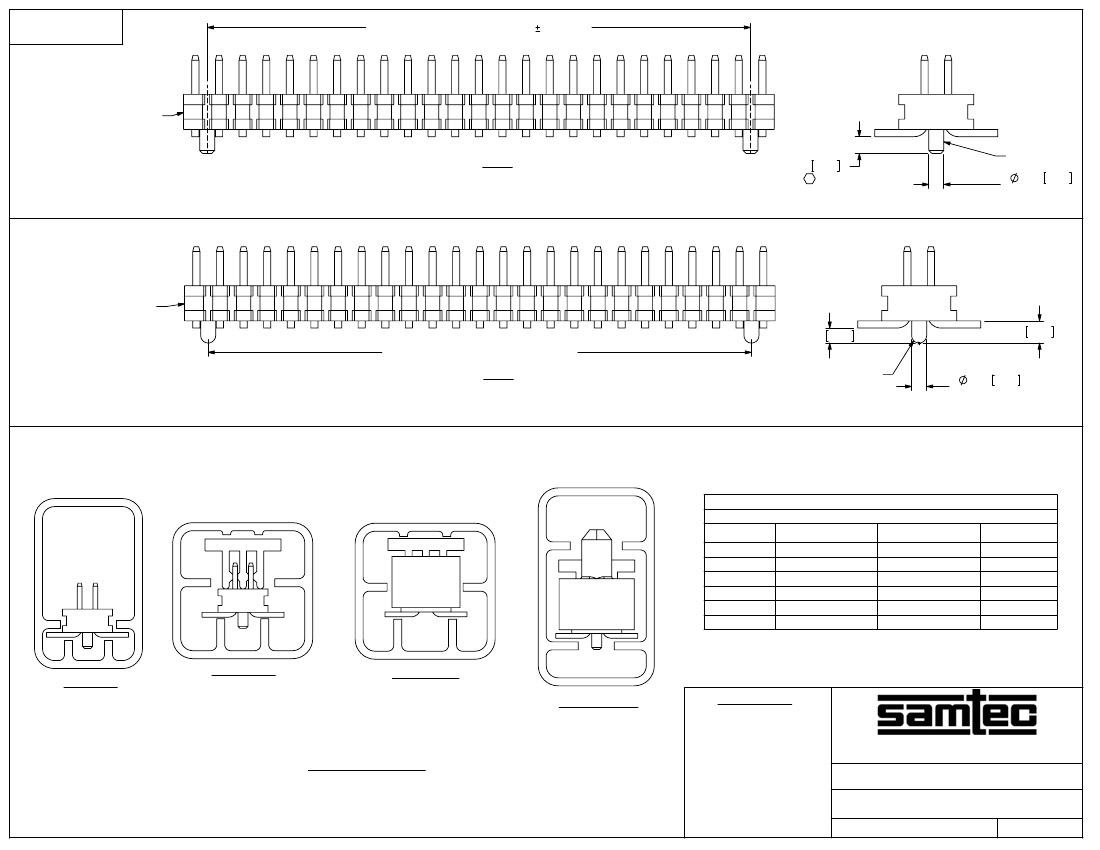

-A: ALIGNMENT PIN (STAKED)
(MIN 7 POSITIONS)
FTMH-125-03-X-DV-A SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 6
.028 0.71
C
FTMH-75-D-XX
.025 0.64
(No OF POS -2) x .03937[1.0000] REF
-A: ALIGNMENT PIN (MOLDED)
(MIN 3 POSITIONS)
FTMH-125-03-X-DV-A SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
.037 0.94 REF
FIG 7
FULL RADIUS
.025 0.64
REF
TABLE 2
(SEE NOTE 5 FOR PACKAGING NOTES)
LEAD STYLE
-02, -03
-02, -03
-02, -03
-02, -03
-02, -03
-02, -03
OPTION (S)
-NONE
-A
-P, -A-P
-ES, -ES-P, -ES-A, EP
-EC, -EC-P, -EC-A
-EP-A, -EP-A-P
PACKAGING TUBE
PT-1-24-01-60
PT-1-24-01-60
PT-1-24-05-63
PT-1-24-01-63
PT-1-24-01-60
PT-1-24-02-15
TUBE PLUG
TP-03 (x 2)
TP-03 (x 2)
TP-24 (x 2)
TP-24 (x 2)
TP-03 (x 2)
TP-03 (x 2)
-A OPTION
PT-1-24-01-60
-A-P OPTION
PT-1-24-05-63
-ES-P OPTION
PT-1-24-01-63
-EP-A-P OPTION
PT-1-24-02-15
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
PACKAGING VIEWS
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 5:1
1mm x 1mm DOUBLE VERTICAL SMT TERMINAL STRIP
FTMH-1XX-XX-XX-DV-XX
04-22-96
SHEET
5
OF
5
F:\DWG\MISC\MKTG\FTMH-1XX-XX-XX-DV-XX-MKT.SLDDRW
BY:
PURVIS
