12-6925-22 datasheet, PDF - EEWORLD Datasheet

12-6925-22: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerAries Electronics

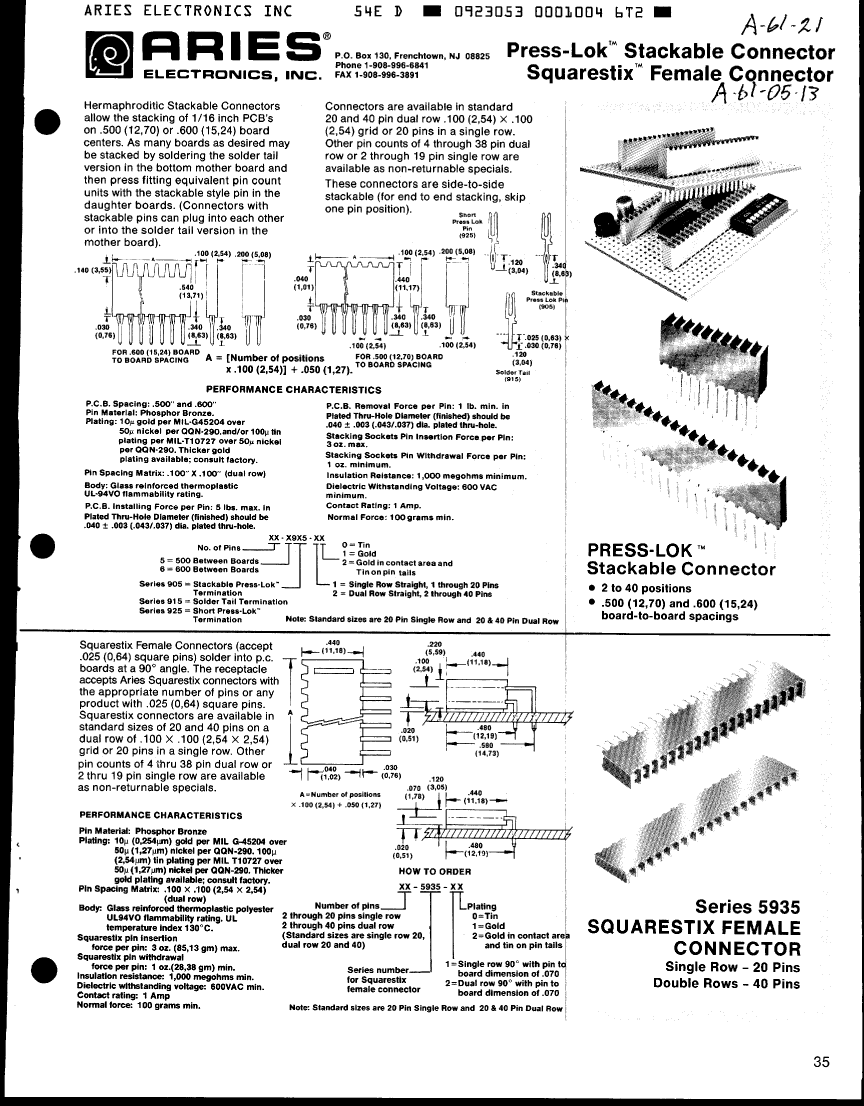

Download Datasheet Parametric View All

12-6925-22 Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

Parameter Name	Attribute value
maximum insertion force	.834 N
Insulation resistance	1000000000 Ω
Evacuation force-minimum value	.278 N
Dielectric withstand voltage	600VAC V
Filter function	NO
JESD-609 code	e4
Guideline	UL
ECCN code	EAR99
Is Samacsys	N
YTEOL	0
Objectid	1152845674
Reach Compliance Code	Compliant
Terminal length	0.12 inch
body width	0.2 inch
subject depth	0.54 inch
body length	0.65 inch
PCB row number	2
Number of rows loaded	2
Rated current (signal)	1 A
Terminal pitch	2.54 mm
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
insulator material	GLASS FILLED POLYETHYLENE
Installation method	STRAIGHT
Installation type	BOARD
Total number of contacts	12
Body/casing type	PLUG
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Plug contact pitch	0.1 inch
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Termination type	SOLDER
Contact completed and terminated	GOLD
contact mode	RECTANGULAR
Match contact row spacing	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	10u inch
