5962-01-350-7935 datasheet, PDF

5962-01-350-7935: DescriptionIC,BUFFER/DRIVER,DUAL,4-BIT,ACT-CMOS,DIP,20PIN,CERAMIC; Categorylogic logic; File Size156KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

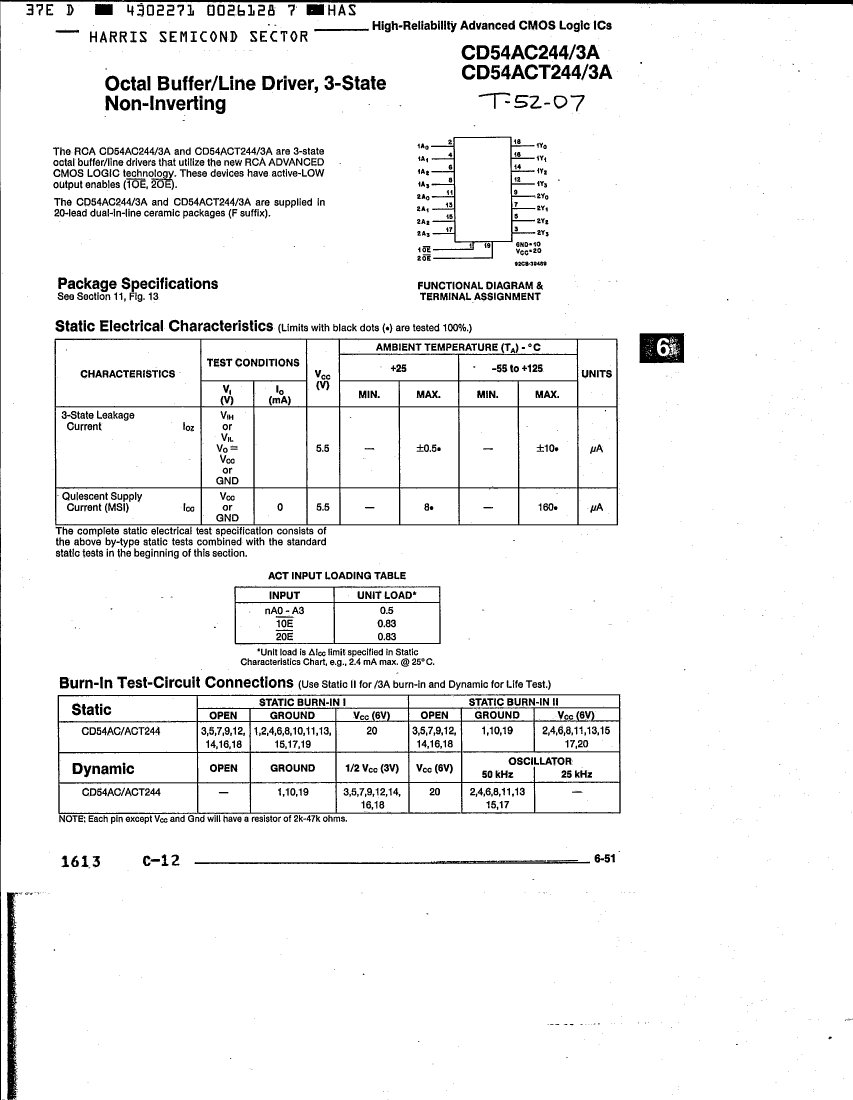

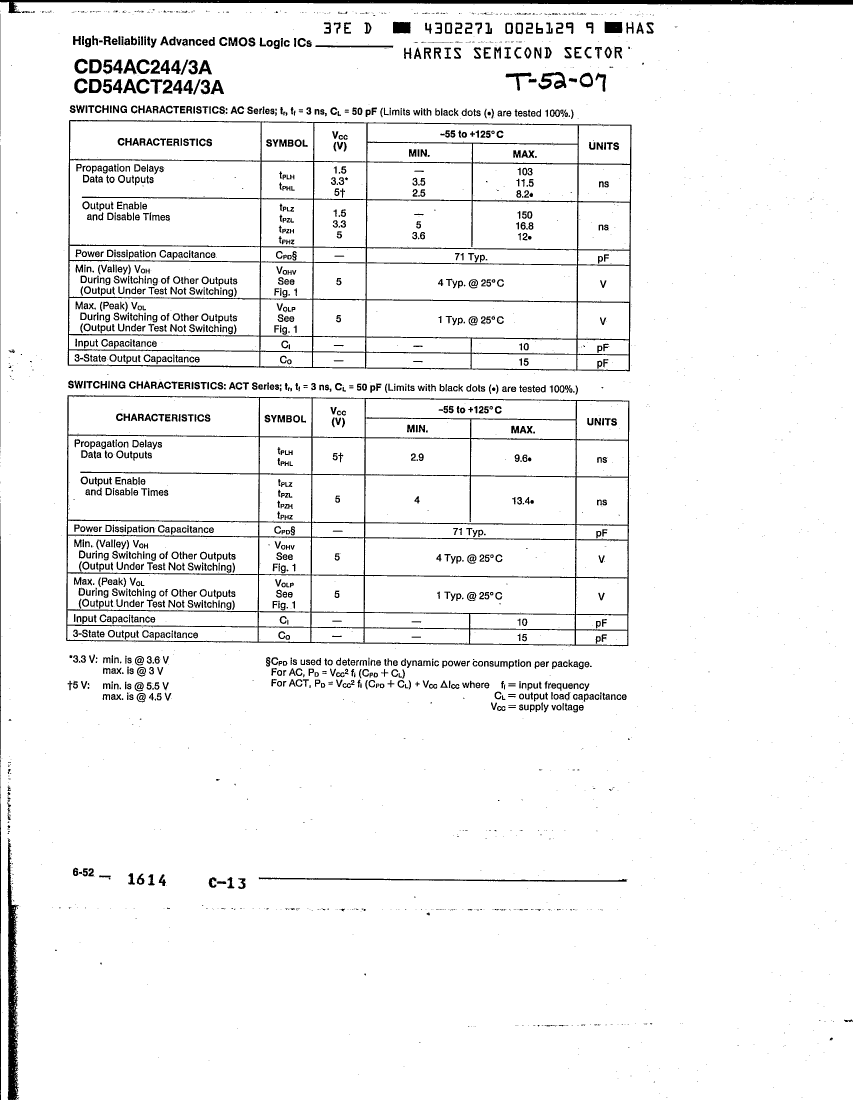

5962-01-350-7935 Overview

IC,BUFFER/DRIVER,DUAL,4-BIT,ACT-CMOS,DIP,20PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP20,.3
Reach Compliance Code	not_compliant
Control type	ENABLE LOW
JESD-30 code	R-XDIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.024 A
Number of digits	4
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Prop。Delay @ Nom-Sup	9.6 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	5962-01-350-7935	5962-01-419-2071
Description	IC,BUFFER/DRIVER,DUAL,4-BIT,ACT-CMOS,DIP,20PIN,CERAMIC	IC,BUFFER/DRIVER,DUAL,4-BIT,AC-CMOS,DIP,20PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	not_compliant	not_compliant
Control type	ENABLE LOW	ENABLE LOW
JESD-30 code	R-XDIP-T20	R-XDIP-T20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.024 A	0.012 A
Number of digits	4	4
Number of functions	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	3.3/5 V
Prop。Delay @ Nom-Sup	9.6 ns	11.5 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
