30LV Series
Vishay Cera-Mite
AC Line Rated Disc Capacitors
Class X1, 400 VAC/Class Y2, 300 VAC
FEATURES
1.250" min.
(32 mm)
D
max.
LO
Tinned Copper Leads
∅
LS
•
Worldwide safety agency recognition
Underwriters laboratories - UL1414 and UL1283
Canadian standards association - CSA 22.2
European EN132400 to IEC 60384-14 second
edition
•
Complete range of capacitance values
•
Radial leads
•
Compliant to RoHS directive 2002/95/EC
0.125"
max. (3.2 mm)
T
max.
LO’ = 0.132" (3.4 mm) typ.
APPLICATIONS
INSULATION RESISTANCE
Min. 1000
ΩF
•
Required in AC Power Supply and Filter Applications
•
Specific Industry Requirements
TOLERANCE ON CAPACITANCE
± 10 %; ± 20 %
DESIGN
The capacitors consist of a ceramic disc of which both sides
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.032" (0.81 mm) or 0.025"
(0.64 mm). The capacitors may be supplied with radial
kinked or straight leads having a lead spacing of 0.375"
(9.5 mm) or 0.250" (6.4 mm). The standard tolerance is
± 20 %. Coating is made of flame retardant epoxy resin in
accordance with “UL 94 V-0.”
DISSIPATION FACTOR
2.0 % max. at 1 kHz; 1 V
CERAMIC DIELECTRIC
C0G, U2J, P3K, R3L (Class 1)
X7R, Y5U (Class 2)
CAPACITANCE RANGE
10 pF to 0.015 µF
CATEGORY TEMPERATURE RANGE
(- 25 to + 125) °C
RATED VOLTAGE
IEC 60384-14.2:
IEC 60384-14.2:
UL 1414:
UL 1283:
CSA 22.2 No.1:
CSA 22.2 No.8:
(Y2): 300 VAC, 50 Hz
(X1): 400 VAC, 50 Hz
250 VAC, 60 Hz
250 VAC, 60 Hz
250 VAC, 60 Hz
400 VAC, 60 Hz
CLIMATIC CATEGORY ACC. TO EN60068-1
25/125/21
OPERATING TEMPERATURE RANGE
(- 30 to + 125) °C
DIELECTRIC STRENGTH BETWEEN LEADS
Component test:
2500 VAC, 50 Hz, 2 s
As repeated test admissible only once with:
2250 VAC, 50 Hz, 2 s
Random sampling test (destructive test):
2500 VAC, 50 Hz, 60 s
DIELECTRIC STRENGTH OF BODY
INSULATION
2300 VAC, 50 Hz, 60 s (destructive test)
Document Number: 23103
Revision: 04-Jun-09
For technical questions, contact:
ceramite@vishay.com
www.vishay.com
1
30LV Series
Vishay Cera-Mite
AC Line Rated Disc Capacitors
Class X1, 400 VAC/Class Y2, 300 VAC
ORDERING INFORMATION, CERAMIC X1/Y2 CAPACITORS 30LV
C
(pF)
C0G
10
U2J
15
P3K
22
R3L
33
47
S3L
68
X7R
100
150
220
330
470
560
680
1000
1500
Y5U
680
1000
1500
2000
2200
2700
2800
3000
3200
3300
3900
4000
4700
5000
5500
5600
6800
8000
9000
0.010 µF
0.015 µF
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.400 (10.2)
0.400 (10.2)
0.430 (10.9)
0.430 (10.9)
0.460 (11.7)
0.460 (11.7)
0.460 (11.7)
0.490 (12.4)
0.530 (13.5)
0.620 (15.7)
0.620 (15.7)
0.560 (14.2)
0.560 (14.2)
0.680 (17.3)
0.680 (17.3)
0.720 (18.3)
0.790 (20.1)
0.900 (22.9)
0.220 (5.6)
0.215 (5.5)
0.195 (5.0)
0.210 (5.3)
0.200 (5.1)
0.200 (5.1)
0.200 (5.1)
0.205 (5.2)
0.200 (5.1)
0.195 (5.0)
0.200 (5.1)
0.210 (5.3)
0.220 (5.6)
0.215 (5.5)
0.195 (5.0)
0.195 (5.0)
0.205 (5.2)
0.195 (5.0)
0.200 (5.1)
0.190 (4.8)
0.200 (5.1)
30LVT68-R
30LVD10-R
30LVD15-R
30LVD20-R
30LVD22-R
30LVD27-R
30LVD28-R
30LVD30-R
30LVD32-R
30LVD33-R
30LVD39-R
30LVD40-R
30LVD47-R
30LVD50-R
30LVD55-R
30LVD56-R
30LVD68-R
30LVD80-R
30LVD90-R
30LVS10-R
30LVS15-R
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.330 (8.4)
0.365 (9.3)
0.460 (11.7)
0.180 (4.6)
0.180 (4.6)
0.195 (5.0)
0.195 (5.0)
0.180 (4.6)
0.200 (5.1)
0.180 (4.6)
0.185 (4.7)
0.180 (4.6)
30LVT10-R
30LVT15-R
30LVT22-R
30LVT33-R
30LVT47-R
30LVT56-R
30LVTT68-R
30LVTD10-R
30LVTD15-R
± 10 %
0.330 (8.4)
0.175 (4.4)
22
0.025 (0.64)
0.250 (6.4)
30LVQ68-R
± 10 %
± 10 %
0.330 (8.4)
0.330 (8.4)
0.190 (4.8)
0.170 (4.3)
22
22
0.025 (0.64)
0.025 (0.64)
0.250 (6.4)
0.250 (6.4)
30LVQ33-R
30LVQ47-R
± 10 %
0.330 (8.4)
0.180 (4.6)
22
0.025 (0.64)
0.250 (6.4)
30LVQ22-R
± 10 %
0.330 (8.4)
0.200 (5.1)
22
0.025 (0.64)
0.250 (6.4)
30LVQ15-R
± 10 %
0.330 (8.4)
0.185 (4.7)
22
0.025 (0.64)
0.250 (6.4)
30LVQ10-R
TOL.
(%)
D
DIAMETER
INCH (mm)
T
THICKNESS
INCH (mm)
WIRE SIZE
AWG
INCH (mm)
LS
LEAD SPACE
INCH (mm)
ORDERING
CODE
± 10 %
22
0.025 (0.64)
0.250 (6.4)
22
0.025 (0.64)
0.250 (6.4)
± 20 %
20
0.032 (0.81)
0.375 (9.5)
Notes
1. Alternate lead spacings of 7.5 mm and 10 mm are available bulk or tape and reel on request.
2. European required minimum lead clearance (prevents use of inside crimp) 0.118" (3 mm)
3. Type 30 LVS15 not available with UL 1414 recognition.
• To specify tape and reel, add two letter suffix to the ordering code (for details of the packaging code see general section of the catalog)
OPTIONAL 3-LEADED STYLE
An optional 3-leaded construction is available. It consists of a single capacitor with the two outside leads attached to one
electrode, and the center lead attached to the electrode. Used in feed-thru or line-to-ground applications, it allows a short ground
lead for enhanced high frequency performance.
a
D
max.
4 mm max.
b
T
1.250" min. (32 mm)
G
LS
G
c
a
b
www.vishay.com
2
For technical questions, contact:
ceramite@vishay.com
Document Number: 23103
Revision: 04-Jun-09
30LV Series
AC Line Rated Disc Capacitors
Class X1, 400 VAC/Class Y2, 300 VAC

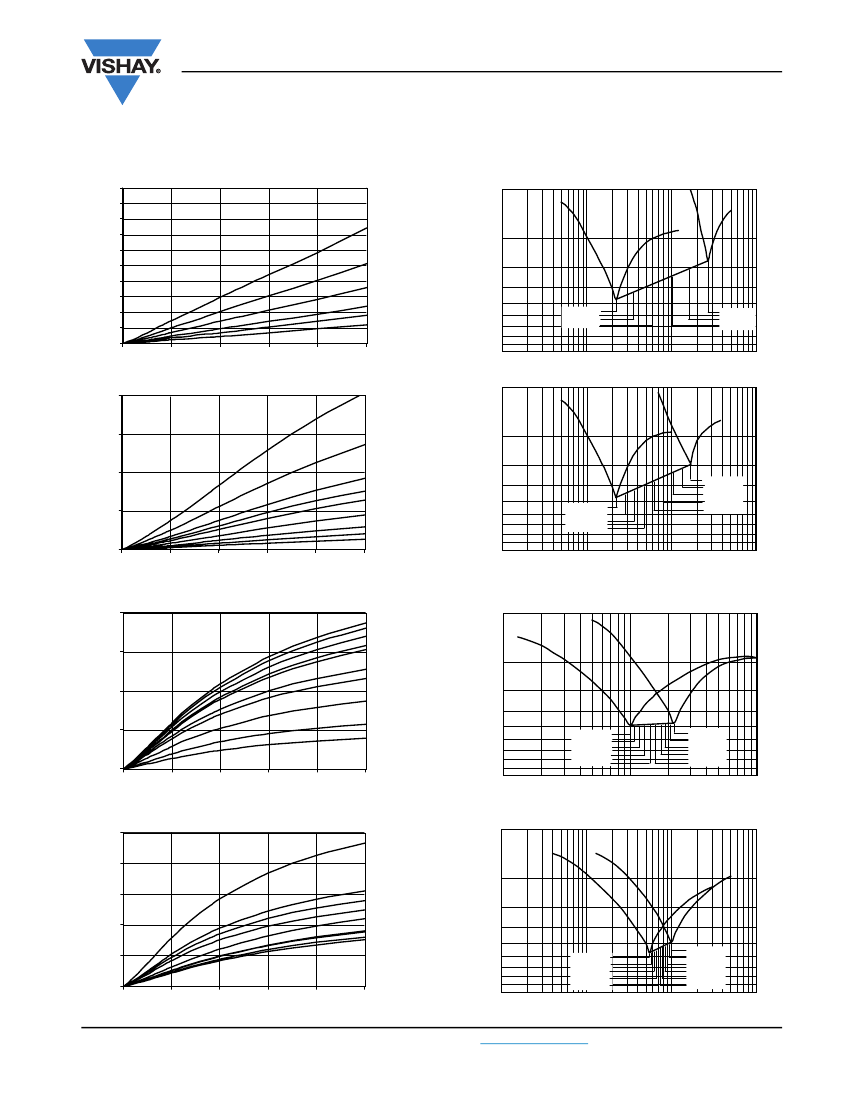

LEAKAGE CURRENT VS. VOLTAGE
(TYPICAL)
100
Vishay Cera-Mite
INSERTION LOSS VS. FREQUENCY
(TYPICAL)
10
Leakage Current (mA) RMS
90
80
70
60
50
40
30LVQ33-R
30LVQ47-R
Insertion Loss (dB)
30LVQ68-R
20
30
40
50
30LVQ68-R
30LVQ47-R
30LVQ33-R
30LVQ10-R
30LVQ15-R
30LVQ22-R
30
20
10
0
0
500
1000
1500
2000
30LVQ22-R
30LVQ15-R
30LVQ10-R
2500
100
1
10
AC Voltage (V) RMS
2
30LVT15-R
10
100
Frequency (MHz)
1000
Leakage Current (mA) RMS
1.5
30LVTD10-R
Insertion Loss (dB)
20
30
40
50
30LVTD15-R
30LVTD10-R
30LVTT68-R
30LVT56-R
30LVT10-R
30LVT15-R
30LVT22-R
30LVT33-R
30LVT47-R
1
30LVTT68-R
30LVT56-R
30LVT47-R
0.5
30LVT33-R
30LVT22-R
30LVT15-R
30LVT10-R
0
0
500
1000
1500
2000
2500
100
1
10
100
1000
AC Voltage (V) RMS
Frequency (MHz)
2
30LVD33-R
30LVD32-R
30LVD30-R
30LVD28-R
30LVD27-R
30LVD22-R
30LVD20-R
10
Leakage Current (mA) RMS
1.5
Insertion Loss (dB)
20
1
30LVD15-R
30
40
50
30LVD33-R
30LVD32-R
30LVD30-R
30LVD28-R
30LVD27-R
30LVT68-R
30LVD10-R
30LVD15-R
30LVD20-R
30LVD22-R
30LVD10-R
0.5
30LVT68-R
0
0
500
1000
1500
2000
2500
100
1
10
100
AC Voltage (V) RMS
Frequency (MHz)
10
10
30LVDS15-R
Leakage Current (mA) RMS
Insertion Loss (dB)
8
30LVS10-R
20
6
30LVD90-R
30LVD80-R
30LVD68-R
30LVT56-R
30LVD55-R
30LVD50-R
30LVD47-R
30
40
50
30LVS15-R
30LVS10-R
30LVD90-R
30LVD80-R
30LVD68-R
30LVD39-R
30LVD40-R
30LVD47-R
30LVD50-R
30LVD55-R
30LVD56-R
4
2
0
0
500
1000
1500
2000
2500
100
0.1
1
10
100
AC Voltage (V) RMS
Frequency (MHz)
Document Number: 23103
Revision: 04-Jun-09
For technical questions, contact:
ceramite@vishay.com
www.vishay.com
3
30LV Series
Vishay Cera-Mite
AC Line Rated Disc Capacitors
Class X1, 400 VAC/Class Y2, 300 VAC

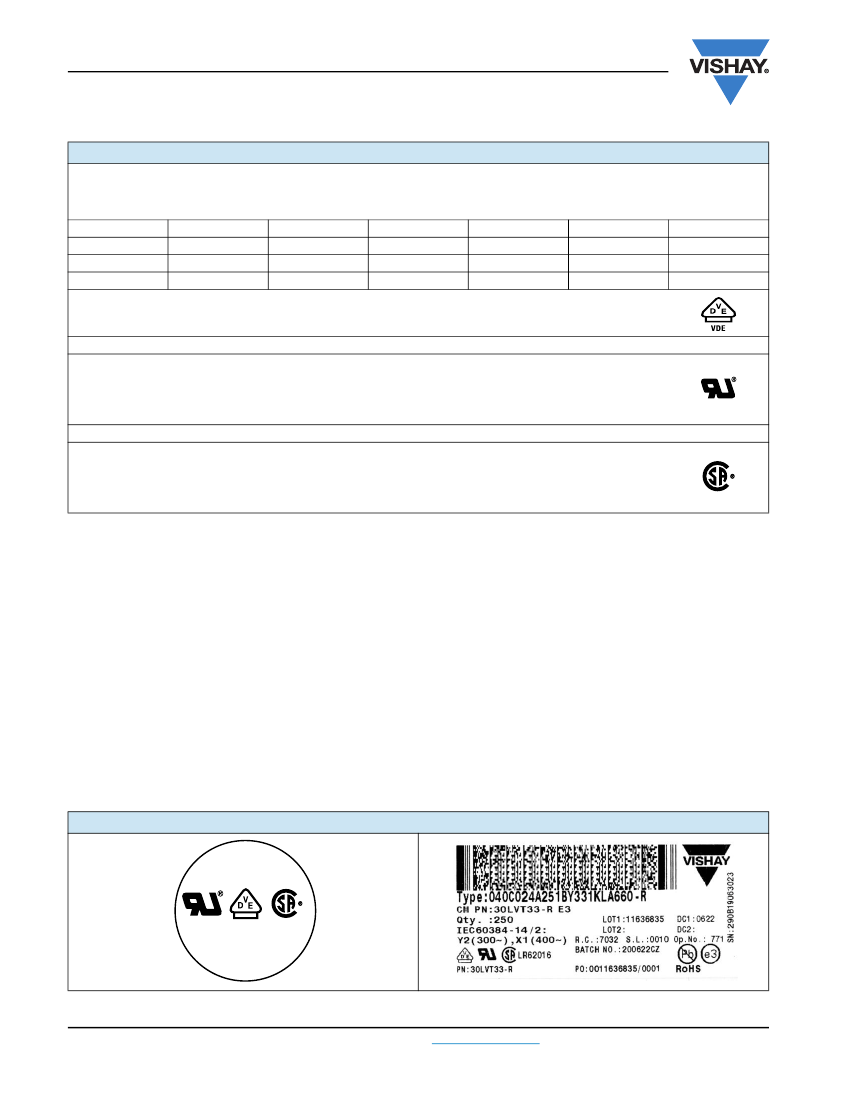

APPROVALS
IEC 60384 - 14/2
nd
Issue (1993) incl. Am.1 (1995) - Safety Tests
EN132400 (1994) - Safety Tests
That approval together with CB Test Certificate substitutes the national approval of the following nations:
Belgium
Denmark
Germany
Finland
France
Greece
Ireland
Iceland
Italy
Luxembourg
Netherlands
Norway
DE 1-19455
DE 1-19455
Austria
Portugal
Sweden
Switzerland
China
Singapore
Slovenia
Korea
Japan
Poland
Hungaria
Israel
300 V
AC
400 V
AC
Spain
United Kingdom
Czech Republic
Y2 Capacitor: CB-Test Certificate:
X1 Capacitor: CB-Test Certificate:
UNDERWRITERS LABORATORIES INC.
UL 1414
UL 1283
10 pF... 0.015 µF
10 pF... 0.015 µF
Across-the-line, Antenna-coupling and Line-by-pass component
Agency File/License
E99264 V2S2
EMI Filters
Agency File/License
E99264 V2S2
10 pF... 0.010 µF
250 V
AC
10 pF... 0.015 µF
250 V
AC
CANADIAN STANDARDS ASSOCIATION
CSA C22.2
Across-the-line, Isolation capacitor
No. 1
Agency File/License
LR 62016-12
No. 8
Line-to-ground capacitor
Agency File/License
LR 62016-12
10 pF... 0.015 µF
250 V
AC
10 pF... 0.015 µF
400 V
AC
Note 1
UL1414 Across-The-Line, Antenna Coupling, and Line-By-Pass Capacitors:
• Across-The-Line - A capacitor connected either across a supply circuit or between one side of a supply circuit and a conductive part that may
be connected to earth ground.
• Antenna-Coupling - A capacitor connected from an antenna terminal to circuits within an appliance.
• Line-By-Pass - A capacitor connected between one side of a supply circuit and an accessible conductive part
Note 2
IEC 60384-14 Subclass Y Capacitors:
• A capacitor of a type suitable for use in situations where failure of the capacitor could lead to danger of electric shock.
• Class Y capacitors are divided into sub- classes based on type of insulation bridged and voltage ranges.
• For definitions of basic, supplementary, double and reinforced insulation, see IEC Publication 536.
• Subclass Y capacitors may be used in applications which require a Subclass X rating.
Note 3
IEC 60384-14 Subclass X Capacitors:
• A capacitor of a type suitable for use in situations where failure of the capacitor in situations where failure of the capacitor would not lead to
danger of electric shock.
• Class X capacitors are divided into subclasses according to the peak impulse test voltage superimposed on the main voltage
MARKING
Sample
100K
30LV
125 °C
Y2 300 ~
X1 400 ~
CM
www.vishay.com
4
For technical questions, contact:
ceramite@vishay.com
Document Number: 23103
Revision: 04-Jun-09
