380HA018M1104TH Overview

circular mil spec backshells

380-002

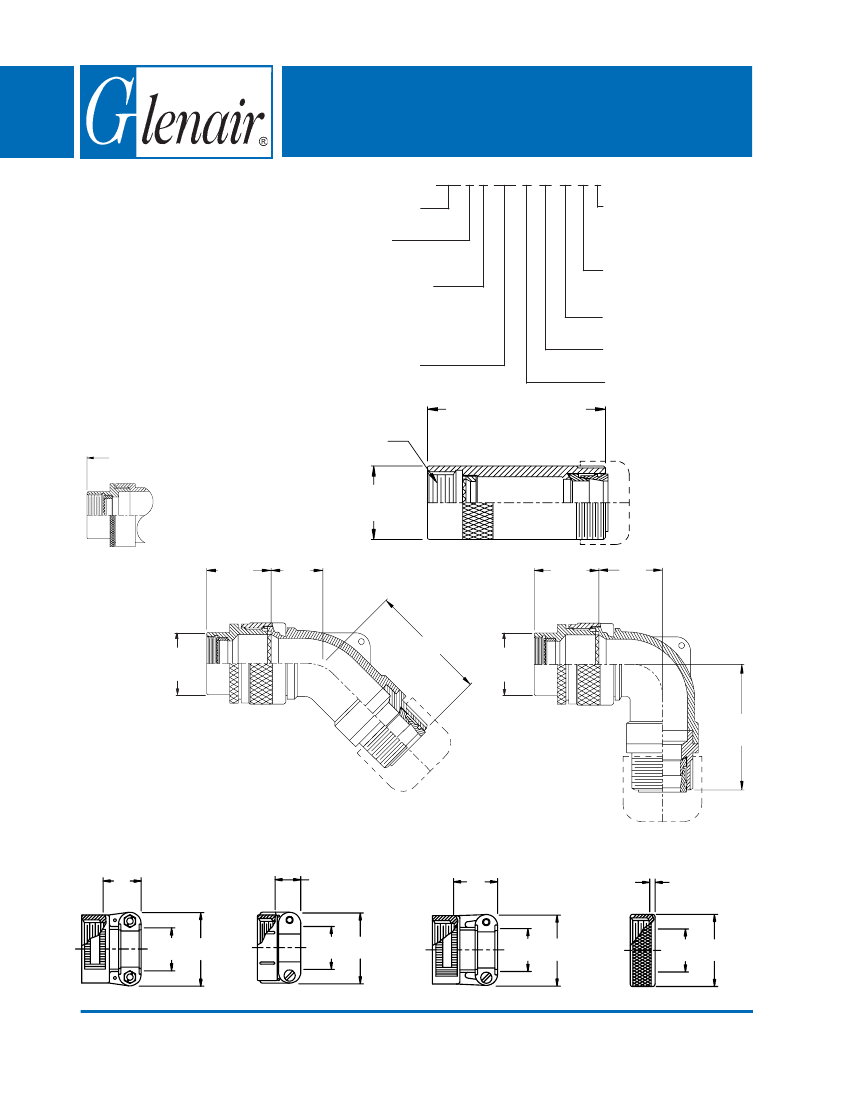

EMI/RFI Non-Environmental Backshell
with Strain Relief
Type A - Direct Coupling - Low Profile
38
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 5
CONNECTOR
DESIGNATORS
*
380 F S 002 M 16 10 H 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(H, A, M, D)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 2.5 Inch
(See Note 4)
DIRECT
COUPLING
TYPE A OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Min. Order Length 3.0 Inch
(See Note 4)
A Thread
(Table I)
B
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
J
(Table III)
E
(Table
IV)
F (Table IV)
J
(Table
III)
G
(Table
IV)
B
(Table I)
B
(Table I)
H (Table IV)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 18
