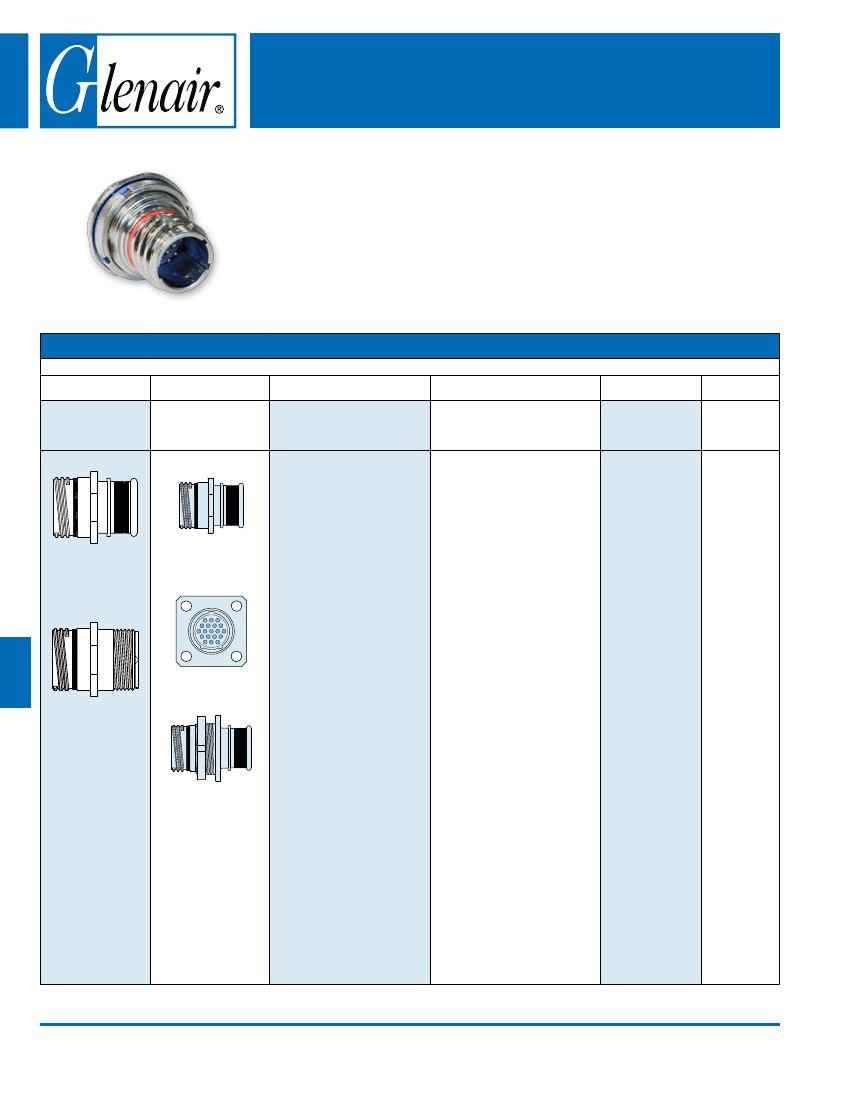

Series 805 Mighty Mouse Triple-Start
Crimp Receptacle Ordering Information
805-003 and 805-004
A
B
C
D
E
F
G
H
J
K
L
Receptacle with
Accessory Thread
Receptacle with
Banding Platform
M
© 2010 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
Series 805
Three Shell Mounting Options
Jam nut with O-ring for rear panel
mounting, square flange for front or rear
panel mounting, or in-line receptacles for
free-hanging cables.
Gold-Plated Crimp Contacts
are held in
place with beryllium copper retention
clips. Contacts are removable.
Two Shell Styles:
Choose
integral band
platform
for direct attachment of a cable
shield. Install a boot, or overmold a boot
over the band platform. An
accessory
thread
is available for attaching strain
reliefs and backshells.
Series 805 Triple-Start
Jam Nut Connector
HOW TO ORDER
80 5- 00 4
Series
-02
Shell Style
NF
Sample Part Number
9-10
P
Contact Type
Connector
supplied with
contacts
Pin
Socket
Connector
supplied
without
contacts
Pin Connector,
less contacts
Socket
Connector, less
contacts
Connectors with
contacts are
supplied with signal
and/or power crimp
contacts. These
contacts are not
installed.
Coaxial contacts
and non-standard
signal contacts are
ordered separately.
A
Shell Key
Position
A
B
C
D
Shell Material / Finish
C
Shell Size- Insert
Arrangement
SEE
Aluminum / Black Anodize
(Non-Conductive)
RoHS Compliant
CONTACT
ARRANGEMENTS
PAGE H-2
Position A
(Normal)
Position B
Position C
Position D
P
S
805-003
In-Line
-01
Aluminum / Electroless
Nickel
RoHS Compliant
Aluminum / Cadmium with
Olive Drab Chromate
M
NF
Square Flange
-02
Aluminum / Zinc-Nickel
with Olive Drab Chromate
Aluminum / Zinc-Nickel
with Black Chromate
Aluminum / Nickel-PTFE
RoHS Compliant
Stainless Steel /
Passivated
RoHS Compliant
ZN
A
805-004
ZNU
MT
Z1
B
-07
Jam Nut for Rear
Panel Mounting
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
01-JANUARY-2010
H-8
E-Mail: sales@glenair.com
805-003-01 and 805-004-01
MASTER
KEYWAY
øA
C
THREAD
1.030 (26.16)
MAX
.430
(10.92)
MAX
.060
(1.52)
.150 (3.81)
*
C
MAX
THREAD
1.030 (26.16)
MAX
.430
(10.92)
MAX
.060
(1.52)
.150 (3.81)
*
MAX
øD
RED FULL MATE
INDICATOR BAND
B FLAT
RECEPTACLE WITH
INTEGRAL BAND
PLATFORM
805-003-01
RED FULL MATE
INDICATOR BAND
E THREAD
RECEPTACLE WITH
ACCESSORY THREAD
805-004-01
*Grommet protrudes for
power/combo arrangements
DIMENSIONS
ØA
B
Shell
Size
In. mm. In. mm.
.540 13.72 .510 12.95
8
.605 15.37 .575 14.61
9
.668 16.96 .638 16.21
10
.730 18.54 .700 17.78
11
.793 20.14 .763 19.38
12
.980 24.89 .950 24.13
15
18
1.165 29.59 1.135 28.83
19
1.235 31.37 1.205 30.61
23
1.485 37.72 1.455 36.96
C Threads
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
1.1250-.1P-.3L-TS-2A
1.1875-.1P-.3L-TS-2A
1.4375-.1P-.3L-TS-2A
SERIES 805 kEY POSITIONS
ØD
In. mm.
E Threads
Accessory
.316 8.05 .3750-32 UNEF-2A
.397 10.08 .4375-28 UNEF-2A
.472 12.01 .5000-28 UNEF-2A
.519 13.18 .5625-24 UNEF-2A
.585 14.86 .6250-24 UNEF-2A
.687 17.45 .7500-20 UNEF-2A
.884 22.45 .9375-20 UNEF-2A
.884 22.45 .9375-20 UNEF-2A
1.134 28.80 1.1875-18 UNEF-2A
A° B°
H
PERFORMANCE SPECIFICATIONS
DWV
Insulation Resistance
Operating Temperature
Immersion, Mated
EMI
#23 500 VAC Sea level, #20HD 750 VAC, #12 AND #16
1800 VAC
5000 Megohms Minimum
-55° C. to +150° C.
MIL-STD-810 Method 512. One Meter for One Hour.
65 dB Minimum from 1 GHz. to 10 GHz.
Key Rotation
Key
Position
Normal (A)
B
C
D
A
150°
75°
95°
140°
B
210°
210°
230°
275°
Printed in U.S.A.
MATERIALS AND FINISHES
Connector Shell
Insulator
Seals
Pin Contact
Socket Contact
Contact Retainer Clip
© 2010 Glenair, Inc.
www.glenair.com
Aluminum or Stainless Steel
Liquid Crystal Polymer (LCP)
Fluorosilicone Rubber, Blue
Copper Alloy, Gold over Nickel Plating
Copper Alloy, Gold over Nickel Plating, with SST Hood
Beryllium Copper, Unplated
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
H-9
E-Mail: sales@glenair.com
01-JANUARY-2010
Series 805
Series 805 Mighty Mouse Triple-Start

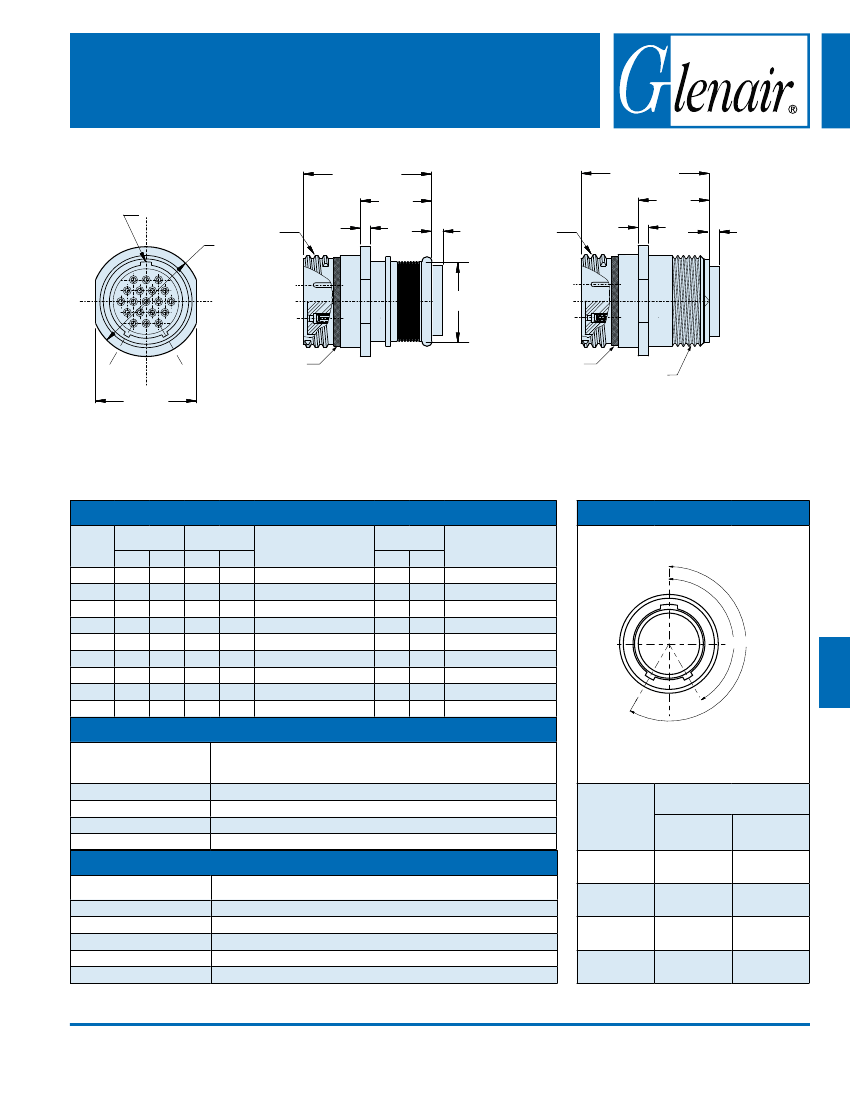

In-Line Receptacle Dimensions
Series 805 Mighty Mouse Triple-Start

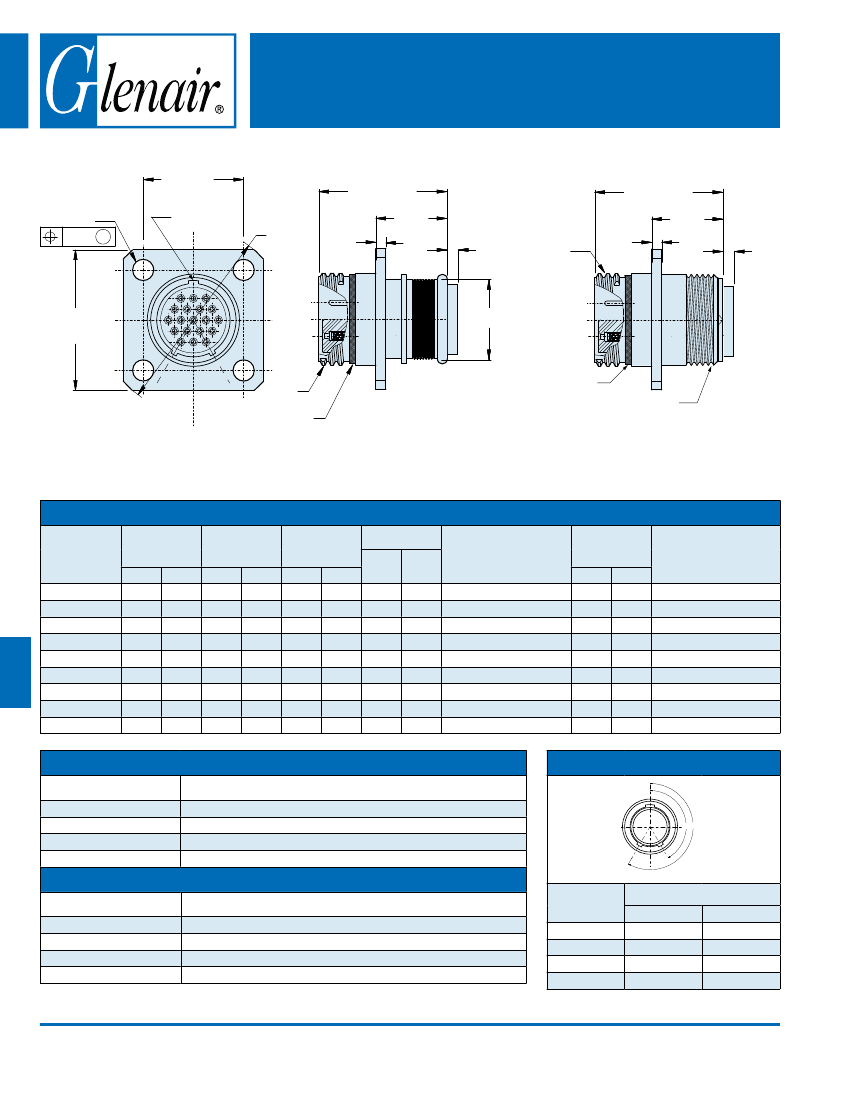

Square Flange Receptacle Dimensions
805-003-02 and 805-004-02
A
B
C
D
E
F
G
H
J
K
L
Shell Size
8
9
10
11
12
15
18
19
23
In.
.850
.913
.975
1.039
1.099
1.288
1.475
1.537
1.787
M
Series 805
B BSC
TYP
4X ø D
ø.005 M
MASTER
KEYWAY
øC
A SQ
TYP
E
THREAD
RED FULL MATE
INDICATOR BAND
1.030 (26.16)
MAX
.430
(10.92)
MAX
.060
(1.52)
.150 (3.81)
*
E
MAX
THREAD
1.030 (26.16)
MAX
.430
(10.92)
MAX
.060
(1.52)
.150
*
(3.81)
MAX
øF
RED FULL MATE
INDICATOR BAND
RECEPTACLE WITH
INTEGRAL BAND
PLATFORM
805-003-02
G
THREAD
RECEPTACLE WITH
ACCESSORY THREAD
805-004-02
*Grommet protrudes for
power/combo arrangements
DIMENSIONS
ØD
A
mm.
21.59
23.19
24.77
B
In.
.660
.723
.785
mm.
ØC
mm.
In.
In.
mm.
± .003 ± .08
29.21
31.24
33.78
35.81
38.10
44.45
50.80
53.19
61.98
.094
.094
.094
.094
.094
.128
.128
.128
.128
2.39
2.39
2.39
2.39
2.39
3.25
E Threads
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
ØF
In.
mm.
.316
.397
.472
.519
.585
.687
.884
.884
1.134
8.05
10.08
12.01
13.18
14.86
17.45
G Threads
Accessory
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
.7500-20 UNEF-2A
16.76 1.150
18.36 1.230
19.94 1.330
21.54 1.410
23.09 1.500
26.87 1.750
31.88 2.000
33.71 2.094
39.88 2.440
26.39
.848
27.91
.909
32.74 1.058
37.47 1.255
71.06 1.327
45.39 1.570
3.25 1.1250-.1P-.3L-TS-2A
3.25 1.1875-.1P-.3L-TS-2A
3.25 1.4375-.1P-.3L-TS-2A
22.45 .9375-20 UNEF-2A
22.45 .9375-20 UNEF-2A
28.80 1.1875-18 UNEF-2A
PERFORMANCE SPECIFICATIONS
DWV
Insulation Resistance
Operating Temperature
Immersion, Mated
EMI
#23 500 VAC Sea level, #20HD 750 VAC, #12 AND #16 1800 VAC
SERIES 805 kEY POSITIONS
5000 Megohms Minimum
-55° C. to +150° C.
MIL-STD-810 Method 512. One Meter for One Hour.
65 dB Minimum from 1 GHz. to 10 GHz.
A° B°
MATERIALS AND FINISHES
Connector Shell
Insulator
Seals
Contact
Contact Retainer Clip
© 2010 Glenair, Inc.
Aluminum or Stainless Steel
Liquid Crystal Polymer (LCP)
Fluorosilicone Rubber, Blue
Copper Alloy, Gold over Nickel Plating
Beryllium Copper, Unplated
Key
Position
Normal (A)
B
C
D
Key Rotation
A
B
150°
75°
95°
140°
210°
210°
230°
275°
Printed in U.S.A.
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
01-JANUARY-2010
H-10
E-Mail: sales@glenair.com

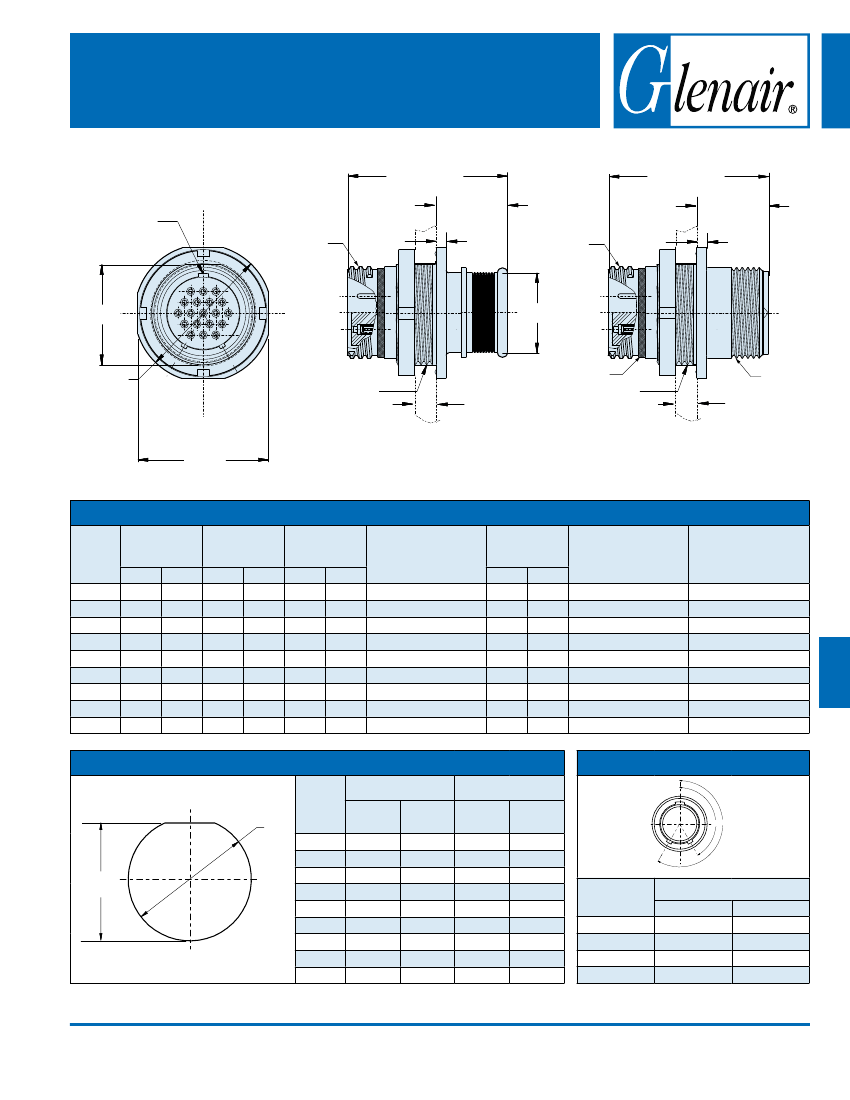

805-003-07 and 805-004-07
MASTER
KEYWAY
1.188 (30.18)
MAX
.430
(10.92)
MAX
D
THREAD
.060
(1.52)
D
THREAD
1.188 (30.18)
MAX
.430
(10.92)
MAX
.060
(1.52)
B FLAT
øE
øA
C FLAT
TYP
G
RED FULL MATE
THREAD
INDICATOR BAND F
F
THREAD
THREAD
.100 (2.54) MAX
.100 (2.54) MAX
PANEL THICKNESS
PANEL THICKNESS
RECEPTACLE WITH
RECEPTACLE WITH
INTEGRAL BAND
ACCESSORY THREAD
PLATFORM
805-004-07
805-003-07
DIMENSIONS
Shell
Size
8
9
10
11
12
15
18
19
23
ØA
In.
mm.
.760
.880
.880
.955
1.060
1.203
1.389
1.450
1.705
19.30
22.35
22.35
24.26
26.92
30.56
35.28
36.83
43.31
B
In.
.535
.661
.661
.721
.784
.970
1.147
1.221
1.470
C
mm.
In.
.730
.850
.850
.925
1.035
1.173
1.359
1.420
1.675
mm.
18.54
21.59
21.59
23.50
26.29
29.79
34.52
36.07
42.55
D Threads
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
ØE
In.
mm.
.317
.397
.473
.519
.585
.687
8.05
10.08
12.01
13.18
14.86
17.45
22.45
22.45
28.80
F Threads
.5625-28 UNEF-2A
.6875-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
.8125-28 UN-2A
1.0000-28 UN-2A
1.1875-28 UN-2A
1.2500-28 UN-2A
1.500-25 UN-2A
G Threads
Accessory
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
.7500-20 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
1.1875-18 UNEF-2A
13.59
16.79
16.79
18.31
19.91
24.64
29.13
31.01
37.34
1.1250-.1P-.3L-TS-2A .884
1.1875-.1P-.3L-TS-2A .884
1.4375-.1P-.3L-TS-2A 1.134
H
PANEL CUTOUT FOR JAM NUT RECEPTACLE
A Flat
ØB
In.
± .005
.572
.698
.698
.760
.822
1.010
1.198
1.260
1.510
SERIES 805 kEY POSITIONS
mm.
± 0.13
14.53
17.73
17.73
19.30
20.88
25.65
30.43
32.00
38.35
øB
A
FLAT
Shell
Size
8
9
10
11
12
15
18
19
23
In.
± .002
.543
.669
.669
.729
.792
.978
1.155
1.231
1.480
mm.
± 0.05
13.79
16.99
16.99
18.51
20.17
24.84
29.34
31.27
37.59
A° B°
Key
Position
Normal (A)
B
C
D
Key Rotation
A
B
150°
75°
95°
140°
210°
210°
230°
275°
Printed in U.S.A.
E-Mail: sales@glenair.com
© 2010 Glenair, Inc.
www.glenair.com
Dimensions in inches (millimeters) and are subject to change without notice.
CAGE Code 06324
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
H-11
01-JANUARY-2010
Series 805
Series 805 Mighty Mouse Triple-Start
Jam Nut Receptacle Dimensions
