M85049/104-23

Description
circular mil spec backshells shield sock bkshell 45deg self locking
CategoryThe connector
File Size180KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

M85049/104-23 Overview

circular mil spec backshells shield sock bkshell 45deg self locking

with Detented or Non-Detented Self-Locking Coupling Nut
CONNECTOR DESIGNATOR:
AS85049/104

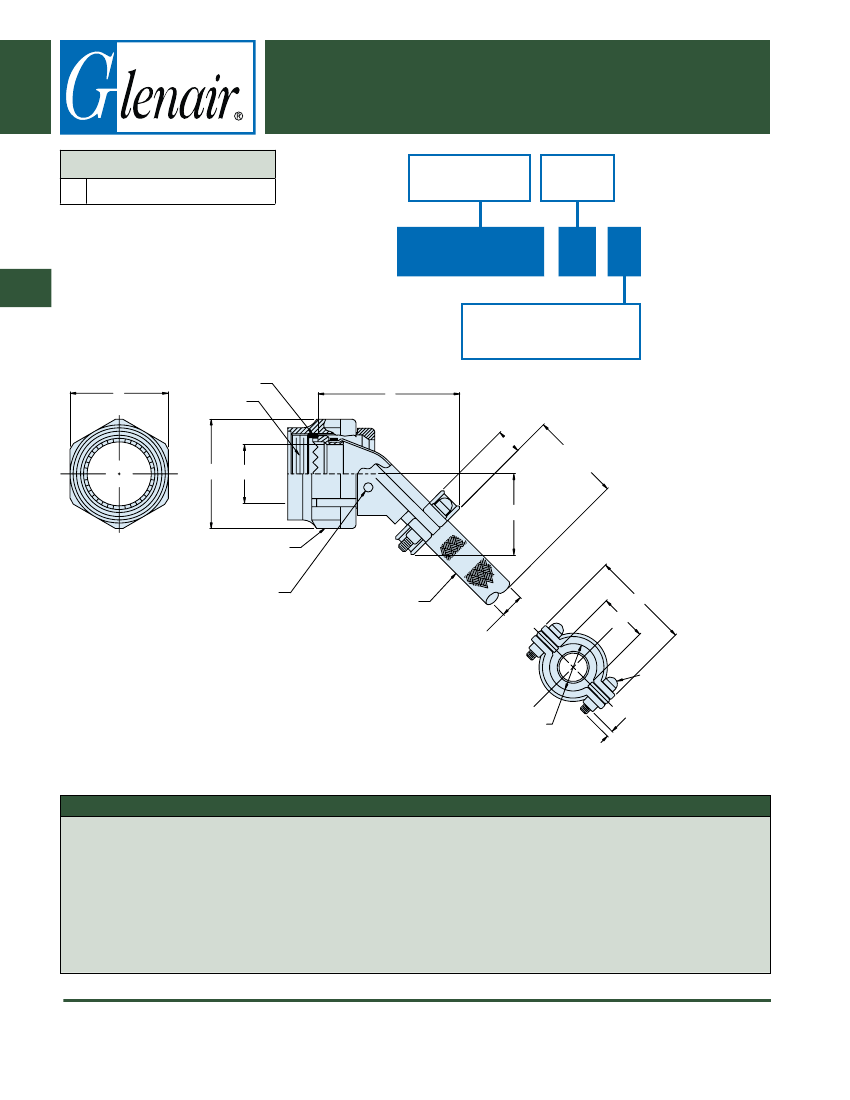

Composite 45° RFI/EMI Shield-Sock Adapter
Shield-Sock
Backshells
H
MIL-DTL-38999 Series III and IV
Product Series and
Basic Part Number
Shell Size
(Table I)
M85049/104
-
11
N
319
N
= Non-Detented Self-Locking
(Omit for Detented Self-Locking)
(See Note 6)
H
EMI Shroud
A Thread
F
G
B
J
K
10.00 (254.0)
Min
Anti-Rotation Device
(See Part Number
Development)
Ø.125 (3.18) Drain Holes
3 Min Equally Spaced
Braided Shield
(See Note 5)
Braid I.D. Ref
E
C
Captivated Self-locking
Telescoping Screws - Typ
D
(See Note 4)
.25 (6.4) Max
Screw Extension, Typ
APPLICATION NOTES
1.
2.
3.
4.
5.
For complete dimensions see the applicable Military
Specification.
Metric dimensions (mm) are in parentheses.
Glenair 600 Series backshell assembly tools are recommended
for assembly and installation.
Cable entry is measured with saddle bars closed and bottomed
on clamp ears.
For shield/splice termination use AS85049/93 split support ring.
6.
7.
Detented self-locking has a positive audible detented coupling.
Material/Finish:
Clamp body, coupling nut, saddles - High grade engineering
thermoplastic/N.A.
Clamp hardware - CRES/passivated, silver plated, mfg option
Anti-rotation device - Corrosion resistant material
Braid - Copper/nickel plated
Interface ring and shroud - Brass/nickel plated
Braid retention device - See Table II
Printed in U.S.A.
© 2012 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
319-4
