32_PC35-716-50-1/133_WE

Description
RF Connector Adapter, PC3.5-7/16, Male-Male, Plug-plug, ROHS COMPLIANT
CategoryThe connector    The connector
File Size53KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

32_PC35-716-50-1/133_WE Overview

RF Connector Adapter, PC3.5-7/16, Male-Male, Plug-plug, ROHS COMPLIANT

32_PC35-716-50-1/133_WE Parametric

Parameter NameAttribute value
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Adapter typePC3.5-7/16
Other featuresSTANDARDS: IEC 60169-23
Body/casing typePLUG-PLUG
Characteristic impedance50 Ω
Connector typeRF CONNECTOR ADAPTER
Contact point genderMALE-MALE
Coupling typeTHREADED
DIN complianceNO
Filter functionNO
IEC complianceYES
MIL complianceNO
Manufacturer's serial numberBETWEEN
Maximum operating frequency7.5 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Base Number Matches1
HUBER+SUHNER
®
DATA SHEET

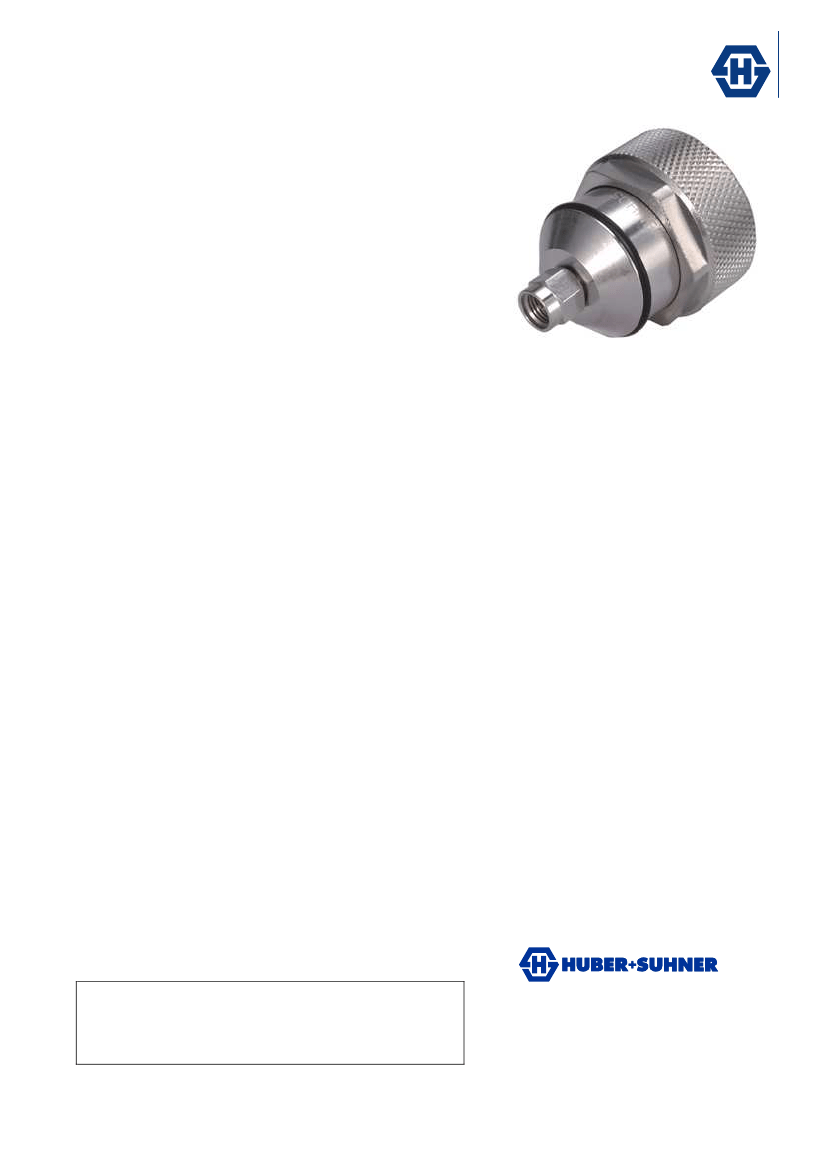

Between Series Adapter: 32_PC35-716-50-1/133_W
Description
Rev.: D
Adaptor plug/plug
PC 3.5 plug (male) / 7/16 plug (male)
Interface standards
IEC 60169-23
Benefits
Low intermodulation adaptors
For Test & Measurement applications
Technical Data
Electrical Data
Impedance
Interface frequency max.
rd
3 order intermodulation max.
Mechanical Data
Number of matings
Weight
50
7.5 GHz
Static -160 dBc at 2x 43 dBm / 2x 20 W carrier
500
0.0988 kg
-65 °C to 90 °C
compliant
Material
Brass
Brass
Brass
Bronze
Material
Brass
Brass
Brass
PFA / PTFE
Brass
DOU-00014476
32_PC35-716-50-1/133_WE
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Surface Plating
SUCOPRO Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
SUCOPLATE (R) Plating
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Material Data
Piece Parts
(PC 3.5)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Piece Parts
(7/16)
Centre contact
Outer contact
Body
Insulator
Coupling nut
Outline drawing
Single package
Related Documents
Ordering Information
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Protection
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 47 51
www.hubersuhner.com
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000195470 L
Issued: 08.02.10
Uncontrolled Copy
Page 1/1
