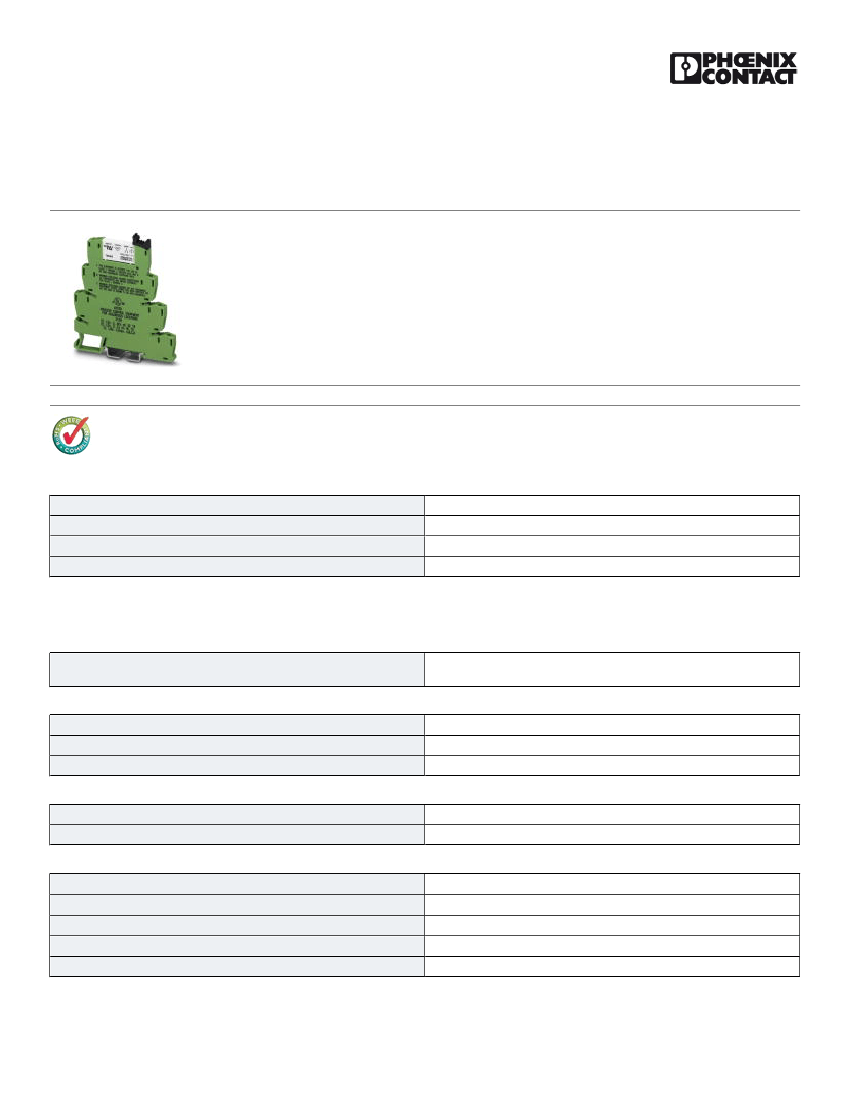

Relay Module - PLC-RSC-24DC/21 C1D2 - 5603154
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay
with power contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 24 V DC. These relays are UL/cUL
listed for use in Class I, Zone 2 AEx/Ex and Class I, Division 2 (CID2), hazardous locations.
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
40.0 GRM
85364190
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
6.2 mm
80 mm
94 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 60 °C
-40 °C ... 85 °C
Coil side
Nominal input voltage U
N
Typical input current at U
N
Typical response time
Typical release time
Operating voltage display
24 V DC
9 mA
5 ms
8 ms
Yes
06/12/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/5603154
Relay Module - PLC-RSC-24DC/21 C1D2 - 5603154
Technical data
Coil side
Protective circuit
Protection against polarity reversal Polarity protection diode
Free-wheeling diode Damping diode
Contact side
Contact type
Contact material
Maximum switching voltage
Minimum switching voltage
Maximum inrush current
Min. switching current
Limiting continuous current
Interrupting rating (ohmic load) max.
1 PDT
AgSnO
250 V AC/DC (The separating plate PLC-ATP should be installed for
voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in
adjacent modules. Potential bridging is then carried out with FBST 8-PLC...
or ...FBST 500...)
12 V AC/DC
on request
10 mA
6A
140 W (at 24 V DC)
20 W (at 48 V DC)
18 W (at 60 V DC)
23 W (at 110 V DC)
40 W (at 220 V DC)
1500 VA (for 250 V AC)
General
Test voltage relay winding/relay contact
Operating mode
Mechanical service life
Inflammability class according to UL 94
Standard designation
Standards/regulations
Pollution degree
Surge voltage category
Mounting position
Assembly instructions
4 kV AC (50 Hz, 1 min.)
100% operating factor
2 x 10 cycles
V0
Standards/regulations
IEC 60664
3
III
any
In rows with zero spacing
7
Connection data
Connection method
Stripping length
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section solid min.
Conductor cross section solid max.
Screw connection
8 mm
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
06/12/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/5603154
Relay Module - PLC-RSC-24DC/21 C1D2 - 5603154
Technical data
Connection data
Conductor cross section AWG/kcmil max
Conductor cross section AWG/kcmil min.
Screw thread
14
26
M3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27371102
27371102
27371603
27371603
27371603
27371603
27371603
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001456
EC000196
EC000196
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211917
39121516
39121516
39121516
39121516
Drawings
Circuit diagram
A2
A1
11
14
12
06/12/2014 Page 3 / 4
https://www.phoenixcontact.com/us/products/5603154
Relay Module - PLC-RSC-24DC/21 C1D2 - 5603154

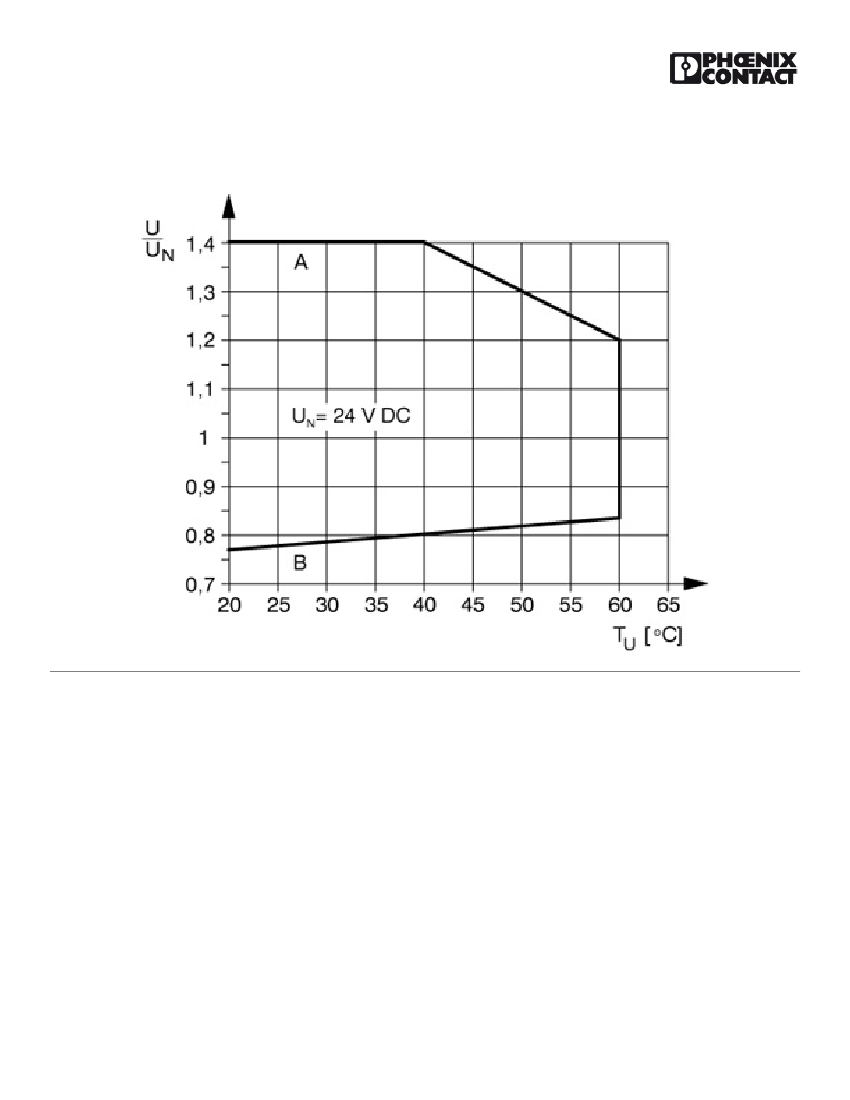

Diagram
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
06/12/2014 Page 4 / 4
