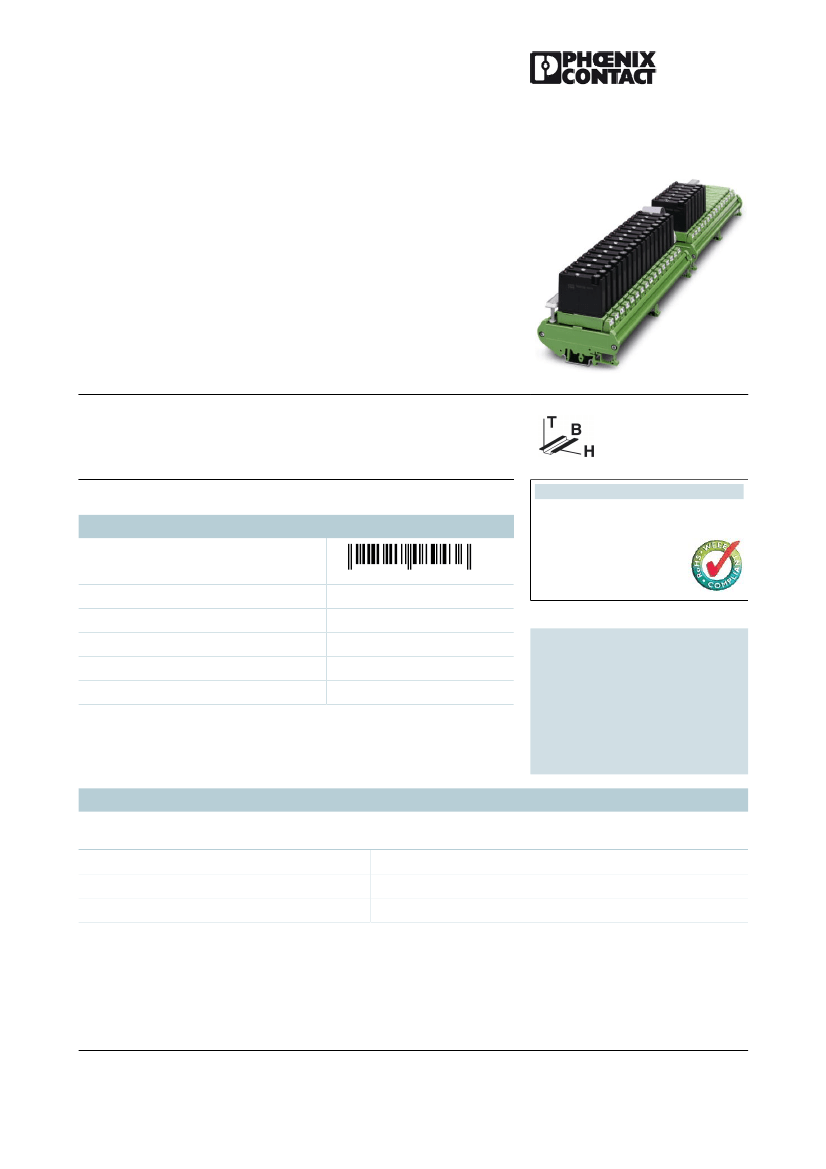

UMK-16 OM/AMSC/PLC
Order No.: 2976721
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721
VARIOFACE output module, for 16 channels, with plug-in sockets for
generation 4 solid-state relays from OPTO 22
Product notes
Commercial data
GTIN (EAN)
4
017918
089436
WEEE/RoHS-compliant since:
04/14/2008
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
I641
1 pcs.
85369010
Page 257 (IF-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Input data
Nominal input voltage U
N
Type of protection
Operating voltage display
24 V DC
Protection against polarity reversal
Green LED
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 4
Feb 25, 2011
UMK-16 OM/AMSC/PLC
Order No.: 2976721
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721
Output data
Contact type
Maximum switching voltage
Limiting continuous current
Nominal supply voltage
Continuous load current
Error detection (line break / short-circuit)
General data
No. of channels
Compatible components
With components
Width
Height
Depth
Ambient temperature (operation)
Ambient temperature (storage/transport)
Test voltage
Standards/regulations
16
32
Solid-state relay, Generation 4 from OPTO 22
No
259 mm
90 mm
87 mm
-20 °C ... 50 °C
-20 °C ... 70 °C
4 kV (50 Hz, 1 min.)
IEC 60664
DIN EN 50178
IEC 62103
Mounting position
Pollution degree
Surge voltage category
Housing insulation material
Color
Connection data
Connection 1
Type of connection
Number of positions
Connection 2
Type of connection
Number of positions
Conductor cross section solid min.
Input
Flat-ribbon cable plug connector in acc. with IEC 60603-13
50
Output
Screw connection
2
0.14 mm²
Any
2
III
PVC, side panel PA non-reinforced,
green
1 N/O contact
250 V AC/DC
6A
250 V AC/DC (data is module-specific)
6A
no
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 4
Feb 25, 2011
UMK-16 OM/AMSC/PLC
Order No.: 2976721
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Screw thread
Stripping length
Certificates / Approvals
1.5 mm²
0.14 mm²
1.5 mm²
26
14
M3
6 mm
Certification
CUL, GOST, UL
Additional products
Item
General
2976734
UMK-16 OM/AMSC/E/PLC
VARIOFACE output expansion module, for 16 channels, with
plug-in sockets for Generation 4 solid-state relays from OPTO 22
Designation
Description
Diagrams/Drawings

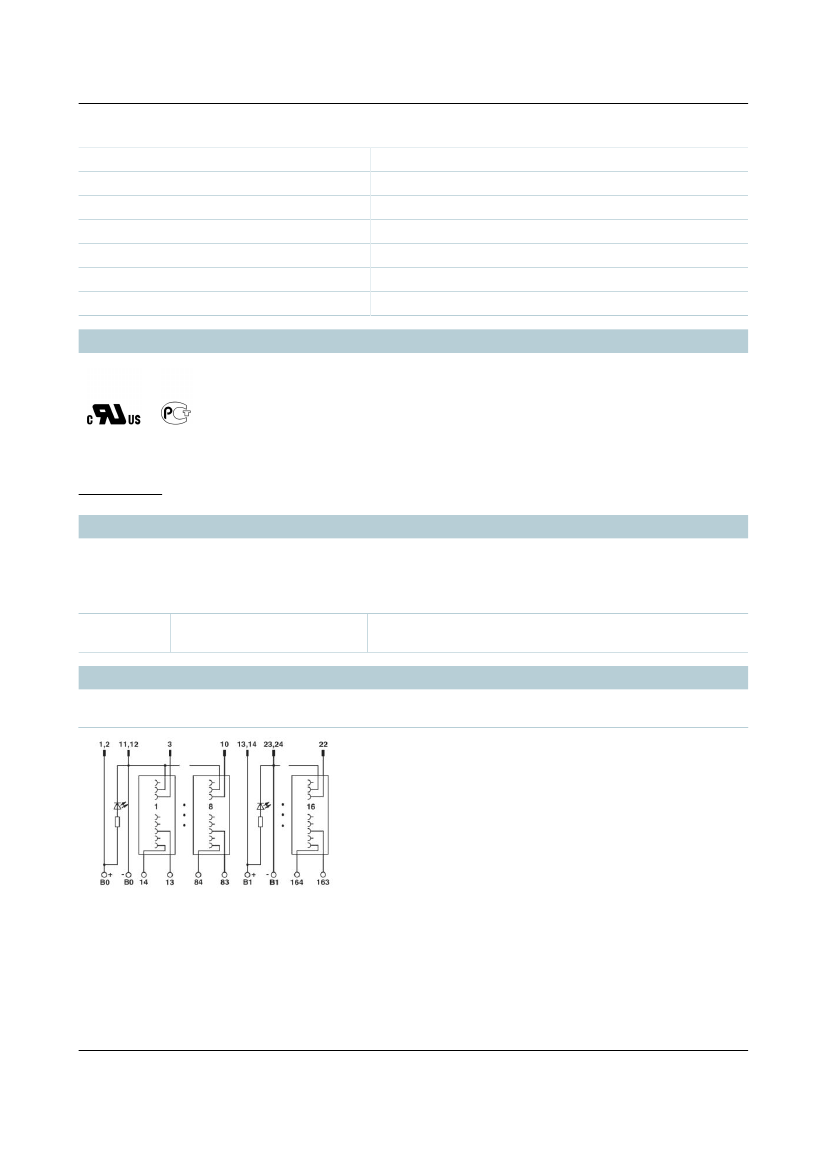

Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 4
Feb 25, 2011
UMK-16 OM/AMSC/PLC
Order No.: 2976721
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2976721
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
