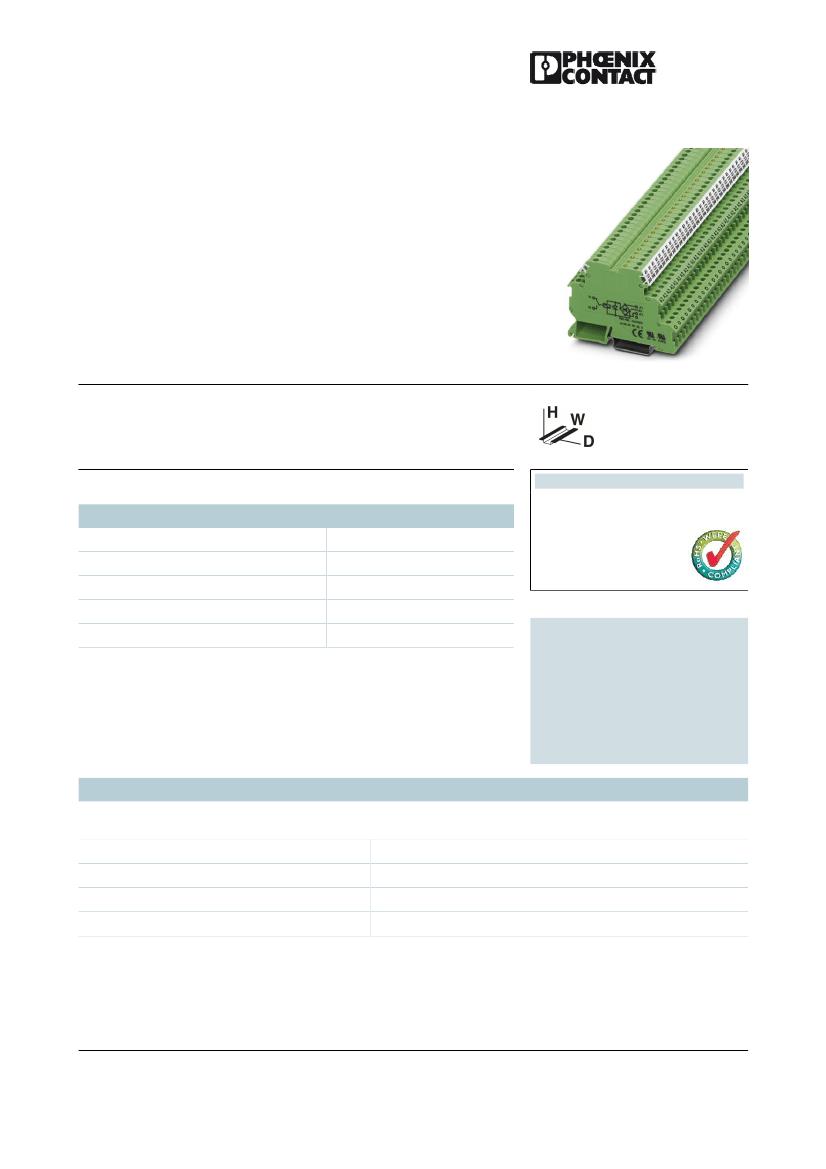

Extract from the online
catalog
DEK-REL- 5/O/1
Order No.: 2941170
The illustration shows the version DEK-REL- 24/O/1
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2941170
Relay terminal block, with soldered-in miniature relays, contact (AgNi
+Au): small to medium loads, 1 N/O contact, input voltage 5 V AC/DC,
for assembly on NS 35/7.5, terminal width 6.2 mm, design rotated
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918080327
10 pcs.
85364190
0.0268 KG
Page 119 (IF-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
10/17/2006
Technical data
Coil side
Nominal input voltage U
N
5 V AC/DC
5 V DC
5 V AC
Input voltage range in reference to U
N
0.9 ... 1.1
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Mar 23, 2010
DEK-REL- 5/O/1
Order No.: 2941170
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2941170
Nominal input current at U
IN
Typical response time
Typical release time
Operating voltage display
Name of protection
Protective circuit/component
Contact side
Contact type
Contact material
Maximum switching voltage
Minimum switching voltage
Maximum inrush current
Min. switching current
Limiting continuous current
Interrupting rating (ohmic load) max.
23 mA
8 ms
15 ms
Yellow LED
Bridge rectifier
Bridge rectifier
Double contact, 1 N/O contact
AgNi, 5 µm hard gold-plated
250 V AC
125 V DC
0.1 V
5A
1 mA
3 A (5 A up to 35°C at 24 V DC)
72 W (for 24 V DC)
60 W (for 48 V DC)
50 W (for 60 V DC)
50 W (for 110 V DC)
750 VA (for 250 V AC)
120 W (at 24 V DC - up to 35°)
General data
Width
Height
Depth
Test voltage relay winding/relay contact
Ambient temperature (operation)
Ambient temperature (storage/transport)
Operating mode
Service life mechanical
6.2 mm
56 mm
80 mm
2 kV AC (50 Hz, 1 min)
-20 °C ... 50 °C
-20 °C ... 70 °C
100% operating factor
Approx. 2 x 10 cycles
7
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Mar 23, 2010
DEK-REL- 5/O/1
Order No.: 2941170
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2941170
Standards/regulations
IEC 60664
IEC 60664 A
DIN VDE 0110
IEC 60255/DIN VDE 0435 (in relevant parts)
DIN EN 50178/DIN VDE 0160 (in relevant parts)
Pollution degree
Surge voltage category
Mounting position
Assembly instructions
Connection data
Type of connection
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Stripping length
Screw thread
Certificates / Approvals
2
III
Any
In rows with zero spacing
Screw connection
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
14
8 mm
M3
Certification
Accessories
Item
Assembly
2716949
Bridges
2716648
2716693
EB 2- DIK BU
EB 2- DIK RD
D-DEK 1,5 GN
Designation
GOST
Description
Cover for setting the end of a terminal row, color: green
Cross connector/bridge, Number of positions: 2, Color: blue
Cross connector/bridge, Number of positions: 2, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
Mar 23, 2010
DEK-REL- 5/O/1
Order No.: 2941170
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2941170
2716651
2716745
2716664
2716758
2716677
2716761
2716680
2716774
2715940
2715953
2715788
EB 3- DIK BU
EB 3- DIK RD
EB 4- DIK BU
EB 4- DIK RD
EB 5- DIK BU
EB 5- DIK RD
EB 10- DIK BU
EB 10- DIK RD
EB 80- DIK BU
EB 80- DIK RD
EB 80- DIK WH
Cross connector/bridge, Number of positions: 3, Color: blue
Cross connector/bridge, Number of positions: 3, Color: red
Cross connector/bridge, Number of positions: 4, Color: blue
Cross connector/bridge, Number of positions: 4, Color: red
Cross connector/bridge, Number of positions: 5, Color: blue
Cross connector/bridge, Number of positions: 5, Color: red
Cross connector/bridge, Number of positions: 10, Color: blue
Cross connector/bridge, Number of positions: 10, Color: red
Cross connector/bridge, Number of positions: 80, Color: blue
Cross connector/bridge, Number of positions: 80, Color: red
Cross connector/bridge, Number of positions: 80, Color: white
Diagrams/Drawings
Circuit diagram
