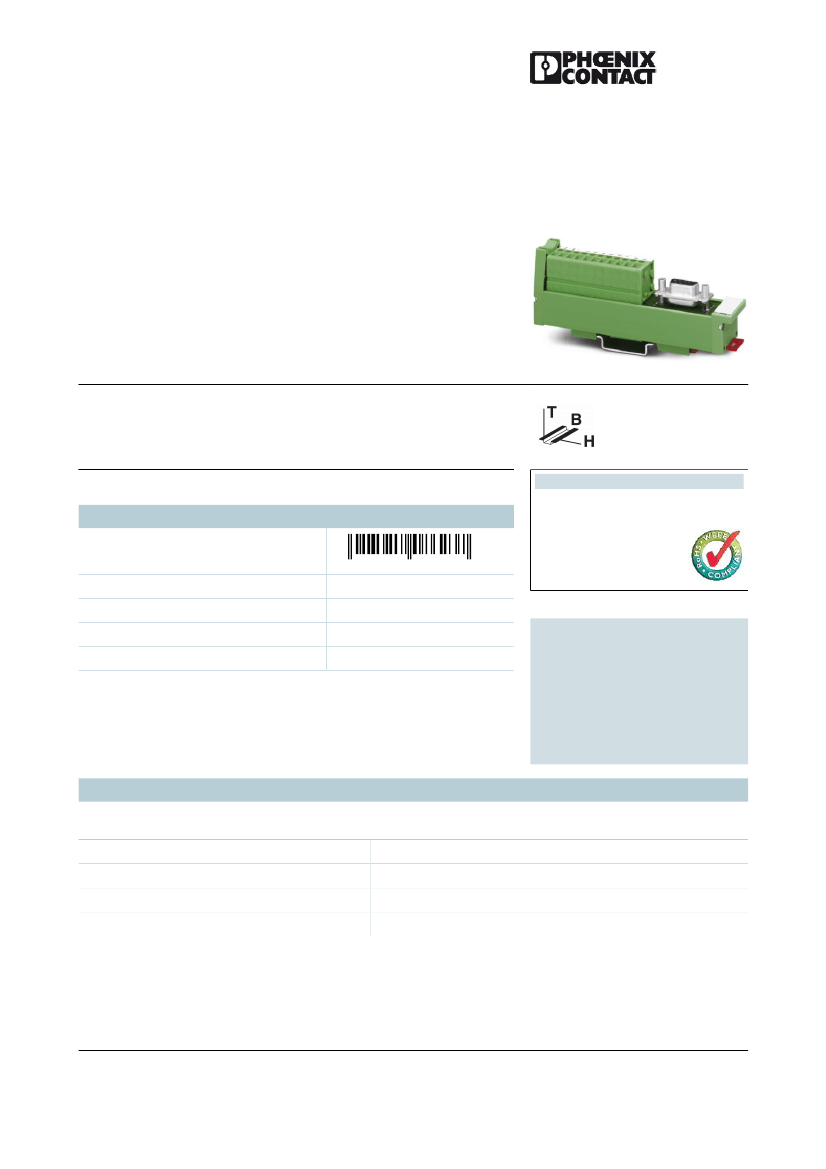

UM 25-D15SUB/B/FRONT/Q
Order No.: 2959586
The illustration shows the version UM 25-D 9SUB/B/FRONT/Q
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2959586
VARIOFACE SLIM LINE, with screw connection and D-subminiature
socket strip, for assembly at a right angle on NS 35/7.5, 15 positions
Product notes
Commercial data
GTIN (EAN)
4
017918
086237
WEEE/RoHS-compliant since:
07/06/2006
sales group
Pack
Customs tariff
Catalog page information
I011
1 pcs.
85369010
Page 287 (IF-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General data
Nominal voltage U
N
Max. current carrying capacity per branch
Number of positions
125 V AC/DC
2.5 A
1.5 A (with even load on all branches)
15
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 25, 2011
UM 25-D15SUB/B/FRONT/Q
Order No.: 2959586
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2959586
Width
Height
Depth
Ambient temperature (operation)
Ambient temperature (storage/transport)
Test voltage
Mounting position
Standards/regulations
25 mm
147 mm
45 mm
-10 °C ... 50 °C
-10 °C ... 70 °C
800 V (50 Hz, 1 min.)
Any
IEC 60664
IEC 60664 A
DIN VDE 0110
DIN VDE 0160 (in parts)
Pollution degree
Surge voltage category
Connection data
Connection 1
Connection in acc. with standard
Type of connection
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Stripping length
Screw thread
Connection 2
Type of connection
Certificates / Approvals
2
II
PCB connection
IEC / EN
Screw connection
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
8 mm
M3
D-SUB connection
Pluggable
Certification
GOST
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 25, 2011
UM 25-D15SUB/B/FRONT/Q
Order No.: 2959586
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2959586
Accessories
Item
Designation
Description
Cable/conductor
2302434
2302340
2926438
CABLE D-SUB-S-S-S/.../.../...
CABLE D-SUB-S/.../.../...
CABLE-D-15SUB/M/OE/0,25/
S/0,5M
Shielded round cable, assembled with two D-SUB male
connectors, variable cable length
Shielded round cable, assembled with one D-SUB male and one
female connector, variable cable length
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: 0.5 m.
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: 1 m.
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: 1.5 m.
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: 2 m.
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: 3 m.
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: 4 m.
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: 6 m.
Round shielded cable set, with 15-pos. D-SUB female and male
connectors, cable length: 0.5 m
Round shielded cable set, with 15-pos. D-SUB female and male
connectors, cable length: 1 m
Round shielded cable set, with 15-pos. D-SUB female and male
connectors, cable length: 1.5 m
Round shielded cable set, with 15-pos. D-SUB female and male
connectors, cable length: 2 m
Round shielded cable set, with 15-pos. D-SUB female and male
connectors, cable length: 3 m
2926441
CABLE-D-15SUB/M/OE/0,25/
S/1,0M
2926454
CABLE-D-15SUB/M/OE/0,25/
S/1,5M
2926467
CABLE-D-15SUB/M/OE/0,25/
S/2,0M
2926470
CABLE-D-15SUB/M/OE/0,25/
S/3,0M
2926483
CABLE-D-15SUB/M/OE/0,25/
S/4,0M
2926496
CABLE-D-15SUB/M/OE/0,25/
S/6,0M
2302052
2302065
2302078
2302081
2302094
CABLE-D15SUB/B/S/ 50/
KONFEK/S
CABLE-D15SUB/B/S/100/
KONFEK/S
CABLE-D15SUB/B/S/150/
KONFEK/S
CABLE-D15SUB/B/S/200/
KONFEK/S
CABLE-D15SUB/B/S/300/
KONFEK/S
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 25, 2011
UM 25-D15SUB/B/FRONT/Q
Order No.: 2959586
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2959586
2302104
2302117
CABLE-D15SUB/B/S/400/
KONFEK/S
CABLE-D15SUB/B/S/600/
KONFEK/S
Round shielded cable set, with 15-pos. D-SUB female and male
connectors, cable length: 4 m
Round shielded cable set, with 15-pos. D-SUB female and male
connectors, cable length: 6 m
General
2900910
CABLE-D-15SUB-M-OE-0,25-
S/...
Shielded cable with a 15-pos. D-SUB pin strip and one open end.
The individual wires are labeled 1 to 15 and fitted with ferrules.
The braided shield is routed to a separate cable end. Cable
length: variable.
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 25, 2011
UM 25-D15SUB/B/FRONT/Q
Order No.: 2959586
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2959586
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
