1-1825010-1

Description
ASE22RGS04=DPDT AUTOSLIDE
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size381KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

1-1825010-1 Online Shopping

Suppliers Part Number Price MOQ In stock
1-1825010-1 - - View Buy Now

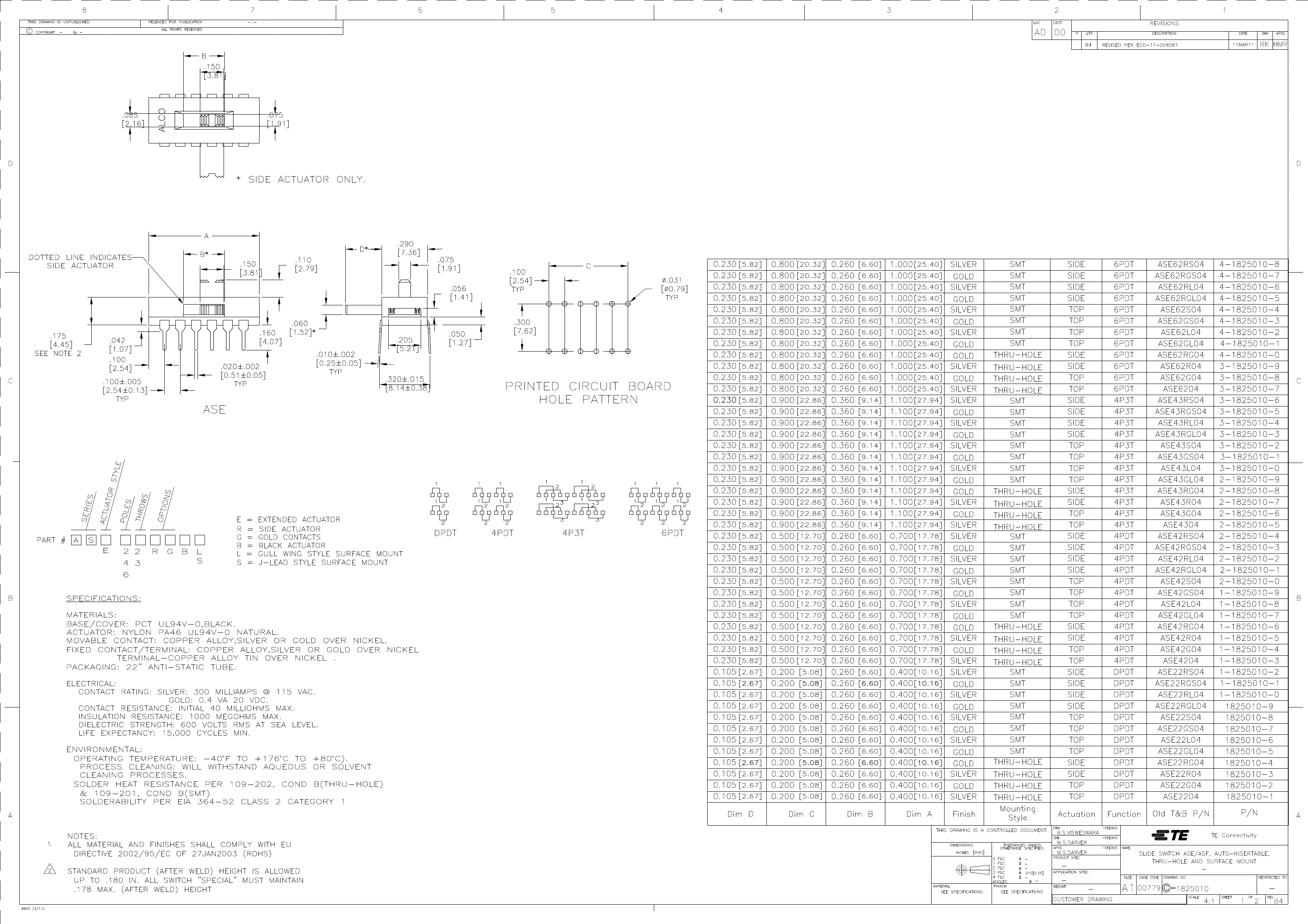

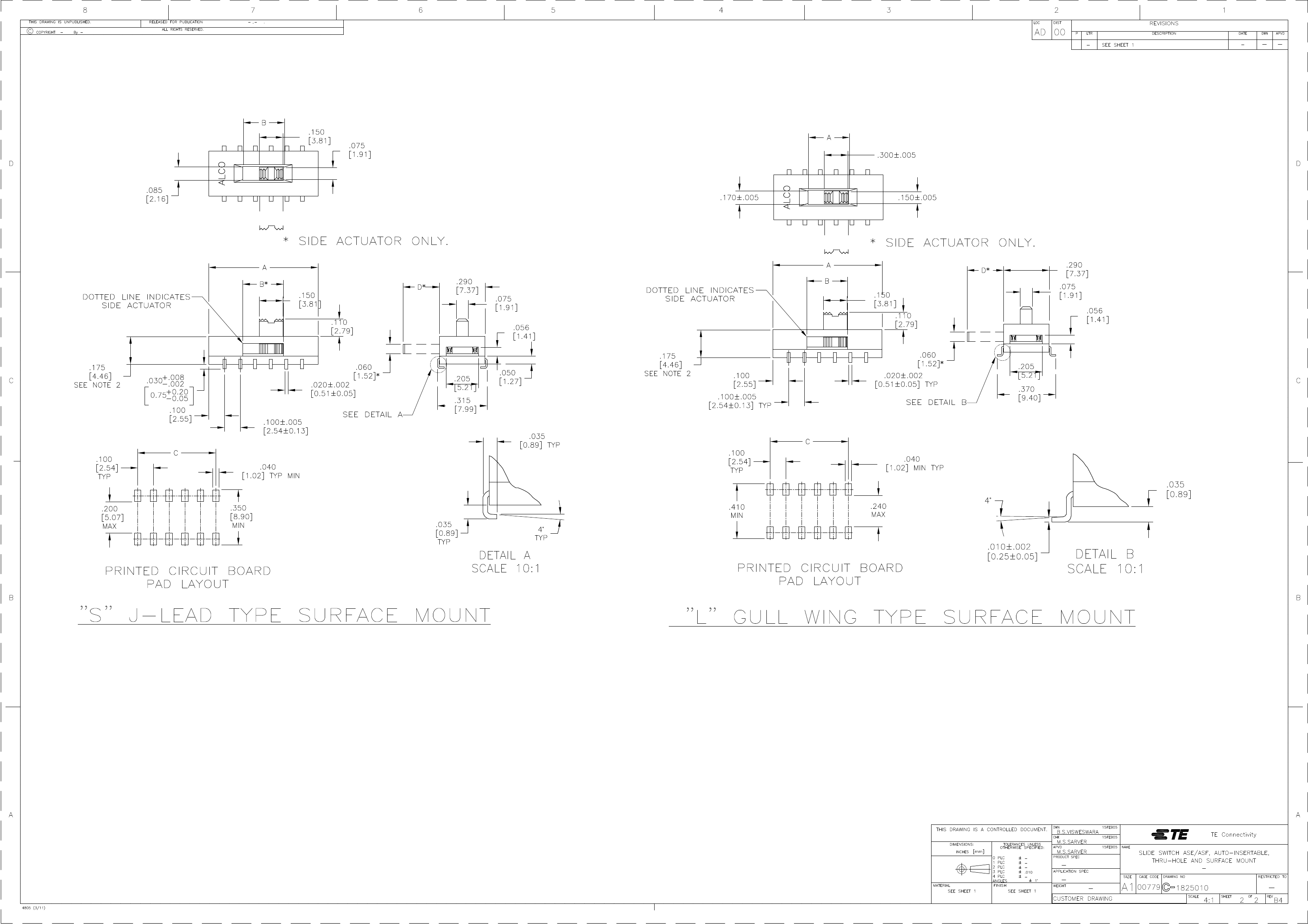

1-1825010-1 Overview

ASE22RGS04=DPDT AUTOSLIDE

1-1825010-1 Parametric

Parameter NameAttribute value
Terminal configurationstandard
Switch typeCan be inserted automatically
Actuator typeExtended, side
Switch typeslider
gradetelecommunications
Threaded housingWithout
Configuration (pole throw)Bipolar – Double Throw
Number of actuatorsone
Contacts2
Actuator materialnylon
Actuator colorKhaki
Actuator travel2.79 mm [ .11 in ]
Terminal base materialcopper alloy
Switch terminal plating materialsgold
Termination typeJ-Lead
PCB installation and fixationWithout
installation angleright angle
Installation typeLeft side swivel leg structure, surface mount
length10.16 mm [ .4 in ]
width7.37 mm [ .2902 in ]
Actuator length2.79 mm [ .1098 in ]
Stamping markwith
UL flammability ratingUL 94V-0
Encapsulation methodTube

1-1825010-1 Related Products

1-1825010-1 1-1825010-8 1825010-7 2-1825010-2 1-1825010-0 1-1825010-7 1825010-9 1825010-3
Description ASE22RGS04=DPDT AUTOSLIDE ASE42L04=4PDT AUTOSLIDE ASE22GS04=DPDT AUTOSLIDE Slide Switch, 4PDT, On-on, Latched, 0.3A, 28VDC, Solder Terminal, Panel Mount ASE22RL04=DPDT AUTOSLIDE ASE42GL04=4PDT AUTOSLIDE ASE22RGL04=DPDT AUTOSLIDE ASE22R04=DPDT AUTOSLIDE
Actuator type Extended, side Extended, top Extended, top EXTENDED SIDE TYPE Extended, side Extended, top Extended, side Extended, side
Actuator material nylon nylon nylon NYLON nylon nylon nylon nylon
Actuator color Khaki Khaki Khaki NATURAL Khaki Khaki Khaki Khaki
Termination type J-Lead SMT, gull wing J-Lead SOLDER SMT, gull wing SMT, gull wing SMT, gull wing PC
Terminal configuration standard standard standard - standard standard standard standard
Switch type slider slider slider SLIDE SWITCH slider slider slider slider
grade telecommunications telecommunications telecommunications - telecommunications telecommunications telecommunications telecommunications
Threaded housing Without Without Without - Without Without Without Without
Configuration (pole throw) Bipolar – Double Throw Quad-Double Throw Bipolar – Double Throw - Bipolar – Double Throw Quad-Double Throw Bipolar – Double Throw Bipolar – Double Throw
Number of actuators one one one - one one one one
Contacts 2 4 2 - 2 2 2 2
Actuator travel 2.79 mm [ .11 in ] 2.79 mm [ .11 in ] 2.79 mm [ .11 in ] - 2.79 mm [ .11 in ] 2.79 mm [ .11 in ] 2.79 mm [ .11 in ] 2.79 mm [ .11 in ]
Terminal base material copper alloy copper alloy copper alloy - copper alloy copper alloy copper alloy copper alloy
Switch terminal plating materials gold silver gold - silver gold gold silver
PCB installation and fixation Without Without Without - Without Without Without Without
installation angle right angle vertical vertical - right angle vertical right angle right angle
Installation type Left side swivel leg structure, surface mount surface mount Left side swivel leg structure, surface mount - surface mount surface mount surface mount Through hole
length 10.16 mm [ .4 in ] 17.78 mm [ .7 in ] 10.16 mm [ .4 in ] - 10.16 mm [ .4 in ] 17.78 mm [ .7 in ] 10.16 mm [ .4 in ] 10.16 mm [ .4 in ]
width 7.37 mm [ .2902 in ] 7.37 mm [ .2902 in ] 7.37 mm [ .2902 in ] - 7.37 mm [ .2902 in ] 7.37 mm [ .2902 in ] 7.37 mm [ .2902 in ] 7.37 mm [ .2902 in ]
Actuator length 2.79 mm [ .1098 in ] 2.79 mm [ .1098 in ] 2.79 mm [ .1098 in ] - 2.79 mm [ .1098 in ] 2.79 mm [ .1098 in ] 2.79 mm [ .1098 in ] 2.79 mm [ .1098 in ]
Stamping mark with - with - with with with with
UL flammability rating UL 94V-0 UL 94V-0 UL 94V-0 - UL 94V-0 UL 94V-0 UL 94V-0 UL 94V-0
Encapsulation method Tube Tube Tube - Tube Tube Tube Tube
