Data Sheet
1.5A LOW DROPOUT LINEAR REGULATOR
General Description
The AZ1086 is a series of low dropout positive voltage
regulators with a maximum dropout of 1.5V at 1.5A of
load current.
The series features on-chip thermal shutdown. It also
includes a bandgap reference and a current limiting cir-
cuit.
The AZ1086 is available in 1.5V, 1.8V, 2.5V, 3.0V,
3.3V, and 5.0V versions. The fixed versions integrate
the adjust resistors. It is also available in an adjustable
version, which can set the output voltage with only two
external resistors.
The AZ1086 series is available in standard packages of
TO-263-3, TO-220-3, SOT-223 and TO-252-2 (1).
AZ1086
Features
·
·
·
·
·
·
·
Low Dropout Voltage: Typical 1.3V at 1.5A
Current Limiting and Thermal Protection
Output Current: 1.5A
Current Limit: 2.3A
Operating Junction Temperature: 0 to 125
o
C
Line Regulation: 0.015% (Typical)
Load Regulation: 0.1% (Typical)
Applications
·
·
·
·
·
·
·
·
·
High Efficiency Linear Regulators
Battery Charger
Post Regulation for Switching Supply
Microprocessor Supply
Motherboard Power Supply
Cable and ADSL Modem
DVD-Video Player
Telecom Equipment
Set Top Boxes and Web Boxes Modules' Supply
TO-263-3
TO-220-3
SOT-223
TO-252-2 (1)
Figure 1. Package Types of AZ1086
Mar. 2007 Rev. 1. 4
1
BCD Semiconductor Manufacturing Limited
Data Sheet
1.5A LOW DROPOUT LINEAR REGULATOR

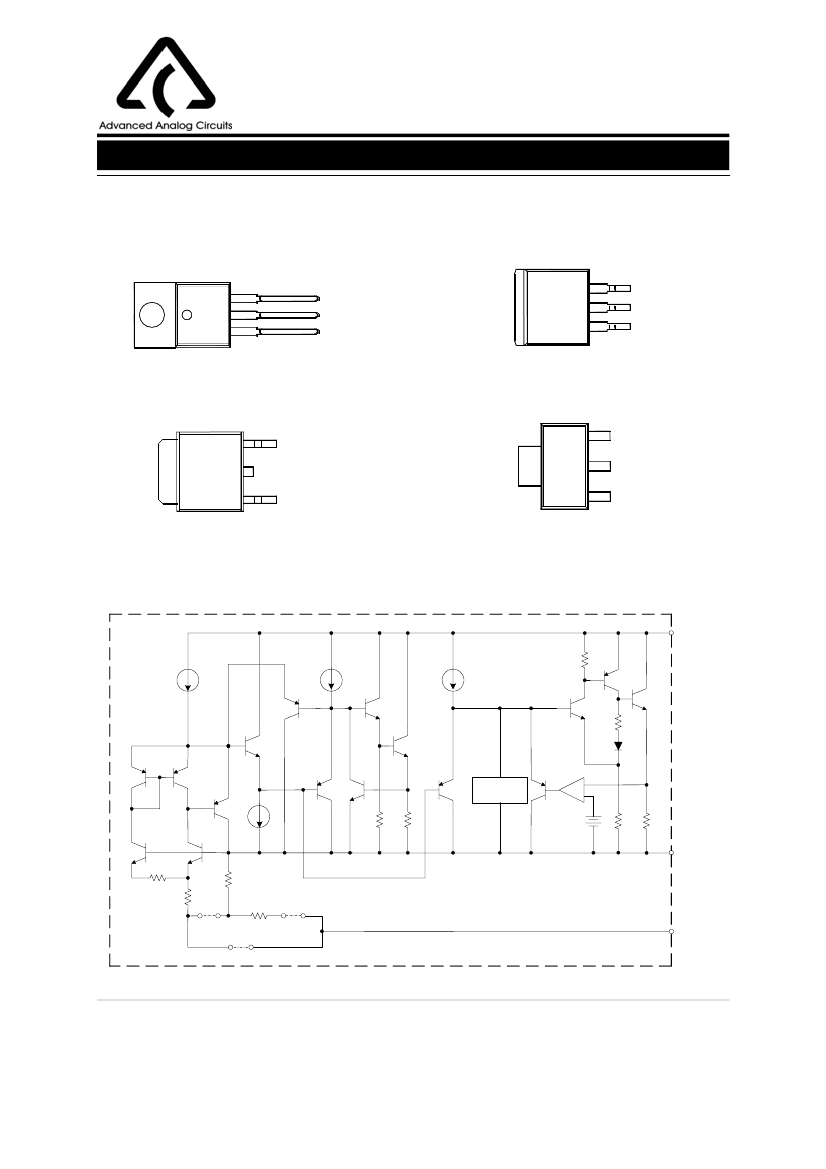

Pin Configuration
T Package
(TO-220-3)
S Package
(TO-263-3)
3
2
1
INPUT
OUTPUT
ADJ/GND
AZ1086
3
2
1
INPUT
OUTPUT
ADJ/GND
D Package
(TO-252-2(1))
H Package
(SOT-223)
3
2
1
INPUT
OUTPUT
ADJ/GND
3
2
1
INPUT
OUTPUT
ADJ/GND
Figure 2. Pin Configuration of AZ1086 (Top View)
Functional Block Diagram
3
INPUT
Thermal
Protection
-
+
2
OUTPUT
A1
A2
For Adjustable Output, disconnect A1 and A2, connect B
For Fixed Output, connect A1 and A2, disconnect B
1
B
ADJ/
GND
Figure 3. Functional Block Diagram of AZ1086
Mar. 2007 Rev. 1. 4
2
BCD Semiconductor Manufacturing Limited
Data Sheet
1.5A LOW DROPOUT LINEAR REGULATOR
Ordering Information
AZ1086
-
E1: Lead Free
AZ1086
Circuit Type
Blank: Tin Lead
TR: Tape and Reel
Blank: Tube
Package
D: TO-252-2 (1)
T: TO-220-3
S: TO-263-3
H: SOT-223
ADJ: Adjustable Output
1.5: Fixed Output 1.5V
1.8: Fixed Output 1.8V
2.5: Fixed Output 2.5V
3.0: Fixed Output 3.0V
3.3: Fixed Output 3.3V
5.0: Fixed Output 5.0V
Package
Tempera-
ture Range
Part Number
Tin Lead
AZ1086D-ADJ
AZ1086D-ADJTR
AZ1086D-1.5
AZ1086D-1.5TR
AZ1086D-1.8
AZ1086D-1.8TR
Lead Free
AZ1086D-ADJE1
AZ1086D-ADJTRE1
AZ1086D-1.5E1
AZ1086D-1.5TRE1
AZ1086D-1.8E1
AZ1086D-1.8TRE1
AZ1086D-2.5E1
AZ1086D-2.5TRE1
AZ1086D-3.0E1
AZ1086D-3.0TRE1
AZ1086D-3.3E1
AZ1086D-3.3TRE1
AZ1086D-5.0E1
AZ1086D-5.0TRE1
AZ1086T-ADJE1
AZ1086T-1.5E1
AZ1086T-1.8E1
AZ1086T-2.5E1
AZ1086T-3.0E1
AZ1086T-3.3E1
AZ1086T-5.0E1
Tin Lead
Marking ID
Lead Free
AZ1086D-ADJE1
AZ1086D-ADJE1
AZ1086D-1.5E1
AZ1086D-1.5E1
AZ1086D-1.8E1
AZ1086D-1.8E1
AZ1086D-2.5E1
AZ1086D-2.5E1
AZ1086D-3.0E1
AZ1086D-3.0E1
AZ1086D-3.3E1
AZ1086D-3.3E1
AZ1086D-5.0E1
AZ1086D-5.0E1
AZ1086T-ADJE1
AZ1086T-1.5E1
AZ1086T-1.8E1
AZ1086T-2.5E1
AZ1086T-3.0E1
AZ1086T-3.3E1
AZ1086T-5.0E1
Packing
Type
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tube
Tube
Tube
Tube
Tube
Tube
AZ1086D-ADJ
AZ1086D-ADJ
AZ1086D-1.5
AZ1086D-1.5
AZ1086D-1.8
AZ1086D-1.8
AZ1086D-2.5
AZ1086D-2.5
AZ1086D-3.0
AZ1086D-3.0
AZ1086D-3.3
AZ1086D-3.3
AZ1086D-5.0
AZ1086D-5.0
AZ1086T-ADJ
AZ1086T-1.5
AZ1086T-1.8
AZ1086T-2.5
AZ1086T-3.0
AZ1086T-3.3
AZ1086T-5.0
TO-252-2 (1)
0 to 125
o
C
AZ1086D-2.5
AZ1086D-2.5TR
AZ1086D-3.0
AZ1086D-3.0TR
AZ1086D-3.3
AZ1086D-3.3TR
AZ1086D-5.0
AZ1086D-5.0TR
AZ1086T-ADJ
AZ1086T-1.5
AZ1086T-1.8
TO-220-3
0 to 125
o
C
AZ1086T-2.5
AZ1086T-3.0
AZ1086T-3.3
AZ1086T-5.0
Mar. 2007 Rev. 1. 4
3
BCD Semiconductor Manufacturing Limited
Data Sheet
1.5A LOW DROPOUT LINEAR REGULATOR
Ordering Information (Continued)
Package
Tempera-
ture Range
Part Number
Tin Lead
AZ1086S-ADJ
AZ1086S-ADJTR
AZ1086S-1.5
AZ1086S-1.5TR
AZ1086S-1.8
AZ1086S-1.8TR
TO-263-3
0 to 125
o
C
AZ1086S-2.5
AZ1086S-2.5TR
AZ1086S-3.0
AZ1086S-3.0TR
AZ1086S-3.3
AZ1086S-3.3TR
AZ1086S-5.0
AZ1086S-5.0TR
AZ1086H-ADJTR
AZ1086H-1.5TR
AZ1086H-1.8TR
SOT-223
0 to 125
o
C
AZ1086H-2.5TR
AZ1086H-3.0TR
AZ1086H-3.3TR
AZ1086H-5.0TR
Lead Free
AZ1086S-ADJE1
AZ1086S-ADJTRE1
AZ1086S-1.5E1
AZ1086S-1.5TRE1
AZ1086S-1.8E1
AZ1086S-1.8TRE1
AZ1086S-2.5E1
AZ1086S-2.5TRE1
AZ1086S-3.0E1
AZ1086S-3.0TRE1
AZ1086S-3.3E1
AZ1086S-3.3TRE1
AZ1086S-5.0E1
AZ1086S-5.0TRE1
AZ1086H-ADJTRE1
AZ1086H-1.5TRE1
AZ1086H-1.8TRE1
AZ1086H-2.5TRE1
AZ1086H-3.0TRE1
AZ1086H-3.3TRE1
AZ1086H-5.0TRE1
Tin Lead
AZ1086S-ADJ
AZ1086S-ADJ
AZ1086S-1.5
AZ1086S-1.5
AZ1086S-1.8
AZ1086S-1.8
AZ1086S-2.5
AZ1086S-2.5
AZ1086S-3.0
AZ1086S-3.0
AZ1086S-3.3
AZ1086S-3.3
AZ1086S-5.0
AZ1086S-5.0
H86A
H86B
H86E
H86C
H86G
H86D
H86F
Marking ID
Lead Free
AZ1086S-ADJE1
AZ1086S-ADJE1
AZ1086S-1.5E1
AZ1086S-1.5E1
AZ1086S-1.8E1
AZ1086S-1.8E1
AZ1086S-2.5E1
AZ1086S-2.5E1
AZ1086S-3.0E1
AZ1086S-3.0E1
AZ1086S-3.3E1
AZ1086S-3.3E1
AZ1086S-5.0E1
AZ1086S-5.0E1
EH86A
EH86B
EH86E
EH86C
EH86G
EH86D
EH86F
Packing
Type
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tube
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
Tape & Reel
AZ1086
BCD Semiconductor's Pb-free products, as designated with "E1" suffix in the part number, are RoHS compliant.
Mar. 2007 Rev. 1. 4
4
BCD Semiconductor Manufacturing Limited
Data Sheet
1.5A LOW DROPOUT LINEAR REGULATOR
Absolute Maximum Ratings (Note 1)
Parameter
Operating Junction Temperature
Storage Temperature Range
Lead Temperature (Soldering, 10sec)
Symbol
T
J
T
STG
T
LEAD
TO-263-3
TO-220-3
SOT-223
ESD (Machine Model)
ESD
400
Value
150
-65 to 150
260
TO-252-2 (1)
Thermal Resistance (Note 2)
θ
JA
AZ1086
Unit
o
o
o
C
C
C
100
60
60
120
V
o
C/W
Note 1: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the
device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond
those indicated under "Recommended Operating Conditions" is not implied. Exposure to "Absolute Maximum
Ratings" for extended periods may affect device reliability.
Note 2: Absolute maximum ratings indicate limits beyond which damage to the component may occur. Electrical
specifications do not apply when operating the device outside of its operating ratings. The maximum allowable
power dissipation is a function of the maximum junction temperature, T
J(max),
the junction-to-ambient thermal
resistance,
θ
JA,
and the ambient temperature, T
A.
The maximum allowable power dissipation at any ambient tem-
perature is calculated using: P
D(max)
=(T
J(max)
-T
A
)/θ
JA.
Exceeding the maximum allowable power dissipation will
result in excessive die temperature, and the regulator will go into thermal shutdown.
Recommended Operating Conditions
Parameter
Input Voltage
Operating Junction Temperature Range
Symbol
V
IN
T
J
0
Min
Max
15
125
Unit
V
o
C
Mar. 2007 Rev. 1. 4
5
BCD Semiconductor Manufacturing Limited
