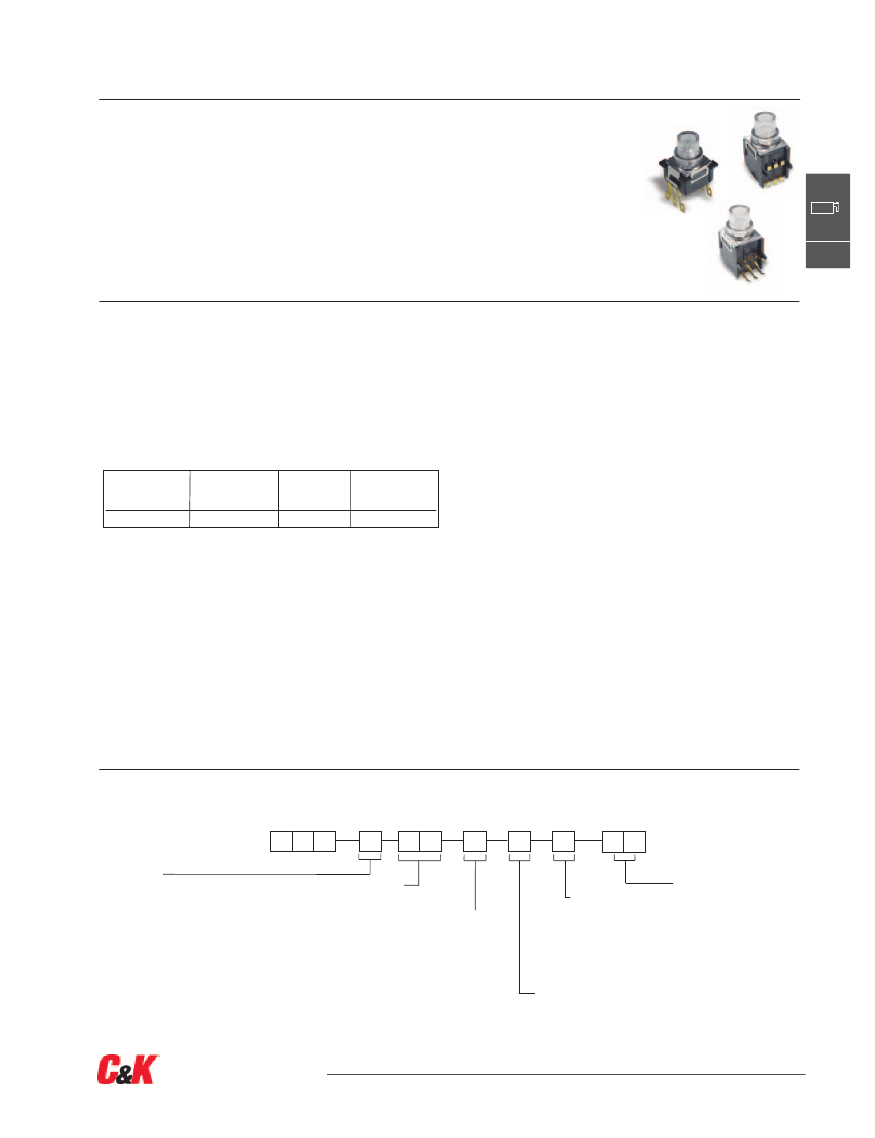

K5V
Illuminated Tact Switch
Features
•
Gold plated dome contact SPST/SPDT
•
Excellent ergonomics
•
High bright leds
•
Reduced space usage on board
•
40 N overload
•
Tape and reel
•
RoHS compliant and compatible
Specification
FUNCTION: momentary action
CONTACT ARRANGEMENT: Normally Open + Normally Closed
TERMINALS:
THT: Through hole terminals with positioning pegs
SMT: Surface mount terminals with positioning pegs
PM: Panel mount solder terminals with wire hole
Typical Applications
•
When backlighting and switch are
required to be a “2 in 1” component
•
The dome contact secures a superior
contact reliability in time
•
The ergonomics of K5V provides a
long travel, a sharp tactile feel and
an audible click
•
Server, storage, automotive, network
infrastructure, medical
Electrical
POWER MIN/MAX: 0.02VA / 1.0VA
VOLTAGE MIN/MAX: 20mVdc – 32 Vdc
CURRENT MIN/MAX: 0.1mA – 100mA
CONTACT RESISTANCE: <150m
Ω
INSULATION RESISTANCE: >1G
Ω
initial, >10M
Ω
after damp heat
BOUNCE TIME: <5ms
B
Tactile Switches
Environmental
Mechanical
Operating force
FA
1
Newtons
(grams)
4.0 (400)
Operating
life
(operations)
25,000
Travel (total
travel)
mm(mm)
1.2 (2.4)
OPERATING TEMPERATURE: -40˚C to 85˚C
STORAGE TEMPERATURE: -50˚C to 85˚C
RELATIVE HUMIDITY: 90 to 96% according to NF EN 60068-2-30
PROTECTION: dust protection and flux tight
OVERLOAD: 40N min
Version
THT, SMT, PM
1
Tolerances of operating force FA is ± 25%.
Process
SMT
Soldering: Compatible with the lead free soldering profile
No washing
THT
Soldering: Compatible with the lead free soldering profile
No washing
PM
Soldering: Low wattage soldering iron (25-50 watts max).
Solder time 3 seconds max. No washing
Packaging
THT:
60 pieces per tray; 1800 pieces per box
SMT:
330 pieces per reel (reel ø 360mm); 1320 pieces per box
PM:
60 pieces per tray; 2100 pieces per box
Materials
LEAD FREE
CONTACTS: Au over Ni
SOLDERING: Au over Ni
HOUSING: Thermoplastic UL94 V0
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and and place it in the appropriate box.
K
5
V
4
3
Actuator
1
without snap-in, clear
(THT and PM version only)
2
with snap-ins, clear
for light pipe extension
(THT and PM version only)
4
without snap-in, light grey
(SMT version only)
5
with snap-ins, light grey
for light pipe extension
(SMT version only)
Actuator color/LED color
BA
Translucid/Blue-Amber
GN
Translucid/Green
Operating Force
BU
Translucid/Blue
4
4.0 N (400 grams)
RD
Translucid/Red
RG
Translucid/Red-Green
WH
Translucid/White
WL
Translucid/White (low luminosity)
YE
Translucid/Yellow
YG
Translucid/Yellow-Green
CL
Transparent/No LED
90
Black Actuator/No LED
Termination
G
Surface mount
P
Panel mount
T
Through-hole 3.5mm
S
Through-hole 2.1mm
Option
NONE
No option
P3
Terminal 3 is cut
P4
Terminal 4 is cut
P13
Terminal 1 & 3 is cut
P14
Terminal 1 & 4 is cut
Contact Material
3
Gold (Au)

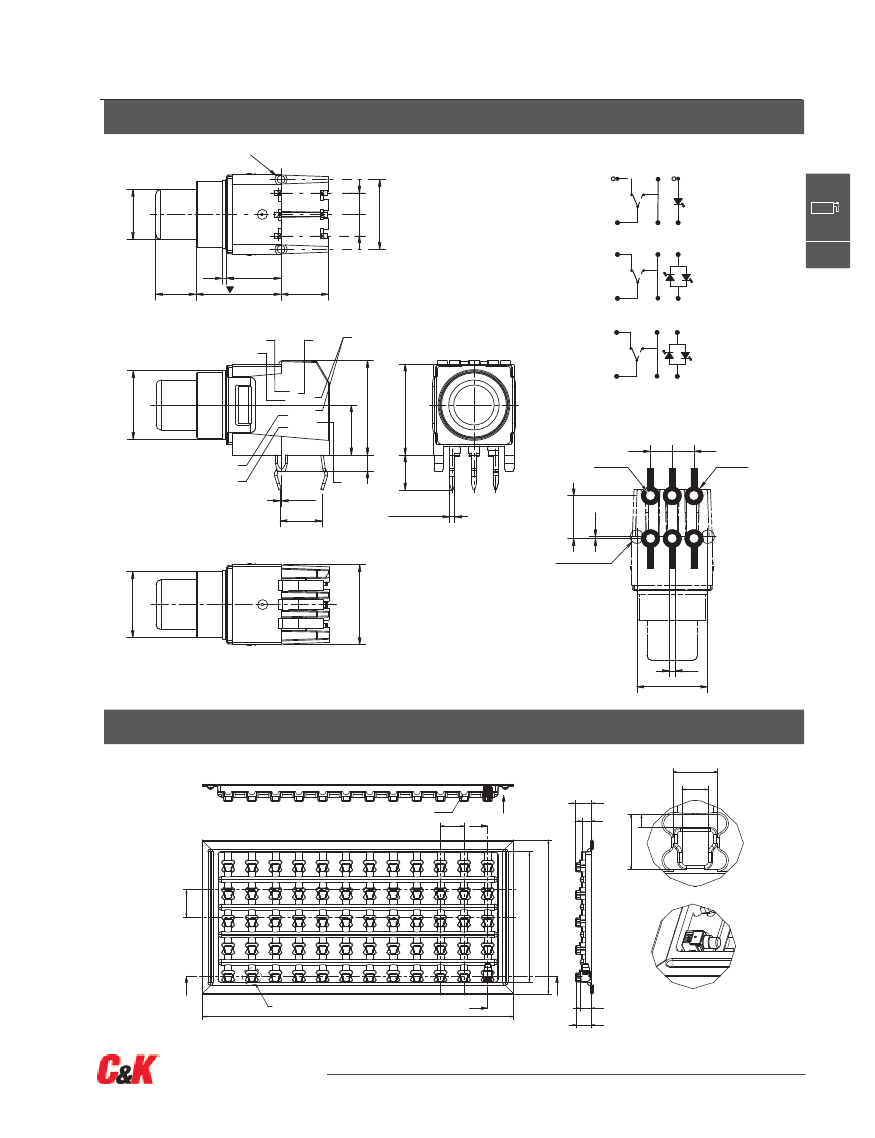

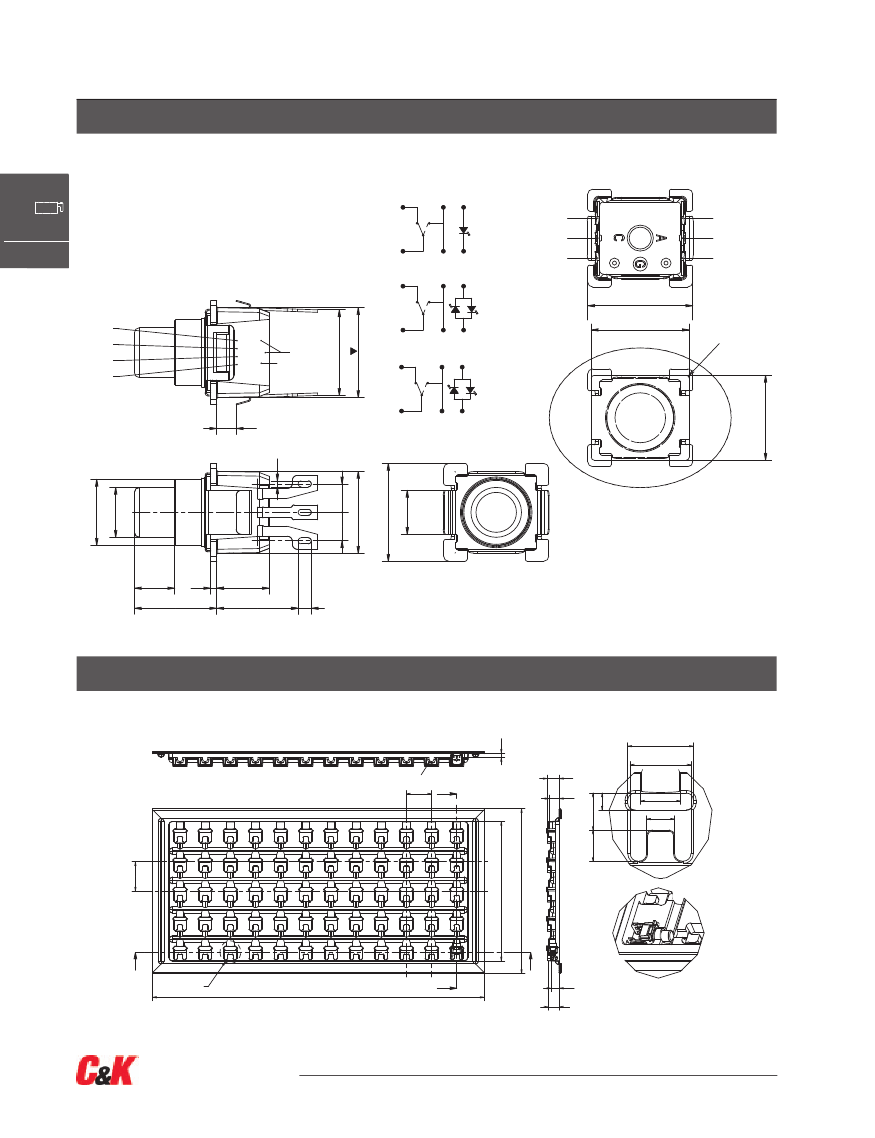

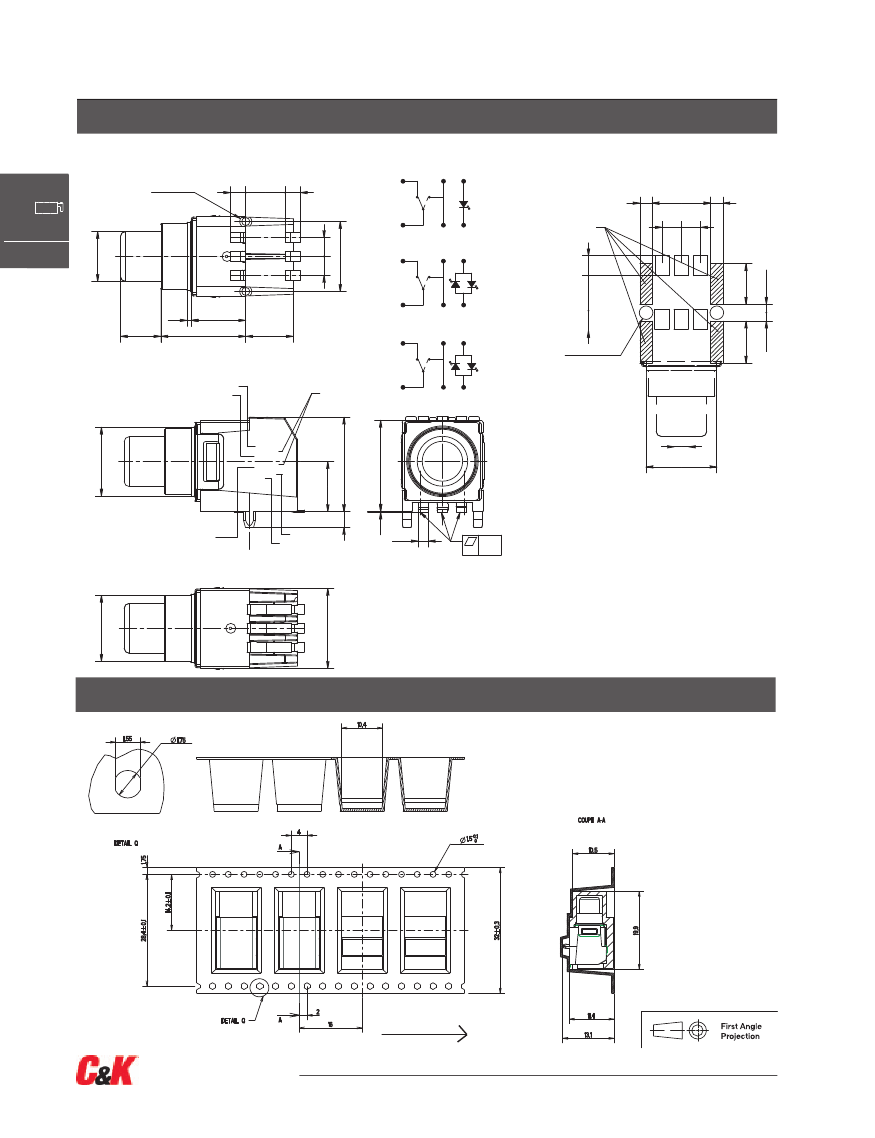

Dimensions are shown: mm (inches)
Specifications and dimensions subject to change
28 apr 14
B–63
www.ck-components.com
