360-10-104-00-001100: DescriptionIC Socket, SIP4, 4 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size106KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

360-10-104-00-001100 Overview

IC Socket, SIP4, 4 Contact(s), ROHS COMPLIANT

360-10-104-00-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP4
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

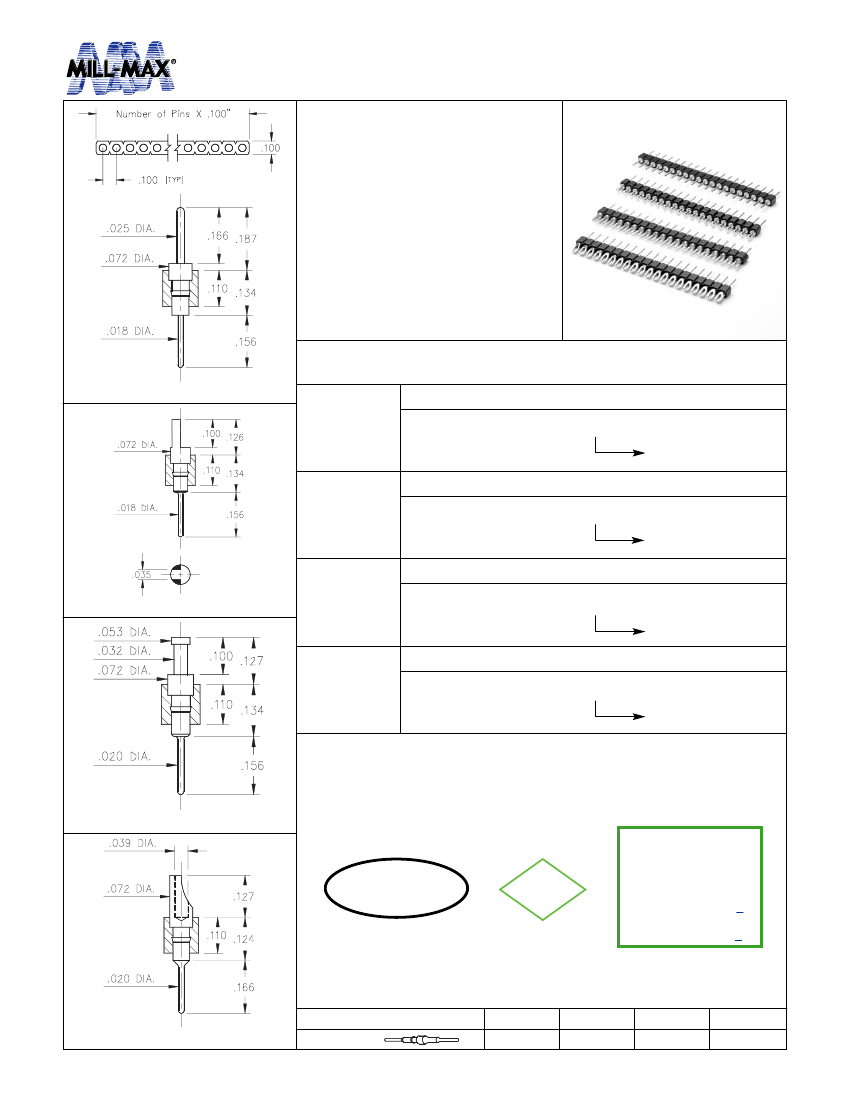

HEADER STRIPS

Solder Tail

Single Row

Series 350, 360

370, 380

•

Series 350, 360, 370, 380 single

row Header Strips come with

various contacts (pin, slotted

head, turret and solder cup) with

pluggable solder tails.

(M-M# 0290, 0282, 0700, or 8000

see pages 173 & 174 for details).

Ordering Information

Fig. 1

Series 350...001

.025 Pin / .018 Solder Tail

01-64

Fig. 1

350-XX-1_ _-00-001000

Specify # of pins

Series 360...001

Slotted Head / Solder Tail

01-64

Turret / Solder Tail

01-64

Solder Cup / Solder Tail

01-64

Fig. 2

360-XX-1_ _-00-001000

Specify # of pins

Series 370...001

Fig. 2

Fig. 3

370-XX-1_ _-00-001000

Specify # of pins

Series 380...001

Fig. 4

380-XX-1_ _-00-001000

Specify # of pins

Fig. 3

For RoHS compliance,

select plating code.

For the gold option

(XX=10) also change

part number from

3X0-XX-1XX-00-001000

to

3X0-10-1XX-00-001100

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

10

10μ” Au

90

200μ” Sn/Pb

40

200μ” Sn

Fig. 4

Pin Plating

w w w. m i l l - m a x . c o m

62

516-922-6000
