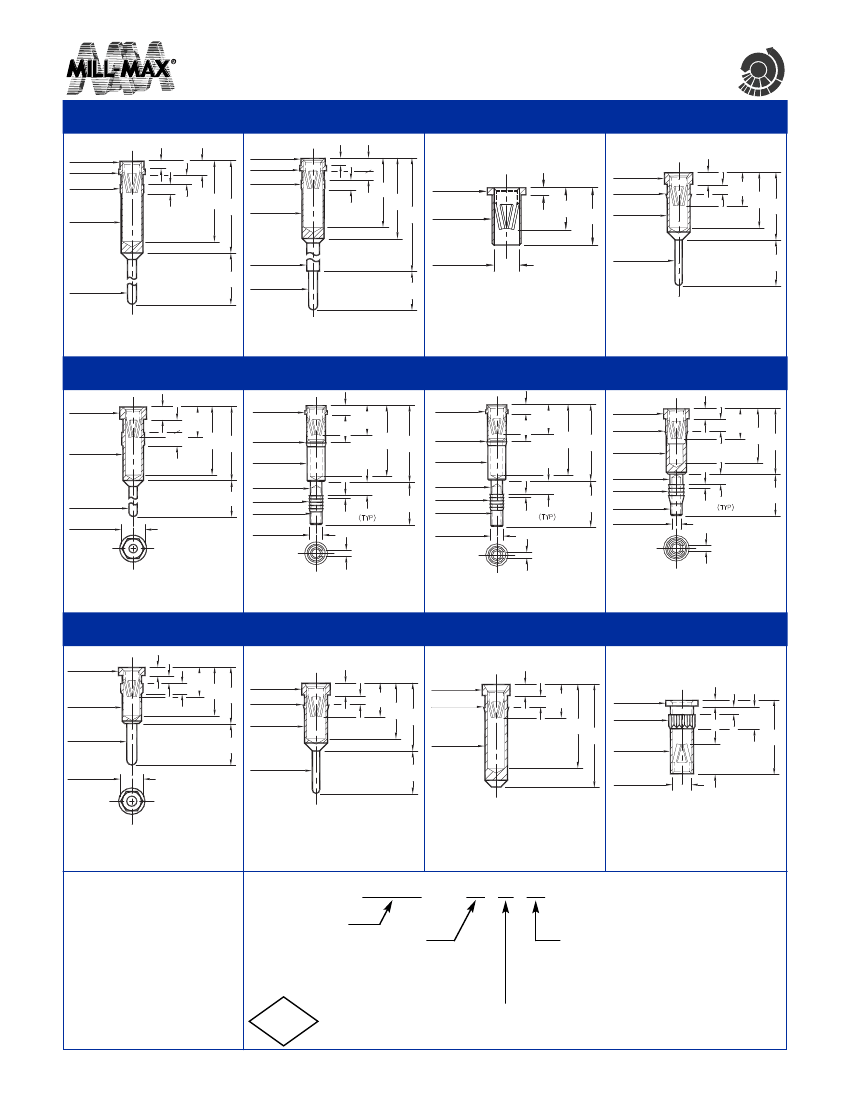

PIN RECEPTACLES

for 0,64 - 0,94 diameter pins

and 0,64 square pins

PR

E

CI

M

ON

S

I

CHI

A

PINS

NE

D

1305

0,41

1,68 DIA.

1,83 DIA.

1,63 DIA.

KNURL

1,5 DIA.

0,64

0,76

0,71

5,79

6,55

1306

0,41

1,68 DIA.

1,83 DIA.

1,63 DIA.

KNURL

1,5 DIA.

0,64

0,76

0,71

5,79

6,55

13,94

7305

0,36

1,96 DIA.

1,47 DIA.

2,11

0400

1,98 DIA.

1,78 DIA.

1,6 DIA.

0,81

0,71 2,31

3,94

4,7

2,67

0,86 DIA.

0,61 DIA.

5,79

0,61 DIA.

1,3 DIA.

HOLE

3,2

0,51 DIA.

3,18

7305-0-15-XX-47-XX-10-0

1305-0-15-XX-47-XX-04-0

Press-fit in 1,55 mounting hole

1306-0-15-XX-47-XX-04-0

Press-fit in 1,55 mounting hole.

Solder mount in 1,52 min. mounting hole

Also available on 8mm wide carrier

tape: 6,000 parts per 330mm reel.

Order as: 7305-0-57-XX-47-XX-10-0

0400-0-15-XX-47-XX-04-0

Press-fit in 1,7 mounting hole.

0335

2,03 DIA.

0,91

1,02 2,24

5,94 6,71

1,57 DIA.

1,02

4614

1,83 DIA.

0,76

2,16

2,24

6,1

6,45

1,63 DIA.

1,5 DIA.

0,97 DIA.

4615

1,83 DIA.

0,76

2,16

2,24

6,1

6,45

1,63 DIA.

1,5 DIA.

0,97 DIA.

3,15

0,25

1,14 DIA.

0,66 DIA.

HOLE

1,02 DIA.

0,46

SLOT

0,46

SLOT

0,25

7614

1,83 DIA.

1,63 DIA.

1,5 DIA.

0,97 DIA.

1,27

4,14

0,76

0,81 2,11

3,81

4,57

0,64 DIA.

1,73 DIA.

7,11

1,14 DIA.

0,66 DIA.

HOLE

1,02 DIA.

1,07

1,14 DIA.

0,89 DIA.

0,66 DIA.

HOLE

0,25

0,51

2,64

0,46

SLOT

0335-0-15-XX-47-XX-04-0

Hex press-fit in .1,63

plated thru hole

4614-0-31-XX-47-XX-04-0

Compliant press-fit in 1,02±0,08 plated

hole. For 1,52→2,54 thick board.

4615-0-31-XX-47-XX-04-0

Compliant press-fit in 1,02±0,08 plated

hole. For 2,29→3,30 thick board.

7614-0-31-XX-47-XX-04-0

Compliant press-fit in 1,02±0,08 plated

hole. For 1,52→2,54 thick board.

8401

2,01 DIA.

0,71

0,76

1,47 DIA.

0,51

2,26

3,66

4,19

2400

1,96 DIA.

1,75 DIA.

1,57 DIA.

0,81

0,71 2,41

3,94

6857

1,83 DIA.

1,63 DIA.

4,7

1,55 DIA.

0,79

0,71 2,21

5,84

7,11

9393

0,38

2,18 DIA.

1,78 DIA.

KNURL

1,57 DIA.

2,11

1,52

5,08

0,51

0,79 DIA.

3,05

0,51 DIA.

1,91

1,7 DIA.

1,3 DIA.

HOLE

8401-0-15-XX-47-XX-04-0

Hex press-fit in 1,6

plated thru hole

2400-0-15-XX-47-XX-04-0

Press-fit in 1,68 mounting hole.

6857-0-15-XX-47-XX-10-0

Press-fit in 1,57 mounting hole.

9393-0-15-XX-47-XX-10-0

Press-fit in 1,70 mounting hole.

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±0,13

DIAMETERS: ±0,05

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - 47 - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

5,08μm TIN/LEAD OVER NICKEL



80

5,08μmTIN OVER NICKEL (RoHS)



15

0,25μm GOLD OVER NICKEL (RoHS)

2002/95/EC

SPECIFY CONTACT FINISH:

01

5,08μm TIN/LEAD OVER NICKEL



80

5,08μm TIN OVER NICKEL (RoHS)



27

0,76μm GOLD OVER NICKEL (RoHS)

RoHS

CONTACT

#47

CONTACT (DATA ON PAGE 222)
