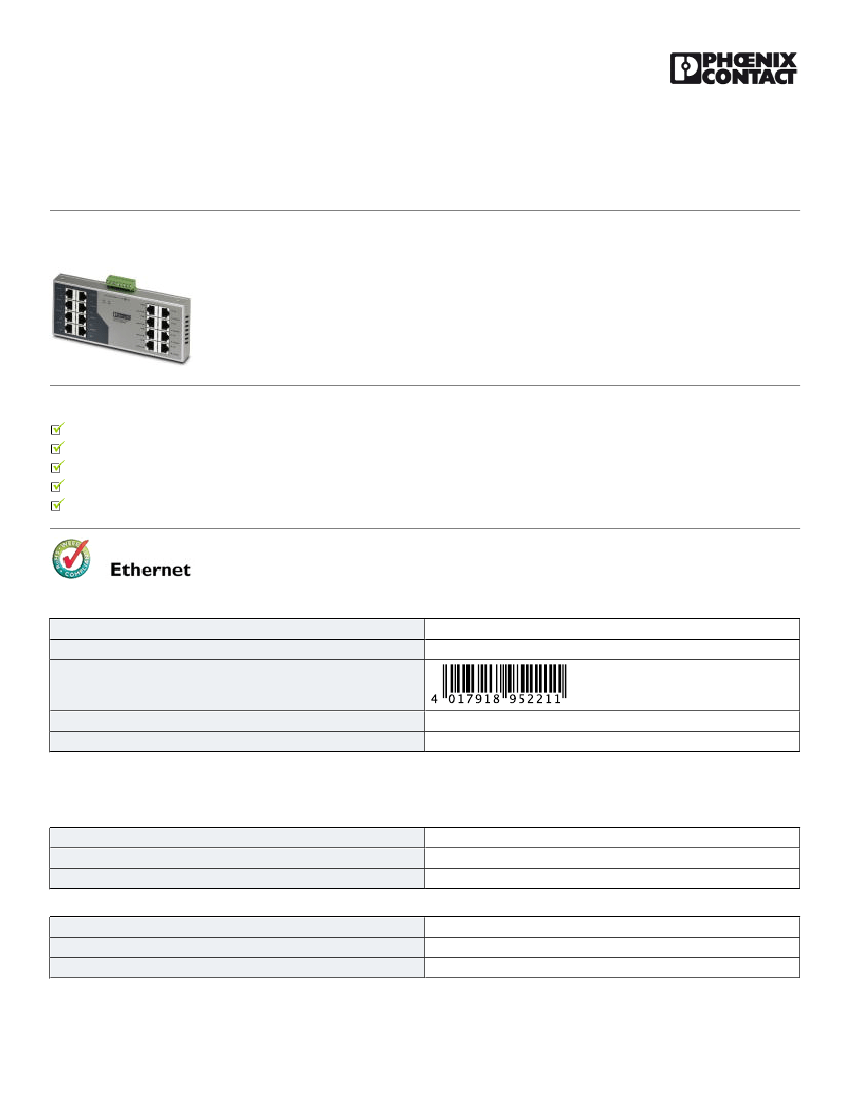

Switch - FL SWITCH SF 16TX - 2832849
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Ethernet Switch, 16 TP RJ45 ports, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45),
autocrossing function
Product Features
Auto negotiation and autocrossing detection simplifies installation and setup
Relay contact for alarm processing of voltage states
Local diagnostic indicators with LEDs
Security options with cable locking
RJ45 ports support a transmission speed of 10/100 Mbps; fiber optic ports support 100 Mbps
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
1 PCE
250 PCE
Key commercial data
85176200
TAIWAN
Technical data
Dimensions
Width
Height
Depth
205 mm
94.3 mm
30 mm
Interfaces
Interface 1
No. of ports
Connection method
Ethernet (RJ45)
16 (RJ45 ports)
RJ45
11.07.2013 Page 1 / 5
https://www.phoenixcontact.com/us/products/2832849
Switch - FL SWITCH SF 16TX - 2832849
Technical data
Interfaces
Note on connection method
Transmission physics
Transmission speed
Transmission length
Signal LEDs
Interface 4
Connection method
Auto negotiation and autocrossing
Ethernet in RJ45 twisted pair
10/100 MBit/s
100 m (per segment)
Data receive, link status
Potential-free signaling contact
Plug-in/screw connection via COMBICON
Function
Basic functions
Status and diagnostic indicators
Signal contact
Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and
forward switching mode
LEDs: U
S1
, U
S2
(redundant voltage supply), link and activity per port
<p></p>
Network expansion parameters
Cascading depth
Maximum conductor length ((twisted pair)
Network, linear, and star structure: any
100 m
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
Max. current consumption
24 V DC
3.6 V
PP
(within the permitted voltage range)
18.5 V DC ... 30.2 V DC
typ. 300 mA
typ.
General
Mounting type
Type AX
Weight
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Housing material
Noise emission
Noise immunity
DIN rail
Block design
380 g
IP20
0 °C ... 55 °C
-20 °C ... 70 °C
5 % ... 95 % (no condensation)
5 % ... 95 % (no condensation)
86 kPa ... 108 kPa (up to 1500 m above mean sea level)
66 kPa ... 108 kPa (up to 3500 m above mean sea level)
Aluminum
EN 61000-6-4
EN 61000-6-2:2005
11.07.2013 Page 2 / 5
https://www.phoenixcontact.com/us/products/2832849
Switch - FL SWITCH SF 16TX - 2832849
Technical data
Conformity with EMC directives
Developed in acc. with standard
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
IEC 61000-6.2
IEC 61000-4-2 (ESD)
Criterion B
IEC 61000-4-3 (immunity to radiated interference)
Criterion A
IEC 61000-4-4 (burst)
Criterion B
IEC 61000-4-5 (surge)
Criterion B
IEC 61000-4-6 (immunity to conducted interference)
Criterion A
IEC 61000-4-8 (immunity to magnetic fields)
Criterion A
EN 55022 (emitted interference)
Criterion A
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27250501
27250501
27250501
27250501
19170106
19170106
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000734
EC000734
EC000734
EC000734
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201410
43201410
11.07.2013 Page 3 / 5
https://www.phoenixcontact.com/us/products/2832849
Switch - FL SWITCH SF 16TX - 2832849
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approvals submitted
Approval details
UL Listed
cUL Listed
cULus Listed

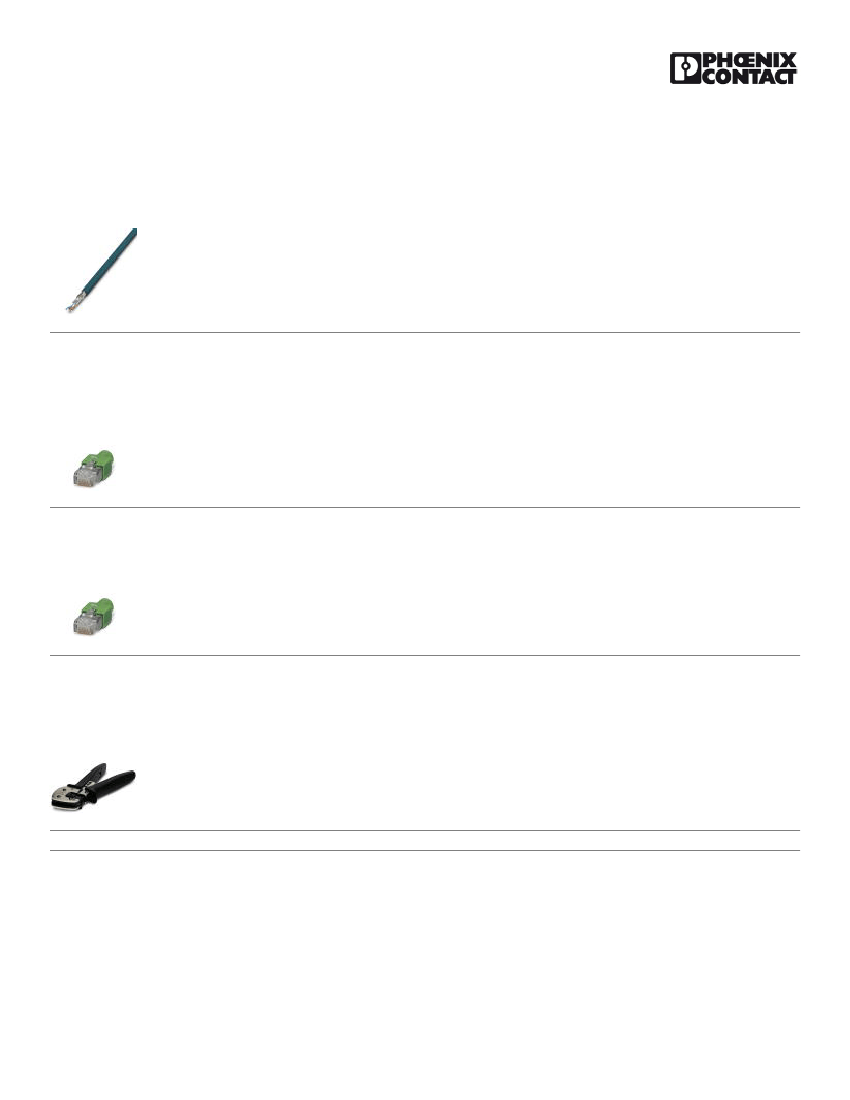

Accessories
Accessories
Cable/conductor
Cable - FL CAT5 HEAVY - 2744814
CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm², solid conductor,
shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter
11.07.2013 Page 4 / 5
https://www.phoenixcontact.com/us/products/2832849
Switch - FL SWITCH SF 16TX - 2832849
Accessories
Network cable - FL CAT5 FLEX - 2744830
CAT5-SF/UTP cable (J-LI02YS(ST)C H 2 x 2 x 26 AWG), light-duty, flexible installation cable 2 x 2 x 0.14 mm², stranded,
shielded, outer sheath: 5.75 mm ± 0.15 mm diameter
Plug/Adapter
RJ45 plug-in connector - FL PLUG RJ45 GR/2 - 2744856
RJ45 connector, shielded, with bend protection sleeve, 2 pieces, gray for straight cables, for assembly on site. For
connections that are not crossed, it is recommended that you use the connector set with gray bend protection sleeve.
RJ45 plug-in connector - FL PLUG RJ45 GN/2 - 2744571
RJ45 connector, shielded, with bend protection sleeve, 2 pieces, green for crossed cables, for assembly on site. For
connections that are crossed, it is recommended that the connector set with green bend protection sleeves is used.
Tools
Assembly tool - FL CRIMPTOOL - 2744869
Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for assembly on site
© Phoenix Contact 2013 - all rights reserved
http://www.phoenixcontact.com
11.07.2013 Page 5 / 5
