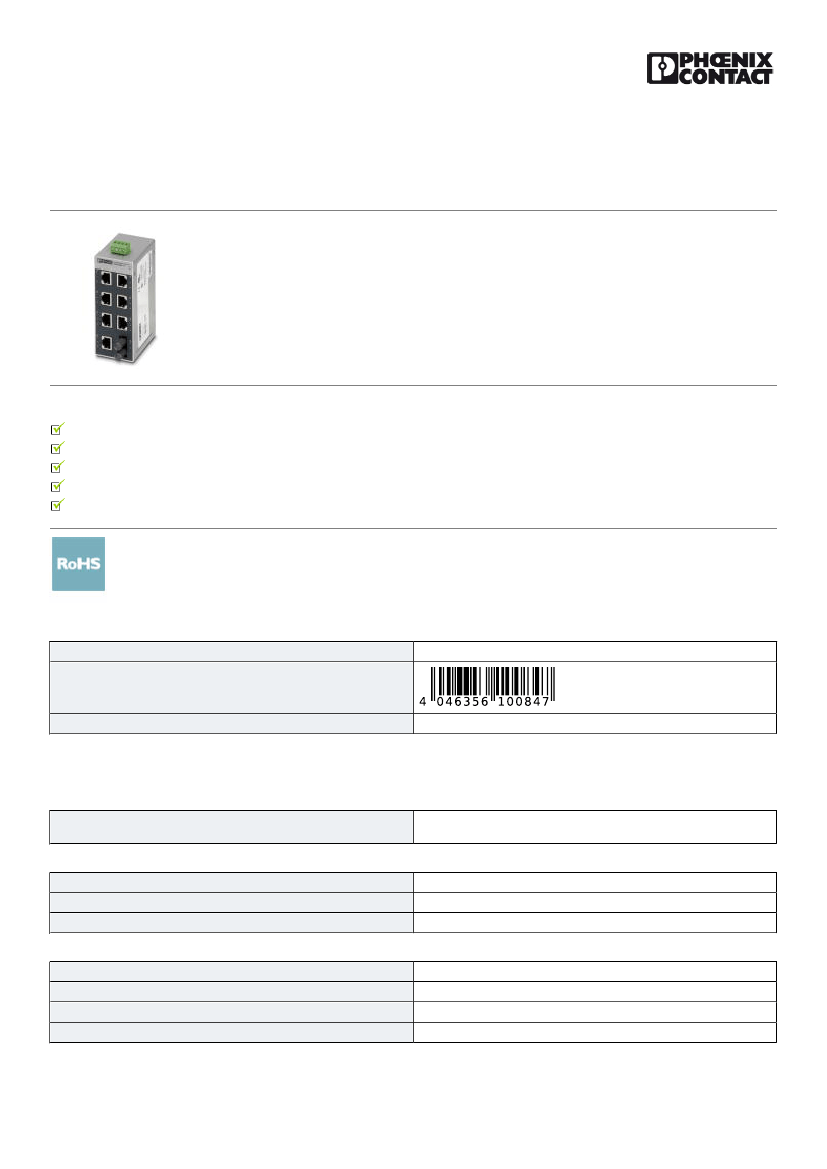

Industrial Ethernet Switch - FL SWITCH SFN 7TX/FX ST - 2891110
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ethernet Switch, 7 TP RJ45 ports, 1 FO port, 100 Mbps full duplex in ST-D format, automatic detection of data
transmission speed of 10 or 100 Mbps (RJ45), autocrossing function
Your advantages
Auto negotiation and autocrossing detection simplifies installation and setup
The switch also offers cable locking and port blocking
Local diagnostic indicators with LEDs
RJ45 ports support a transmission speed of 10/100 Mbps; fiber optic ports support 100 Mbps
QoS-prioritized (Quality of Service) messages
Key Commercial Data
Packing unit
GTIN
GTIN
4046356100847
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
50 mm
120 mm
70 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
IP20
0 °C ... 60 °C
-20 °C ... 70 °C
5 % ... 95 % (non-condensing)
10/25/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/2891110
Industrial Ethernet Switch - FL SWITCH SFN 7TX/FX ST - 2891110
Technical data
Ambient conditions
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
5 % ... 95 % (non-condensing)
86 kPa ... 108 kPa (up to 1500 m above sea level)
66 kPa ... 108 kPa (up to 3500 m above sea level)
Interfaces
Interface 1
No. of ports
Note on the connection method
Transmission physics
Transmission speed
Interface 2
No. of ports
Transmission physics
Transmission speed
Transmission length
Wavelength
Ethernet (RJ45)
7 (RJ45 ports)
Auto negotiation and autocrossing
Ethernet in RJ45 twisted pair
10/100 Mbps
Fiber optic interface
1 (ST multi-mode)
multi-mode fiberglass
100 Mbps (full duplex)
2000 m (Fiberglass 50/125)
2000 m (Fiberglass 62.5/125)
1300 nm
Function
Basic functions
Additional functions
Status and diagnostic indicators
Unmanaged switch / auto negotiation, complies with IEEE 802.3, store
and forward switching mode
Autonegotiation
LEDs: U
S
, link and activity per port
Network expansion parameters
Cascading depth
Maximum conductor length (twisted pair)
Network, linear, and star structure: any
100 m
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
24 V DC
3.6 V
PP
(within the permitted voltage range)
9 V DC ... 32 V DC
190 mA (at U
S
= 24 V DC)
General
Mounting type
Type AX
Net weight
Housing material
DIN rail
Block design
365 g
Aluminum
Standards and Regulations
Electromagnetic compatibility
Noise emission
Noise immunity
Conformance with EMC Directive 2004/108/EC
EN 61000-6-4
EN 61000-6-2:2005
10/25/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/2891110
Industrial Ethernet Switch - FL SWITCH SFN 7TX/FX ST - 2891110
Technical data
Standards and Regulations
Vibration (storage/transport)
Free from substances that could impair the application of coating
Vibration (operation)
5g, 150 Hz, in acc. with IEC 60068-2-6
In acc. with VW specification
in acc. with IEC 60068-2-6: 5g, 150 Hz
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 10;
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
EAC
RU *-
DE.A*30.B.01735
cULus Listed
10/25/2018 Page 3 / 4
