1820740SS20

Description
Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size128KB,2 Pages
ManufacturerTeka Interconnection Systems
Download Datasheet Parametric View All

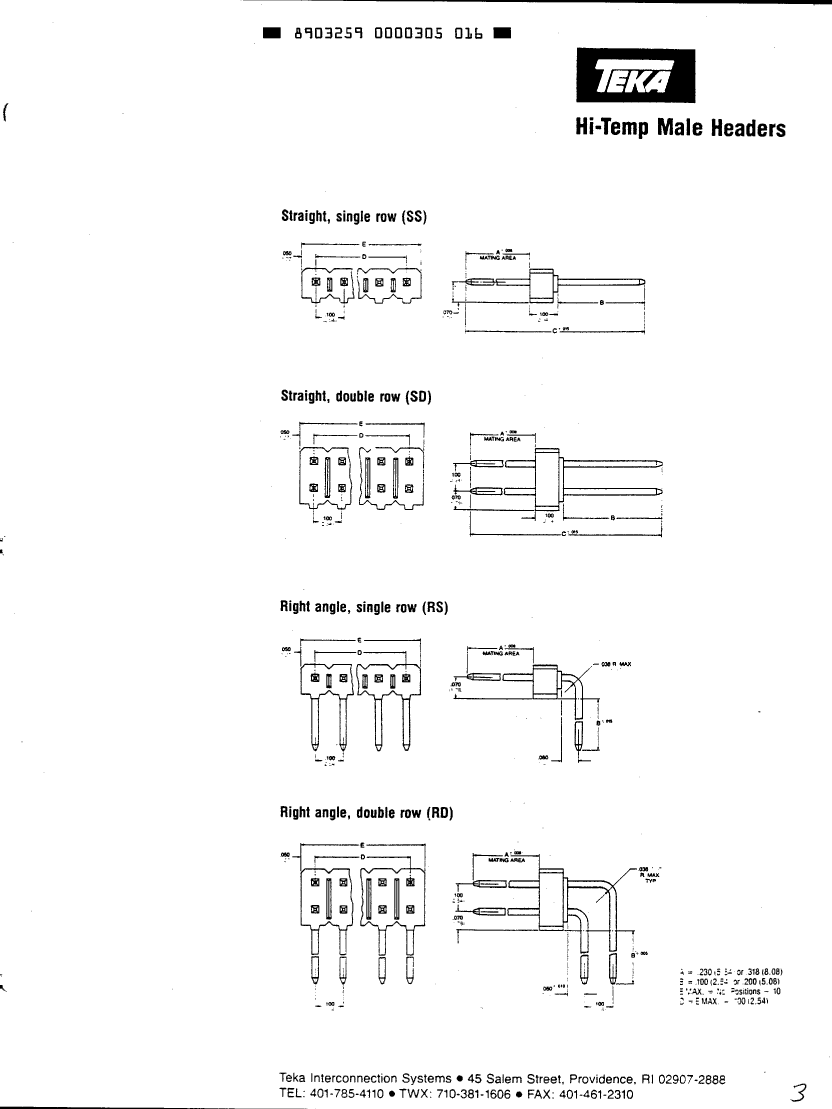

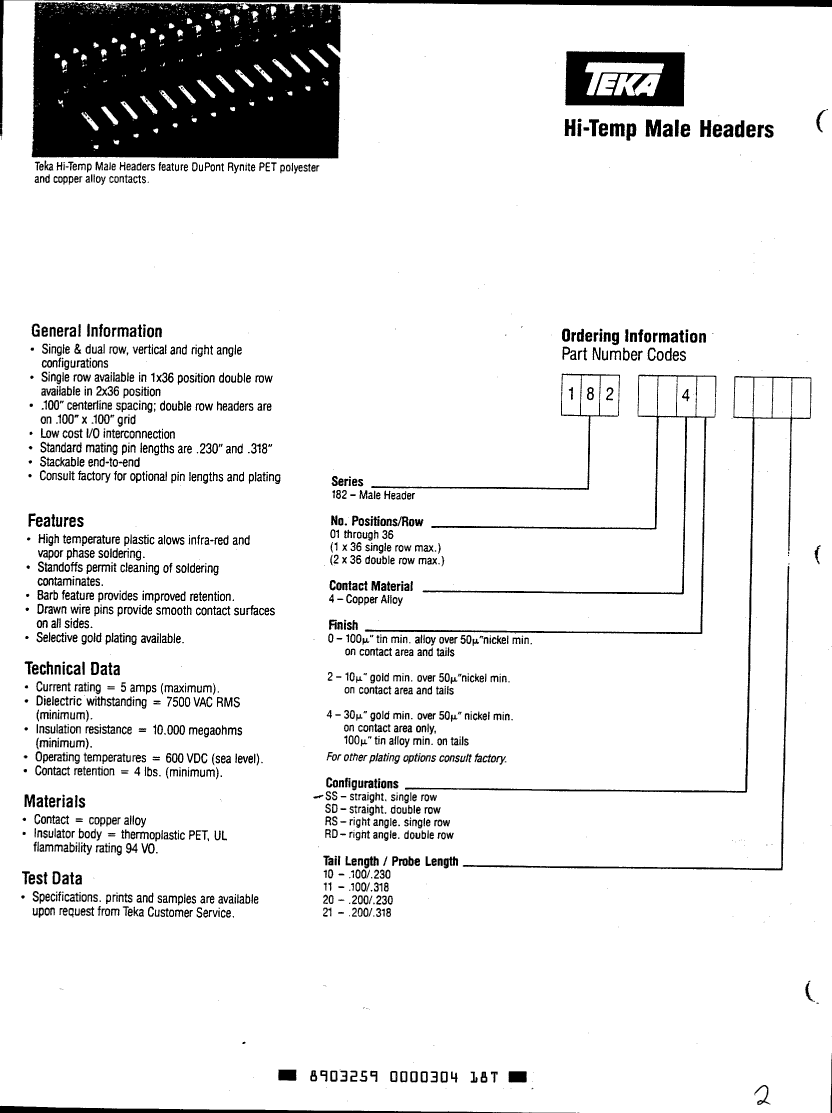

1820740SS20 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

1820740SS20 Parametric

Parameter NameAttribute value
Filter functionNO
Insulation resistance10000000000 Ω
Dielectric withstand voltage7500VAC V
GuidelineUL
Is SamacsysN
Objectid1161819373
Reach Compliance CodeUnknown
ECCN codeEAR99
Terminal length0.2 inch
subject depth0.1 inch
body length0.7 inch
Contact point genderMALE
Installation methodSTRAIGHT
Rated current (signal)5 A
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
insulator materialPOLYETHYLENE TEREPHTHALATE
Installation typeBOARD
PCB row number1
Number of rows loaded1
Terminal pitch2.54 mm
Total number of contacts7
Body/casing typeRECEPTACLE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
PCB contact patternRECTANGULAR
Plating thickness100u inch
Contact completed and terminatedGOLD
Contact materialCOPPER ALLOY
Plug contact pitch0.1 inch
Mixed contactsNO
Number of connectorsONE
Termination typeSOLDER
