FL SWITCH SF…
Factoryline switches with standard functions
Data sheet
3087_en_B
1
Description
© PHOENIX CONTACT 2016-02-25
–
–
The FL SWITCH SF… range of Factoryline switches with
standard functions in numerous versions can be used for
quick and cost-effective Ethernet network expansion. The
switches have 8 or 16 ports, up to two of which are multi-
mode glass fiber ports provided in the SC or ST format. The
twisted pair ports of the switches support both Ethernet with
a transmission speed of 10 Mbps and fast Ethernet with a
transmission speed of 100 Mbps. The glass fiber ports only
support 100 Mbps.
The switches regenerate received data telegrams and send
them to the port to which the device is connected with the
corresponding target address.
–
–
–
–
2
–
Features and fields of application
Increased network performance by filtering the data
traffic.
– Local data traffic remains local.
– The data volume in the network segments is
reduced.
–
–
Easy network expansion without configuration of the
switch.
Coupling copper network segments with different bit
rates.
– Automatic detection of the data transmission
speed of 10 or 100 Mbps.
Auto negotiation: Each copper port establishes a half or
full duplex connection with 10 or 100 Mbps.
Auto crossing: It is not necessary to make a distinction
between 1:1 or crossover Ethernet copper cables.
Electrical isolation of network segments using up to two
fiber optic ports.
Increasing the maximum cable length to 10,000 m
(62.5/125 µm) or to 6400 m (50/125 µm) using a fiber
optic port.
Floating alarm output: The alarm output can be used to
monitor the redundant voltage supply.
Flow and back pressure control for high-quality
communications.
Please note the different connection directions of the transmission media: Copper cables are connected at the
front,
glass fiber cables at the
bottom.
Make sure you always use the latest documentation.
It can be downloaded at
phoenixcontact.com.
This document is valid for all products listed in the “Ordering data” on page 2 and the referenced version. For
versions (VC) prior to those listed, refer to data sheet 3087.
FL SWITCH SF…
3
Ordering data
Type
FL SWITCH SF 8TX
FL SWITCH SF 7TX/FX
FL SWITCH SF 6TX/2FX
FL SWITCH SF 16TX
FL SWITCH SF 15TX/FX
FL SWITCH SF 14TX/2FX
FL SWITCH SF 7TX/FX ST
FL SWITCH SF 6TX/2FX ST
Products
Description
Ethernet switch with 8 RJ45 ports (VC 14 and above)
Ethernet switch with 7 RJ45 ports and
1 fiber optic port in SC format (VC 9 (6) and above)
Ethernet switch with 6 RJ45 ports and
2 fiber optic ports in SC format (VC 12 (8) and above)
Ethernet switch with 16 RJ-45 ports
Ethernet switch with 15 RJ45 ports and
1 fiber optic port in SC format
Ethernet switch with 14 RJ45 ports and
2 fiber optic ports in SC format
Ethernet switch with 7 RJ45 ports and
1 fiber optic port in ST format
Ethernet switch with 6 RJ45 ports and
2 fiber optic ports in ST format
Order No.
2832771
2832726
2832933
2832849
2832661
2832593
2832577
2832674
Pcs./Pkt.
1
1
1
1
1
1
1
1
Accessories
Description
Rail adapter for mounting the 8-port switch at an angle of 90°
Universal end clamp
RJ45 connector set;
gray
for 1:1 cables (pack of 2)
RJ45 connector set;
green
for crossover cables (pack of 2)
Double sheathed Ethernet cable
Flexible Ethernet cable
Assembly tool for RJ45 connector
Patchbox 8 x RJ45 CAT5e, pre-assembled, can be retrofitted
Patchbox 6 x RJ45 CAT5e and 4 SC-RJ, glass pre-assembled, can be
retrofitted
Patch cable, CAT 5, pre-assembled, 0.3 m long
Patch cable, CAT 5, pre-assembled, 0.5 m long
Patch cable, CAT 5, pre-assembled, 1.0 m long
Patch cable, CAT 5, pre-assembled, 1.5 m long
Patch cable, CAT 5, pre-assembled, 2.0 m long
Patch cable, CAT 5, pre-assembled, 3.0 m long
Patch cable, CAT 5, pre-assembled, 5.0 m long
Patch cable, CAT 5, pre-assembled, 7.5 m long
Patch cable, CAT 5, pre-assembled, 10.0 m long
Dust protection caps for RJ45 sockets
Type
FL RA SF8
E/NS 35 N
FL PLUG RJ45 GR/2
FL PLUG RJ45 GN/2
FL CAT5 HEAVY
FL CAT5 FLEX
FL CRIMPTOOL
FL PBX 8TX
FL PBX 6TX/4FX
FL CAT5 PATCH 0,3
FL CAT5 PATCH 0,5
FL CAT5 PATCH 1,0
FL CAT5 PATCH 1,5
FL CAT5 PATCH 2,0
FL CAT5 PATCH 3,0
FL CAT5 PATCH 5,0
FL CAT5 PATCH 7,5
FL CAT5 PATCH 10
FL RJ45 PROTECT CAP
Order No.
2832519
0800886
2744856
2744571
2744814
2744830
2744869
2832496
2832506
2832250
2832263
2832276
2832221
2832289
2832292
2832580
2832616
2832629
2832991
Pcs./Pkt.
1
50
1
1
-
-
1
1
1
10
10
10
10
10
10
10
10
10
10
3087_en_B
PHOENIX CONTACT
2/9
FL SWITCH SF…
4
Function
Technical data
Switch/repeater; conforms to standard IEEE 802.3
6 µs plus frame time (16-port version)
8 µs plus frame time (8-port version)
135 x 80 x 30 (without COMBICON)
135 x 94 x 30 (with COMBICON)
135 x 89 x 30 (without COMBICON)
135 x 103 x 30 (with COMBICON)
200 x 80 x 30 (without COMBICON)
200 x 94 x 30 (with COMBICON)
200 x 80 x 30 (without COMBICON)
200 x 103 x 30 (with COMBICON)
0°C to 55°C
-20°C to 70°C
IP20, DIN 40050, IEC 60529
Class 3 VDE 0106; IEC 60536
5% to 95%, no condensation
5% to 95%, no condensation
86 kPa to 108 kPa, 1500 m above sea level
66 kPa to 108 kPa, 3500 m above sea level
Perpendicular to a standard DIN rail
Snapped onto a grounded DIN rail
263 g, typical
380 g, typical
General data
Latency of the communication processor
Housing dimensions (width x height x depth) in mm
8-port switch (RJ45)
8-port switch (fiber optics)
16-port switch (RJ45)
16-port switch (fiber optics)
Permissible operating temperature
Permitted storage temperature
Degree of protection
Class of protection
Humidity (operation)
Humidity (storage)
Air pressure (operation)
Air pressure (storage)
Preferred mounting position
Connection to protective earth ground
Weight
8-port switch
16-port switch
Supply voltage (US)
Connection
Nominal value
Permissible ripple
Permissible voltage range
Current consumption at US
Inrush current
Protection against polarity reversal
Test voltage
Power consumption
Via COMBICON;
conductor cross-section 2.5 mm
2
, maximum
24 V DC
3.6 V
pp
within the permissible voltage range
18.5 V DC to 30.2 V DC
Depends on the device - see the following table
9A
None
500 V DC for 1 minute
Depends on the device - see the following table
Module
FL SWITCH SF 8TX (<VC 14)
FL SWITCH SF 8TX (≥VC 14)
FL SWITCH SF 7TX/FX (ST) (<VC 9)
FL SWITCH SF 7TX/FX (ST) (≥VC 9)
FL SWITCH SF 6TX/2FX (ST) (<VC 12)
FL SWITCH SF 6TX/2FX (ST) (≥VC 12)
FL SWITCH SF 16TX
FL SWITCH SF 15TX/FX
FL SWITCH SF 14TX/2FX
Current consumption
200 mA
95 mA
220 mA
135 mA
240 mA
75 mA
300 mA
330 mA
360 mA
Power consumption
4.80 W
2.28 W
5.28 W
3.24 W
5.76 W
4.20 W
7.20 W
7.92 W
8.64 W
3087_en_B
PHOENIX CONTACT
3/9
FL SWITCH SF…
Interfaces
Total number of Ethernet interfaces
Properties of RJ45 ports
Number
Connection format
Connection medium
Cable impedance
Transmission speed
Maximum network segment expansion
Properties of fiber optic ports
Number
Connection format
Wavelength
Laser protection
Minimum transmission length, including 3 dB system reserve
0, 1 or 2 depending on the device version
SC duplex socket or ST socket on the switch
1300 nm
Class 1 according to DIN EN 60825-1:2001-11
5.7 km glass fiber with F-G 50/125 0.7 dB/km F1200
2.5 km glass fiber with F-G 50/125 1.6 dB/km F800
10 km glass fiber with F-G 62.5/125 0.7 dB/km F1000
2.9 km glass fiber with F-G 62.5/125 2.6 dB/km F600
-22.5 dBm (50/125 µm) / -19 dBm (62.5/125 µm)
-31 dBm (dynamic)
-14 dBm (dynamic)
100 Mbps
24 V DC, typical
100 mA, typical
6, 7, 8, 14, 15 or 16 depending on the device version
8-pos. RJ45 socket on the switch
Twisted pair cable with a conductor cross-section of 0.14 mm² to 0.22 mm²
100
10/100 Mbps
100 m
8/16
Average transmission power (fiber type) in link mode
1
Minimum receiver responsiveness
Maximum overrange
Transmission speed
Alarm contact
Voltage
Current carrying capacity
1
Distance calculations assume a link budget of 4 dBm (50 µm fiber), 7.5 dBm (62.5 µm fiber), 3 dBm margin, and 1.5 dBm for connectors
Mechanical tests
Shock test according to IEC 60068-2-27
Vibration resistance according to IEC 60068-2-6
Free fall according to IEC 60068-2-32
Operation: 25g, 11 ms period, half-sine shock pulse
Storage/transport: 50g, 11 ms period, half-sine shock pulse
Operation/storage/transport: 5g, 150 Hz, criterion 3
1m
Conformance with EMC directives
Developed according to IEC 61000-6-2
IEC 61000-4-2 (ESD)
IEC 61000-4-3 (radiated-noise immunity)
IEC 61000-4-4 (burst)
IEC 61000-4-5 (surge)
IEC 61000-4-6 (conducted noise immunity)
IEC 61000-4-8 (noise immunity against magnetic fields)
EN 55022 (noise emission)
Criterion B
Criterion A
Criterion A
Criterion B
Criterion A
Criterion A
Class A
Approvals
c
U
UL508
ROHS
Class I, Div. 2 E199827
E140324
EEE 2002/95/EC, WEEE 2002/96/EC
3087_en_B
PHOENIX CONTACT
4/9
FL SWITCH SF…
5
Dimensions
X9
LNK/ACT
LNK/ACT
US1
US2
X7
100
LNK/ACT
X8
100
LNK/ACT
X5
100
LNK/ACT
X6
100
LNK/ACT
X3
100
LNK/ACT
X4
100
LNK/ACT
X1
100
X2
100
FL SWITCH SF 8TX
Ord.-No.: 2832771
X17
LNK/ACT
X7
LNK/ACT
US1
US2
LNK/ACT
X15
LNK/ACT
X16
100
LNK/ACT
X5
100
LNK/ACT
X6
100
LNK/ACT
100
LNK/ACT
X14
100
LNK/ACT
X3
100
LNK/ACT
X4
T
C
/A
K
N
L
FL SWITCH SF 14TX/2FX
Ord.-No.: 2832593
X8
T
C
/A
K
N
L
0
X13
100
LNK/ACT
X11
100
LNK/ACT
X12
X9
0
100
LNK/ACT
X1
100
LNK/ACT
X2
100
LNK/ACT
100
LNK/ACT
X10
10
10
100
100
100
100

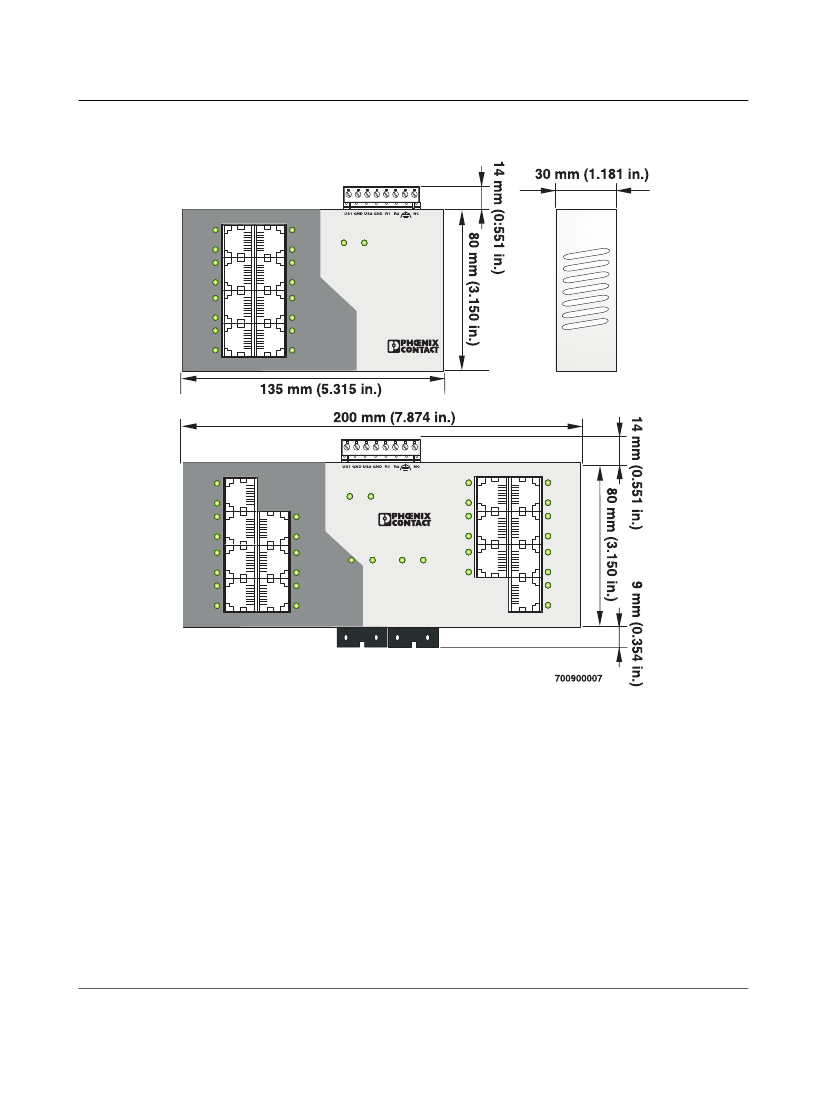

Figure 1
Dimensions
3087_en_B
PHOENIX CONTACT
5/9
