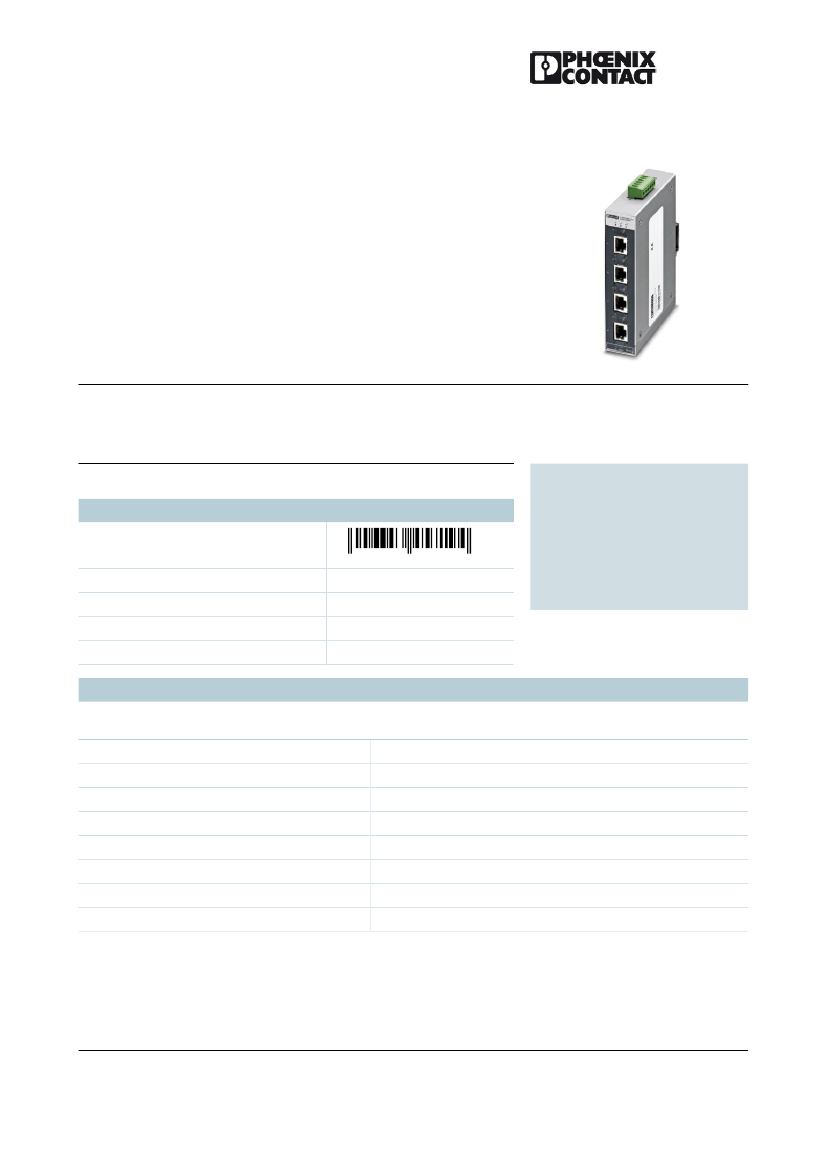

Extract from the online
catalog
FL SWITCH SFNT 4TX/FX
Order No.: 2891004
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891004
Ethernet switch, 4 TP RJ45 ports, 1 FO port, 100 Mbps full duplex
in SC-D format, automatic detection of data transmission speed of
10/100 Mbps (RJ45), autocrossing function
Commercial data
GTIN (EAN)
4
046356
457194
sales group
Pack
Customs tariff
Catalog page information
Technical data
Interfaces
Interface
No. of ports
Type of connection
Transmission physics
Transmission speed
Interface
No. of ports
Type of connection
K000
1 pcs.
85176200
Page 197 (AX-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Ethernet (RJ45)
4 (RJ45 ports)
RJ45 female connector, auto negotiation and autocrossing
Ethernet in RJ45 twisted pair
10/100 MBit/s (RJ45)
Fiber optic interface
1 (FO port)
SC-Duplex
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 4
Feb 4, 2011
FL SWITCH SFNT 4TX/FX
Order No.: 2891004
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891004
Transmission physics
Transmission speed
Transmission length
Function
Basic functions
Multimode glass fiber
100 MBit/s (SC-D, full duplex)
12.1 km (glass fiber with F-G 62.5/125 0.7 dB/km F1000)
Unmanaged switch / autonegotiation, complies with IEEE 802.3,
store and forward switching mode, includes QoS and alarm
contact
LEDs: U
S1
, U
S2
(redundant voltage supply), link and activity per
port, alarm (power and link down)
Status and diagnostic indicators
Network expansion parameters
Cascading depth
Maximum conductor length ((twisted pair)
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
Max. current consumption
General data
Weight
Width
Height
Depth
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Housing material
Noise emission
Noise immunity
280 g
30 mm
130 mm
100 mm
IP20
-40 °C ... 75 °C
-40 °C ... 85 °C
5 % ... 95 % (no condensation)
5 % ... 95 % (no condensation)
86 kPa ... 108 kPa (up to 1500 m above mean sea level)
Aluminum
EN 61000-6-4
EN 61000-6-2
24 V DC (redundant)
3.6 V
PP
(within the permitted voltage range)
9 V DC ... 32 V DC
180 mA (@24 V DC)
565 mA (@9 V DC)
Network, linear, and star structure: any
100 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 4
Feb 4, 2011
FL SWITCH SFNT 4TX/FX
Order No.: 2891004
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891004
Certificates / Approvals
Certification
Certification Ex:
ABS, BV, CUL, DNV, GL, LR, NK, UL
CUL-EX LIS, UL-EX LIS
Accessories
Item
Designation
Description
Cable/conductor
2832250
2832263
2832276
2832221
2832629
2832289
2832292
2832580
2832616
General
0800886
2891012
2832991
2832865
E/NS 35 N
FL PA SFNT 5-8
FL RJ45 PROTECT CAP
FL SEC PAC 4TX
End clamp, width: 9.5 mm, color: gray
Mounting plate for SFNT switches
Dust protection caps for RJ45 female connector
Layer1 security elements for four RJ45 network connections for
use with patch boxes and panels
FL CAT5 PATCH 0,3
FL CAT5 PATCH 0,5
FL CAT5 PATCH 1,0
FL CAT5 PATCH 1,5
FL CAT5 PATCH 10,0
FL CAT5 PATCH 2,0
FL CAT5 PATCH 3,0
FL CAT5 PATCH 5,0
FL CAT5 PATCH 7,5
Patch cable, CAT5, assembled, 0.3 m
Patch cable, CAT5, assembled, 0.5 m
Patch cable, CAT5, assembled, 1.0 m
Patch cable, CAT5, assembled, 1.5 m
Patch cable, CAT5, assembled, 10.0 m
Patch cable, CAT5, assembled, 2.0 m
Patch cable, CAT5, assembled, 3.0 m
Patch cable, CAT5, assembled, 5.0 m
Patch cable, CAT5, assembled, 7.5 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 4
Feb 4, 2011
FL SWITCH SFNT 4TX/FX
Order No.: 2891004
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2891004
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 4
Feb 4, 2011
