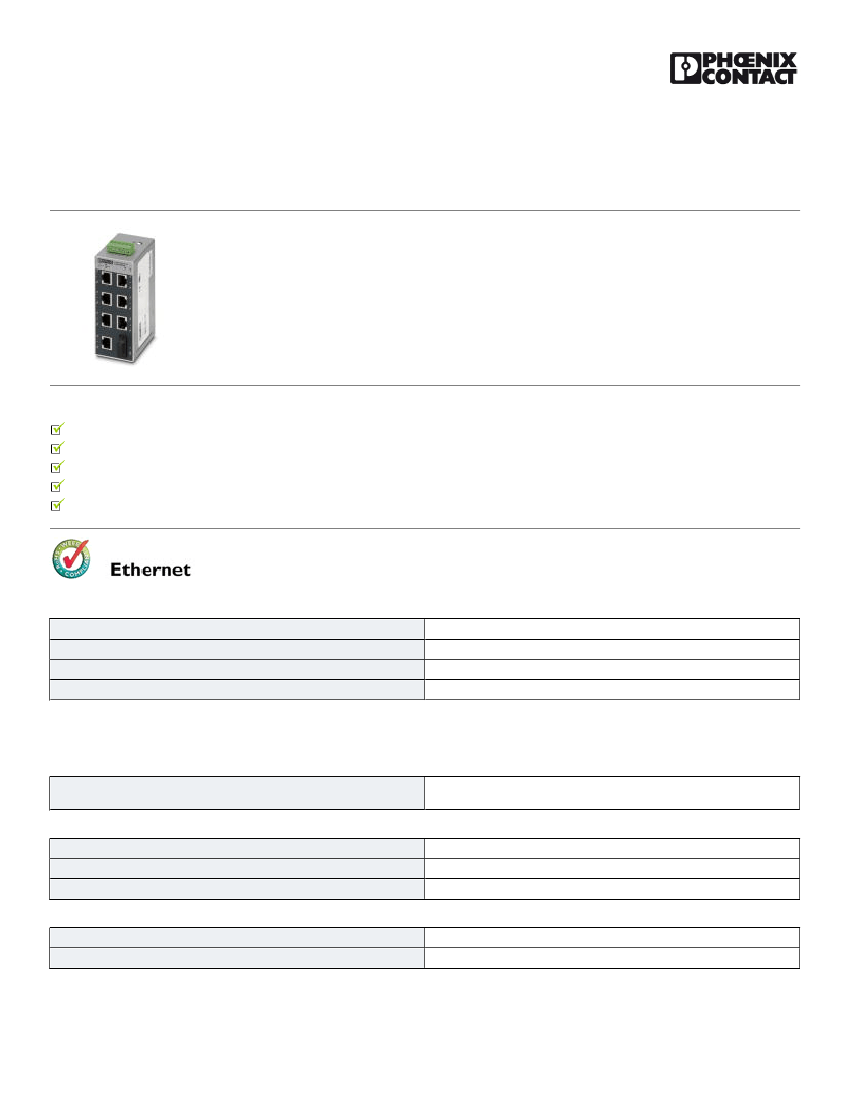

Industrial Ethernet Switch - FL SWITCH SFN 7GT/SX - 2891518
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ethernet switch, 7 TP-RJ45 ports, 10/100/1000 Mbps on all RJ45 ports, 1 multi-mode SC-D port, 1 Gbps full
duplex, auto negotiation (RJ45), autocrossing function, with signal contact and QoS, extended temperature range
Product Features
Auto negotiation and autocrossing detection simplifies installation and setup
Relay contact for alarm processing of voltage states
The switch also offers cable locking and port blocking
Local diagnostic indicators with LEDs
All ports offer transmission speeds of 1000 Mbps
Packing unit
1 pc
573.8 g
85176200
Taiwan
Key Commercial Data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
50 mm
120 mm
70 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP20
-25 °C ... 75 °C
12/15/2015 Page 1 / 4
https://www.phoenixcontact.com/us/products/2891518
Industrial Ethernet Switch - FL SWITCH SFN 7GT/SX - 2891518
Technical data
Ambient conditions
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
-35 °C ... 85 °C
5 % ... 95 % (non-condensing)
5 % ... 95 % (non-condensing)
86 kPa ... 108 kPa (up to 1500 m above mean sea level)
66 kPa ... 108 kPa (up to 3500 m above mean sea level)
Interfaces
Interface 1
No. of ports
Connection method
Note on connection method
Transmission physics
Transmission speed
Interface 2
No. of ports
Connection method
Transmission physics
Transmission speed
Transmission length
Wavelength
Interface 4
Connection method
Ethernet (RJ45)
7 (RJ45 ports)
RJ45
Auto negotiation and autocrossing
Ethernet in RJ45 twisted pair
10/100/1000 MBit/s
Fiber optic interface
1 (SC multi-mode)
SC
multi-mode fiberglass
1000 MBit/s (full duplex)
220 m (Fiberglass 62.5/125)
550 m (Fiberglass 50/125)
850 nm
Potential-free signaling contact
Plug-in/screw connection via COMBICON
Function
Basic functions
Status and diagnostic indicators
Signal contact control voltage
Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and
forward switching mode
LEDs: U
S1
, U
S2
(redundant voltage supply), link and activity per port
Monitoring of the redundant supply voltage
Network expansion parameters
Cascading depth
Maximum conductor length (twisted pair)
Network, linear, and star structure: any
100 m
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
24 V DC (redundant)
3.6 V
PP
(within the permitted voltage range)
9 V DC ... 32 V DC
typ. 320 mA (at U
S
= 24 V DC)
12/15/2015 Page 2 / 4
https://www.phoenixcontact.com/us/products/2891518
Industrial Ethernet Switch - FL SWITCH SFN 7GT/SX - 2891518
Technical data
General
Mounting type
Type AX
Net weight
Housing material
DIN rail
Block design
415 g
Aluminum
Standards and Regulations
Electromagnetic compatibility
Test section
Noise emission
Noise immunity
Vibration (storage/transport)
Vibration (operation)
Conformance with EMC Directive 2004/108/EC
500 V DC 1 min.
EN 61000-6-4
EN 61000-6-2:2005
5g, 150 Hz, in acc. with IEC 60068-2-6
In acc. with IEC 60068-2-6: 5g, 150 Hz
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27250501
27250501
27250501
27250501
19170106
19170106
19170106
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000734
EC000734
EC000734
EC000734
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201410
43201410
12/15/2015 Page 3 / 4
https://www.phoenixcontact.com/us/products/2891518
Industrial Ethernet Switch - FL SWITCH SFN 7GT/SX - 2891518
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / EAC / cULus Listed
Ex Approvals
UL Listed / cUL Listed / cULus Listed
Approvals submitted
Approval details
UL Listed
cUL Listed
EAC
EAC
cULus Listed
