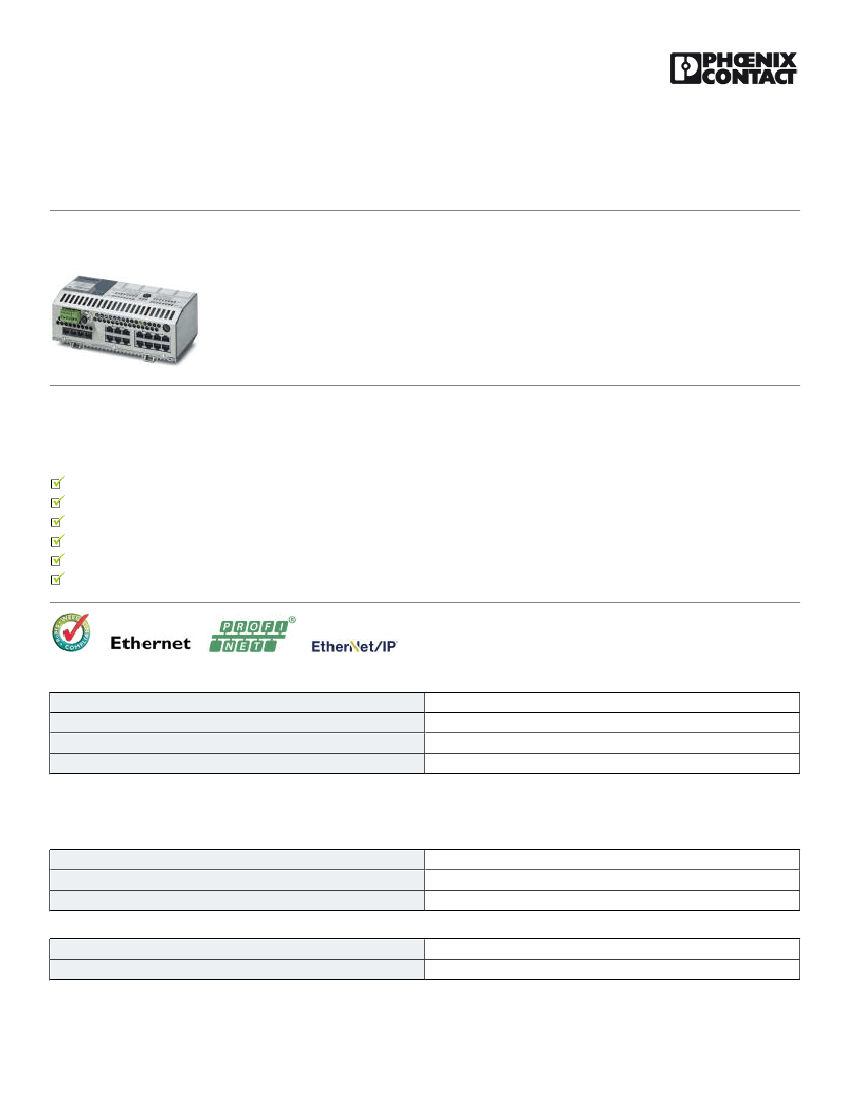

https://www.phoenixcontact.com/us/products/2700997
Industrial Ethernet Switch - FL SWITCH SMCS 14TX/2FX - 2700997
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ethernet Smart Managed Compact Switch with 14 10/100 Mbps RJ45 ports and two 100 Mbps FX-SC multi-mode
ports
Product Description
The Smart Managed Compact Switch (SMCS) is an Ethernet switch suitable for industrial applications with 14 Fast Ethernet ports in RJ45 format and
two fiber optic ports in SC multi-mode format.
Product Features
Web-based management, SNMP
Extended temperature range
VLANs
MRP (client and master)
SNMP
RSTP
Packing unit
1 pc
1340.0 g
85176200
Germany
Key Commercial Data
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
Technical data
Dimensions
Width
Height
Depth
214 mm
110 mm
69 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
IP20
-40 °C ... 70 °C (non-condensing)
12/15/2015 Page 1 / 6
https://www.phoenixcontact.com/us/products/2700997
Industrial Ethernet Switch - FL SWITCH SMCS 14TX/2FX - 2700997
Technical data
Ambient conditions
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
-40 °C ... 85 °C
5 % ... 95 % (non-condensing)
5 % ... 95 % (non-condensing)
86 kPa ... 108 kPa (2000 m above sea level)
66 kPa ... 108 kPa (3500 m above sea level)
Interfaces
Interface 1
No. of ports
Connection method
Note on connection method
Transmission physics
Transmission speed
Transmission length
Signal LEDs
Interface 2
No. of ports
Connection method
Transmission physics
Transmission speed
Transmission length
Ethernet (RJ45)
14 (RJ45 ports)
RJ45
Auto negotiation and autocrossing
Copper
10/100 MBit/s
100 m (per segment)
Supply voltage, data transmission, error, link, activity
Ethernet FO
2 (SC multi-mode)
SC
multi-mode fiberglass
100 MBit/s (full duplex)
10000 m (depending on the fiber used)
6400 m (fiberglass with F-G 50/125 0.7 dB/km F1200)
3000 m (fiberglass with F-G 62.5/125 2.6 dB/km F600)
2800 m (fiberglass with F-G 50/125 1.6 dB/km F800)
Wavelength
Interface 5
Connection method
1310 nm
Serial (RS-232)
RS-232-C, 6-pos. MINI-DIN socket (PS/2)
Function
Basic functions
Store-and-forward switch complies with IEEE 802.3 4 priority classes in
acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring,
integrated web server function, multicast filtering, IGMP snooping, VLAN,
Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy
Protocol (MRP).
Web-based management (HTTP)
SNMP v1/v2
Serial interface (V.24)
Diagnostic functions
RMON History
N:1-Portmirroring
LLDP (Link Layer Discovery Protocol)
12/15/2015 Page 2 / 6
Management
https://www.phoenixcontact.com/us/products/2700997
Industrial Ethernet Switch - FL SWITCH SMCS 14TX/2FX - 2700997
Technical data
Function
SNMP-Traps
ACD (Address Conflict Detection)
Filter functions
Quality of Service (4 priority classes)
Port-Priorisierung
VLAN
IGMP Snooping (128 groups)
IGMP Query
Auto-Query-Port
Extended Multicast Filtering
Static Multicast Filtering
Supported browsers
MAC address table
Redundancy
Internet Explorer 5.5 or higher
16000
MRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
PROFINET IO device function
PROFINET IO conformance class
Time synchronization
Additional functions
PROFINET device
Fast Startup
Conformance-Class B
SNTP
BootP
DHCP-Client
Status and diagnostic indicators
Signal contact control voltage
Signal contact control current
LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet
port (Link and switchable Activity/Speed/Duplex)
24 V (typical)
260 mA (maximum)
Security functions
Link Layer Discovery Protocol (LLDP)
As per protocol 802.2
Network expansion parameters
Cascading depth
Maximum conductor length (twisted pair)
Network, linear, and star structure: any
100 m
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
24 V DC (redundant)
3.6 V
PP
(within the permitted voltage range)
18 V DC ... 32 V DC
260 mA (at U
S
= 24 V DC)
12/15/2015 Page 3 / 6
https://www.phoenixcontact.com/us/products/2700997
Industrial Ethernet Switch - FL SWITCH SMCS 14TX/2FX - 2700997
Technical data
Supply voltage
Current consumption
260 mA DC
General
Mounting type
Type AX
Net weight
DIN rail
Block design
1035 g
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Screw connection
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
12
7 mm
Standards and Regulations
Electromagnetic compatibility
Developed in acc. with standard
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test section
Noise emission
Noise immunity
Vibration (storage/transport)
Free from substances that could impair the application of coating
Vibration (operation)
Conformance with EMC Directive 2004/108/EC
IEC 61000-6.2
IEC 61000-4-2 (ESD)
Criterion B
IEC 61000-4-3 (electromagnetic fields)
Criterion A
IEC 61000-4-4 (burst)
Criterion B
IEC 61000-4-5 (surge)
Criterion B
IEC 61000-4-6 (immunity to conducted interference)
Criterion A
For one minute 500 V DC
EN 61000-6-3
EN 61000-6-2:2005
5g, 150 Hz, in acc. with IEC 60068-2-6
Yes
In acc. with IEC 60068-2-6: 5g, 150 Hz
12/15/2015 Page 4 / 6
https://www.phoenixcontact.com/us/products/2700997
Industrial Ethernet Switch - FL SWITCH SMCS 14TX/2FX - 2700997
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27250501
27250501
27250501
27250501
19170106
19170106
19170106
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000734
EC000734
EC000734
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201410
43201410
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / EAC / cULus Listed
Ex Approvals
Approvals submitted
Approval details
UL Listed
12/15/2015 Page 5 / 6
