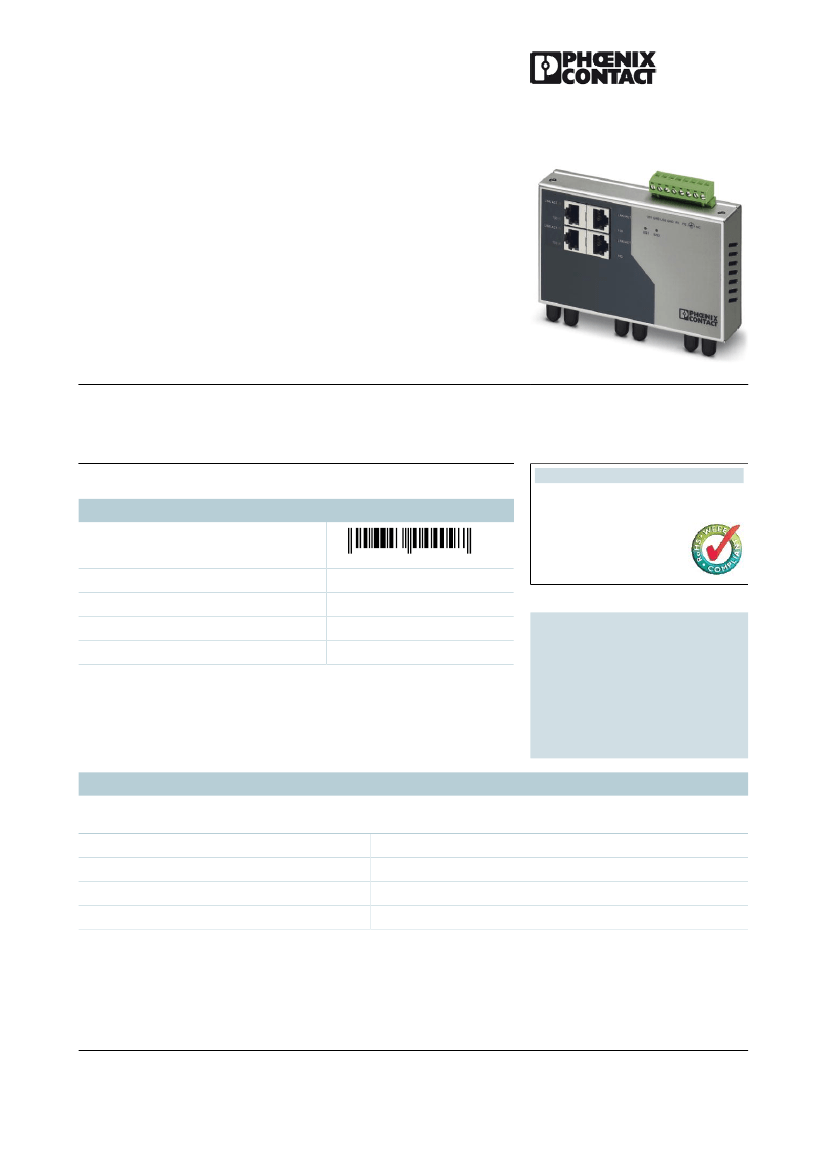

Extract from the online
catalog
FL SWITCH SF 4TX/3FX ST
Order No.: 2832603
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832603
Ethernet switch, 4 TP RJ45 ports, 3 FO ports, 100 Mbps full duplex in
ST-D format, automatic detection of data transmission speed of 10 or
100 Mbps (RJ45), auto crossing function
Product notes
Commercial data
GTIN (EAN)
4
046356
044097
WEEE/RoHS-compliant since:
09/21/2010
sales group
Pack
Customs tariff
Catalog page information
K000
1 pcs.
85176200
Page 199 (AX-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Interfaces
Interface
No. of ports
Type of connection
Transmission physics
Ethernet (RJ45)
4 (RJ45 ports)
RJ45 female connector, auto negotiation and autocrossing
Ethernet in RJ45 twisted pair
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 4, 2011
FL SWITCH SF 4TX/3FX ST
Order No.: 2832603
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832603
Transmission speed
Transmission length
Signal LEDs
Interface
No. of ports
Type of connection
Transmission physics
Transmission speed
Transmission length
Interface
Type of connection
Function
Basic functions
Status and diagnostic indicators
10/100 MBit/s (RJ45)
100 m (per segment)
Data receive, link status
Fiber optic interface
3 (FO ports)
ST format
Multimode glass fiber
100 MBit/s (ST, full duplex)
6400 m (glass fiber with F-G 50/125 0.7 dB/km F1200)
Potential-free signaling contact
Plug-in/screw connection via COMBICON
Unmanaged switch / autonegotiation, complies with IEEE 802.3,
store and forward switching mode
LEDs: U
S1
, U
S2
(redundant voltage supply), link and activity per
port
Network expansion parameters
Cascading depth
Maximum conductor length ((twisted pair)
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
General data
Weight
Width
Height
Depth
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
140 g
135 mm
115.3 mm
30 mm
IP20
0 °C ... 55 °C
-20 °C ... 70 °C
5 % ... 95 % (no condensation)
5 % ... 95 % (no condensation)
24 V DC
3.6 V
PP
(within the permitted voltage range)
18.5 V DC ... 30.2 V DC
Typ. 240 mA
Network, linear, and star structure: any
100 m
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 4, 2011
FL SWITCH SF 4TX/3FX ST
Order No.: 2832603
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832603
Air pressure (operation)
Air pressure (storage/transport)
Housing material
Noise emission
Noise immunity
Conformity with EMC directives
Developed in acc. with standard
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Test standard
Test result
Certificates / Approvals
86 kPa ... 108 kPa (up to 1500 m above mean sea level)
66 kPa ... 108 kPa (up to 3500 m above mean sea level)
Aluminum
EN 61000-6-4
EN 61000-6-2:2005
IEC 61000-6.2
IEC 61000-4-2 (ESD)
Criterion B
IEC 61000-4-3 (immunity to radiated interference)
Criterion A
IEC 61000-4-4 (burst)
Criterion A
IEC 61000-4-5 (surge)
Criterion A
IEC 61000-4-6 (immunity to conducted interference)
Criterion A
IEC 61000-4-8 (immunity to magnetic fields)
Criterion A
EN 55022 (emitted interference)
Criterion A
Certification
Certification Ex:
CUL, UL
CUL-EX LIS, UL-EX LIS
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 4, 2011
FL SWITCH SF 4TX/3FX ST
Order No.: 2832603
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832603
Accessories
Item
Designation
Description
Cable/conductor
2832250
2832263
2832276
2832221
2832629
2832289
2832292
2832580
2832616
General
0800886
2832991
2832865
E/NS 35 N
FL RJ45 PROTECT CAP
FL SEC PAC 4TX
End clamp, width: 9.5 mm, color: gray
Dust protection caps for RJ45 female connector
Layer1 security elements for four RJ45 network connections for
use with patch boxes and panels
FL CAT5 PATCH 0,3
FL CAT5 PATCH 0,5
FL CAT5 PATCH 1,0
FL CAT5 PATCH 1,5
FL CAT5 PATCH 10,0
FL CAT5 PATCH 2,0
FL CAT5 PATCH 3,0
FL CAT5 PATCH 5,0
FL CAT5 PATCH 7,5
Patch cable, CAT5, assembled, 0.3 m
Patch cable, CAT5, assembled, 0.5 m
Patch cable, CAT5, assembled, 1.0 m
Patch cable, CAT5, assembled, 1.5 m
Patch cable, CAT5, assembled, 10.0 m
Patch cable, CAT5, assembled, 2.0 m
Patch cable, CAT5, assembled, 3.0 m
Patch cable, CAT5, assembled, 5.0 m
Patch cable, CAT5, assembled, 7.5 m
Plug/Adapter
2744571
FL PLUG RJ45 GN/2
RJ45 connector, shielded, with bend protection sleeve, 2 pieces,
green for crossed cables, for assembly on site. For connections
that are crossed, it is recommended that the connector set with
green bend protection sleeves is used.
RJ45 connector, shielded, with bend protection sleeve, 2 pieces,
gray for straight cables, for assembly on site. For connections that
are not crossed, it is recommended that you use the connector set
with gray bend protection sleeve.
2744856
FL PLUG RJ45 GR/2
Software
2832166
FL SNMP OPC SERVER
SNMP-OPC server, German and English, for monitoring and
configuration of SNMP-capable equipment in HMI and SCADA
systems
Factory Manager, multilingual, configuration and diagnostics
software for ETHERNET networks in automation
2831044
FL SWT
Tools
2744869
FL CRIMPTOOL
Crimping pliers, for assembling the RJ45 connectors FL PLUG
RJ45..., for assembly on site
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 4, 2011
FL SWITCH SF 4TX/3FX ST
Order No.: 2832603
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2832603
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
