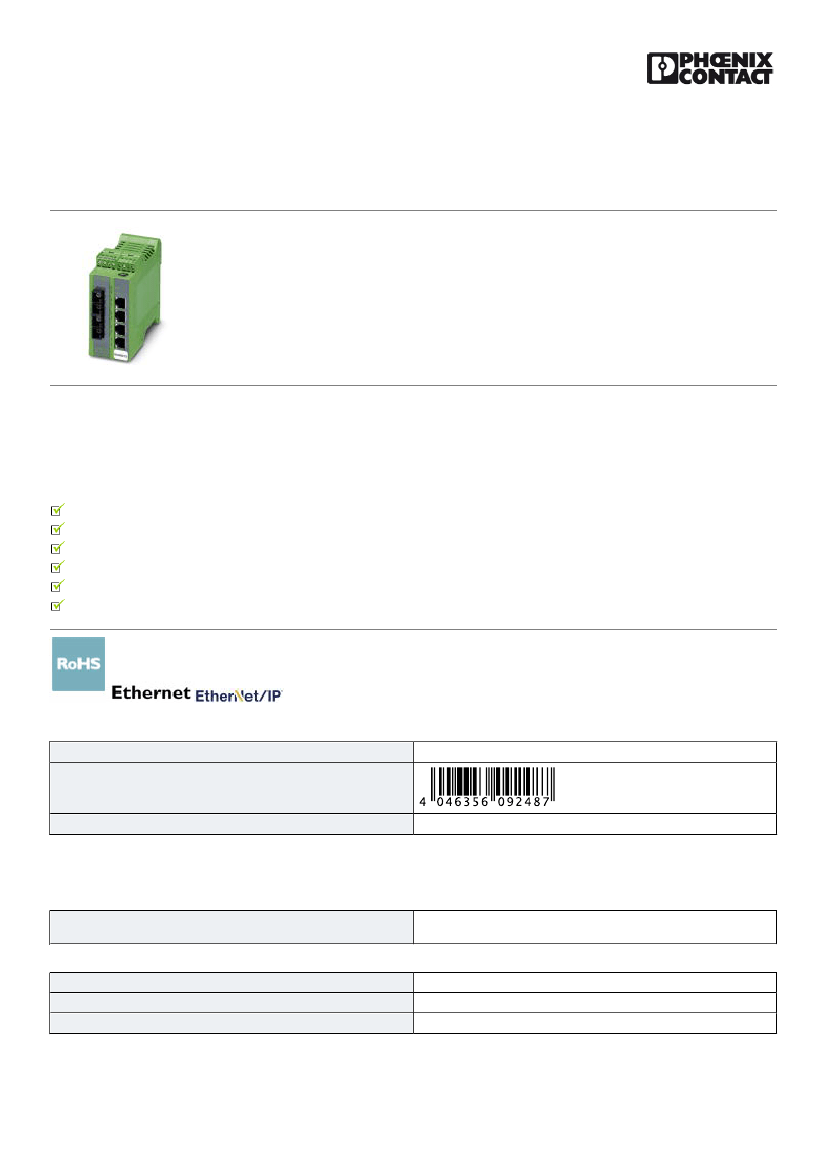

Industrial Ethernet Switch - FL SWITCH LM 4TX/2FX SM - 2891916
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ethernet Lean Managed Switch with four 10/100 Mbps RJ45 ports and two 100 Mbps FX-SC single-mode
ports
Product Description
The compact Lean Managed Switches (LM) enable the flexible and cost-effective creation of managed Ethernet networks in automation
applications. Thanks to the wide range of connection versions and the extended temperature range of -40°C to +70°C, it optimally meets the
requirements of industrial applications. It supports PROFINET conformance class A. And its integrated software enables the redundant creation,
diagnostics, and monitoring of networks using IT standard protocols.
Your advantages
Web-based management, SNMP
Compact housing
Comprehensive fiber optic versions
Configuration can be stored externally
-40°C ... +70°C ambient temperature
Configurable alarm contact
Key Commercial Data
Packing unit
GTIN
GTIN
4046356092487
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
45 mm
99 mm
112 mm
10/25/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2891916
Industrial Ethernet Switch - FL SWITCH LM 4TX/2FX SM - 2891916
Technical data
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
IP20
-40 °C ... 70 °C
-40 °C ... 85 °C
30 % ... 95 % (non-condensing)
30 % ... 95 % (non-condensing)
80 kPa ... 108 kPa (2000 m above sea level)
70 kPa ... 108 kPa (3000 m above sea level)
Interfaces
Interface 1
No. of ports
Note on the connection method
Transmission physics
Transmission speed
Transmission length
Interface 2
No. of ports
Transmission physics
Transmission speed
Transmission length
Ethernet (RJ45)
4 (RJ45 ports)
Auto negotiation and autocrossing
Copper
10/100 Mbps
100 m (per segment)
Ethernet FO
2 (SC single mode)
Single-mode fiberglass
100 Mbps (full duplex)
36000 m (fiberglass with F-G 9/125 0.36 dB/km)
32000 m (fiberglass with F-G 9/125 0.4 dB/km)
26000 m (fiberglass with F-G 9/125 0.5 dB/km)
Wavelength
Interface 5
Connection method
1300 nm
Serial (RS-232)
RS-232-C, 6-pos. MINI-DIN socket (PS/2)
Function
Basic functions
Store-and-forward switch complies with IEEE 802.3, 2 priority classes
according to IEEE 802.1p, TCP/IP protocol, BootP-compatible, port
mirroring, integrated web server function, multicast filtering, IGMP
snooping, VLAN, Rapid Spanning Tree (RSTP), DHCP server, PTCP
filter
Web-based management (HTTP)
SNMP v1/v2
Serial interface (V.24)
Diagnostic functions
Filter functions
1:1-Portmirroring
Quality of Service
VLAN (up to 8 VLANs)
IGMP Query
Auto-Query-Port
Extended Multicast Filtering
Supported browsers
Redundancy
Internet Explorer 5.5 or higher
STP (Spanning Tree Protocol)
10/25/2018 Page 2 / 5
Management
https://www.phoenixcontact.com/pi/products/2891916
Industrial Ethernet Switch - FL SWITCH LM 4TX/2FX SM - 2891916
Technical data
Function
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
PROFINET conformance class
Status and diagnostic indicators
Conformance-Class A
LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per
Ethernet port (Link/Activity and Speed)
Network expansion parameters
Cascading depth
Maximum conductor length (twisted pair)
Network, linear, and star structure: any
100 m
Supply voltage
Supply voltage
Residual ripple
Supply voltage range
Typical current consumption
24 V DC (redundant)
3.6 V
PP
(within the permitted voltage range)
18.5 V DC ... 30.5 V DC
250 mA (at U
S
= 24 V DC)
General
Mounting type
Type AX
Net weight
DIN rail
Block design
230 g
Connection data
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Screw connection
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
24
12
7 mm
Standards and Regulations
Electromagnetic compatibility
Type of test
Test result
Noise emission
Noise immunity
Vibration (storage/transport)
Vibration (operation)
Conformance with EMC Directive 2014/30/EU
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Operation/Storage/Transport: 5g, 150 Hz, Criterion 3
EN 61000-6-3/-4
EN 61000-6-2:2005
5g, 150 Hz, in acc. with IEC 60068-2-6
in acc. with IEC 60068-2-6: 5g, 150 Hz
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
10/25/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2891916
Industrial Ethernet Switch - FL SWITCH LM 4TX/2FX SM - 2891916
Technical data
Environmental Product Compliance
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Approvals
Approvals
Approvals
GL / BV / DNV / GL-SW / UL Listed / cUL Listed / LR / EAC / EAC / PRS / GL / cULus Listed
Ex Approvals
Approval details
GL
http://exchange.dnv.com/tari/
59820-08 HH
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
23316/B0 BV
DNV
http://exchange.dnv.com/tari/
A-13936
GL-SW
59820-08 HH
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 140324
LR
http://www.lr.org/en
14/20060
10/25/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/2891916
Industrial Ethernet Switch - FL SWITCH LM 4TX/2FX SM - 2891916
Approvals
EAC
EAC-Zulassung
EAC
RU *-
DE.A*30.B.01735
PRS
http://www.prs.pl/
TE/2105/880590/16
GL
http://www.gl-group.com/newbuilding/approvals/index.html
cULus Listed
