1120-40S2BN datasheet, PDF - EEWORLD Datasheet

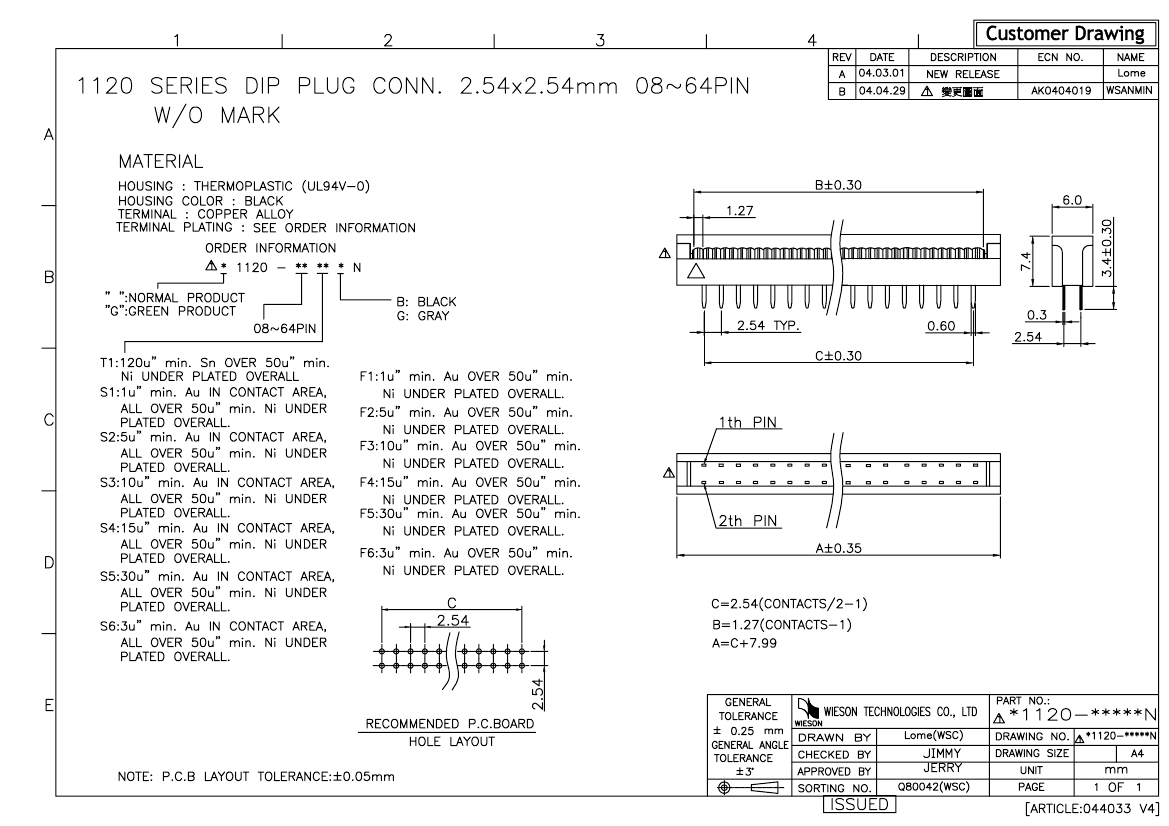

1120-40S2BN: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerWieson Technologies Co., Ltd.

Download Datasheet Parametric View All

1120-40S2BN Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
insulator material	POLYETHYLENE
Installation type	BOARD
Number of rows loaded	2
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Installation method	STRAIGHT
PCB row number	2
Terminal pitch	2.54 mm
Total number of contacts	40
Plating thickness	5u inch
Termination type	SOLDER
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
Match contact row spacing	0.1 inch
Filter function	NO
Guideline	UL
Objectid	304272665
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
YTEOL	2
body width	0.236 inch
subject depth	0.291 inch
body length	2.215 inch
Terminal length	0.134 inch
