DMV-07 datasheet, PDF - EEWORLD Datasheet

DMV-07: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerAdam Tech; Environmental Compliance

Download Datasheet Parametric View All

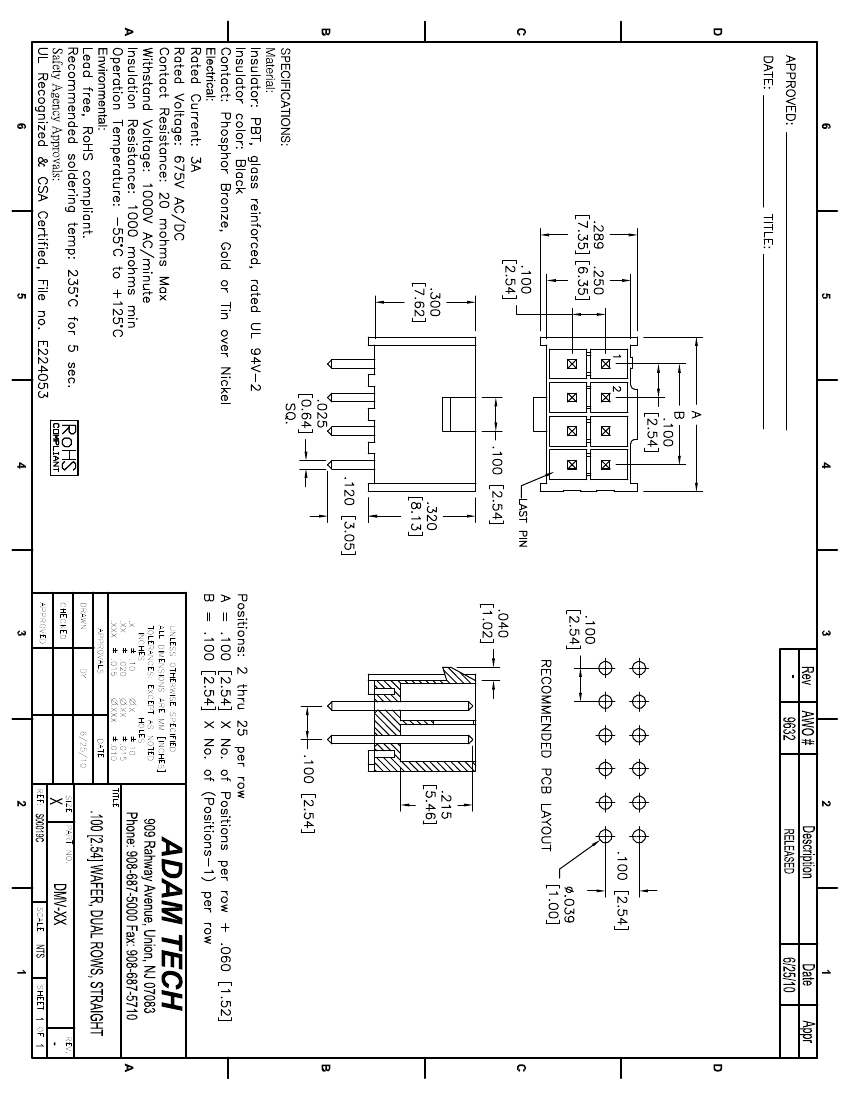

DMV-07 Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	Yes
YTEOL	2
Objectid	315152158
Reach Compliance Code	Compliant
ECCN code	EAR99
Is Samacsys	N
subject depth	0.3 inch
body length	0.76 inch
Terminal length	0.12 inch
body width	0.289 inch
Rated current (signal)	3 A
Connector type	BOARD CONNECTOR
Contact point gender	MALE
PCB row number	2
Number of rows loaded	2
Terminal pitch	2.54 mm
Total number of contacts	14
Contact resistance	20 mΩ
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation method	STRAIGHT
Installation type	BOARD
Insulator color	BLACK
Plug contact pitch	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
PCB contact pattern	RECTANGULAR
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
Installation option 1	LOCKING
PCB contact row spacing	2.54 mm
Termination type	SOLDER
contact mode	RECTANGULAR
Match contact row spacing	0.1 inch
Dielectric withstand voltage	1000VAC V
Filter function	NO
Insulation resistance	1000000000 Ω
polarization key	POLAR PIN POSITION
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
