500SHB102GSLX

Description
Ceramic Capacitor, Ceramic, 50V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.001uF, 1111,
CategoryPassive components    capacitor
File Size232KB,9 Pages
ManufacturerEXXELIA Group
Environmental Compliance
Download Datasheet Parametric View All

500SHB102GSLX Overview

Ceramic Capacitor, Ceramic, 50V, 2% +Tol, 2% -Tol, NP0, -/+30ppm/Cel TC, 0.001uF, 1111,

500SHB102GSLX Parametric

Parameter NameAttribute value
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Temperature Coefficient30ppm/Cel ppm/°C
Is it Rohs certified?Yes
YTEOL7.41
Objectid274433050
package instruction, 1111
Reach Compliance CodeCompliant
ECCN codeEAR99
Is SamacsysN
dielectric materialsCERAMIC
negative tolerance2%
positive tolerance2%
Rated (DC) voltage (URdc)50 V
size code1111
Temperature characteristic codeNP0
capacitance0.001 µF
Capacitor typeCERAMIC CAPACITOR
high2.6 mm
length2.8 mm
width2.8 mm
Number of terminals2
Package formSMT
method of packingTR

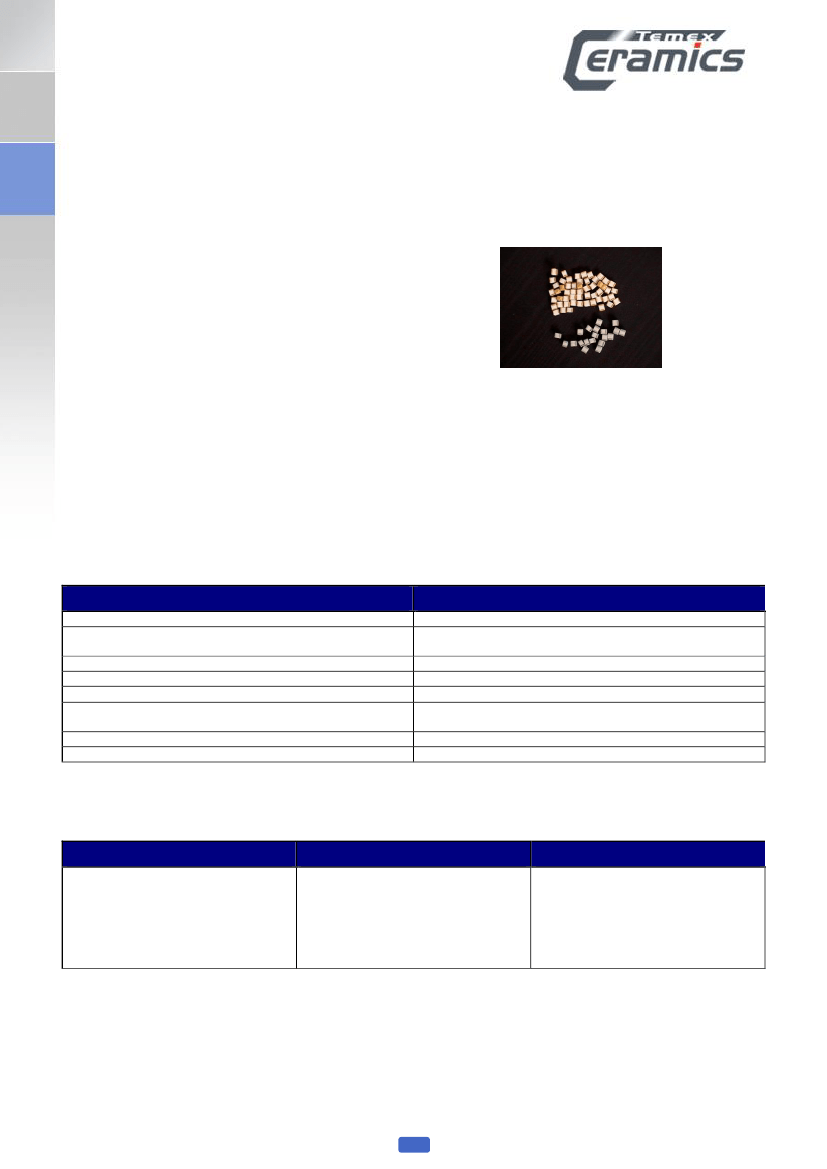

500SHB102GSLX Preview

S
uper-
H
iQ Series, Ultra Low ESR, NP0
RF Capacitors, RoHS & REACH Compliant
D
ESCRIPTION
Lowest ESR in class
Highest working voltage in class – 1’500V
Standard EIA sizes
Laser Marked (optional)
High Self Resonance Frequencies
A
PPLICATIONS
Cellular Base Station Equipment
Broadband Wireless Service
Point to Point/Multipoint Radios
RF Generators (NMR...)
C
IRCUIT APPLICATIONS
Filter Networks
Matching Networks
Tuning, Coupling and DC Blocking
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
I. E
LECTRICAL SPECIFICATIONS
Parameter
Capacitance
Tolerances
Working Voltage (WVDC)
Temperature Coefficient
Insulation Resistance
Dielectric Withstanding
(test voltage applied for 5 seconds)
Aging
Piezo Effects
Value
0.2 to 1'000 pF
B, C, D below 10 pF (A up to 3.3pF)
F, G, J, K above 10 pF
see Capacitance Value chart
0 +/-30ppm/°C, -55°C to +125°C
5
10 M min
2.5 x WVDC for WVDC ≤ 500V
1.5 x WVDC for WVDC > 500V
none
none
II. M
ECHANICAL SPECIFICATIONS
Parameter
Value
L
A
S
F
N
T
B
Comment
0402
0505
0603
0805
1206
1210
1111
Case Size
For each case size, the recommended terminations are listed below.
NB:
- all the terminations are backward compatible and lead-free.
- the non-magnetic terminations are all Magnetism-free Rated.
MR
certified®
ITAR
Free
®
2-SH- series.docx – Oct. 2014
1
S
uper-
H
iQ Series, Ultra Low ESR, NP0
RF Capacitors, RoHS & REACH Compliant
Termination Type
Standard (tin-plated nickel)
Code
S
SHL
AVAILABLE
SHS
AVAILABLE
SHA-SHF
SHN-SHT
AVAILABLE
SHB
AVAILABLE
Non-magnetic (silver-palladium)
A
AVAILABLE
(1)
Non-magnetic (tin-plated copper)
C
AVAILABLE
AVAILABLE
for SHA only
AVAILABLE
(1): limited range between 0.5pF and 150pF for SHF with silver-palladium terminations. For higher
capacitance values, please consult factory.
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.

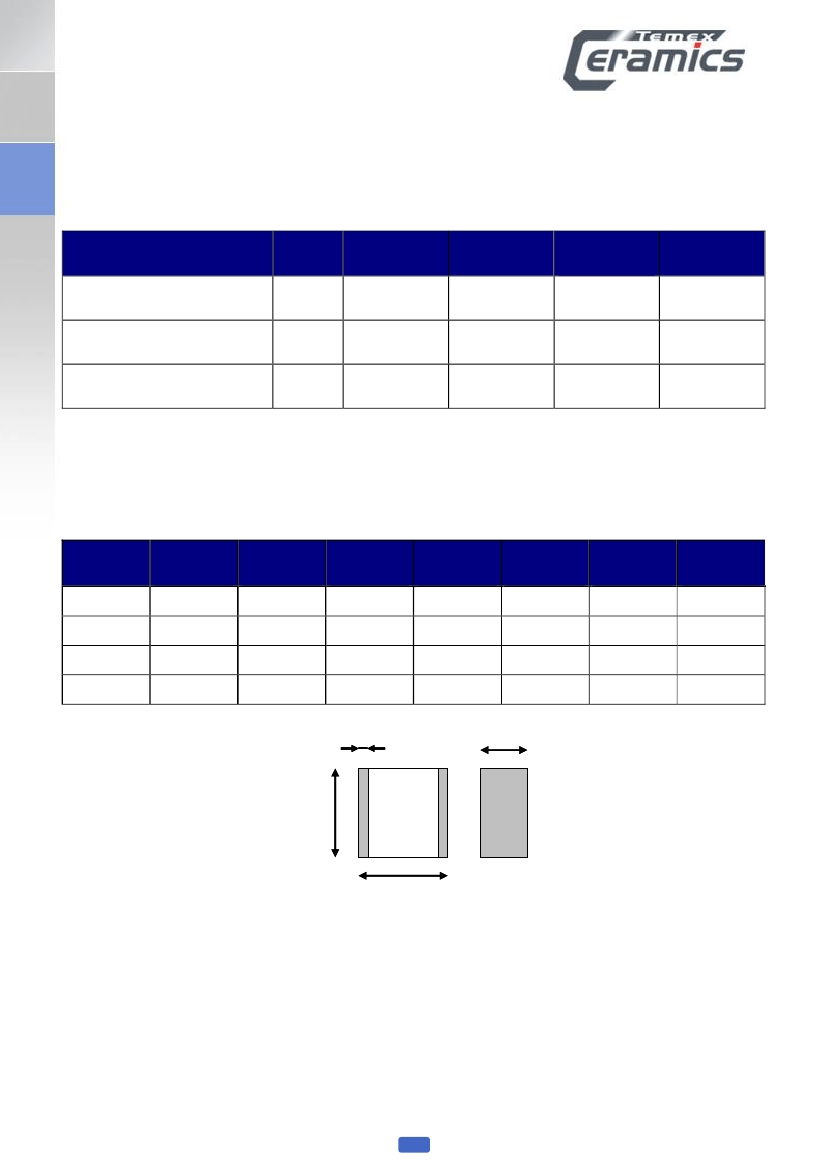

III. O
UTLINE DIMENSIONS
Parameter
Length (L)
Width (W)
Thickness (T)
End-Band (e)
L
(0402)
1.00
±0.15mm
0.50
±0.15mm
0.50 mm
(max.)
0.25
±0.15mm
A
(0505)
1.40
±0.25mm
1.40
±0.25mm
1.40 mm
(max.)
0.25
±0.15mm
S
(0603)
1.60
±0.25mm
0.80
±0.25mm
0.90 mm
(max.)
0.35
±0.20mm
F
(0805)
2.03
±0.25mm
1.27
±0.25mm
1.27 mm
(max.)
0.50
±0.30mm
N
(1206)
3.18
±0.25mm
1.58
±0.25mm
1.27 mm
(max.)
0.50
±0.25mm
T
(1210)
3.18
±0.25mm
2.41
±0.25mm
1.52 mm
(max.)
0.50
±0.25mm
B
(1111)
2.80
±0.40mm
2.80
±0.40mm
2.60 mm
(max.)
0.40
±0.25mm
e
T
W
L
2
2-SH- series.docx – Oct. 2014
S
uper-
H
iQ Series, Ultra Low ESR, NP0
RF Capacitors, RoHS & REACH Compliant
IV. E
NVIRONMENTAL SPECIFICATIONS
Parameter
Life Test
Moisture Resistance Test 1
Moisture Resistance Test 2
Value
1'000 hours, +125°C
at 2.0 x WVDC
240 hours, 85% relative humidity at +85°C
(ESA/SCC n°3009)
56 days, 93% relative humidity at +40°C
0V, 5V, WVDC
V. H
OW TO ORDER
501
SH
B
100
J
S
L
E
ROHS
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
voltage
dielectric
case size
capacitance
tolerance
code
A=±0.05
pF
B=±0.1
pF
C=±0.25
pF
D=±0.5
pF
F=±1%
G=±2%
J=±5%
K=±10%
termination
code
please refer
to
Mechanical
Specification
chart
mechanical
code
please refer
to
Mechanical
Configuration
chart
marking
code
“L” means
laser
marking
required
tape and
reel
“E” means
tape and
reel
required
the RoHS
tag is not
part of the
reference
please refer
to Volt.Code
given in
Capacitance
Values chart
L
A
S
F
please refer to
Cap. Code
given in
Capacitance
Values chart
250=25V
500=50V
101=100V
151=150V
201=200V
251=250V
301=301V
501=500V
601=600V
102=1000V
152=1500V
N
T
B
leave blank if
no
mechanical
requested
leave
blank if no
marking
requested
leave
blank if no
tape and
reel
requested
tag added
at the end
of P/N for
information
NB:
- for capacitance values lower than 10pF, tolerances B, C and D apply. For capacitance values lower
or equal to 4,7pF, tolerance A also applies. For capacitance values equal to or higher than 10pF,
tolerances F, G, J and K apply. Also, the A tolerance is only available up to 2pF inclusive (please
consult us for specific requirements).
- marking is only available on A and B case sizes.
VI. T
APE AND
R
EEL
The following chart gives the number of components per reel.
SHL
Parts per
Reel
10’000
SHA
3’000
SHS
4’000
SHF
4’000
SHN
3’000
SHT
3’000
SHB
1’000
3
2-SH- series.docx – Oct. 2014
S
uper-
H
iQ Series, Ultra Low ESR, NP0

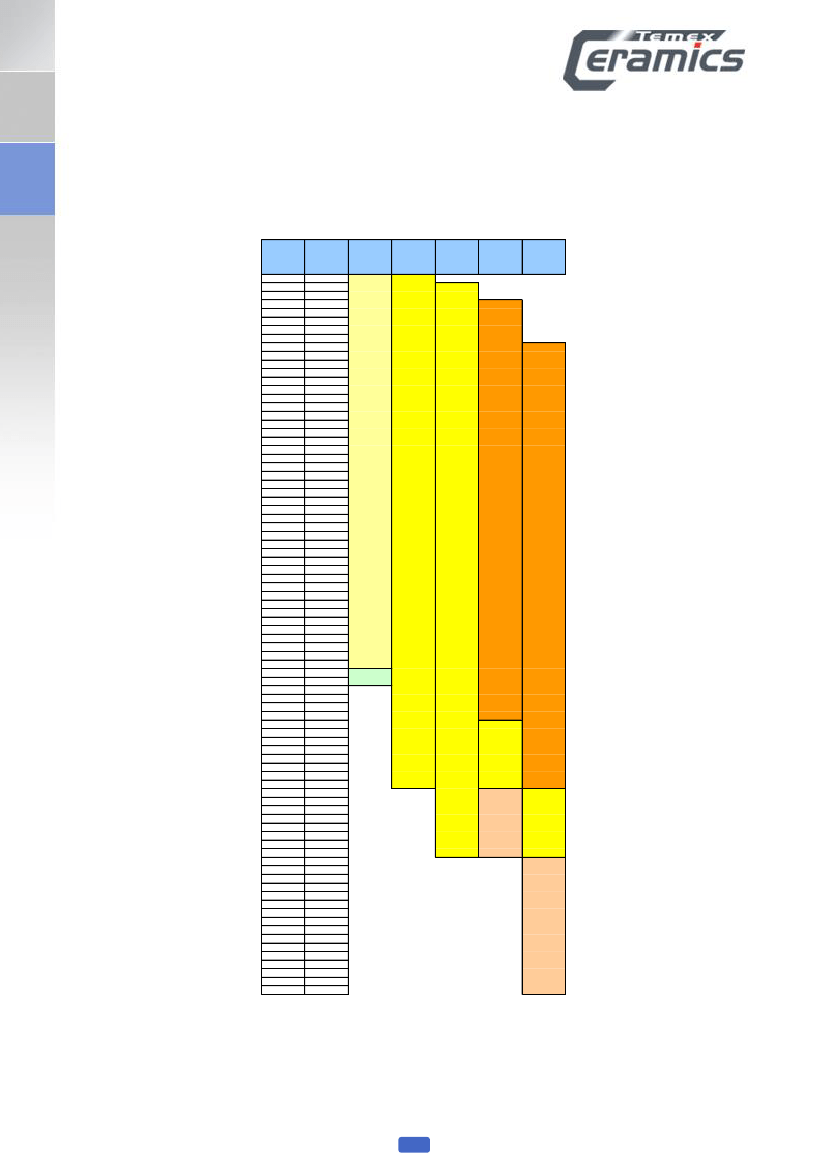

RF Capacitors, RoHS & REACH Compliant
VII. C
APACITANCE VALUES
Value (pF)
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
1,1
1,2
1,3
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,4
2,7
3,0
3,3
3,6
3,9
4,3
4,7
5,1
5,6
6,2
6,8
7,5
8,2
9,1
10
11
12
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1 000
Cap. Code
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
621
681
751
821
911
102
L
(0402)
S
(0603)
F
(0805)
N
(1206)
T
(1210)
500V
250V
250V
500V
25V
200V
100V
200V
100V
NB: special values, tolerances, higher WVDC and matching available, please consult factory.
4
2-SH- series.docx – Oct. 2014
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
50V
S
uper-
H
iQ Series, Ultra Low ESR, NP0

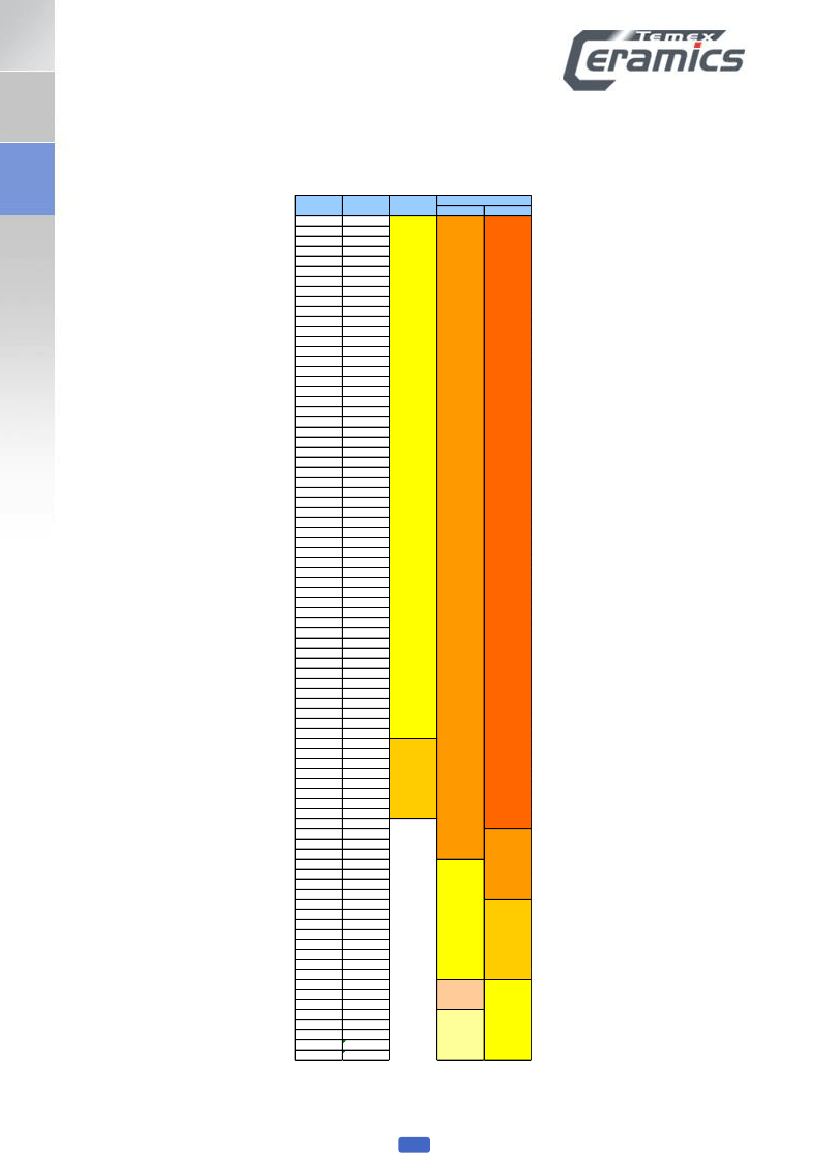

RF Capacitors, RoHS & REACH Compliant
Value (pF)
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
1,1
1,2
1,3
1,4
1,5
1,6
1,7
1,8
1,9
2,0
2,1
2,2
2,4
2,7
3,0
3,3
3,6
3,9
4,3
4,7
5,1
5,6
6,2
6,8
7,5
8,2
9,1
10
11
12
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
680
750
850
910
920
1 000
Cap. Code
0R2
0R3
0R4
0R5
0R6
0R7
0R8
0R9
1R0
1R1
1R2
1R3
1R4
1R5
1R6
1R7
1R8
1R9
2R0
2R1
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
120
150
160
180
200
220
240
270
300
330
360
390
430
470
510
560
620
680
750
820
910
101
111
121
131
151
161
181
201
221
241
271
301
331
361
391
431
471
511
561
681
751
851
911
921
102
A
(0505)
B
Standard
Extended
250V
1500V
500V
200V
1000V
200V
600V
100V
300V
50V
NB: special values, tolerances, higher WVDC and matching available, please consult factory.
5
2-SH- series.docx – Oct. 2014
TEMEX CERAMICS reserves the right to modify herein specifications and information at any time when necessary to provide optimum performance and cost.
