KGC2HNS1BBN datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> KGC2HNS1BBN

Preview

KGC2HNS1BBN: DescriptionRocker Switch, On-off-(on), Momentary, 20A, 14VDC, Screw Terminal, Rocker Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size230KB，2 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric View All

KGC2HNS1BBN Overview

Rocker Switch, On-off-(on), Momentary, 20A, 14VDC, Screw Terminal, Rocker Actuator, Panel Mount,

KGC2HNS1BBN Parametric

Parameter Name	Attribute value
Is Samacsys	N
Objectid	315857081
Reach Compliance Code	Compliant
ECCN code	EAR99
Terminal material	COPPER ALLOY
Actuator material	GLASS FILLED NYLON
End contact material	SILVER ALLOY
Shell material	NYLON
surface mount	NO
Terminal surface	Silver (Ag)
Actuator color	BLACK
Body color	BLACK
center contact material	SILVER ALLOY
Installation features	PANEL MOUNT
Termination type	SCREW
Actuator length	0.395 inch
body width	20.701 mm
body height	28.0924 mm
Body length or diameter	35.9918 mm
Contact (AC) maximum rated R load	10A@250VAC
Contact (DC) maximum rated R load	20A@14VDC
Contact function	ON-OFF-(ON)
Switch type	ROCKER SWITCH
Actuator type	ROCKER
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1500VAC V
Insulation resistance	100000000 Ω
Maximum contact current (DC)	20 A
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	14 V
Switch action	MOMENTARY
JESD-609 code	e4
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Is it Rohs certified?	Yes

KGC2HNS1BBN Preview

Sealed Rocker Switch

Single and Double Pole

KG Series

Features

•

Snap-in mounting

RoHS compliant

100,000 cycles mechanical life

1

•

IP56

Switches up to 20 A

Standard Parts

KGC2ANB1BBD

1

KGC2BNB1BBB

North America and Europe

KGC2CNB1BBN

KGC3ANB1BBD

The part number configuration matrix below provides details to the part numbers above.

For configurable part numbers that are not listed above, not listed in your region, or for custom part numbers, contact the factory or

your distributor.

Part Number Breakdown

KGC2ANB1BBD

KG C 2 A N B

Series

KG

Contact Rating

2

C

Circuitry

2

3

Single pole

Double pole

Switch Function

A

B

C

ON-OFF

ON-ON

ON-OFF-ON

Lighting Options

N

Non-lighted

Terminal Type

6.35 mm (0.250”)

B

quick connect

S

Screw, No. 6-32 UNC

4.8 mm (0.189”)

T

solder, square

D

(ON)-OFF

E

ON-(OFF)

F

ON-(ON)

H ON-OFF-(ON)

J (ON)-OFF-(ON)

2

See Electrical Specifications section

1BBD

Actuator Type

Non-lighted

1

Actuator Color

B

Black

Housing Color

B

Black

Actuator Marking

B

Blank

D

O ––

E

O I

F

O II

G

– =

N

I O II

www.cherryswitches.com

Page 1 of 2, Last update 2015-04-07, Specifications subject to change without notice.

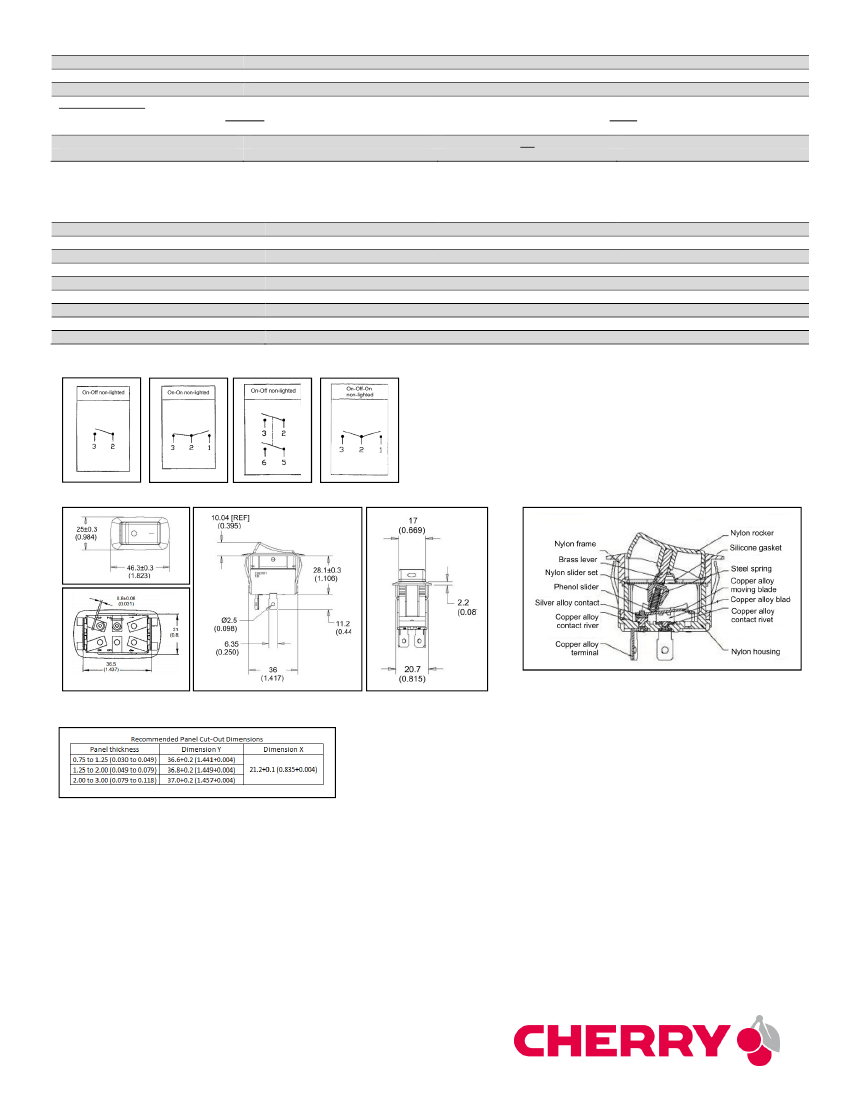

Electrical Specifications

Dielectric Strength

Insulation Resistance

Initial Contact Resistance

Electrical Ratings

UL1054

20 A 125 VAC / 10 A 250 VAC

Electrical Life at Rated Load

Minimum Operations

1500 VAC for 1 minute

100 MΩ min at 500 VDC

0.050

Ω

max

VDC

3

20 A 14 VDC

UL

6,000

DC ratings not agency approved

UL File No: E23301

3

Material and Environmental Specifications

Actuator

Housing

Spring

Contacts

Movable Arm

Terminals

Rubber Boot

Operating Temperature Range

Ingress Protection

Nylon 66 with 33% Glass Fiber

Nylon 66

Steel

Silver Alloy

Silver

Silver-Plated Copper Alloy

Silicone

-25

O

C to +85

O

C (-13

O

F to +185

O

F)

IP56

Circuitry and Switch Functions

Dimensions mm (inches)

www.cherryswitches.com

Page 2 of 2, Last update 2015-04-07, Specifications subject to change without notice.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
