221YL34F29: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Receptacle; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerNICOMATIC

Download Datasheet Parametric View All

221YL34F29 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Receptacle

221YL34F29 Parametric

Parameter Name	Attribute value
Filter function	NO
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
polarization key	POLARIZED HOUSING
Evacuation force-minimum value	.1946 N
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
Is Samacsys	N
YTEOL	0
Objectid	303859633
Reach Compliance Code	Compliant
ECCN code	EAR99
Contact to complete cooperation	SN
Contact point gender	MALE
PCB row number	2
Number of rows loaded	2
Connector type	BOARD CONNECTOR
Contact resistance	10 mΩ
insulator material	GLASS FILLED POLYETHYLENE
Durability	500 Cycles
Installation type	BOARD
Terminal pitch	2.0066 mm
Total number of contacts	34
Other features	NONE
Body/casing type	RECEPTACLE
Installation method	STRAIGHT
Rated current (signal)	3 A
Contact completed and terminated	TIN
Contact style	SQ PIN-SKT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
contact mode	RECTANGULAR
Installation option 1	M2X0.4
Number of connectors	ONE
Contact material	COPPER ALLOY
PCB contact row spacing	2.0066 mm
Board mount options	PEG
Mixed contacts	NO
Installation option 2	JACKSCREW
PCB contact pattern	RECTANGULAR
Termination type	SOLDER
Terminal length	0.177 inch
body width	0.236 inch
subject depth	0.217 inch
body length	1.732 inch

Preview

Download Datasheet

View All

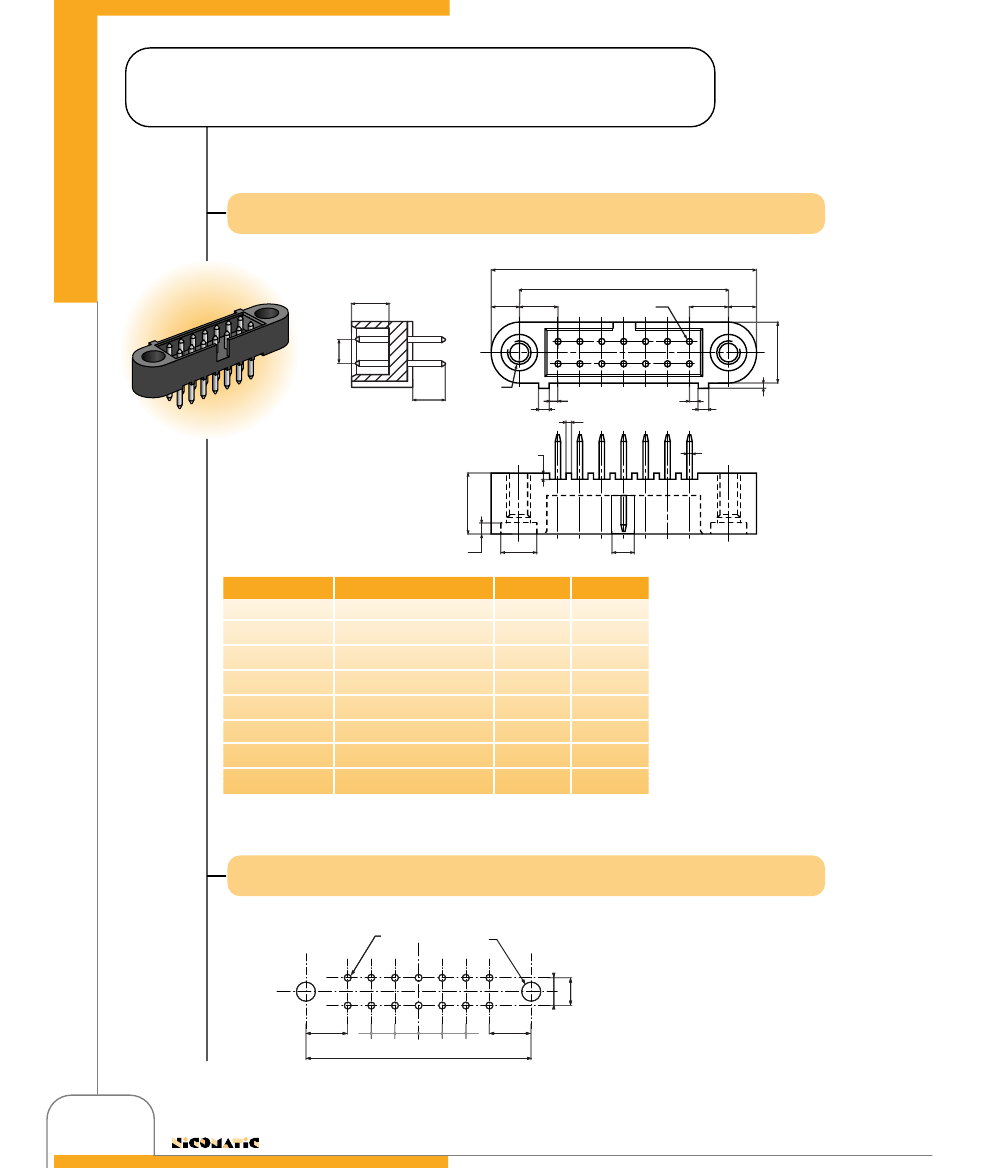

Micro-connector

CMM 220 series

MALE STRAIGHT PCB

3.5

2.5

3.5

contact n 1

3.5

2.5

5.5

0.8

0.5

0.8

0.5

Contact

•

Length L

3 mm

4.5 mm

5.5

0.5

ø 0.5

ø 3.2

Dimensions in mm

PART NUMBER

NUMBER OF CONTACTS

221

•

06 Fxx

10 Fxx

14 Fxx

20 Fxx

26 Fxx

34 Fxx

42 Fxx

50 Fxx

xx : fixing, refer to page 25.

Other sizes are available upon request, please consult us.

PCB LAY OUT

ø 0.65 min.

ø 2.2 min.

= =

3.5

Pitch = 2

3.5
