0140100212040 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0140100212040

0140100212040: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size771KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

0140100212040 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Black Insulator, Receptacle

0140100212040 Parametric

Parameter Name	Attribute value
Other features	ROHS COMPLIANT
Contact to complete cooperation	SN
Installation type	BOARD
Terminal pitch	2.54 mm
Total number of contacts	40
Number of rows loaded	2
Rated current (signal)	3 A
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
insulator material	GLASS FILLED POLYAMIDE
Installation method	STRAIGHT
PCB row number	2
body width	0.197 inch
subject depth	0.11 inch
body length	2 inch
Terminal length	0.132 inch
PCB contact row spacing	2.54 mm
Plating thickness	197u inch
Termination type	PRESS FIT
Contact material	PHOSPHOR BRONZE
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
Insulator color	BLACK
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Number of connectors	ONE
Contact completed and terminated	TIN
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Filter function	NO
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Guideline	UL
Reach Compliance Code	Compliant
Country Of Origin	Germany
ECCN code	EAR99
Is Samacsys	N
Objectid	304375601

Preview

Download Datasheet

View All

Ratioplast-Electronics

Serie

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.: +49 (0) 5741 / 23 661-0 / Fax: +49 (0) 5741 / 23 661-20

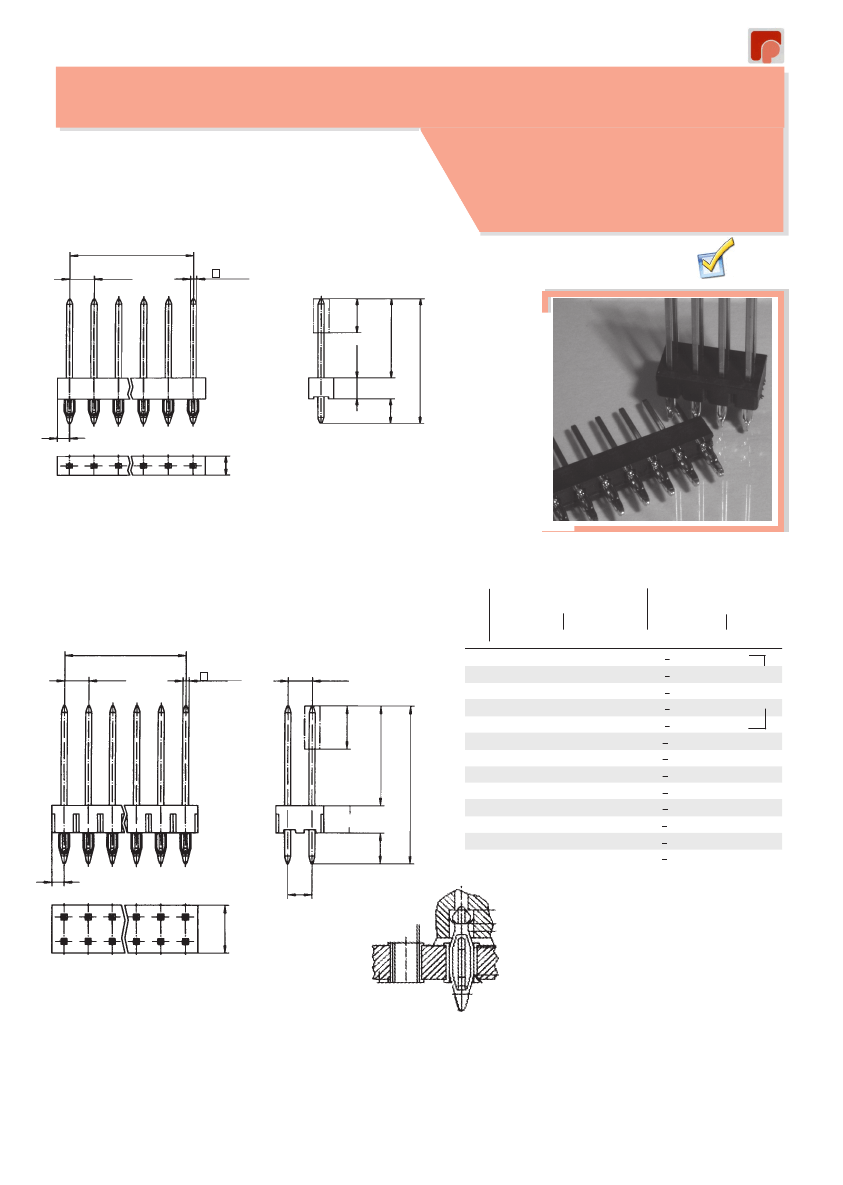

014

STIFTLEISTEN

PIN HEADERS

1-, 2-REIHIG, GERADE, Raster 2,54 mm

1-, 2-ROW, STRAIGHT, Pitch 2,54 mm

Stiftleiste mit symmetrischem Isolierkörper, mit Vierkant-

stiften 0,635

und flexibler Einpresszone mit Schulter

Pin header with symmetrical insulator, with square

contacts 0,635

and compliant press-in zone with

shoulder

(N-1)x2,54

2,54

0,635

RoHs

2,8

2,5

Abmessung / Dimensions

Codierte Stiftlänge/

Länge Einpressbereich/

Encoded pin length

Length press-in area

Länge Steckbereich/

Gesamtstiftlänge/

Length contact area

Total length of contact

(N/2-1)x2,54

2,54

0,635

2,54

2,8

2,54

06*

07*

08*

09*

10*

11*

12*

13*

5,15

6,45

8,55

10,35

11,55

13,65

15,45

16,65

18,75

20,55

21,75

22,85

23,85

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

3,35

0,2

11,30

12,60

14,70

16,50

17,70

19,80

21,60

22,80

24,90

26,70

27,90

29,00

30,00

Andere Maße auf Anfrage.

Bitte nutzen Sie das Anfrageformular.

Other dimensions on request.

Please use the form for inquiries .

* Sonderstiftlängen; Lieferzeiten und

Abnahmemengen auf Anfrage

* Special pin length ; delivery time

and MOQ on request

D = Länge der selektiven Veredelung min. 4,5 mm (Standard)

Length of Selective Plating min. 4,5 mm (Standard)

E = 1,27 ± 0,25 mm

5,0

**Einpresstechnik über den Isolierkörper**

**press-in technique over insulator**

148

Ratioplast-Electronics,

H.Wiedemann GmbH 2006 Sonderanfertigungen und andere Veredelungen auf Anfrage / Customer Designs and special platings on request

Die Vervielfältigung dieser Unterlagen durch Kopieren oder Nachdruck ist nur mit ausdrücklicher Genehmigung des Herausgebers gestattet.

Zuwiderhandlung verplichtet zu Schadensersatz. Design und technische Änderung vorbehalten.
