PHA013-PA1102GFE datasheet, PDF

PHA013-PA1102GFE: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric View All

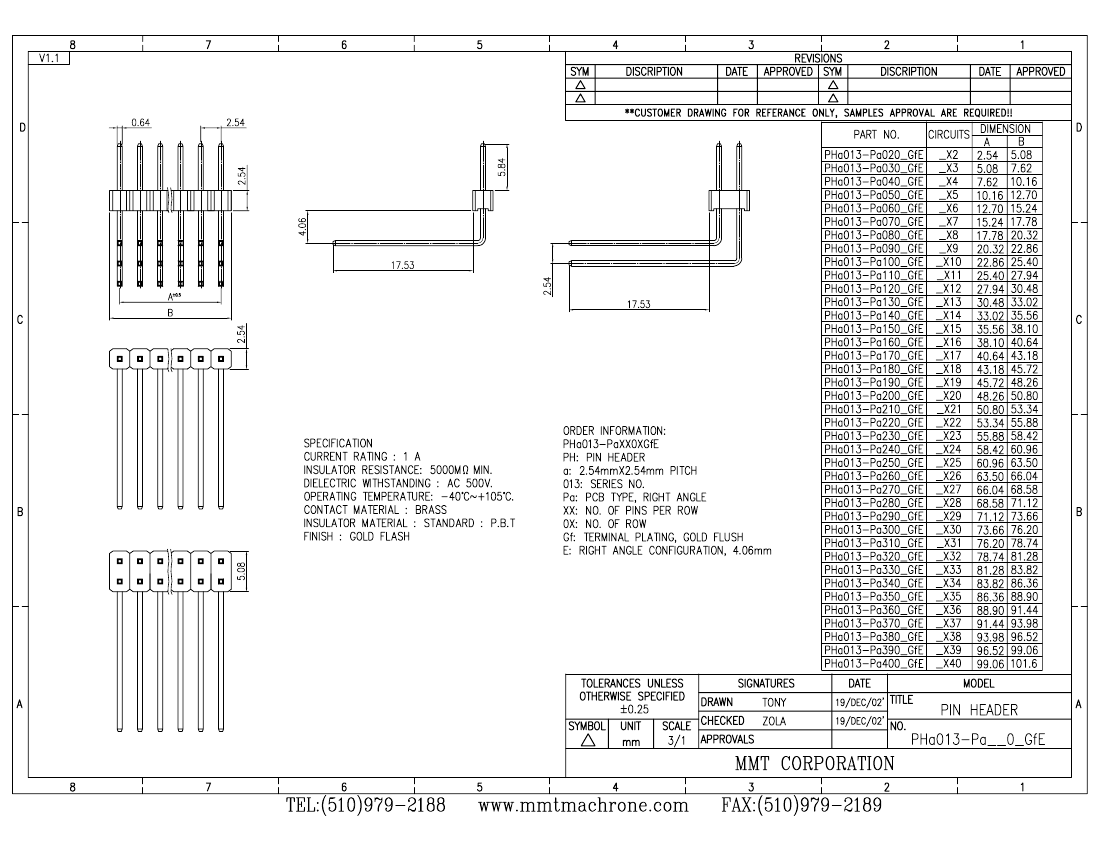

PHA013-PA1102GFE Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Wire Wrap Terminal, Receptacle

Parameter Name	Attribute value
Filter function	NO
Insulation resistance	5000000000 Ω
Dielectric withstand voltage	500VAC V
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Reach Compliance Code	Unknown
ECCN code	EAR99
Is Samacsys	N
Objectid	304316766
Terminal length	0.69 inch
body width	0.2 inch
subject depth	0.372 inch
body length	1.1 inch
Installation type	BOARD
Number of rows loaded	2
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Terminal pitch	2.54 mm
Total number of contacts	22
insulator material	POLYBUTYLENE TEREPHTHALATE
Installation method	RIGHT ANGLE
PCB row number	2
Rated current (signal)	1 A
Contact material	BRASS
Contact style	SQ PIN-SKT
Termination type	WIRE WRAP
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Contact completed and terminated	GOLD
contact mode	RECTANGULAR
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Number of connectors	ONE
Plating thickness	FLASH inch
