2PH2-74R-G datasheet, PDF - EEWORLD Datasheet

2PH2-74R-G: DescriptionBoard Connector, 74 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size130KB，2 Pages; ManufacturerKeltron Connector Company

Download Datasheet Parametric View All

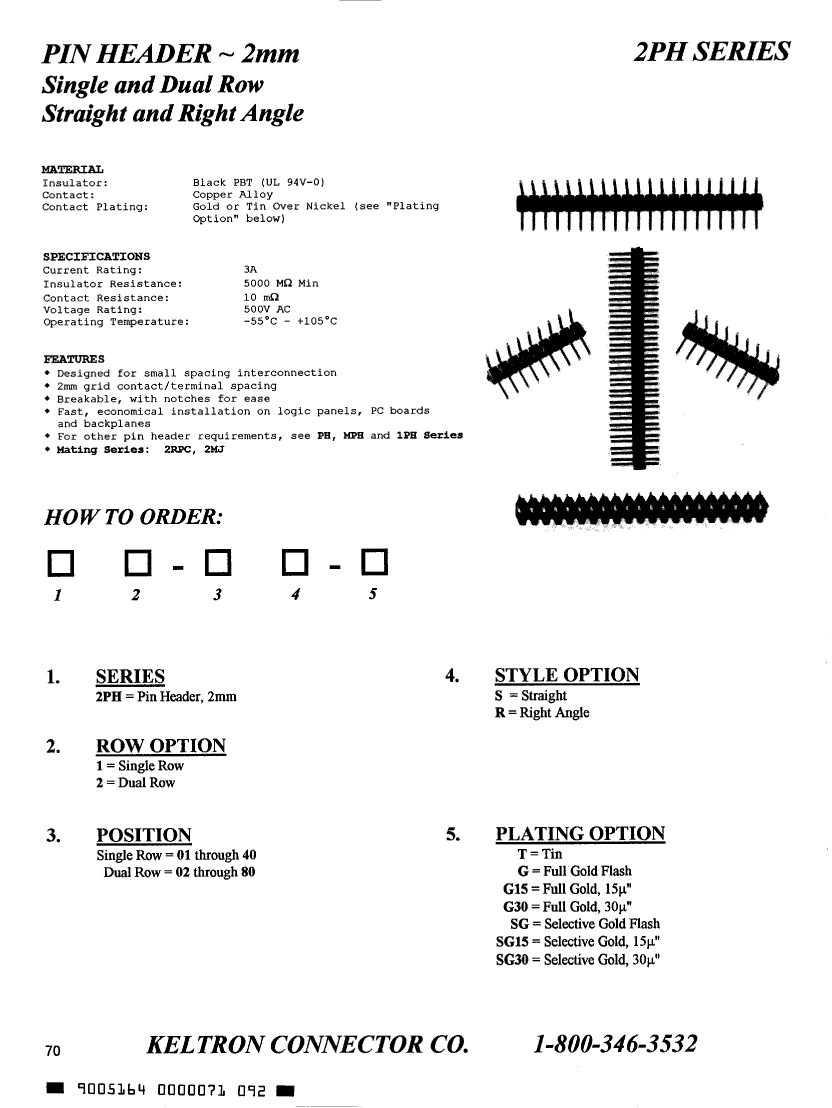

2PH2-74R-G Overview

Board Connector, 74 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
ECCN code	EAR99
Is Samacsys	N
Objectid	1166279785
Reach Compliance Code	Unknown

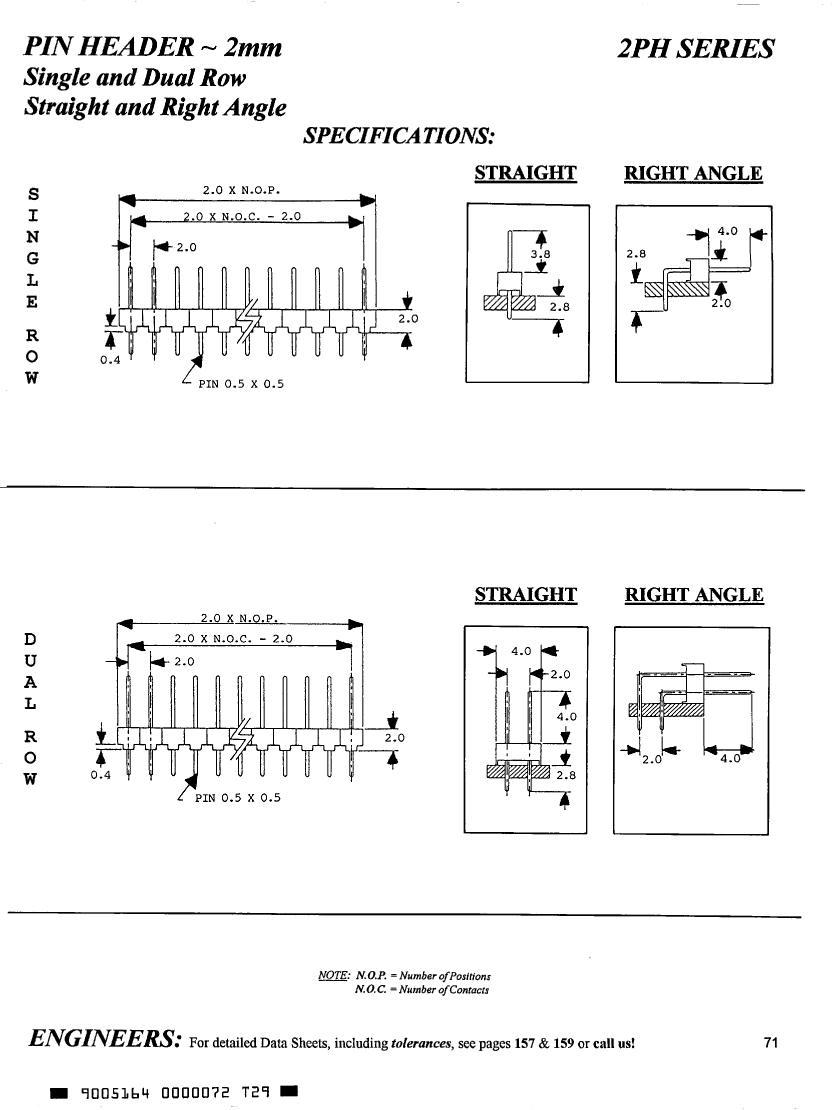

body width	0.157 inch
body length	2.923 inch
Terminal length	0.11 inch
Installation type	BOARD
Number of rows loaded	2
Rated current (signal)	3 A
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact resistance	10 mΩ
insulator material	GLASS FILLED POLYESTER
Contact point gender	MALE
Installation method	RIGHT ANGLE
PCB row number	2
Terminal pitch	2.0066 mm
Total number of contacts	74
Insulator color	BLACK
Match contact row spacing	0.079 inch
Number of connectors	ONE
Contact completed and terminated	GOLD
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Plug contact pitch	0.079 inch
Mixed contacts	NO
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Contact material	COPPER ALLOY
Termination type	SOLDER
Dielectric withstand voltage	500VAC V
Filter function	NO
Insulation resistance	5000000000 Ω
