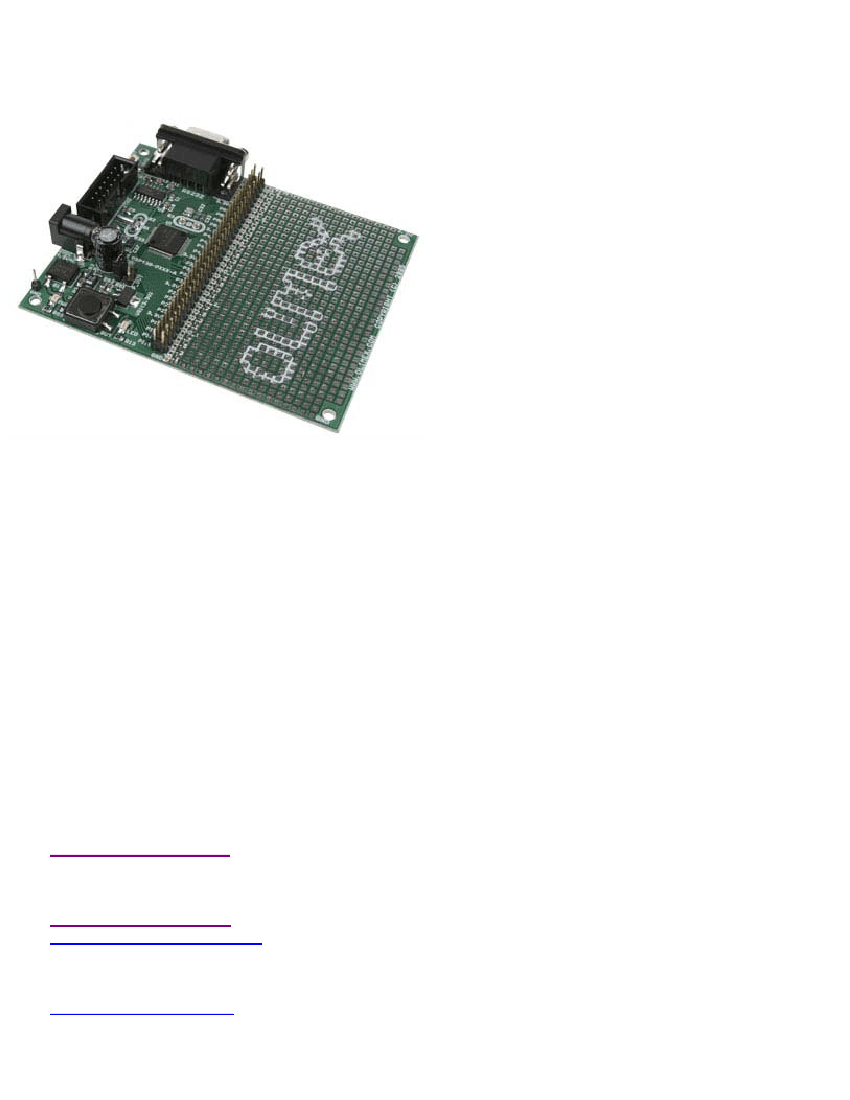

MSP430F1611 PROTOTYPE DEVELOPMENT BOARD

Page 1 of 2

MSP430-P1611

MPS430F1611 DEVELOPMENT BOARD

FEATURES:

•

MCU:

MSP430F1611

with 48K Bytes Program Flash, 256 Bytes data Flash, 10K Bytes RAM

JTAG connector

RS232 driver + DB9 conector

User button

power supply LED

user status LED

32 768 Hz oscillator crystal

optional high frequency crystal (socket)

RESET button

RST/NMI pin pull-up

external power supply jack for AC or DC power supply

Voltage regulator + power supply filtering capacitor

extension headers for each uC pin

prototype area with 0.1" step, Vcc + GND bus

PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

Dimensions: 100x80 mm (3.9x3.15")

DOCUMENTS:

•

MSP430-Pxxx-dimensions

HARDWARE:

•

MSP430-PXXX schematic

•

MSP430-JTAG connector (top)

SOFTWARE:

•

MSP430-P1611 demo code

for EW-MSP430

6/19/2012
